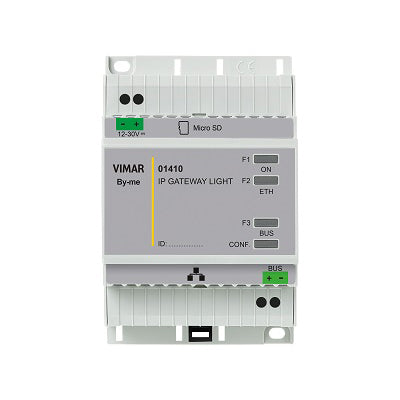

Vimar VM-01410 By-me home automation Light Gateway

IoT gatewayTCP/IPIP40DIN-rail adapter
SKU VM-01410
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Overview

VM-01410 is Vimar 01410, by-me home automation Light Gateway.

IoT gateway for integration, configuration and local or remote maintenance of the By-me Plus home automation system, via IP/LAN network, Cloud and app for smartphone, tablet, PC or IP supervision touch screens, light version for max 32 By-me Plus devices, for DIN (60715 TH35) rail installation, occupies 4 17.5 mm modules

Specifications

VM-01410Specifications from the official datasheet

Technical data

Product type
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Ethernet interface
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Protocol
TCP/IP
Provider dependent
No
Visualization
No
Web-Server
Yes
Radio interface
No
IR interface
No
Degree of protection (IP)
IP40

Packaging

EAN
8007352586123
Packed size (cm)
11.7 Γ— 10.8 Γ— 7.1
Packed weight
174 g
Pieces per box
60

Certifications

Certifications
CE marking (EU), RoHS UAE, WEEE Directive, UK PSTI compliance

Technical drawings

VM-01410 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-01410 By-me home automation Light Gateway used for?

The Vimar VM-01410 is an IoT gateway for integrating, configuring, and maintaining a By-me Plus home automation system. It supports both local and remote management through an IP/LAN network, Cloud access, and apps for smartphone, tablet, PC, or IP supervision touch screens.

Which systems is the VM-01410 compatible with?

This model is designed specifically for the Vimar By-me Plus home automation system. It is intended to work as a light version gateway for By-me Plus environments rather than as a general-purpose automation controller.

How many devices can the Vimar VM-01410 manage?

The VM-01410 light gateway supports a maximum of 32 By-me Plus devices. That makes it suitable for smaller By-me Plus installations that need gateway-based integration and remote maintenance features.

Does the Vimar VM-01410 provide dimming control?

No, this model is listed as non-dimmable. Its role is gateway-based integration and system access, not lighting dimming control.

What are the mounting size and operating temperature range for the VM-01410?

The gateway is made for DIN rail installation on a 60715 TH35 rail and occupies 4 modules of 17.5 mm each. It is rated for ambient temperatures from -25Β°C to 70Β°C, which supports use across a wide range of operating environments.

What warranty is provided for the Vimar VM-01410?

The stated warranty period for this model is 3 years. This gives buyers a defined coverage window for the product after purchase.
