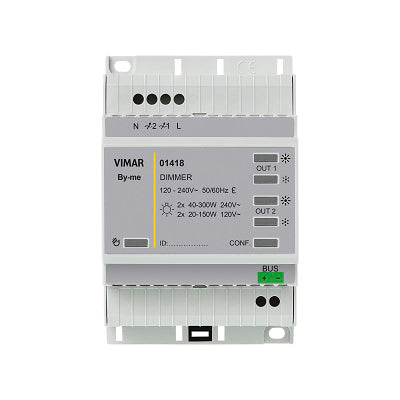

Vimar VM-01418 Home autom.dimmer 2OUT200W LED120-240V
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandVimar
-
Power Rating150 Watt
-
Output Voltage240 Volt
-
Rated Current0.00 Ampere
-
Input Voltage120V~240V
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length11.7 cm
-
Width10.8 cm
-
Height7.1 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Vimar VM-01418 used for?
The Vimar VM-01418 is a By-me Plus home automation dimmer designed to control lighting loads. It is intended for dimmable incandescent lamps, electronic transformers, CFL lamps, and LED lamps within its stated power ranges. This makes it suitable for smart building and commercial lighting control applications where centralized automation is required.
What lamp types are compatible with the VM-01418?
This model supports incandescent lamps, electronic transformers, CFL lamps, and LED lamps. Compatibility depends on staying within the specified load ranges for each lamp type and supply voltage. It is a dimmable controller using cutting-edge phase control, so it is intended for loads that work with that dimming method.
What are the load limits of the Vimar VM-01418?
The VM-01418 has 2 outputs and supports 40-300 W at 240 V or 20-150 W at 120 V for incandescent lamps. For electronic transformers it supports 40-300 VA at 240 V or 20-150 VA at 120 V, for CFL lamps 10-200 W at 240 V or 5-100 W at 120 V, and for LED lamps 3-200 W at 240 V or 3-100 W at 120 V. Buyers should match the lamp type and operating voltage to the correct range for this exact model.
Does the VM-01418 support smart automation systems?
Yes, this dimmer is designed for the Vimar By-me Plus smart automation platform. It also includes a local control push button for on-device operation. That combination makes it suitable for projects that need both automation integration and direct local control.
How does the VM-01418 compare with a single-output dimmer?
A key difference is that the VM-01418 provides 2 outputs, which can be useful when a project needs control of two lighting channels from one device. It is also built specifically for By-me Plus smart automation rather than only standalone dimming. For buyers standardizing on Vimar building automation, that gives it broader system-level value than a basic dimmer.
Is the Vimar VM-01418 suitable for demanding environmental conditions?
This model is rated for operation from -25°C to 70°C, which supports use in a wide range of commercial and technical environments. That operating range is broader than many standard indoor-only control devices. It also includes fuse protection, which adds an extra layer of product protection.
What physical format does the VM-01418 use?
The Vimar VM-01418 is designed for DIN rail mounting on 60715 TH35 rail systems. It occupies 4 modules of 17.5 mm each, which is relevant for enclosure and panel space planning. This format makes it suitable for structured control cabinets and building automation panels.
