Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

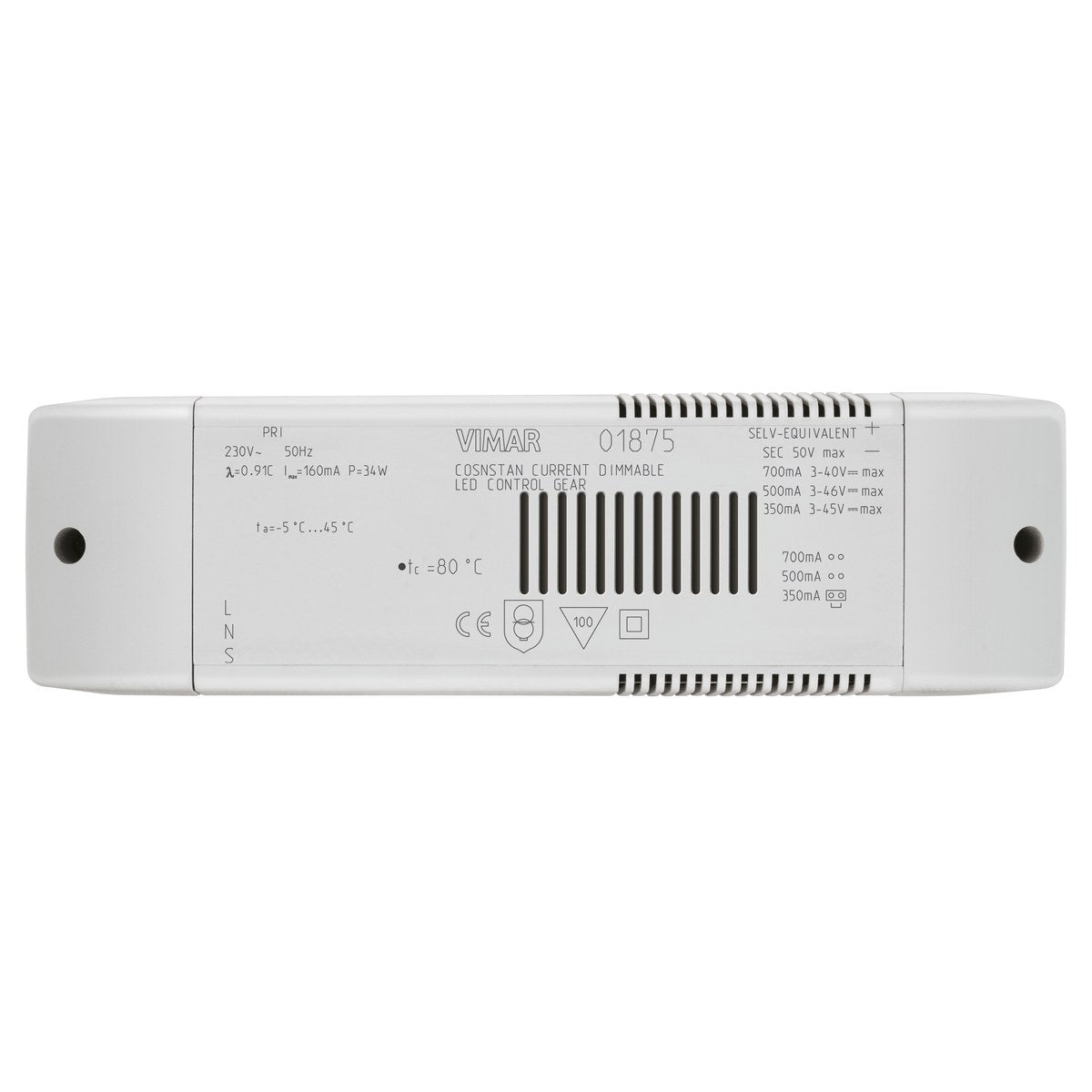

Vimar VM-01875 LED driver 230V 50Hz 350/500/700mA

AC dimmable34W

SKU VM-01875

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-01875 is Vimar 01875, LED driver 230V 50Hz 350/500/700mA.

Multivoltage power supply unit 230 V~ 50 Hz for LED strip modules 350/500/700 mA, dimmable with MASTER dimmers (not for 230 V~ LED lamps and 0-10 V and 1-10 V ballast)

Specifications

VM-01875Specifications from the official datasheet

Technical data

Product type: LED driver
Suitable for outdoor use: No
Housing: Plastic housing
Suitable for constant current: Yes
Suitable for constant voltage: No
Output voltage: 3 - 50 V
Output current: 0 - 700 mA
Suitable for DC-voltage (primary side): No
Output power: 27 - 27.01 W
Degree of protection (IP): IP20
Protection class according to IEC 61140: II
Length: 36.6 mm
Width: 218 mm
Height: 60.5 mm

Packaging

EAN: 8007352458482
Packed size (cm): 26.9 × 11.6 × 4.9
Packed weight: 333.9 g

Certifications

Certifications: CE marking (EU), WEEE Directive

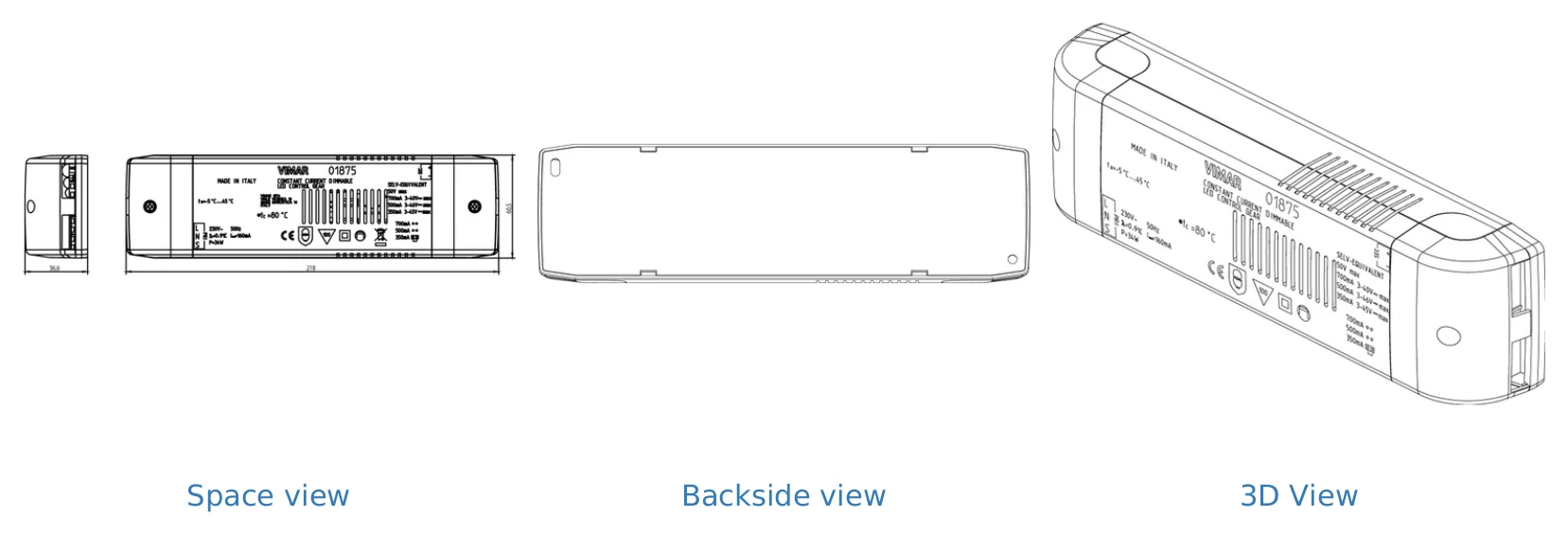

Technical drawings

Downloads

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download

FAQ

What is the Vimar VM-01875 designed for?

The Vimar VM-01875 is a multivoltage power supply unit for LED strip modules. It is intended for 230 V~ 50 Hz systems and supports constant-current LED strip applications within its stated electrical ratings.

What output current options does the Vimar VM-01875 support?

This model is specified for 350 mA, 500 mA, and 700 mA operation. Its rated current is listed as 0.7000 A, and the product name and description identify the three supported current levels.

Is the Vimar VM-01875 suitable for 230 V LED lamps or 0-10 V / 1-10 V ballasts?

No. The product description explicitly says it is not for 230 V~ LED lamps and not for 0-10 V or 1-10 V ballast applications. It is intended for LED strip modules instead.

Can this LED driver be used in demanding temperature conditions?

The specified operating temperature range is from -30.0000 °C to 70.0000 °C. That gives it a relatively wide environmental range for projects where ambient conditions may vary significantly.

What are the main electrical ratings of the Vimar VM-01875?

This model is rated at 27.0000 W with an output voltage of 50.0000 V. It operates from a 230 V~ 50 Hz supply and is built for constant-current LED strip module use.

Does the Vimar VM-01875 support dimming accessories?

The product description states that it is dimmable with MASTER dimmers. It also clearly excludes use with 0-10 V and 1-10 V ballast control schemes, so compatibility should be evaluated against that specific dimming approach.

What warranty period is listed for the Vimar VM-01875?

The listed warranty period for this model is 3.0000 years. For B2B buyers, that can be a useful reference point when comparing lifecycle expectations across similar LED drivers.
