Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar VM-6923 Due Fili add. power supply unit 230V

Additional powerDin Rail28VDC

SKU VM-6923

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-6923 is Vimar 6923, due Fili add. power supply unit 230V.

Additional power supply unit for Due Fili system video door entry system with 28 Vd.c. output, power supply 230 V~ 50 Hz 15 VA, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Specifications

VM-6923Specifications from the official datasheet

Technical data

Product type: Power supply door communication
Input voltage: 230 V
Type of current: DC
Output voltage: 28 V
Degree of protection (IP): IP20
Installation technique: Bus system
Integrated door opening circuit: No
Control function: No
Evaluation function: No
Service indication: No
Programming lock: No

Packaging

EAN: 8013406182135
Packed size (cm): 12.5 × 7.5 × 6.5
Packed weight: 556 g
Pieces per box: 22

Certifications

Certifications: CE marking (EU), RoHS UAE, WEEE Directive

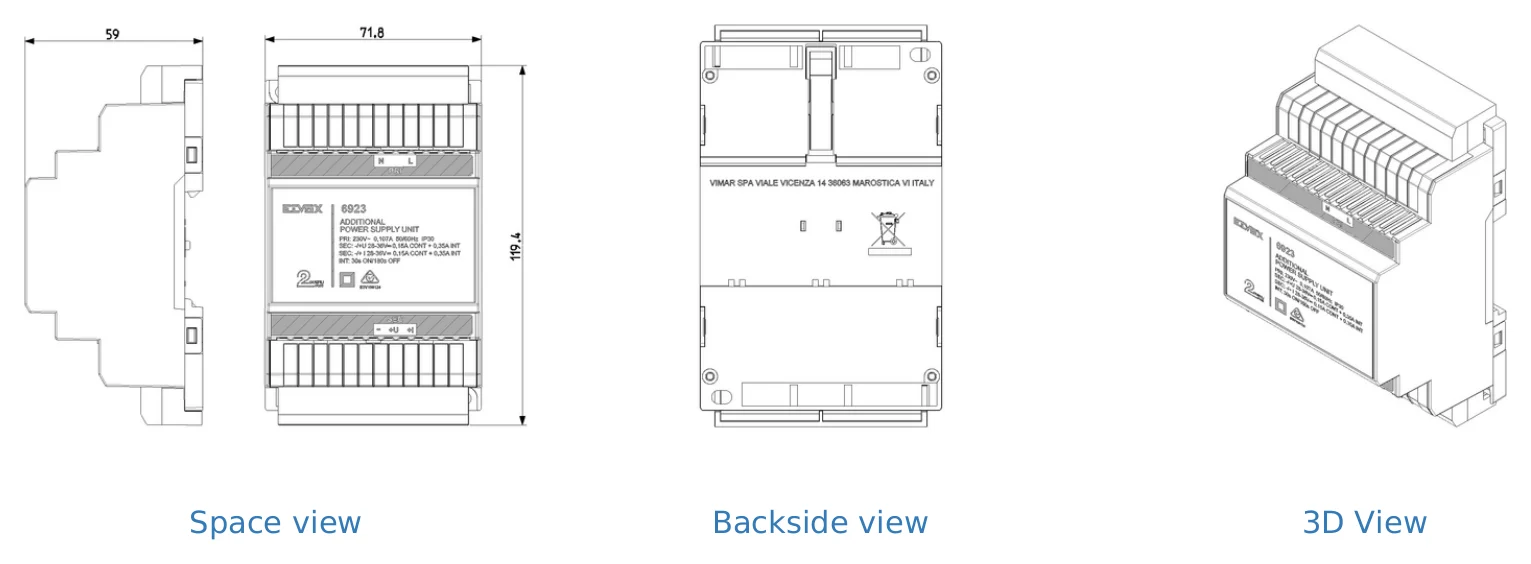

Technical drawings

Downloads

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download

FAQ

What is the Vimar VM-6923 used for?

The Vimar VM-6923 is an additional power supply unit for Due Fili video door entry systems. It is intended for use where a Due Fili system requires an added 28 V d.c. power supply source.

Is the VM-6923 compatible with Vimar Due Fili systems?

Yes. The VM-6923 is specified as an additional power supply unit for Vimar Due Fili system video door entry applications.

What output voltage does the Vimar VM-6923 provide?

The VM-6923 provides a 28 V d.c. output. Its input power supply rating is 230 V~ at 50 Hz, 15 VA.

How much DIN rail space does the VM-6923 occupy?

The Vimar VM-6923 is designed for DIN rail mounting on 60715 TH35 rail. It occupies 4 modules, with each module sized at 17.5 mm.

What operating temperature range is specified for the VM-6923?

The VM-6923 is specified for temperatures from -30 °C to 70 °C. This range can help buyers confirm suitability for the expected operating environment.

What warranty period is listed for the Vimar VM-6923?

The listed warranty period for the Vimar VM-6923 is 3 years. This applies to this specific additional power supply unit model.
