What is the Vimar VM-6923 used for?

The Vimar VM-6923 is an additional power supply unit for Due Fili video door entry systems. It is intended for use where a Due Fili system requires an added 28 V d.c. power supply source.

Is the VM-6923 compatible with Vimar Due Fili systems?

Yes. The VM-6923 is specified as an additional power supply unit for Vimar Due Fili system video door entry applications.

What output voltage does the Vimar VM-6923 provide?

The VM-6923 provides a 28 V d.c. output. Its input power supply rating is 230 V~ at 50 Hz, 15 VA.

How much DIN rail space does the VM-6923 occupy?

The Vimar VM-6923 is designed for DIN rail mounting on 60715 TH35 rail. It occupies 4 modules, with each module sized at 17.5 mm.

What operating temperature range is specified for the VM-6923?

The VM-6923 is specified for temperatures from -30 °C to 70 °C. This range can help buyers confirm suitability for the expected operating environment.

What warranty period is listed for the Vimar VM-6923?

The listed warranty period for the Vimar VM-6923 is 3 years. This applies to this specific additional power supply unit model.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

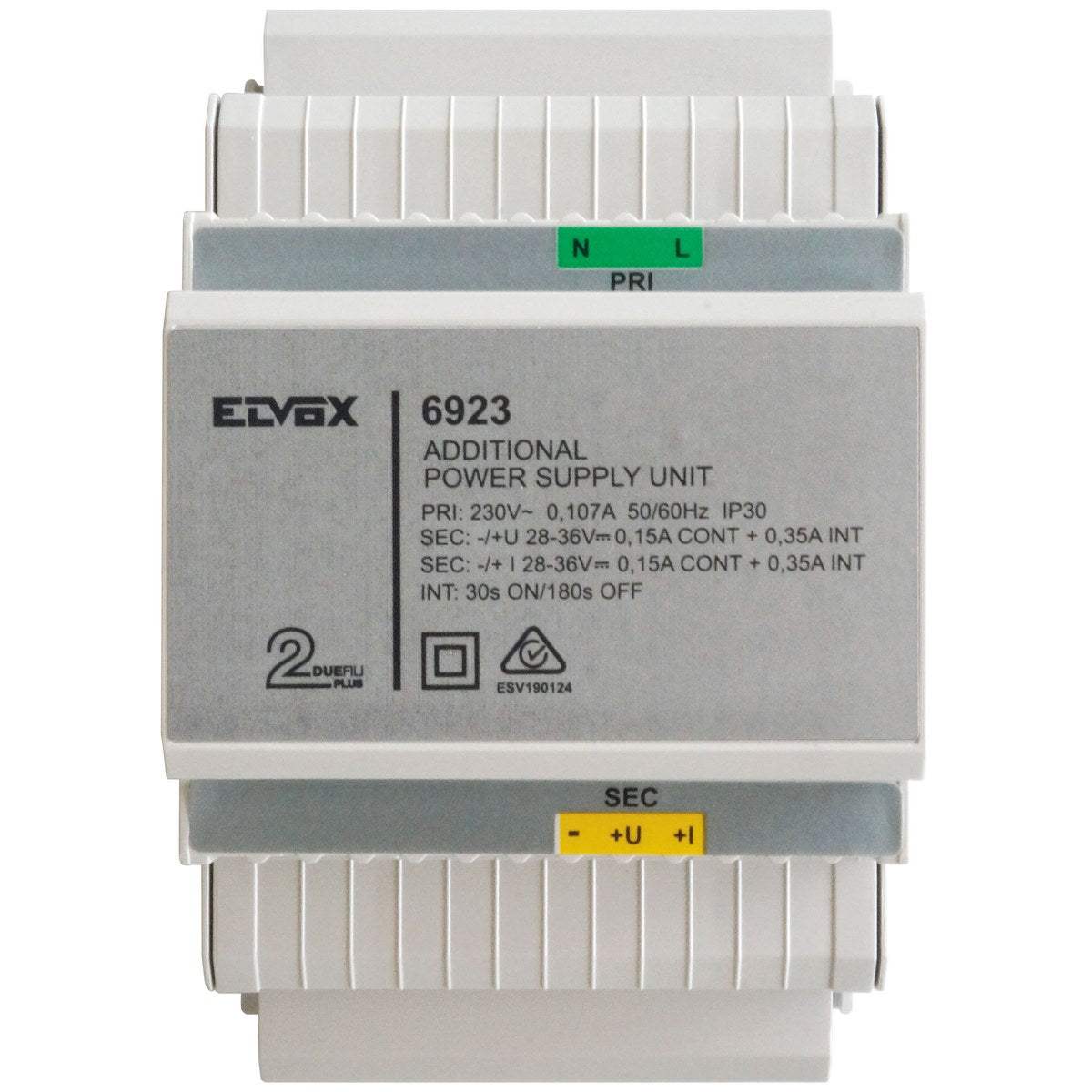

Vimar VM-6923 Due Fili add. power supply unit 230V

Additional powerDin Rail28VDC

SKU VM-6923

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Additional power supply unit for Due Fili system video door entry system with 28 Vd.c. output, power supply 230 V~ 50 Hz 15 VA, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm
