Vimar Plana Plastic 2 Socket - Reflex Snow - 10A

SKU Z-VM12SOCW-RS

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

This kit is assembled from Vimar parts: 1 × plate 4M Reflex snow (VM-14654.41); 1 × frame 4M +screws (VM-14614); 2 × 2P+E 10A Australian SICURY outlet (VM-14261). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM12SOC-RSSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14654.41 · plate 4M Reflex snow
Frame × 1: VM-14614 · frame 4M +screws
Socket outlet × 2: VM-14261 · 2P+E 10A Australian SICURY outlet white

Cover plate (VM-14654.41)

Product type: Cover frame for domestic switching devices
Number of units: 4
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 4
Number of device inserts vertical: 1
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Plastic
Material quality: Acrylic glass
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Colour: White
RAL-number (similar): 9016
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 142.5 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 142.5 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14614)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 4
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), IMQ (Italy)

Socket outlet (VM-14261)

Product type: Socket outlet
Model: Australian standard AS/NZS 3112 (type I)
Number of socket outlets: 1
Number of modules (module system): 2
Connection type: Screwed terminal
With enhanced contact protection: Yes
Label space/information surface: Yes
Colour: White
RAL-number (similar): 9003
Mounting method: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Nominal current: 10 A
Nominal voltage: 250 V
Frequency: 50 - 60 HZ
Suitable for degree of protection (IP): IP20
Device width: 44.8 mm
Device height: 49 mm
Device depth: 38.7 mm
Certifications: CE marking (EU), RCM (Australia), WEEE Directive

Technical drawings

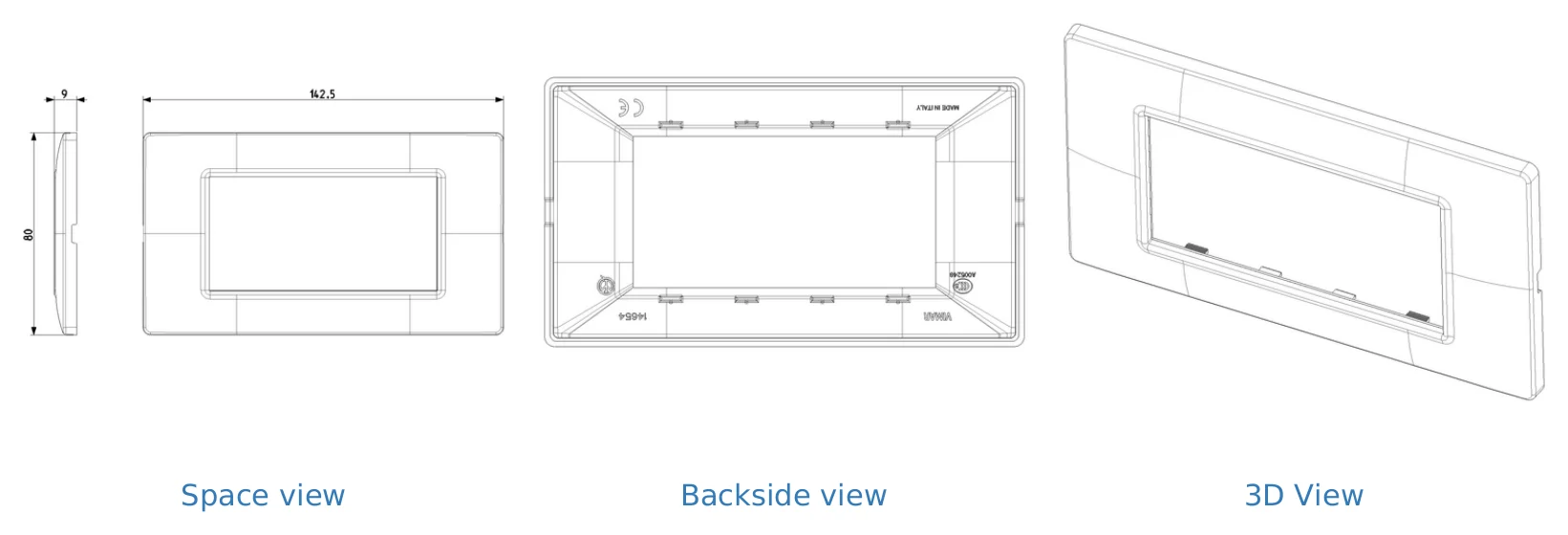

Z-VM12SOC-RS Cover plate VM-14654.41: drawing — Cover plate VM-14654.41: drawing

Z-VM12SOC-RS Frame VM-14614: drawing — Frame VM-14614: drawing

Z-VM12SOC-RS Socket outlet VM-14261: drawing — Socket outlet VM-14261: drawing

FAQ

What is the Vimar Plana Plastic 2 Socket - Reflex Snow - 10A used for?

This parent product is a Vimar Plana double socket in a Reflex Snow finish. It is intended for buyers selecting a 10A socket product within the Vimar Plana switch and socket range.

What finish colour does this Vimar Plana double socket have?

The finish colour is Reflex Snow. This finish applies across the parent product model and the listed child variants.

What are the dimensions of this Vimar Plana 2 socket product?

The listed dimensions are 139.5 mm wide, 80 mm long, and 9 mm high. The product weight is listed as 1 kg.

What warranty is included with this Vimar Plana socket?

The warranty period listed for this parent product is 3 years. The listed child variants also show the same 3-year warranty period.

Are there meaningful differences between the listed child variants?

The provided child variant data shows the same product name, Reflex Snow finish, and 3-year warranty for both listed SKUs. No finish, rating, or warranty difference is shown in the supplied variant data, so the variant choice should be based on the available SKU or catalogue requirement.

Is this product part of the Vimar Plana range?

Yes. The parent model is listed under Vimar Plana-related categories, including Plana switch and double socket categories.
