Vimar

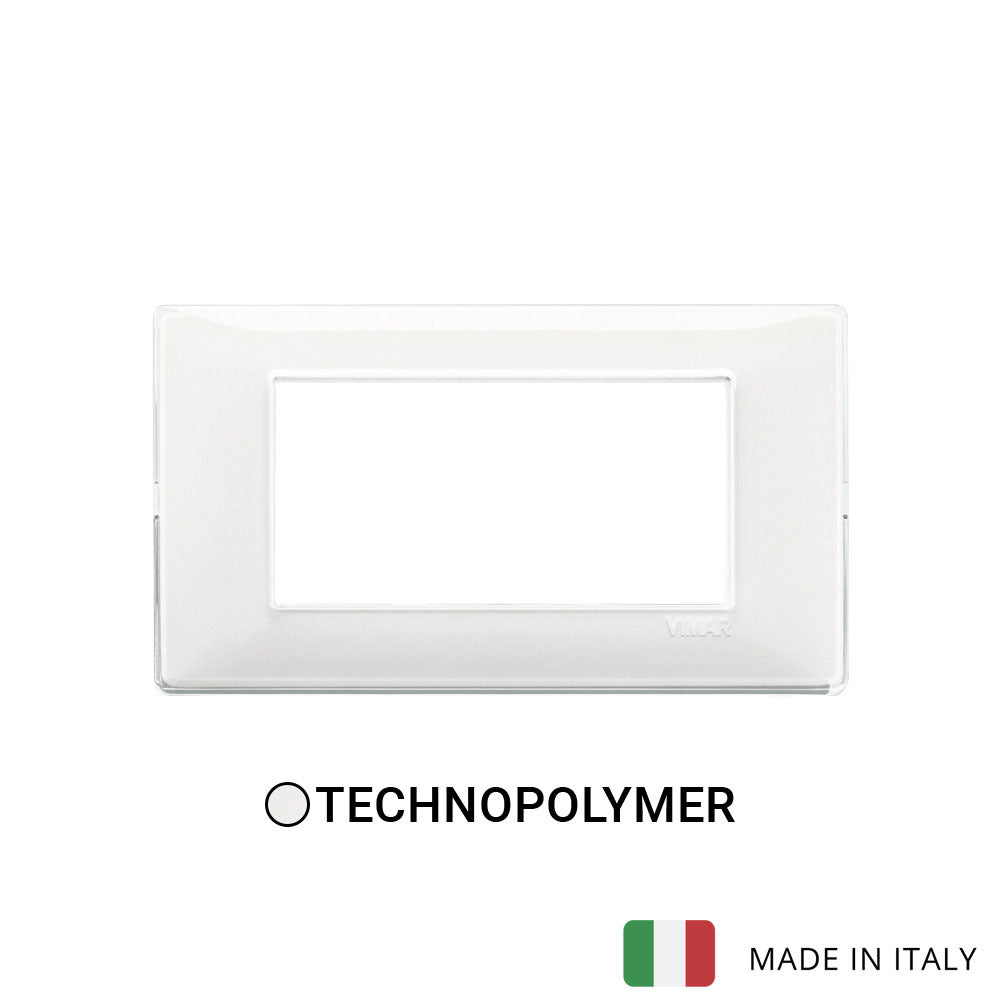

Vimar Plana Plate 3M Reflex White Snow

4 Module White Snow
SKU VM-14654.41
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14654.41 is Vimar PLANA 14654.41, plate 4M Reflex snow.

4-module cover plate, technopolymer, Reflex snow

Specifications

VM-14654.41Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
142.5 mm
Height
80 mm
Depth
9 mm
Built-in width
142.5 mm
Built-in height
80 mm

Packaging

EAN
8007352122062
Packed size (cm)
19 Γ— 8 Γ— 0.9
Packed weight
27 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

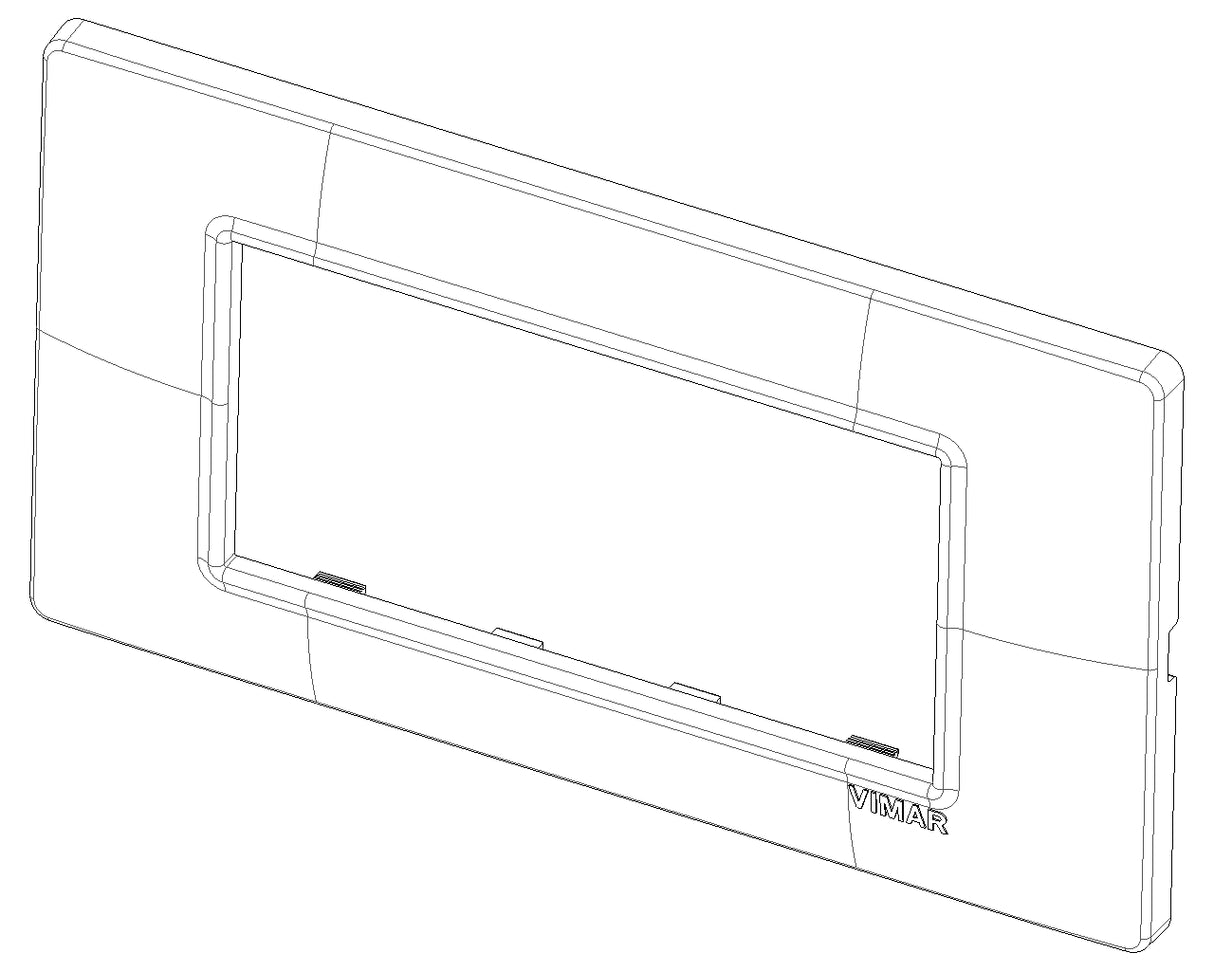

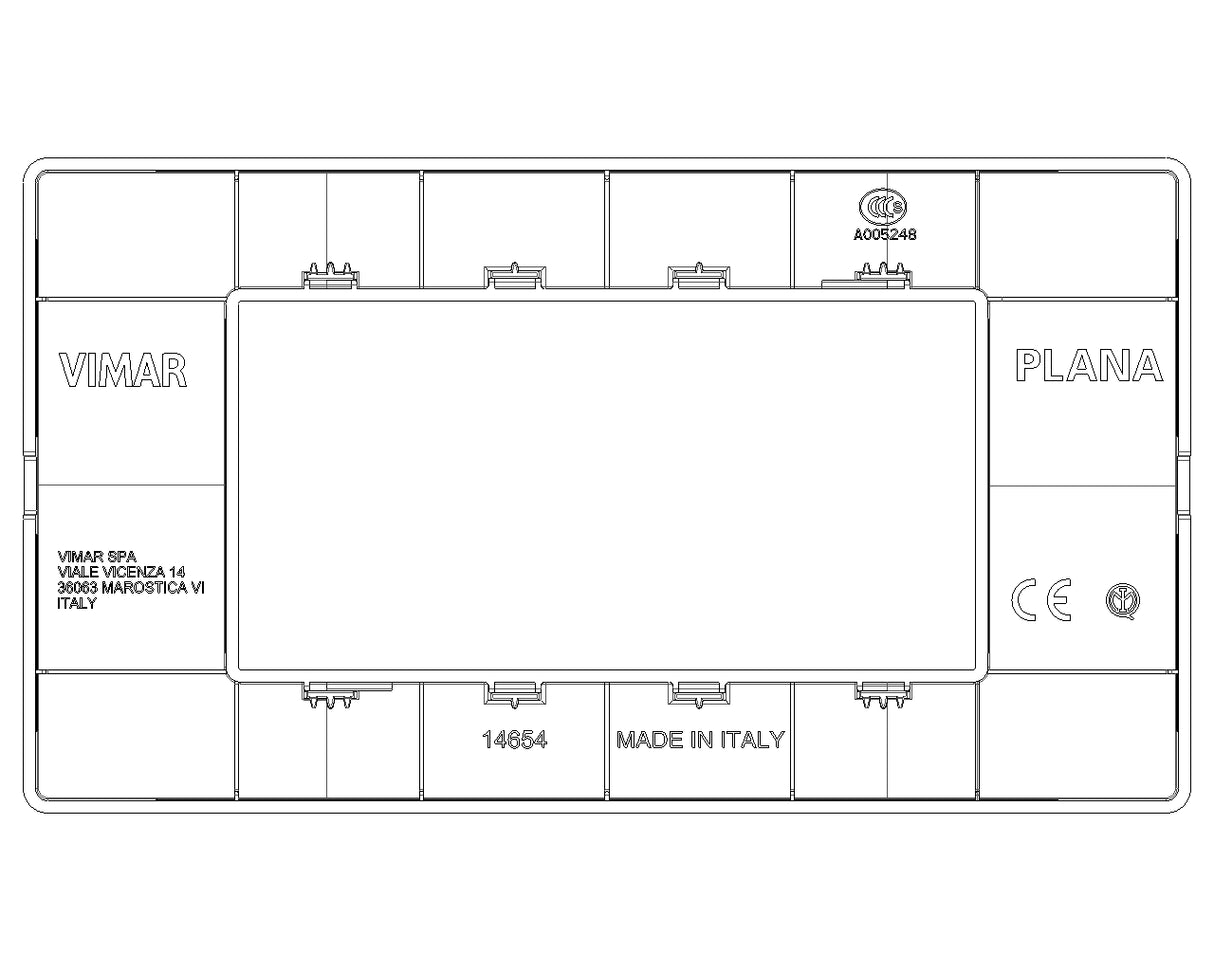

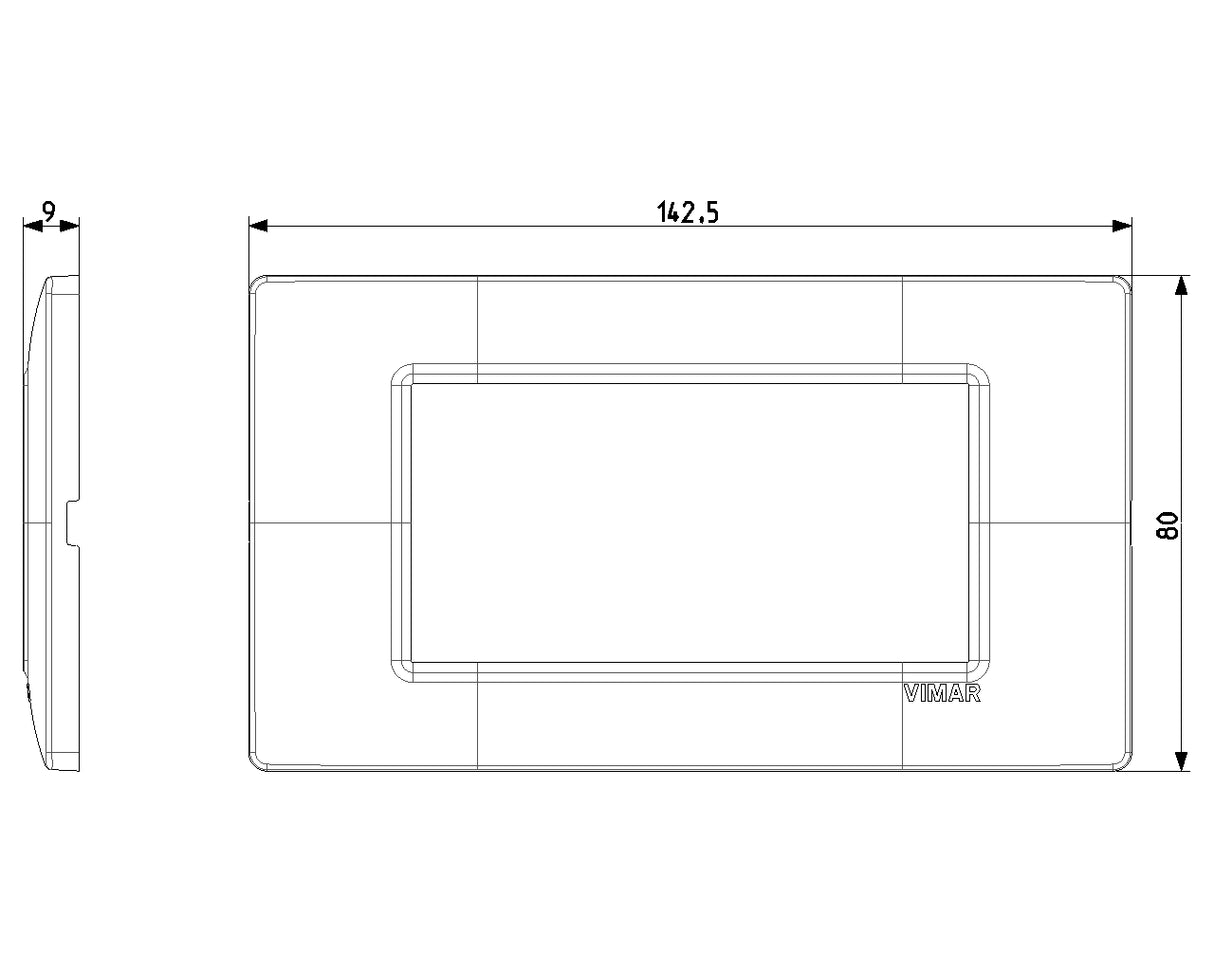

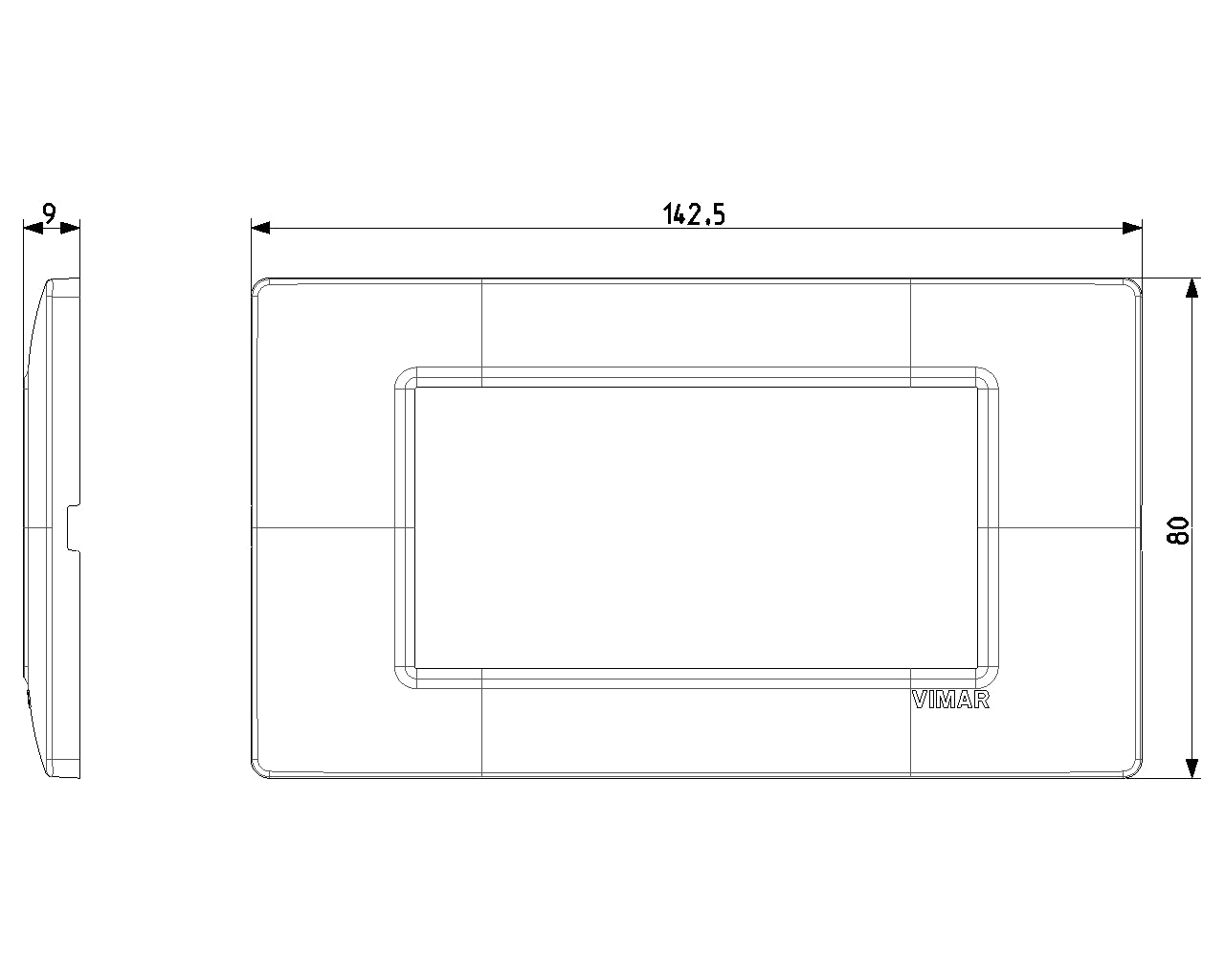

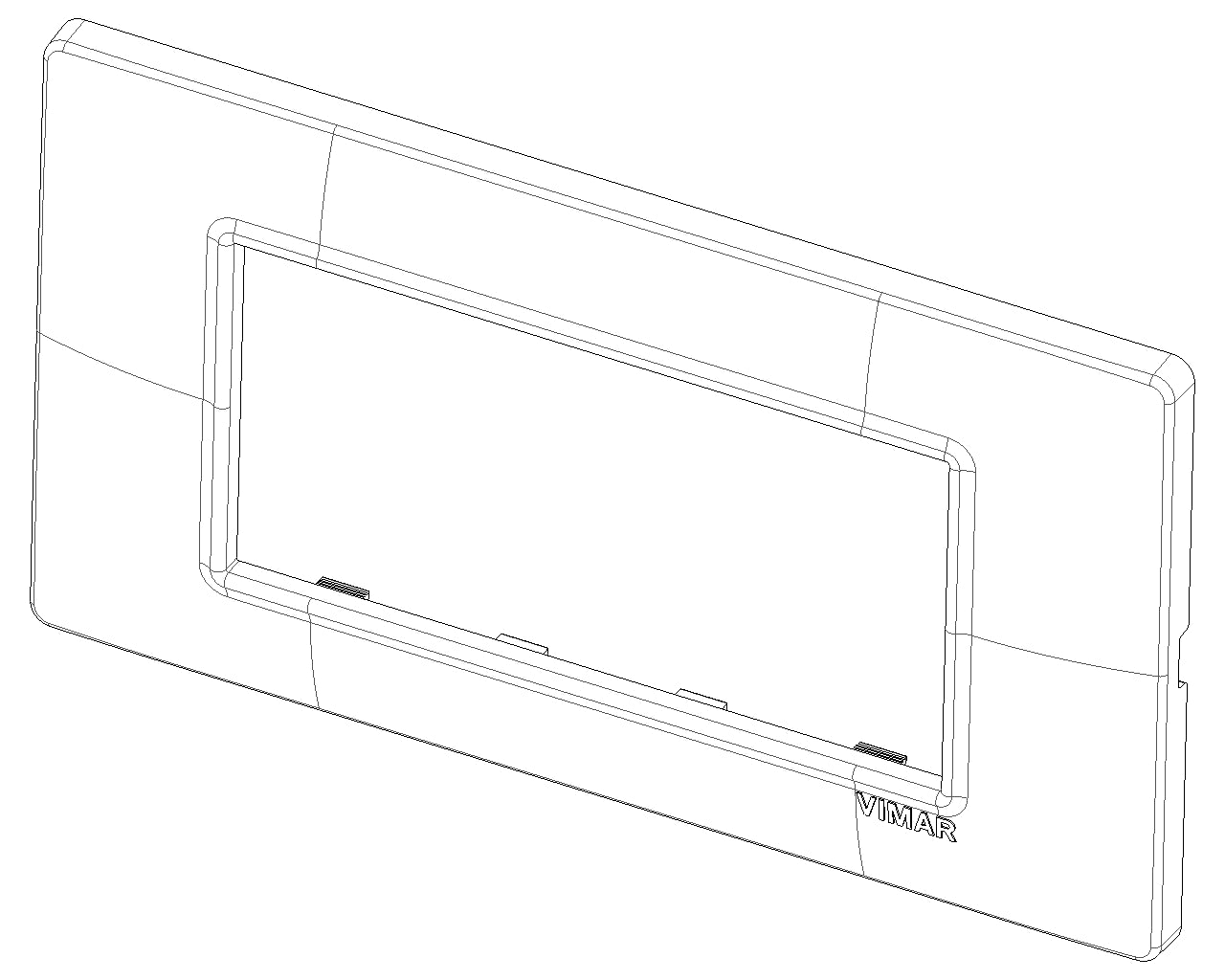

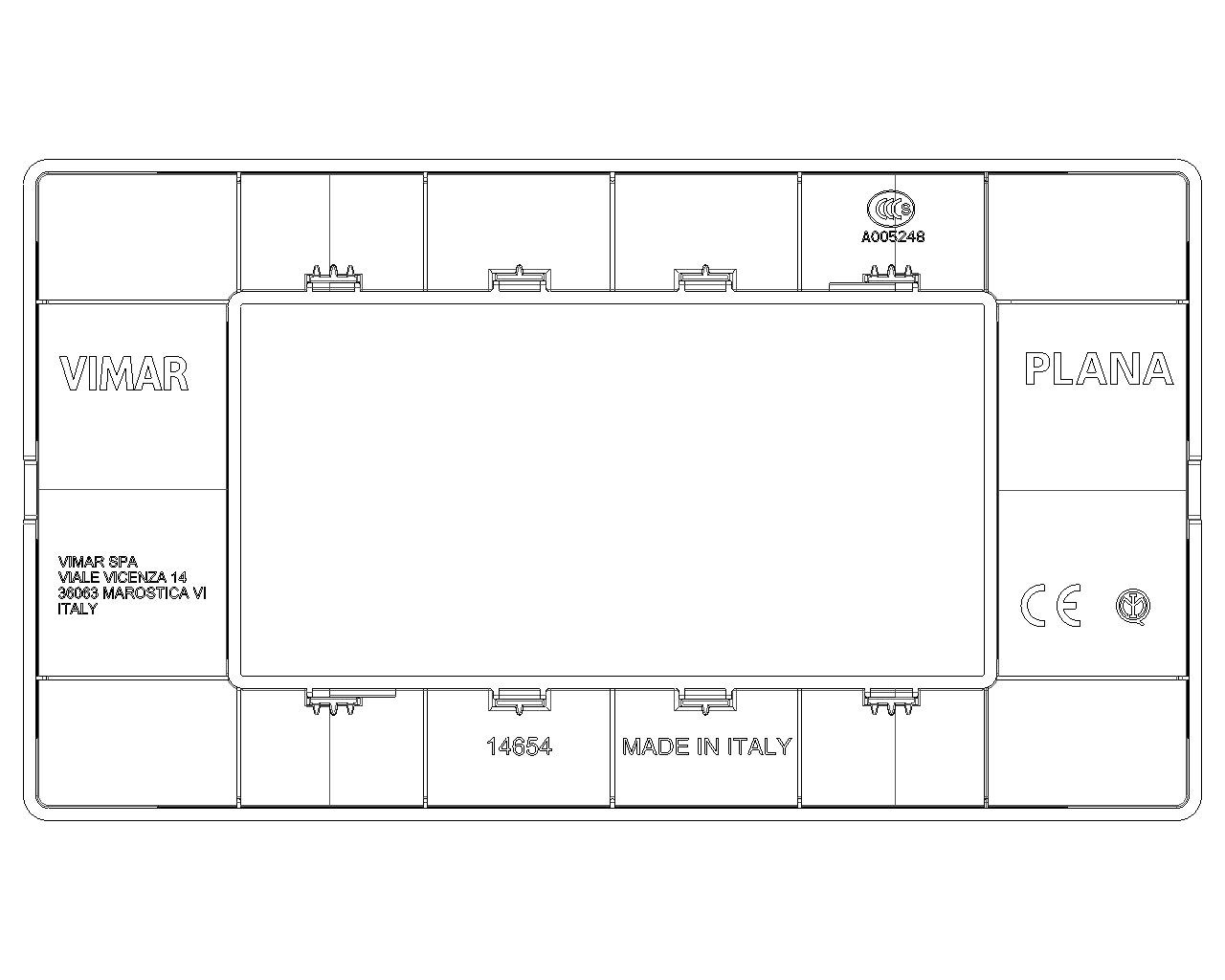

Technical drawings

VM-14654.41 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 3M Reflex White Snow used for?

This model is a 3-module cover plate in the Vimar Plana range, intended for finishing compatible switch or control points on a wall. It is primarily a visible trim component, giving the installation a clean white appearance with the Reflex White Snow finish.

Which series is this cover plate compatible with?

This plate is part of the Vimar Plana series. For a correct match, it should be selected where the project is using Plana-compatible modular devices and frames.

What does 3M mean on this Vimar Plana plate?

3M indicates that this plate is designed for a 3-module layout. That makes it suitable for configurations requiring three module positions within the Vimar Plana system.

What is the finish and look of the Reflex White Snow version?

This model comes in a white finish called Reflex White Snow. Based on the product description, the material is designed to give a fresh, modern look with a distinctive icy visual effect.

What environmental conditions is this plate rated for?

The stated operating temperature range for this model is from -20Β°C to 50Β°C. That makes it suitable for use in environments that stay within that temperature range.

How much does the Vimar Plana Plate 3M Reflex White Snow weigh?

This cover plate has a listed weight of 0.027 kg. Its light weight makes it appropriate for standard interior wall plate applications where a low-mass finishing component is needed.

What warranty period is provided for this model?

The listed warranty period for this product is 3 years. For project planning and procurement, that gives buyers a defined coverage term for this specific Vimar Plana plate model.
