Archilight

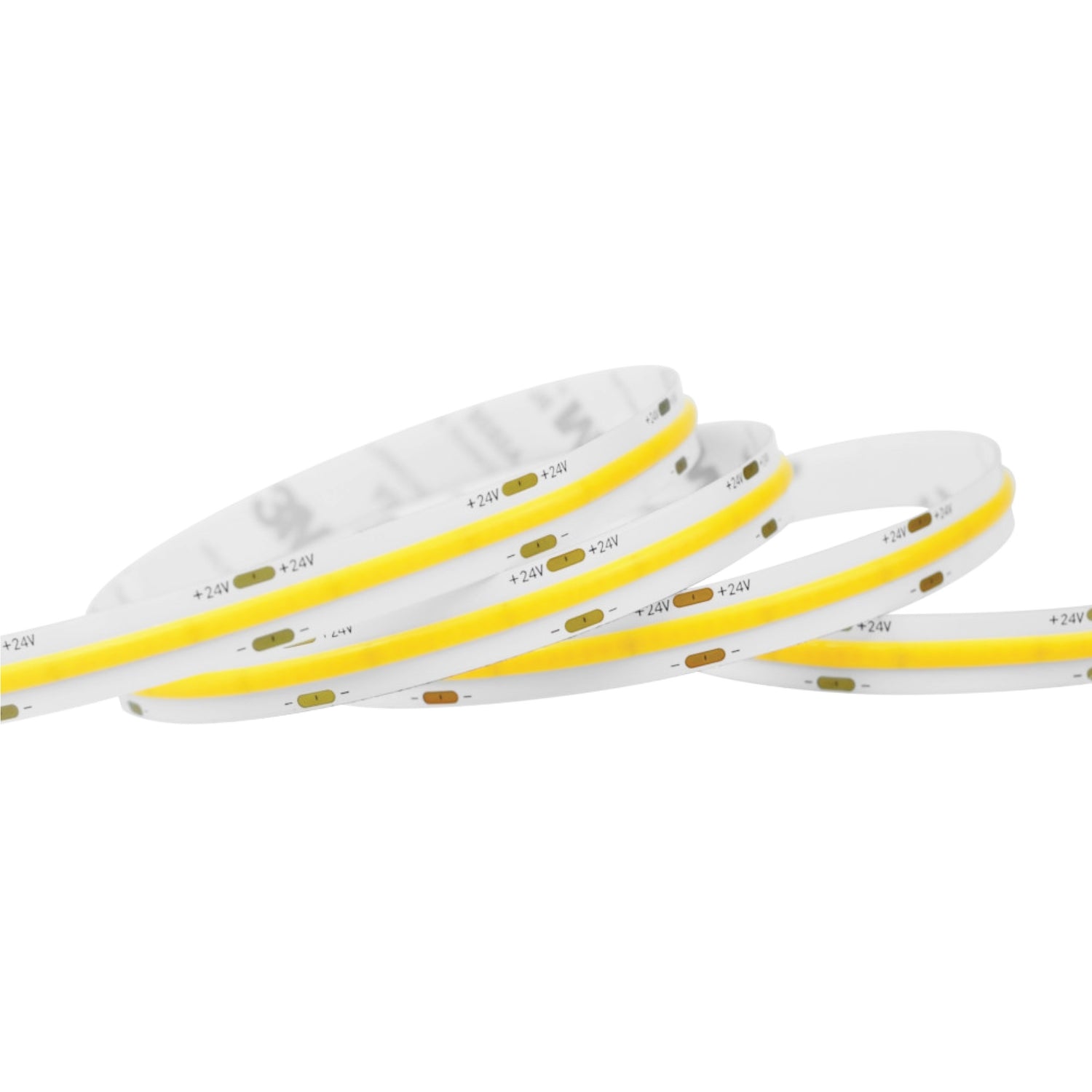

Archilight Pure Lume COB Strip - 10MM

480LEDs/m15W24VCRI90cuttable length 50mm
SKU 10MM-COB-4802400MAS-CW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 4 variants

10MM-COB-4802400MAS-CW
LED Colour
4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Overview

Features

  • High density COB LEDs
  • Linear lighting, without light spot, soft and uniform luminance
  • High CRI, high brightness and high efficiency
  • High temperature resistance, long lifespan
  • No bracket, better bending performance, seamless butting between two solder points
  • Luminous surface width of 4.5±0.3mm

Specifications

Archilight Pure Lume COB Strip - 10MMSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUPower RatingLED ColourBrightness
10MM-COB-4802400MAS-CW15 WCool White 6500K1,420 lm
10MM-COB-4802400MAS-NW15 WNatural White 4000K1,350 lm

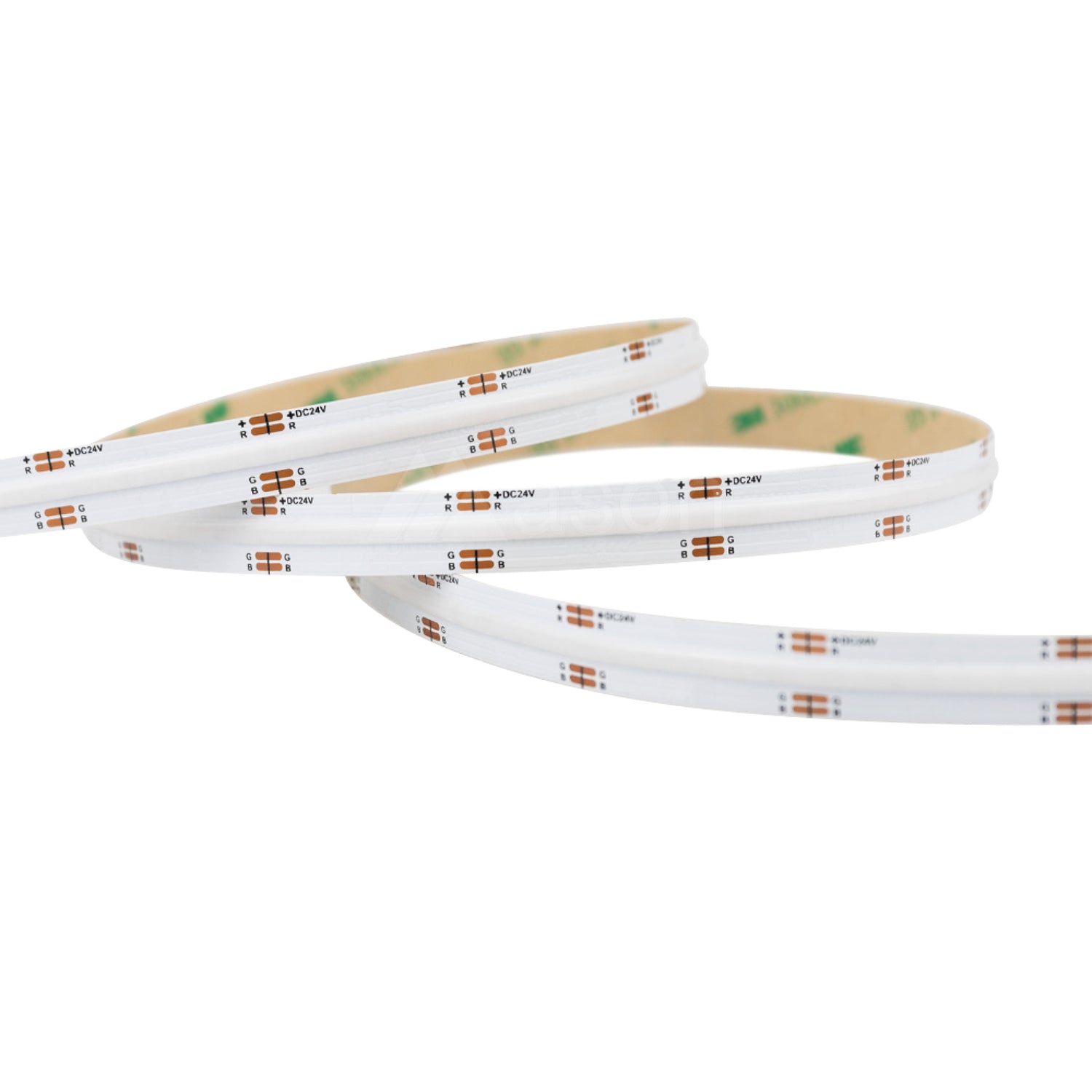

10MM-COB-4802400MAS-RGB10 WRGB Multicolour455 lm
10MM-COB-4802400MAS-WW15 WWarm White 3000K1,200 lm

Specification

LED Qty
480
Voltage
24V DC
Beam Angle
140°
Width
10mm
Min. Cutting
50mm

Others

Length
5000mm

Certifications & ratings

Marked features
DIMMABLE, 3 Years Warranty, LM 80 COMPLIANT, IP20
Certification marks
CE, CB, RoHS, UKCA, UL, FCC, RCM, BSCI, TÜV
Test conditions and notes3
  1. 1. All the data are based on IP20, 1 meter.
  2. 2. X stands for colour: 3000K-WW,4000K-NW, 6500K-CW.
  3. 3. The tolerance of output data can be vary up to ±10%.

Technical drawings

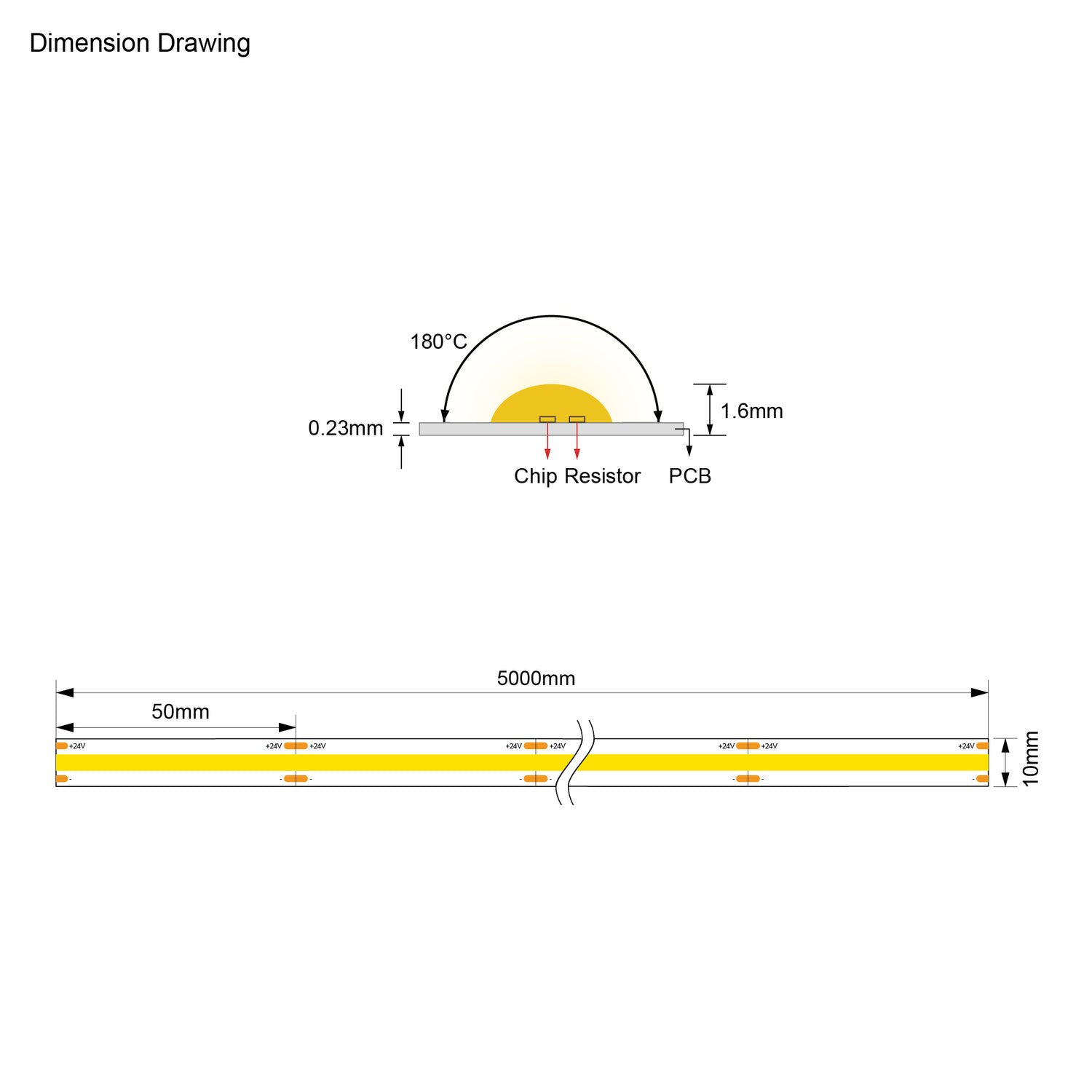

Archilight Pure Lume COB Strip - 10MM Dimension Drawing
Dimension Drawing

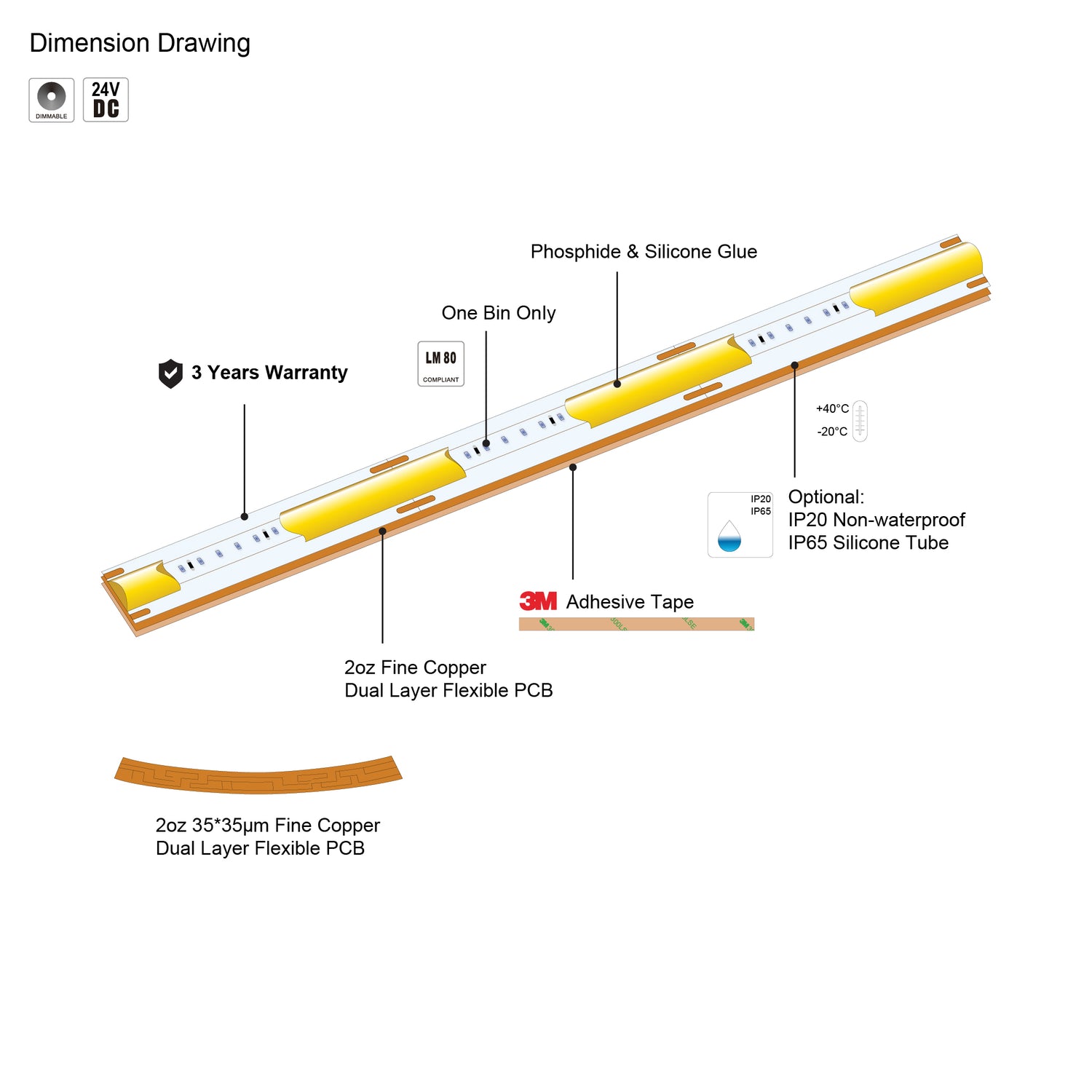

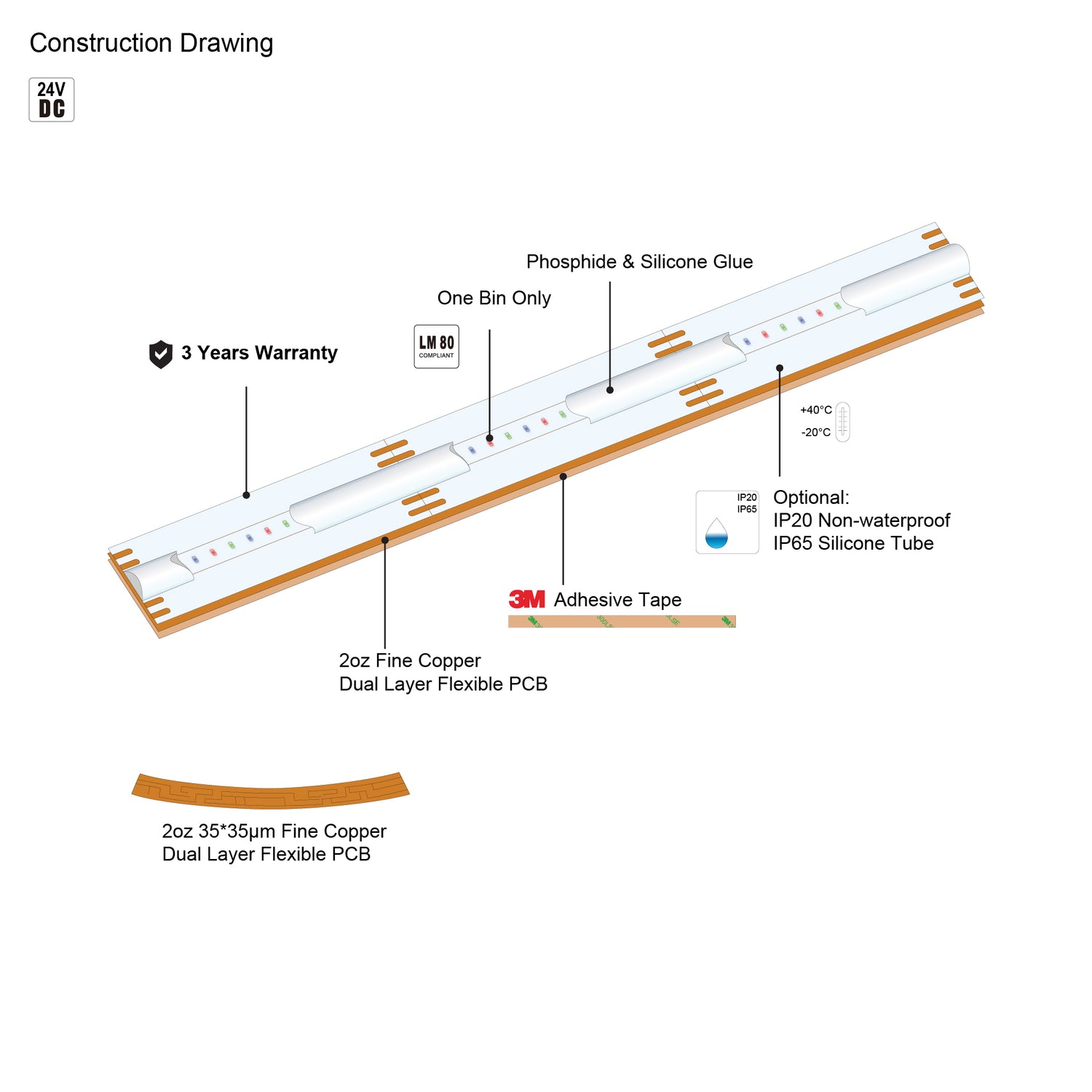

Archilight Pure Lume COB Strip - 10MM Dimension Drawing (2)
Dimension Drawing (2)
Archilight Pure Lume COB Strip - 10MM Dimension Drawing (3)
Dimension Drawing (3)
Archilight Pure Lume COB Strip - 10MM Light Distribution/Iso-illuminance Diagram
Light Distribution/Iso-illuminance Diagram
Archilight Pure Lume COB Strip - 10MM Available Accessories
Available Accessories
Archilight Pure Lume COB Strip - 10MM Available Accessories (2)
Available Accessories (2)
Archilight Pure Lume COB Strip - 10MM Available Accessories (3)
Available Accessories (3)
Archilight Pure Lume COB Strip - 10MM Cut at the cutting line for proper length of the strip
Cut at the cutting line for proper length of the strip
Archilight Pure Lume COB Strip - 10MM Wire connection option
Wire connection option
Archilight Pure Lume COB Strip - 10MM Liner removing
Liner removing
Archilight Pure Lume COB Strip - 10MM Liner removing (2)
Liner removing (2)
Archilight Pure Lume COB Strip - 10MM Connect the strip to strip if the length is not enough.
Connect the strip to strip if the length is not enough.
Archilight Pure Lume COB Strip - 10MM Connect with power supply
Connect with power supply
Archilight Pure Lume COB Strip - 10MM Notice
Notice
Archilight Pure Lume COB Strip - 10MM Packaging Diagram
Packaging Diagram

Downloads

FAQ

What type of lighting effect does the Archilight Pure Lume COB Strip - 10MM provide?

This COB strip is designed to deliver linear, spot-free illumination with a soft and uniform light output. Its high-density 480 LED construction helps create a seamless luminous line for professional interior lighting applications.

What are the core specifications of this 10MM COB strip family?

The strip operates on 24V DC and is rated at 15W. It has a 10mm width, double-layer PCB construction, and a minimum cutting length of 50mm. The luminous flux is 1420lm with a luminous efficacy of 95lm/W.

How does brightness vary between the variants?

The 6500K variant delivers 1420 lm at 15W. This output provides strong functional illumination suitable for professional interior lighting applications.

Is a driver included, and is this strip dimmable?

A driver is not included with this product family. The strip is listed as dimmable, so dimming capability is supported when paired with suitable control gear selected for the application.

Is this COB strip built for durability in commercial or professional projects?

The product is described as having high temperature resistance, long lifespan characteristics, and a double PCB construction. It also carries a 3-year warranty, which supports its positioning as a professional-grade strip for interior lighting use.
