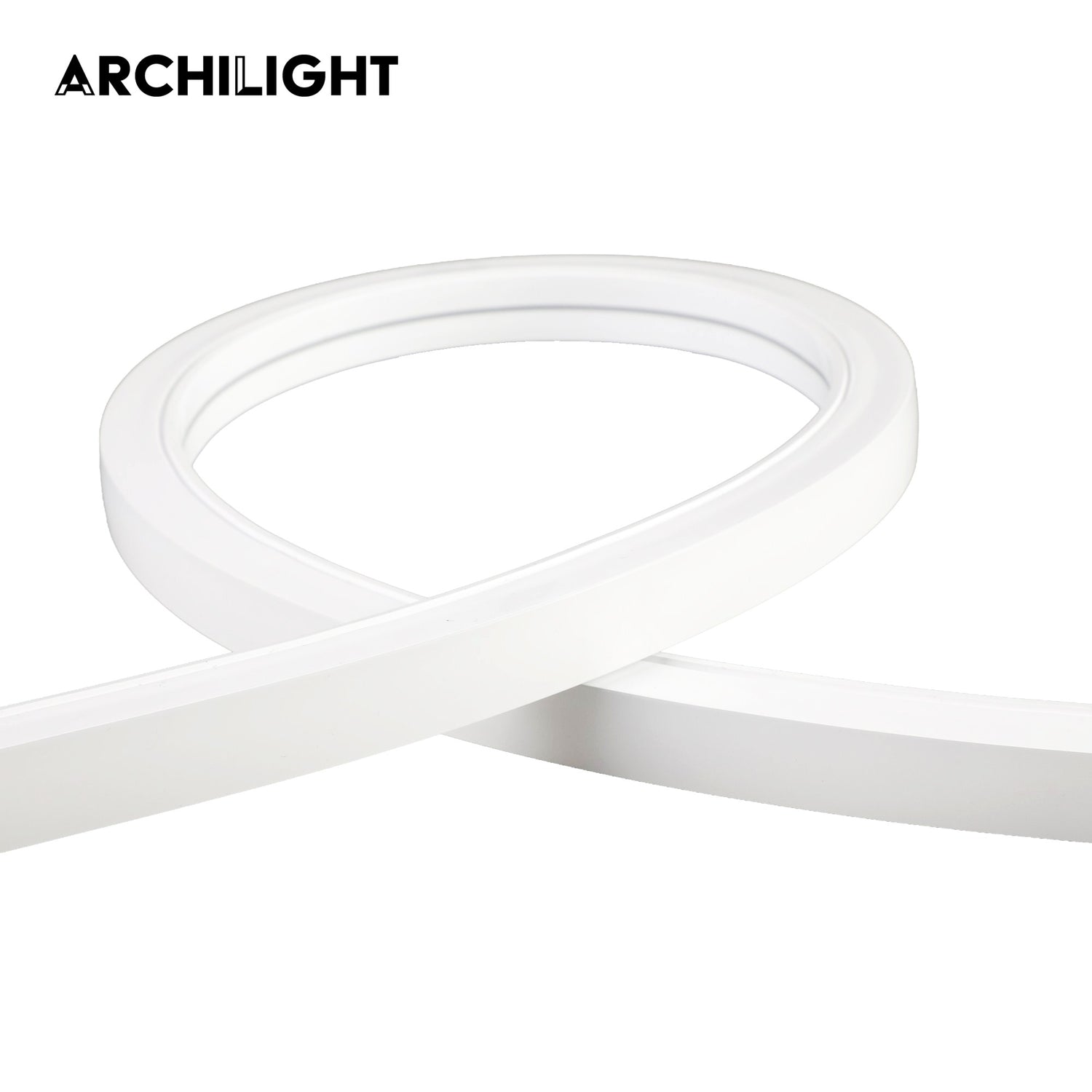

Archilight FleXCite 16x16mm Dual-Bend Neon

SKU:

NS1616-2467GLE-CW

LED Colour

Cool White 6500K Natural White 4000K RGB Multicolour Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

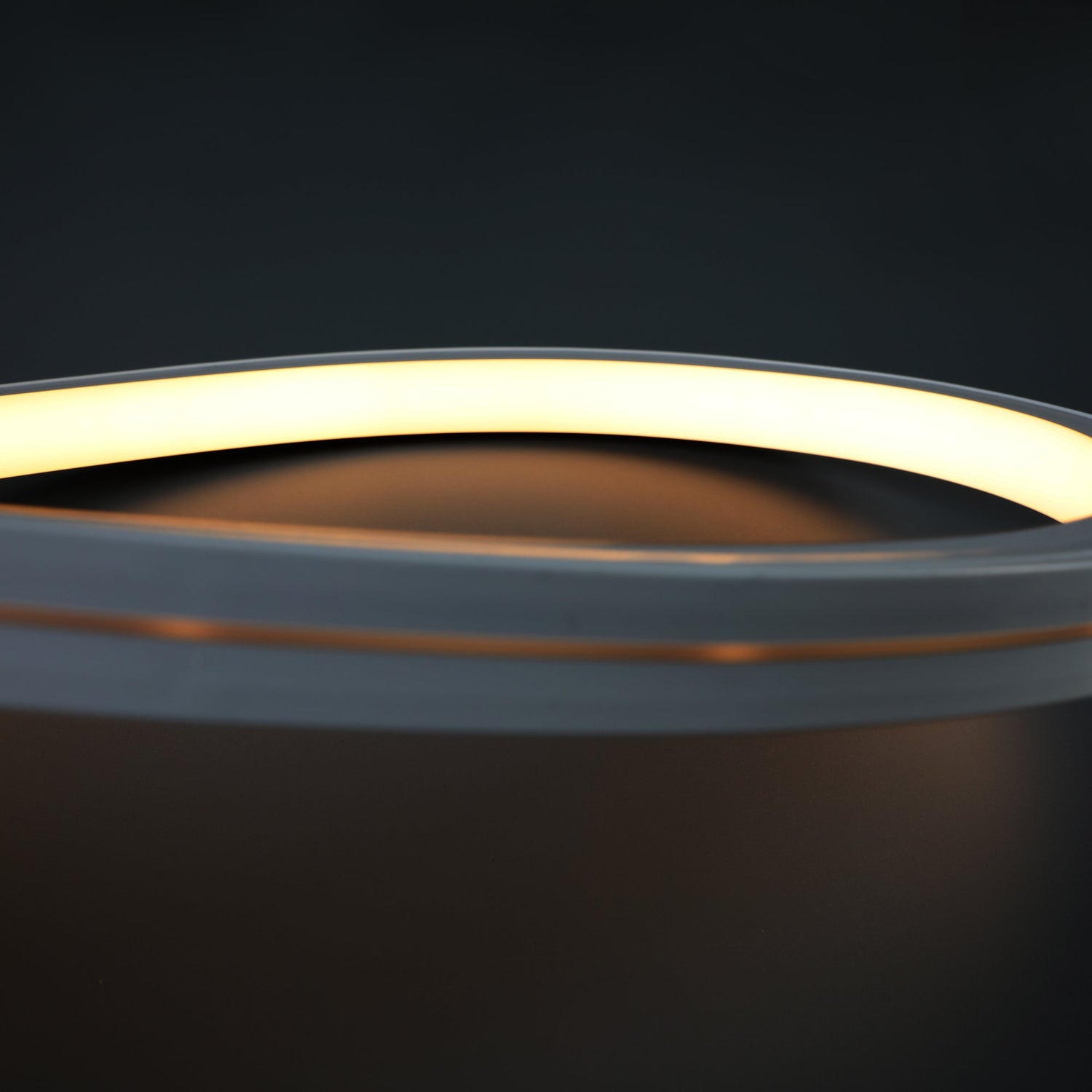

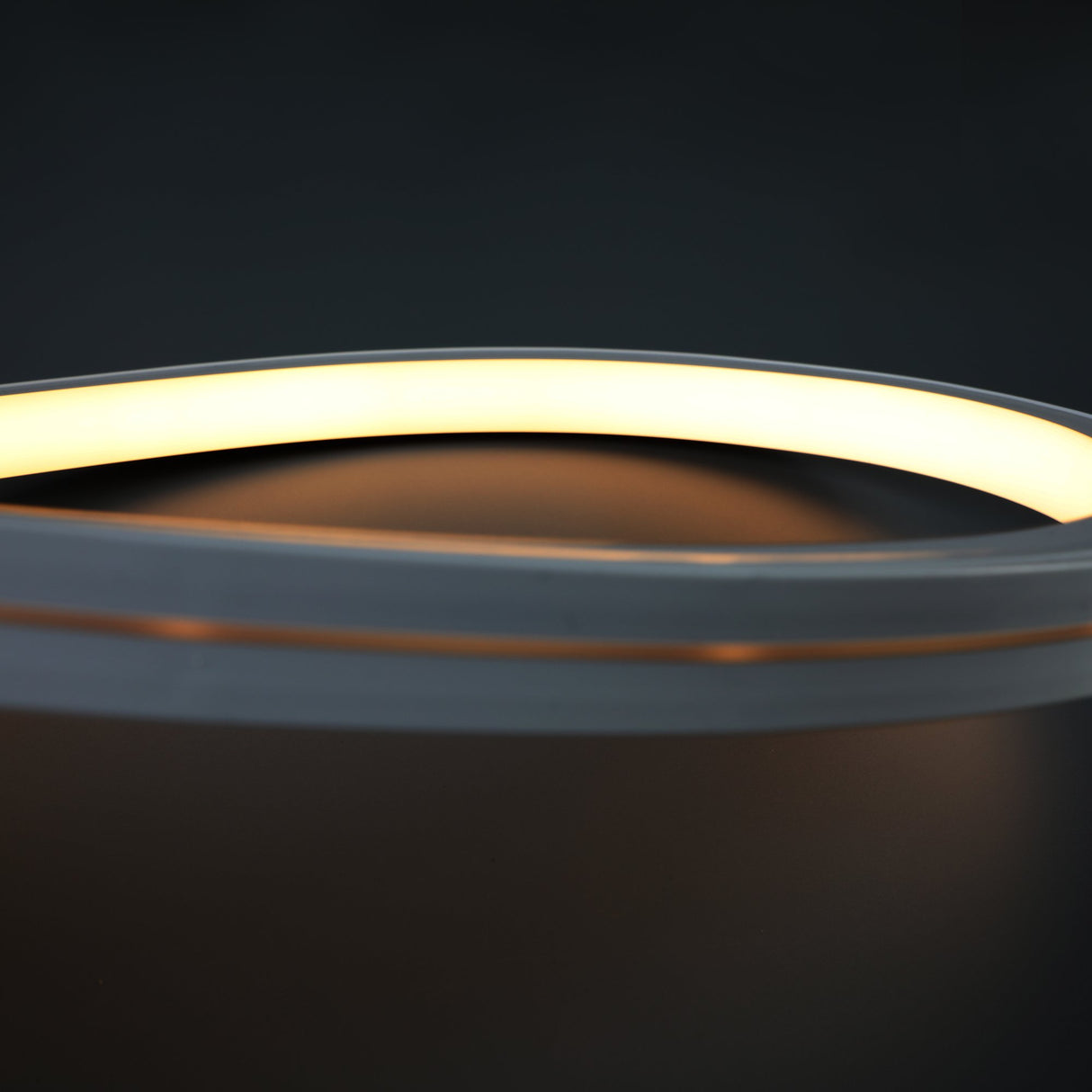

The Archilight FleXCite NS1616-2467GLE is a professional-grade IP67 LED neon strip designed for dynamic architectural and contour lighting applications. Featuring advanced dual-bend flexibility, it can be bent both horizontally and vertically to accommodate curved, irregular, and complex installation surfaces. The compact 16×16mm silicone extrusion housing provides high impact resistance, weather durability, and long-term colour stability, outperforming traditional PVC-based neon solutions. Operating on 24V DC, the NS1616-2467GLE is available in single-colour Warm White (WW), Neutral White (NW), Cool White (CW), and RGB, delivering smooth, uniform illumination with a 120° beam angle. Designed for indoor and outdoor use, the FleXCite series combines aesthetic performance with installation flexibility and long service life for commercial, hospitality, retail, and landscape lighting projects.

Key Features

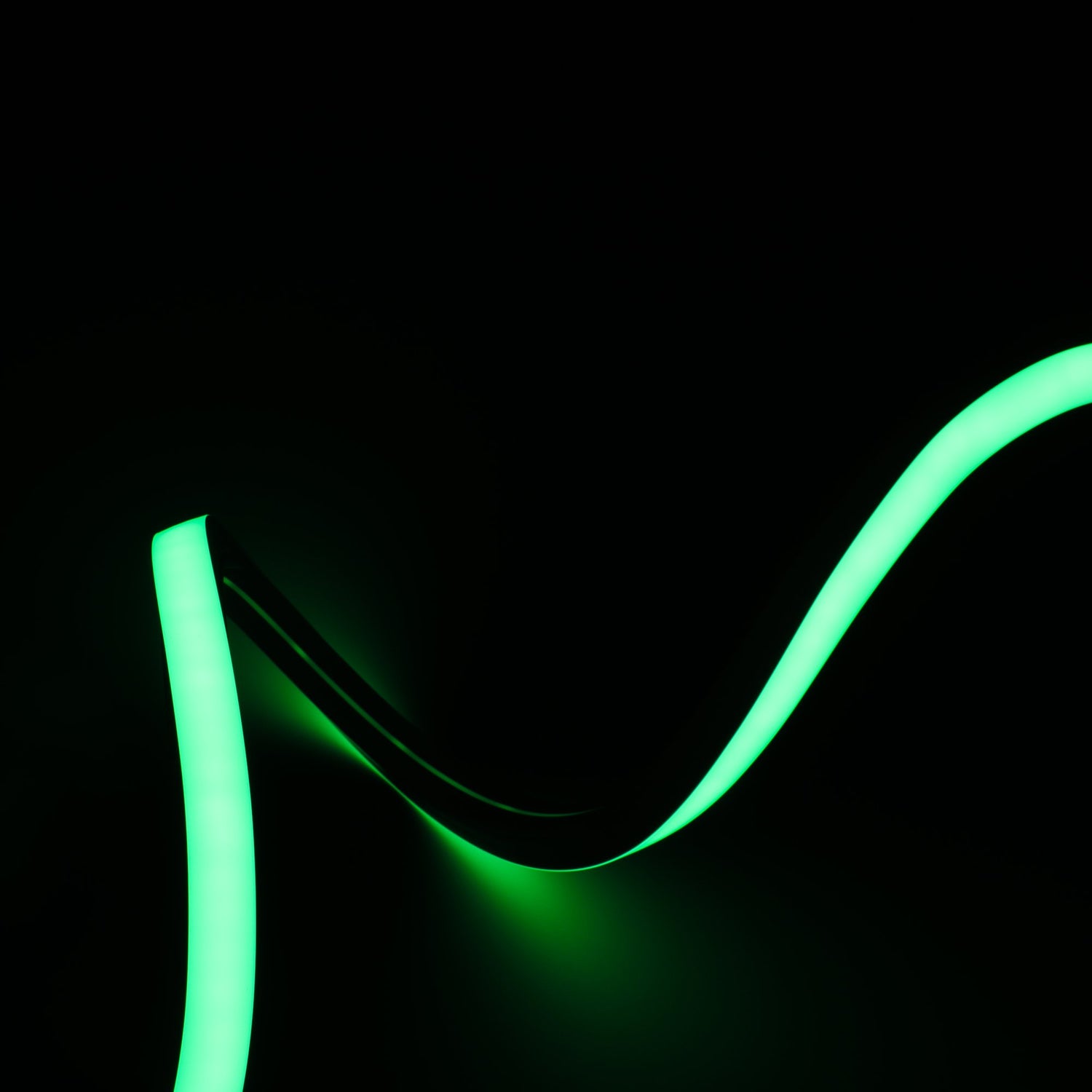

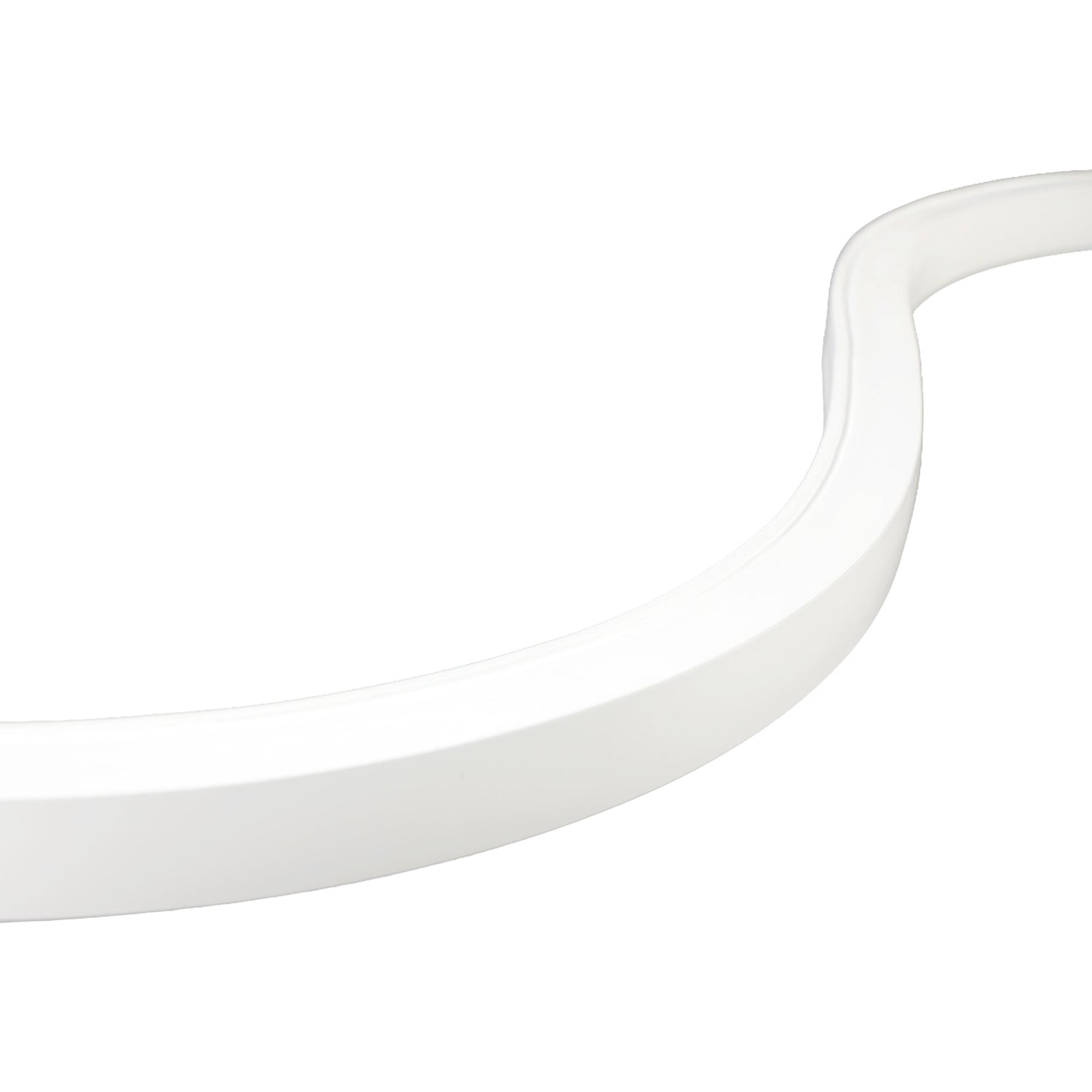

Dual-bend design: supports both top-bend and side-bend installation

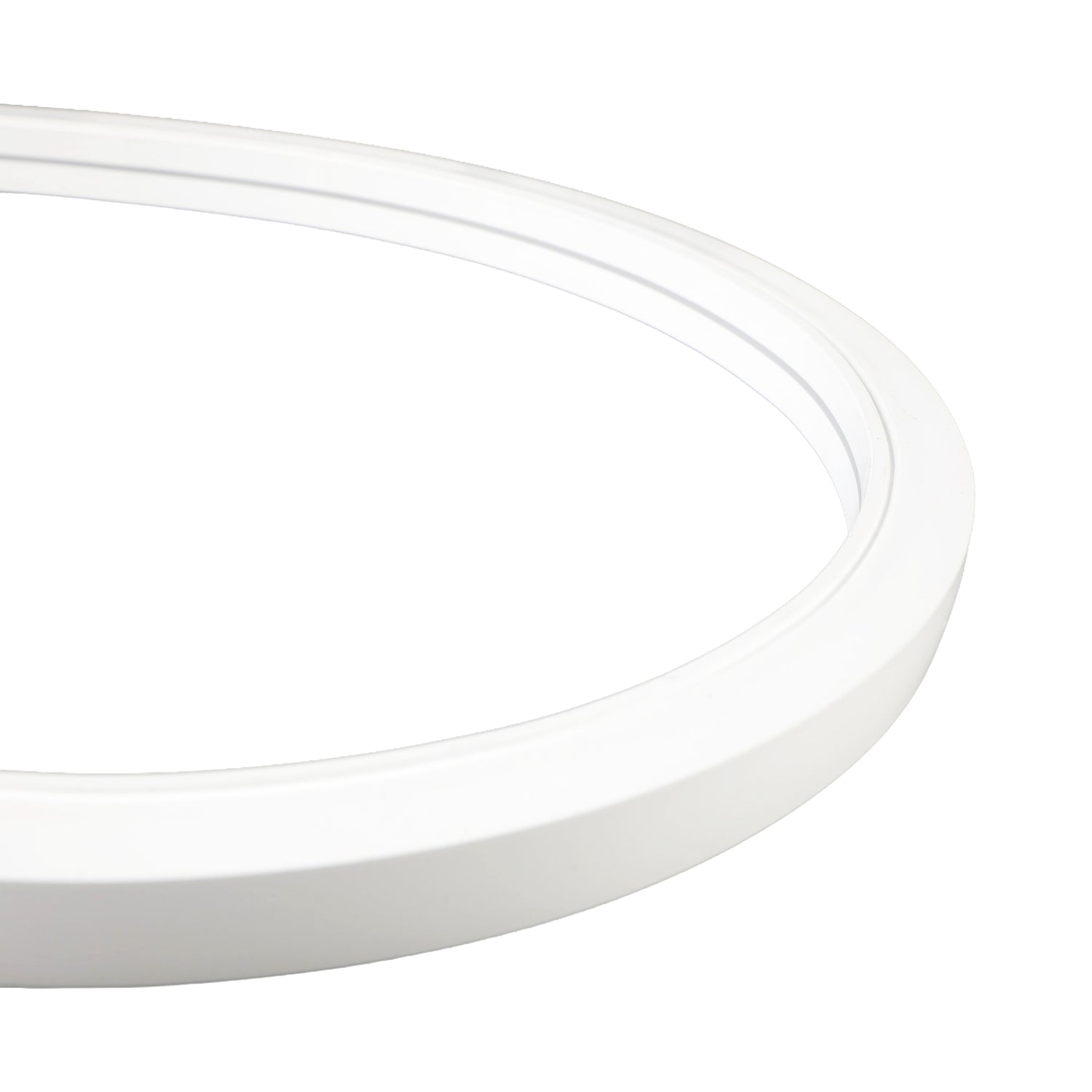

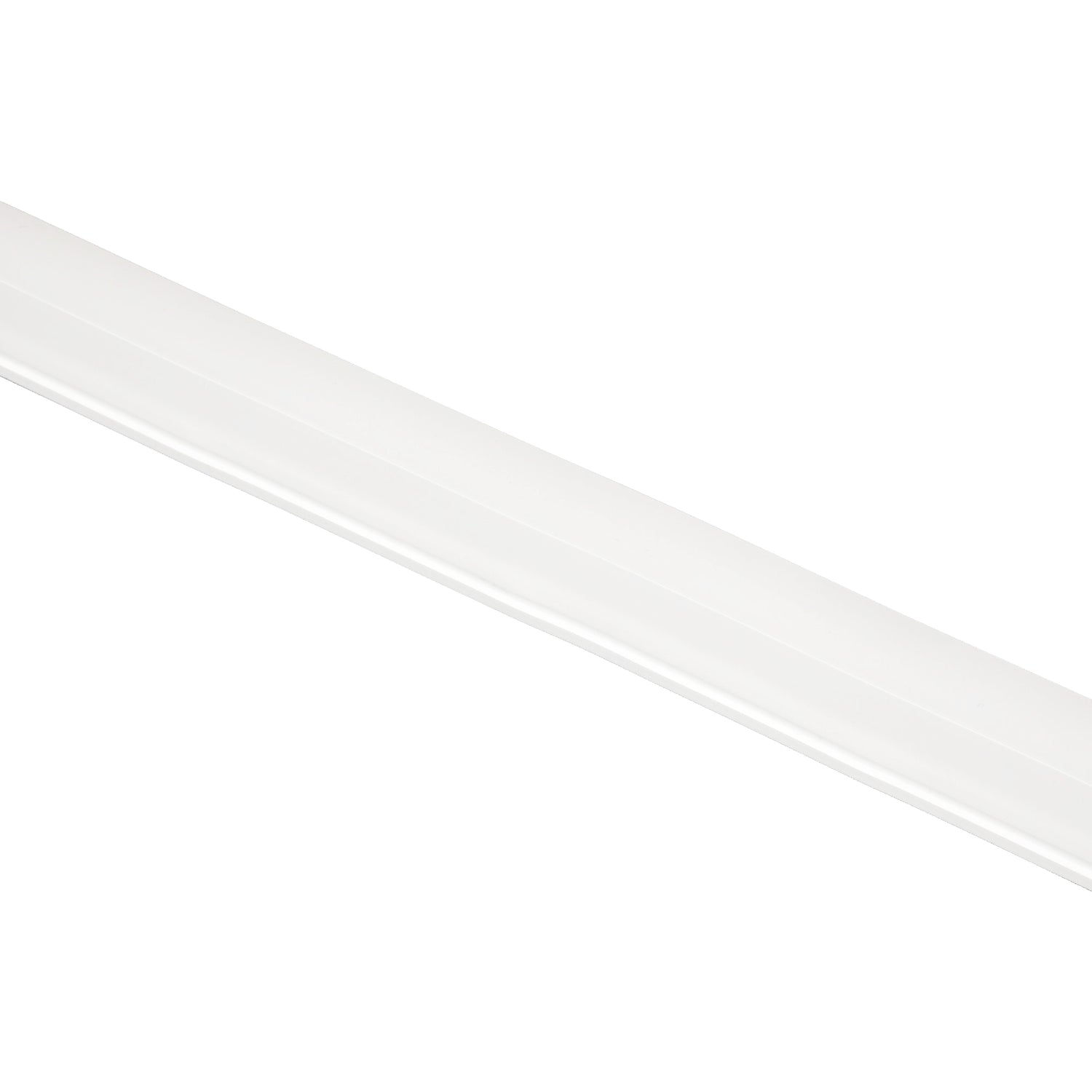

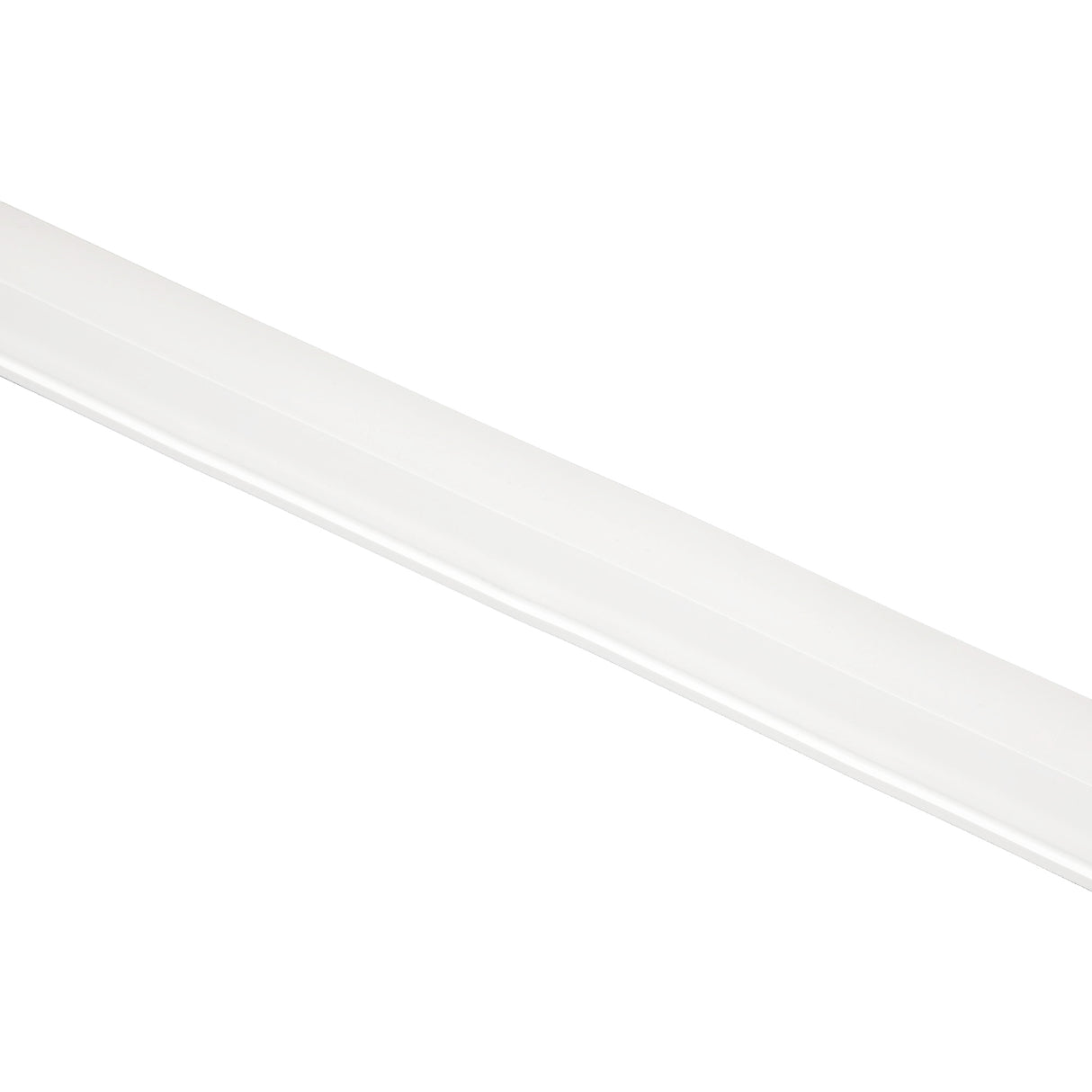

Cross-section: 16mm × 16mm silicone extrusion housing
IP67 rated for indoor and outdoor applications
Operating voltage: 24V DC
Available colours: Warm White (WW), Neutral White (NW), Cool White (CW), RGB
Uniform neon-style illumination with 120° beam angle
High LED density (up to 144 LED/m white version)
Typical power: approx. 14W per metre (white & RGB versions)
Maximum run length up to 30m (single-end feed, model dependent)
Free-cutting design for flexible on-site length customization
Silicone material with strong UV resistance and weather durability
Impact rating IK06
Rated lifespan: up to 50,000 hours (L70 @ Tc ≤65°C)
Dimmable via PWM (compatible with appropriate LED drivers/controllers)
Multiple mounting options: surface, recessed, plaster-in, clip or aluminum profile
CE and UL compliant
5-year warranty

Specifications

Brand

Archilight
Operation Mode

Constant Voltage
Operating Temperature

-25°C~45°C
Length

100 cm
Width

1.6 cm
Height

1.6 cm
Weight

0.48 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Archilight FleXCite 16x16mm Dual-Bend Neon designed for?

This LED neon strip is designed for architectural and contour lighting where smooth, continuous illumination is needed. Its dual-bend construction makes it suitable for curved, irregular, and complex surfaces in commercial, hospitality, retail, and landscape projects. The IP67 silicone housing also supports both indoor and outdoor use.

What does dual-bend mean for this neon strip?

Dual-bend means the FleXCite NS1616-2467GLE can bend in both horizontal and vertical directions. That gives designers more flexibility than single-bend neon when working around corners, contours, and non-linear surfaces. It is intended for projects where shape adaptability is a key requirement.

What colour options are available in this product family?

This family is available in Warm White, Neutral White, Cool White, and RGB versions. The white options provide different colour temperatures for different project aesthetics, while RGB supports colour-changing applications. Variant-specific output differs, with listed brightness values of 773 lm for Warm White, 840 lm for Neutral White and Cool White, and 290 lm for RGB.

Is the Archilight FleXCite 16x16mm Dual-Bend Neon suitable for outdoor environments?

Yes, it is rated IP67, which makes it suitable for outdoor environments as well as indoor spaces. The silicone extrusion housing is designed for weather durability, UV resistance, and long-term colour stability. It also carries an IK06 impact rating for added durability.

What are the main technical specifications of this neon strip?

The product operates on 24V DC and has a 16mm by 16mm cross-section. It provides uniform neon-style illumination with a 120 degree beam angle and typical power consumption of approximately 14W per metre. The white version is listed with LED density up to 144 LED/m, and maximum run length is up to 30m depending on model.

Is a driver included, and is this product dimmable?

A driver is not included with this product family. The strip is dimmable via PWM when used with appropriate LED drivers or controllers. This makes it suitable for projects that need adjustable light levels without changing the product family.

How durable is the Archilight FleXCite 16x16mm Dual-Bend Neon for long-term projects?

This product family is built with a silicone housing that offers better weathering and colour stability than traditional PVC-based neon solutions. It is rated for up to 50,000 hours lifespan at L70 with Tc at or below 65 degrees Celsius. The range is also backed by a 5-year warranty.
