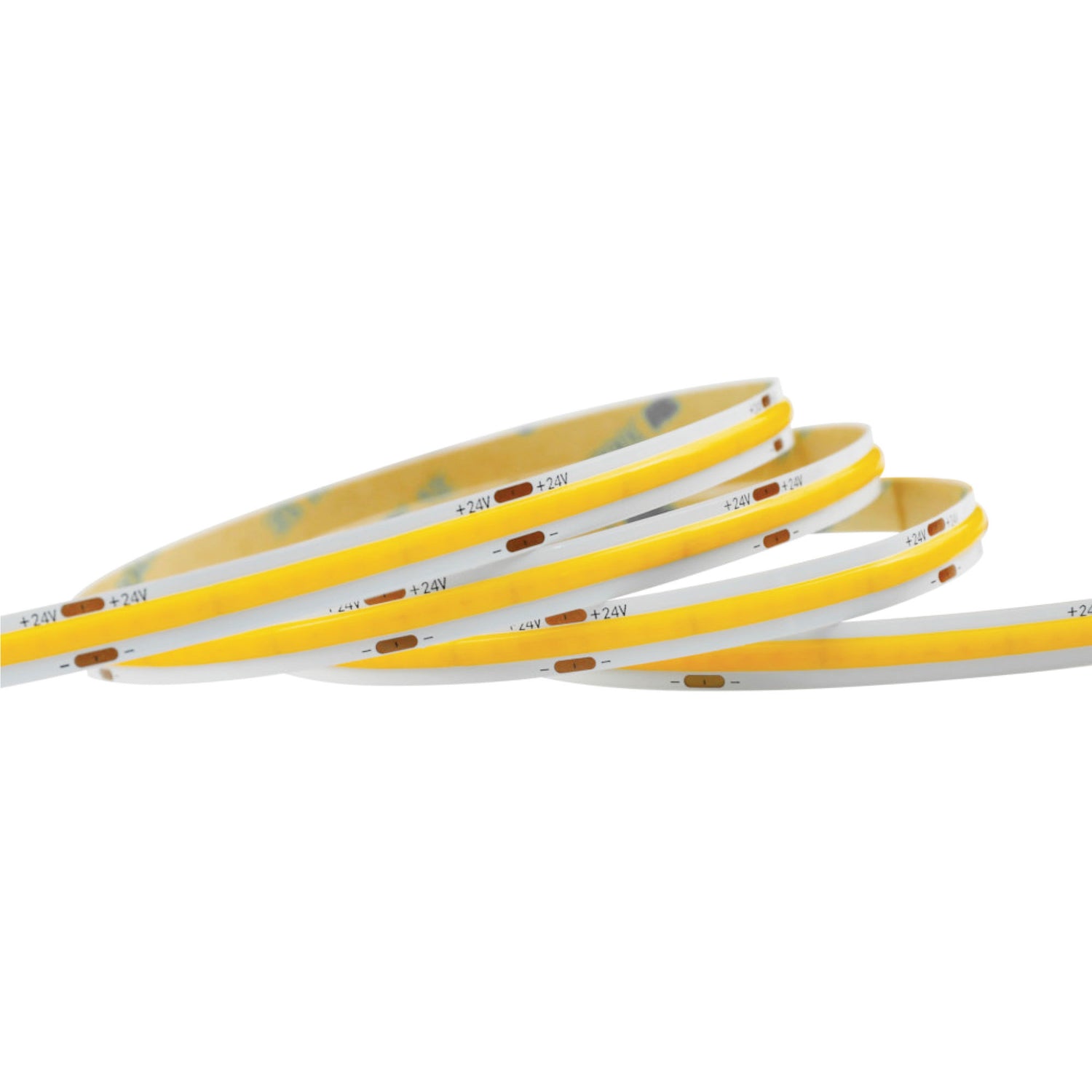

Archilight Pure Lume COB Strip - 8MM

SKU 8MM-COB-3202400MAS-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 4 variants

8MM-COB-3202400MAS-CW

LED Colour

4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

Enhance your lighting with the advanced Archilight COB Strips. Featuring high-density COB LEDs, these strips deliver seamless, bright illumination perfect for any application. Upgrade your space with the Archilight COB Strips. Perfect for achieving professional-grade, spot-free lighting with high efficiency and durability.

Features:

High-density COB LEDs
Linear lighting, without light spots, soft and uniform luminance
High CRI, high brightness, and high efficiency
High-temperature resistance, long lifespan

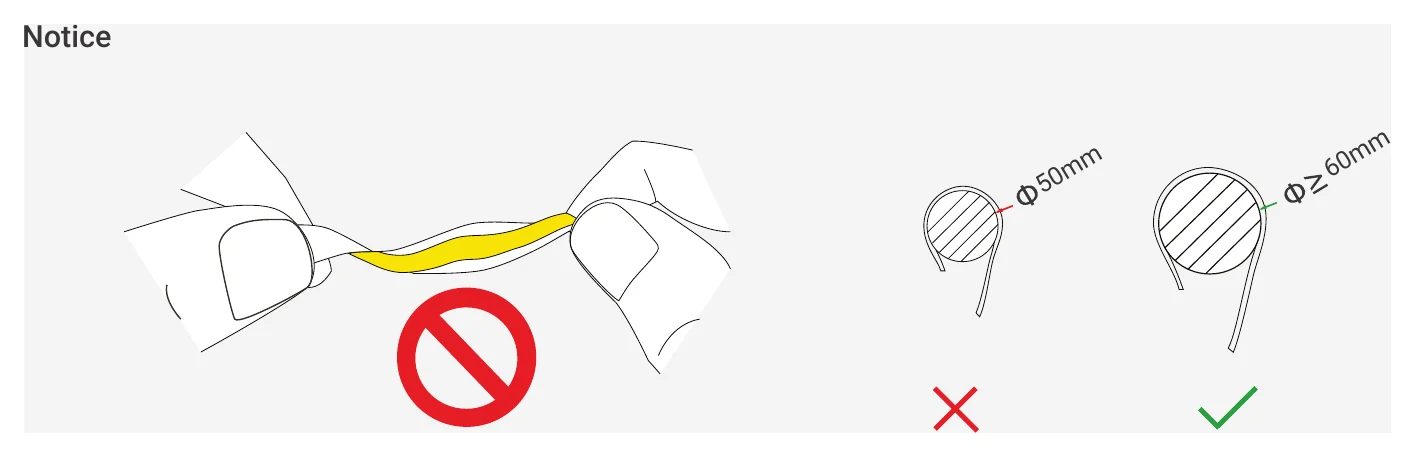

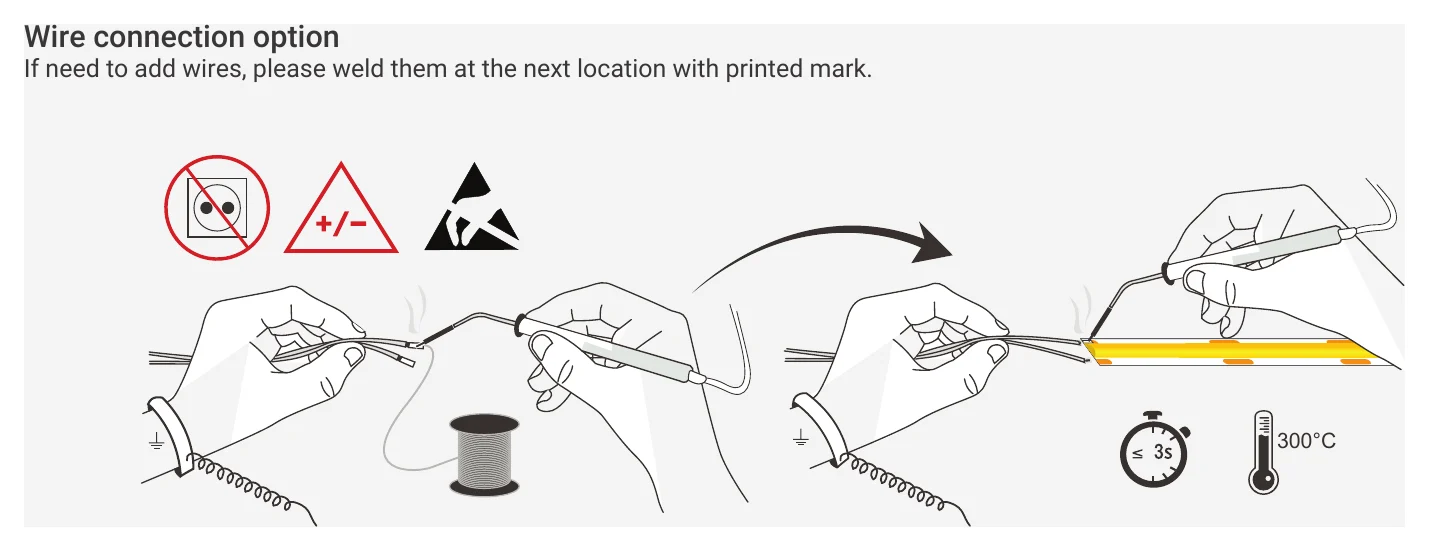

No bracket, better-bending performance, seamless butting between two solder points
Luminous surface width of 4.5±0
3 Years Warranty

General Specification

LED Quantity

320 LED

Voltage

24V DC

Power

10W

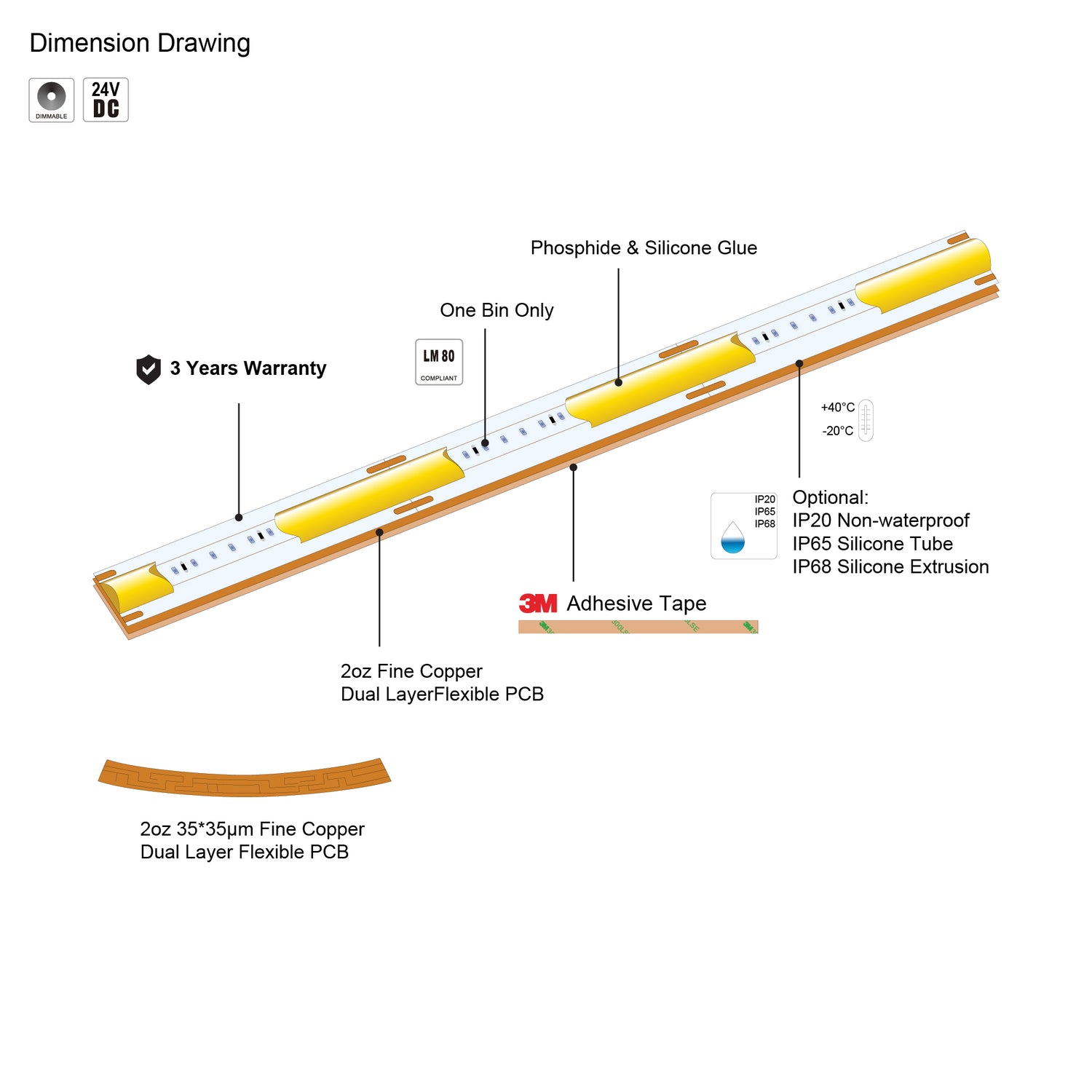

PCB Layer

Double PCB

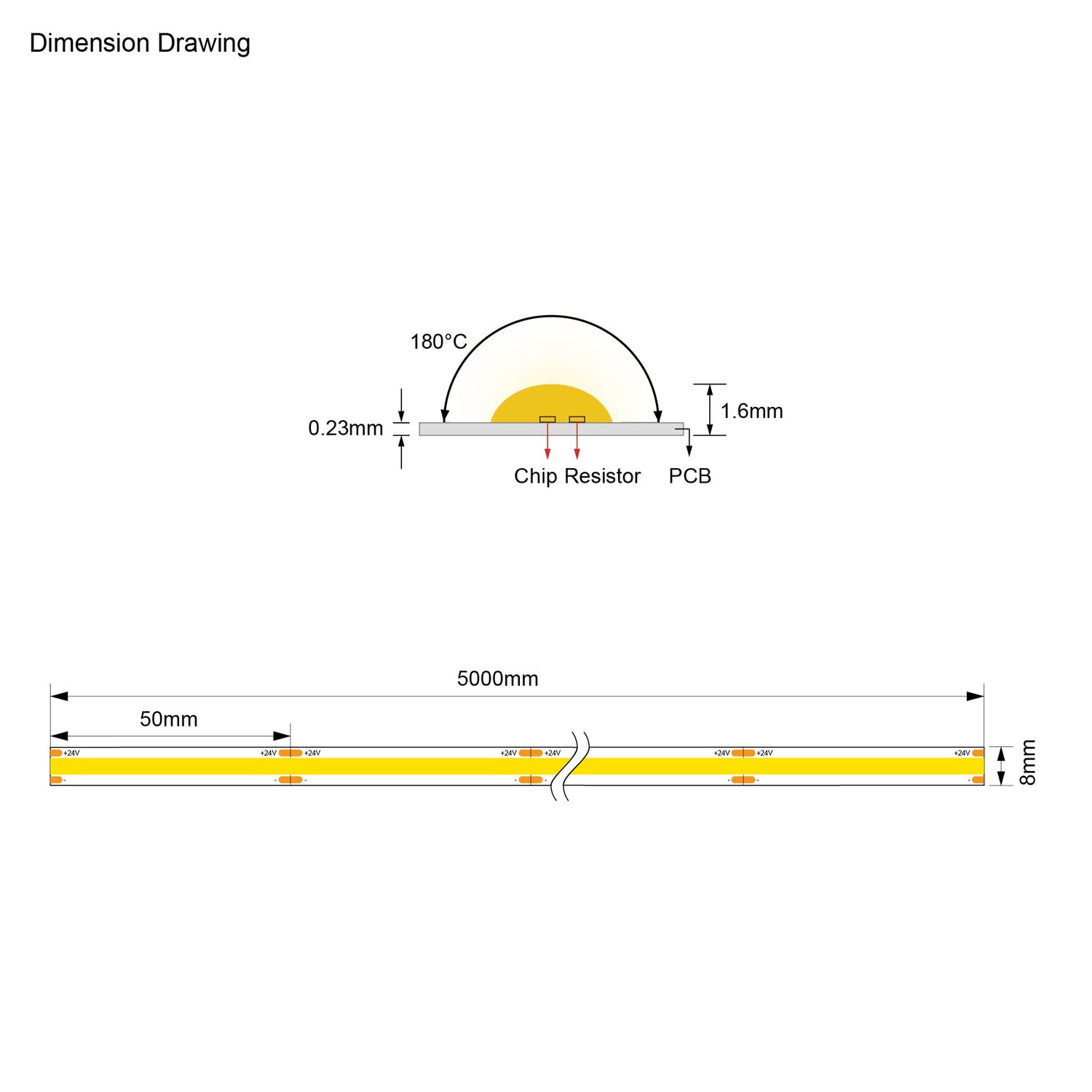

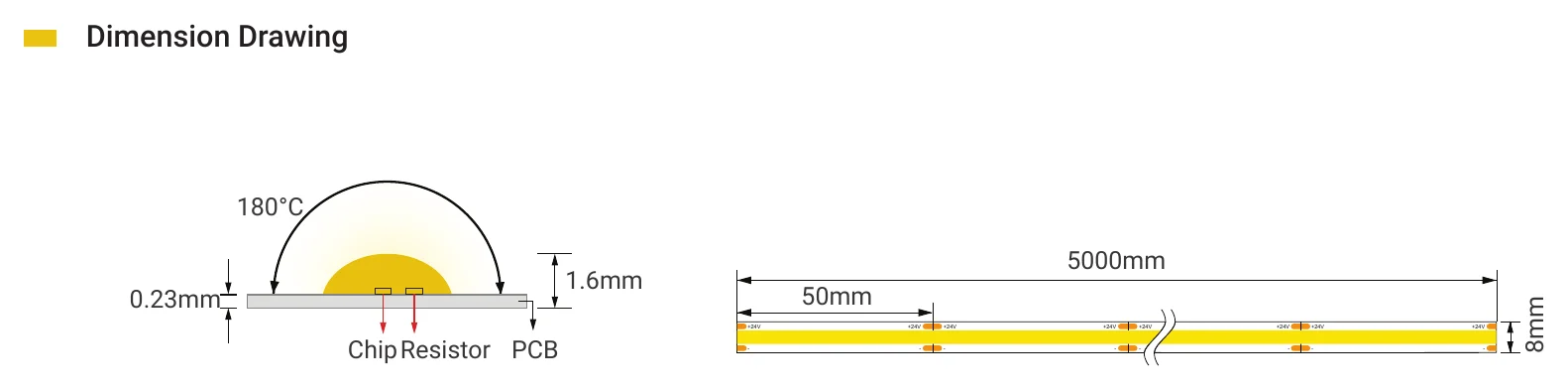

Width

8mm

Height

1.6mm

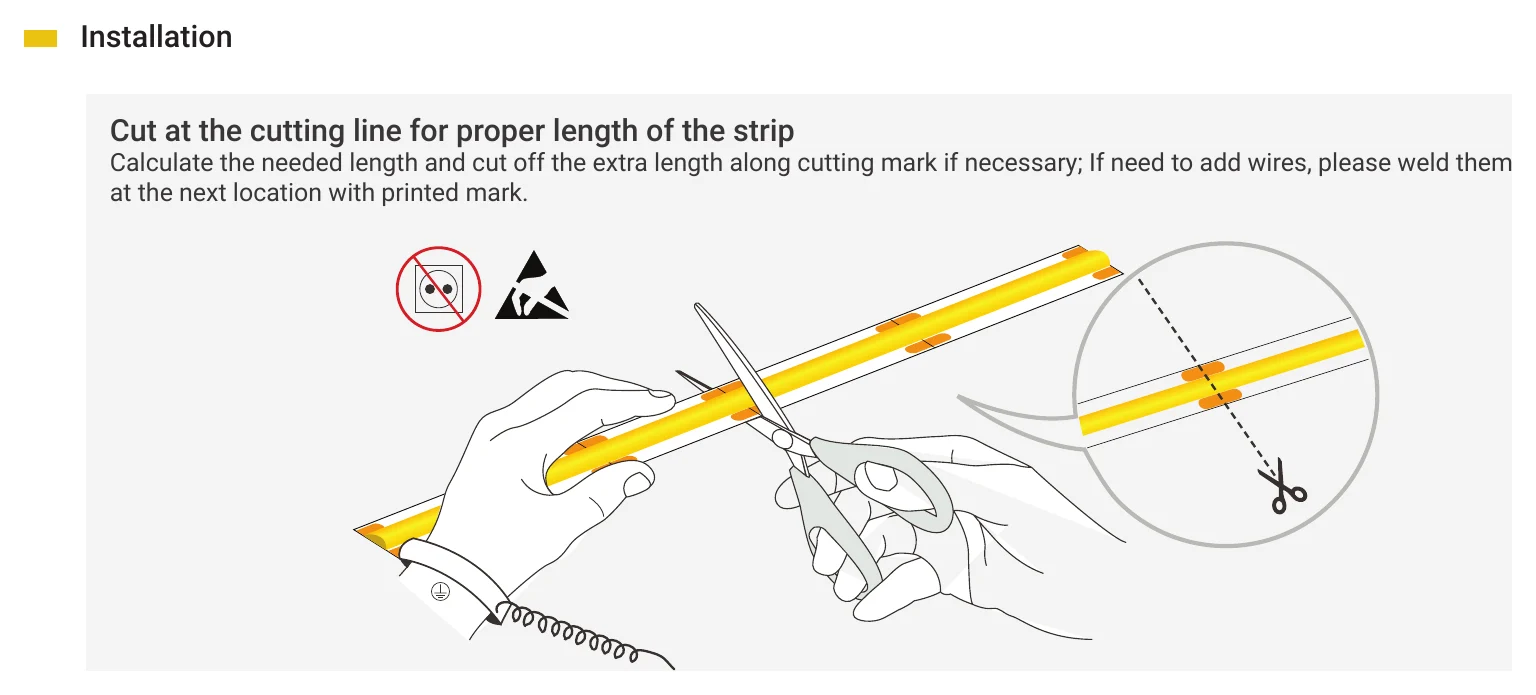

Minimum Cutting

50mm

Frequently Asked Questions

What is the Archilight Pure Lume COB Strip - 8MM designed for?

This COB LED strip is designed for professional linear lighting where a smooth, spot-free result is important. Its high-density LED layout produces soft, uniform illumination suitable for interior lighting applications where a clean lighting line is preferred.

What makes this COB strip different from standard LED strip lighting?

The Archilight Pure Lume COB Strip uses 320 LEDs per meter to create a continuous luminous line with no visible light spots. Compared with more conventional strip formats, it is intended to deliver a more seamless appearance, high brightness, and better visual uniformity.

What color temperature options are available in this product family?

This parent family is available in four color temperatures: 2700K, 3000K, 4000K, and 6500K. That gives buyers a choice from warmer ambient tones through to a cooler daylight-style output, while staying within the same 8mm COB strip platform.

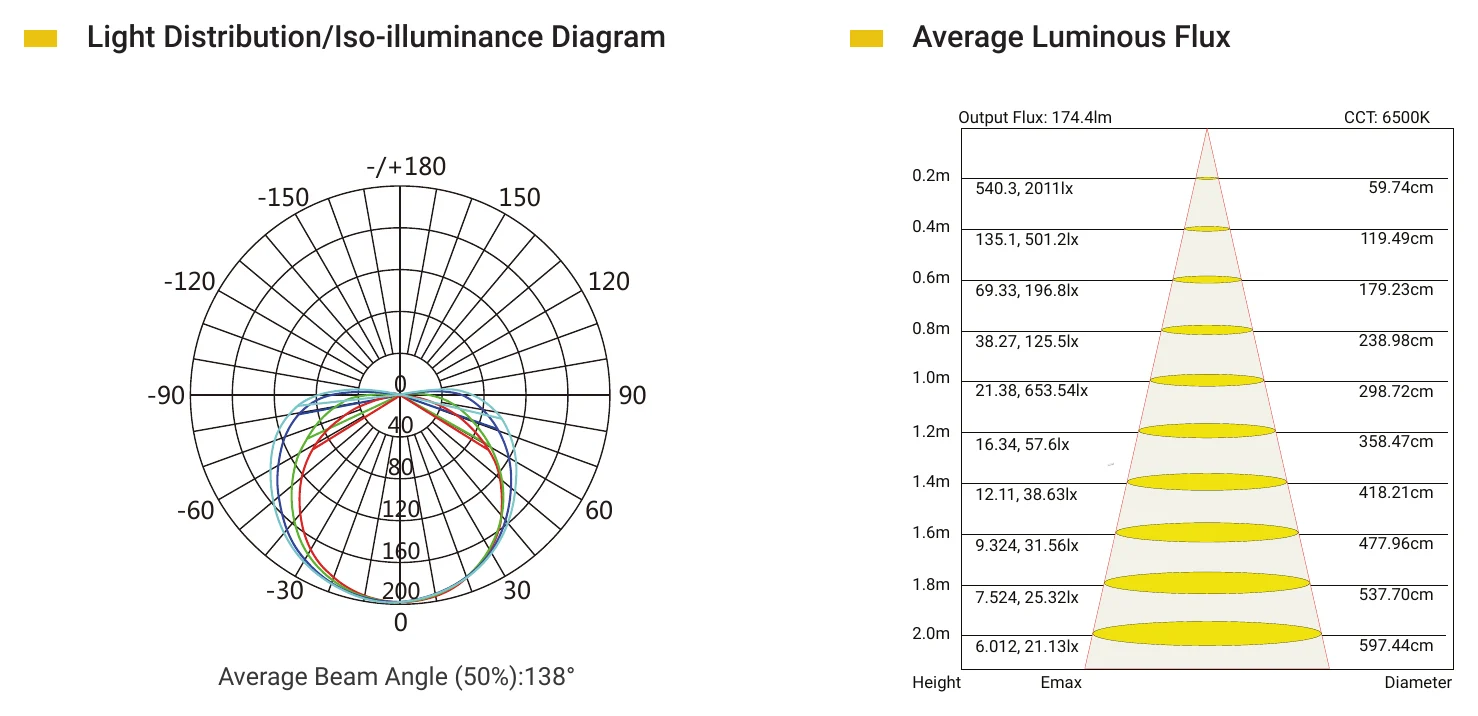

Does brightness vary between the available versions?

Yes. Based on the listed variants, output ranges from 800 lm to 950 lm depending on the selected color temperature. The 2700K version is listed at 800 lm, 3000K at 850 lm, 4000K at 900 lm, and 6500K at 950 lm.

What are the main physical and electrical specifications of this strip?

This strip runs on 24V DC and is rated at 10W. It has an 8mm width, 1.6mm height, 1 meter listed length, and a minimum cutting increment of 50mm. The product description also specifies a double PCB construction.

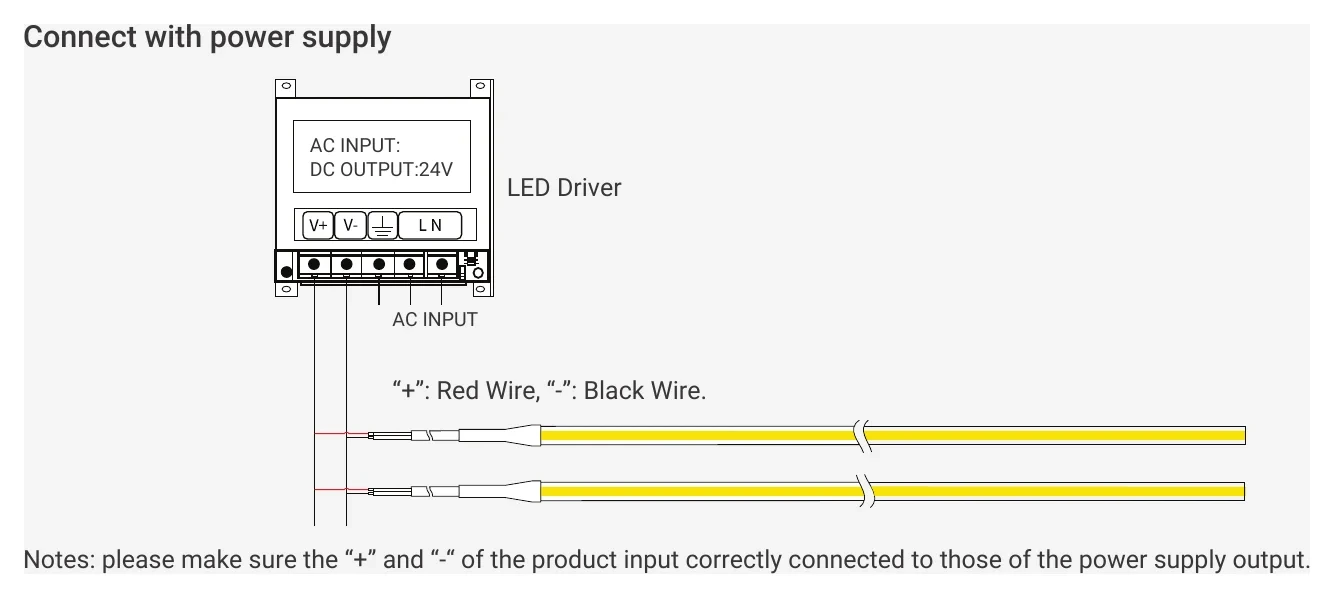

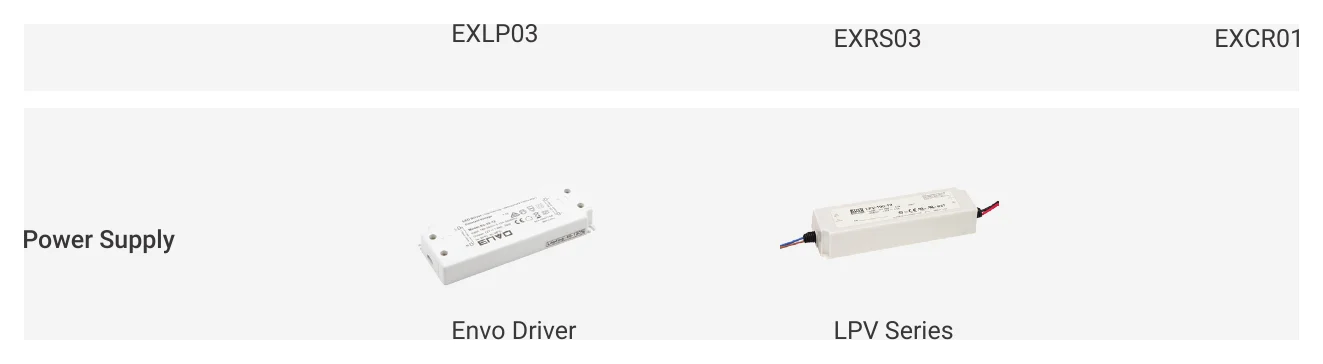

Is a driver included with the Archilight Pure Lume COB Strip - 8MM?

No, the driver is not included with this product family. Buyers should account for a separate compatible driver when specifying the strip for a project.

Is this strip dimmable?

Dimming is listed as optional for this product family. That means dimming capability is supported, but any dimming result will depend on using suitable compatible control components in the overall system.

Is this LED strip suitable for demanding long-term use?

The product description highlights high-temperature resistance, high efficiency, and a long lifespan focus. It also includes a 3-year warranty, which supports its positioning for professional-use lighting applications.
