Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

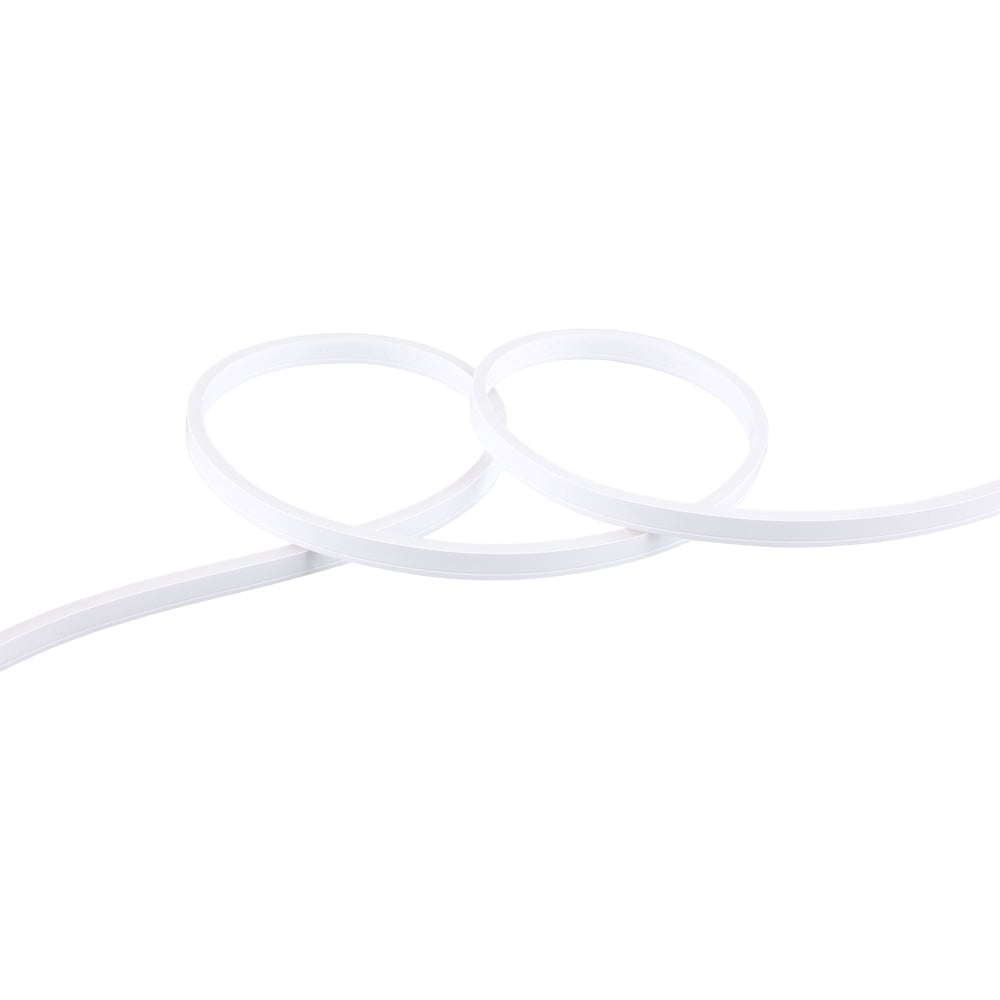

Archilight LED Neon Side-Bend Slight Series 4x8mm

9W/m24VIP54can be cut anywhere

SKU NS0408-2454GLE-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

NS0408-2454GLE-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

Super flexible bending performance with ultra-slim size.
Plane profile supports flush mounted into the groove
Uniform, dot-free, smooth and comfortable luminary up to 10 meters [32.8ft.] run length.
On field cuttable and assembly to be any length, with two ends sealed by gluing process.
IP54 for indoor usage exclusive for furniture lighting.
Dimmable available with PWM signal.
Compared with traditional fragile glass and harden/yellowing easily PVC sheathing material, silicon extrusion technology is an advanced process, with high-efficiency production capacity and environmentally-friendly characteristics. Additionally, with high grade appearance, soft bend flexibility, strong impact resistant and high weather resistance.
50,000h long lifespan, 5 years warranty, for indoor and outdoor.

Specifications

Archilight LED Neon Side-Bend Slight Series 4x8mmSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Brightness
NS0408-2454GLE-CW	Cool White 6500K	240 lm
NS0408-2454GLE-NW	Natural White 4000K	240 lm
NS0408-2454GLE-WW	Warm White 3000K	228 lm

General Specification

Style: Side-Bend (White)
Dimension: W4xH8.5 mm [W0.16xH 0.33in.]
Max. Length (La): 5M[16.4ft.] @24VDC
Min. Unit (L1): Free cut to be any length
LED Type: SMD 2835
LED QTY: 120LED/M [36LED/ft.]
IP Rating: IP54
Operating Ambient: Ta: -20~45℃
Lifespan: 50,000h(indoor) (L70B50@ Tc≤65℃, Tc is the temp. of LED pin)

Photoelectric Specification

Style: Side-Bend (White)
Power ±10%: 9W/M [2.74W/ft.]
Operating Voltage: DC24V
Beam Angle: 120°

Certifications & ratings

Certification marks: CB, UL, CE, RoHS

Test conditions and notes4

1. Luminous flux for CCT 2700K is 10% lower, for CCT 3000K/3500K is 5% lower, for CCT 5000K/6500K is the same, compared with 4000K.
2. The Max. Length (La) is defined as power fed on one side.
3. The standard packing length is fixed by default per reel without installation accessories, customized packing need to be evaluated.
4. Installation accessories pack should be ordered separately according to specific case.

Technical drawings

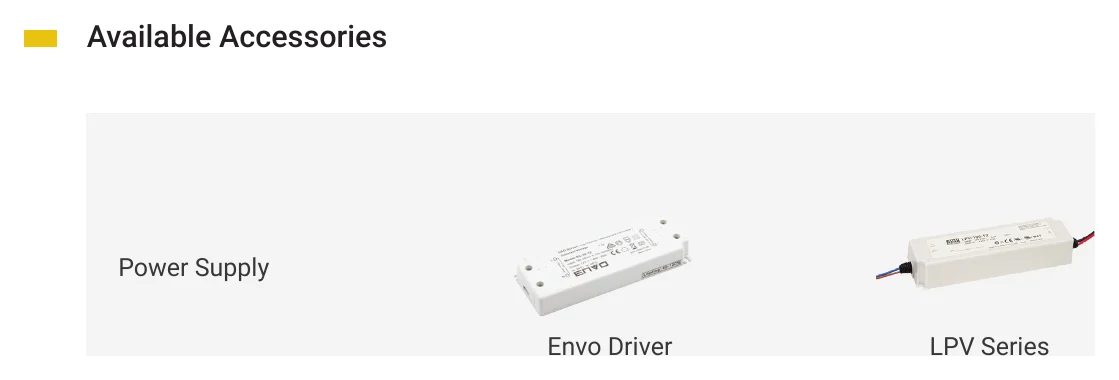

Archilight LED Neon Side-Bend Slight Series 4x8mm Available Accessories — Available Accessories

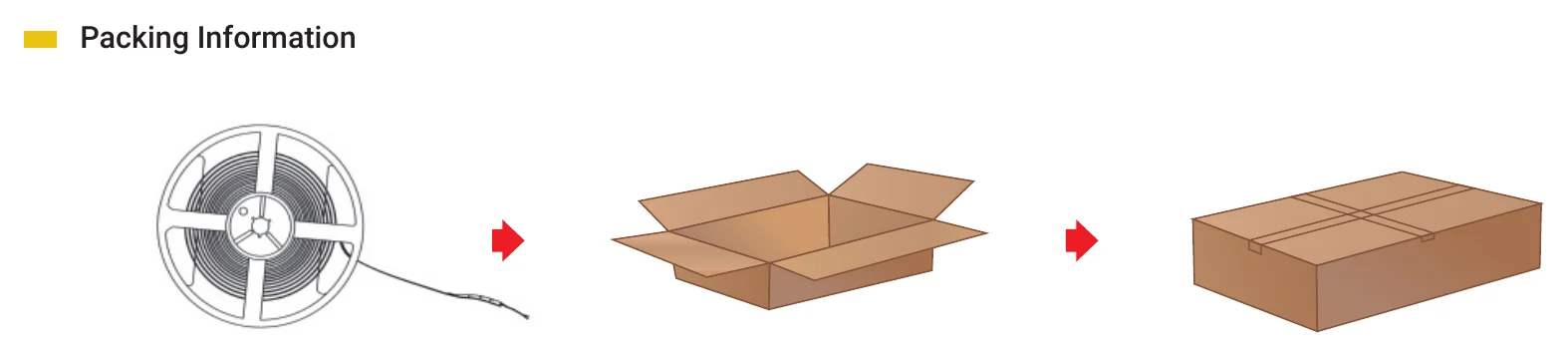

Archilight LED Neon Side-Bend Slight Series 4x8mm Packing Information — Packing Information

Archilight LED Neon Side-Bend Slight Series 4x8mm Declaration — Declaration

Typical applications

Decoration for showcase, advertising, displayer board.
Lighting for hotel, garden, bridge.
Corridor, ceiling, stair, path way.
Signage, architecture lighting

Downloads

Datasheet1

Archilight LED Neon Side-Bend Slight Series 4x8mm datasheetNS0408_2454GLE_V606.pdf PDF Download

Catalogues2

LED Strip Selection Guide PDF Download

Related Files- LED Comprison Form PDF Download

FAQ

What type of applications is this Archilight LED Neon Side-Bend Slight Series designed for?

This slim side-bend LED neon is suited to furniture grooves, showcases, advertising features, hotel decoration, and architectural lighting where a very narrow profile is important. Its dot-free light output and flexible silicone construction make it a strong fit for decorative and linear accent applications in residential and commercial spaces.

Can this LED neon strip be used indoors or outdoors?

This product has an IP54 rating, which means it is protected against dust and splashing water. It is well suited to indoor use and to locations where light moisture resistance is beneficial, but it is not described here as a fully submersible or heavy-exposure outdoor solution.

What are the main size and performance specifications of this product family?

The strip has a slim 4 mm by 8 mm profile and operates at 24VDC. It consumes 9W per metre, offers a 120 degree beam angle, and supports runs up to 10 metres, making it suitable for continuous linear lighting in compact spaces.

What color temperature options are available in this parent product family?

This family is offered in 3000K, 4000K, and 6500K versions. That gives buyers a choice between warm white, neutral white, and cool white depending on the intended atmosphere and project requirements.

Are there output differences between the available color temperature variants?

Yes. The 4000K and 6500K variants are listed at 240 lumens, while the 3000K variant is listed at 228 lumens. The power rating remains the same across the family at 9W per metre.

Is the driver included, and is this product dimmable?

The driver is not included with this product family. It is listed as dimmable optional, which means dimming capability depends on using compatible supporting components selected for the application.

How is this product sold, and what package length does the parent listing cover?

The parent listing covers a 10 metre, 32.8 foot package. The title also states that the unit price is shown per metre, which helps buyers compare project costs while still purchasing the full package length defined by the listing.

What durability and service life can buyers expect from this LED neon strip?

This product is described as using durable silicone extrusion technology with high impact resistance and weather durability. It is rated for up to 50,000 hours of service life and is backed by a 5 year warranty.
