Overview

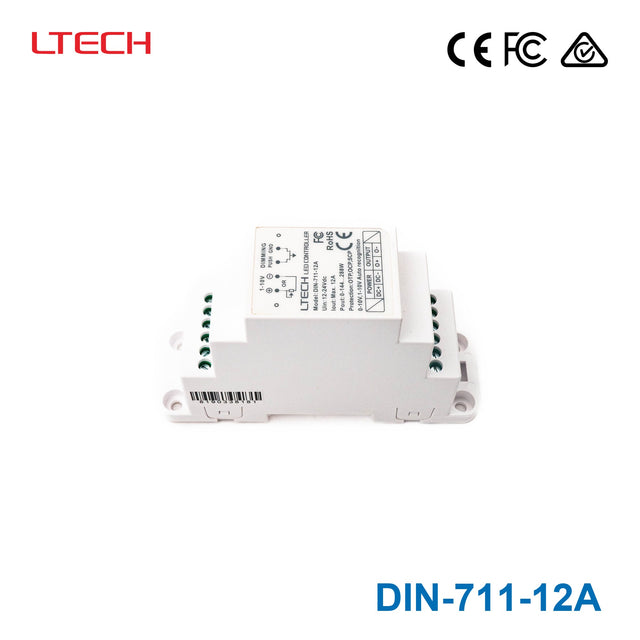

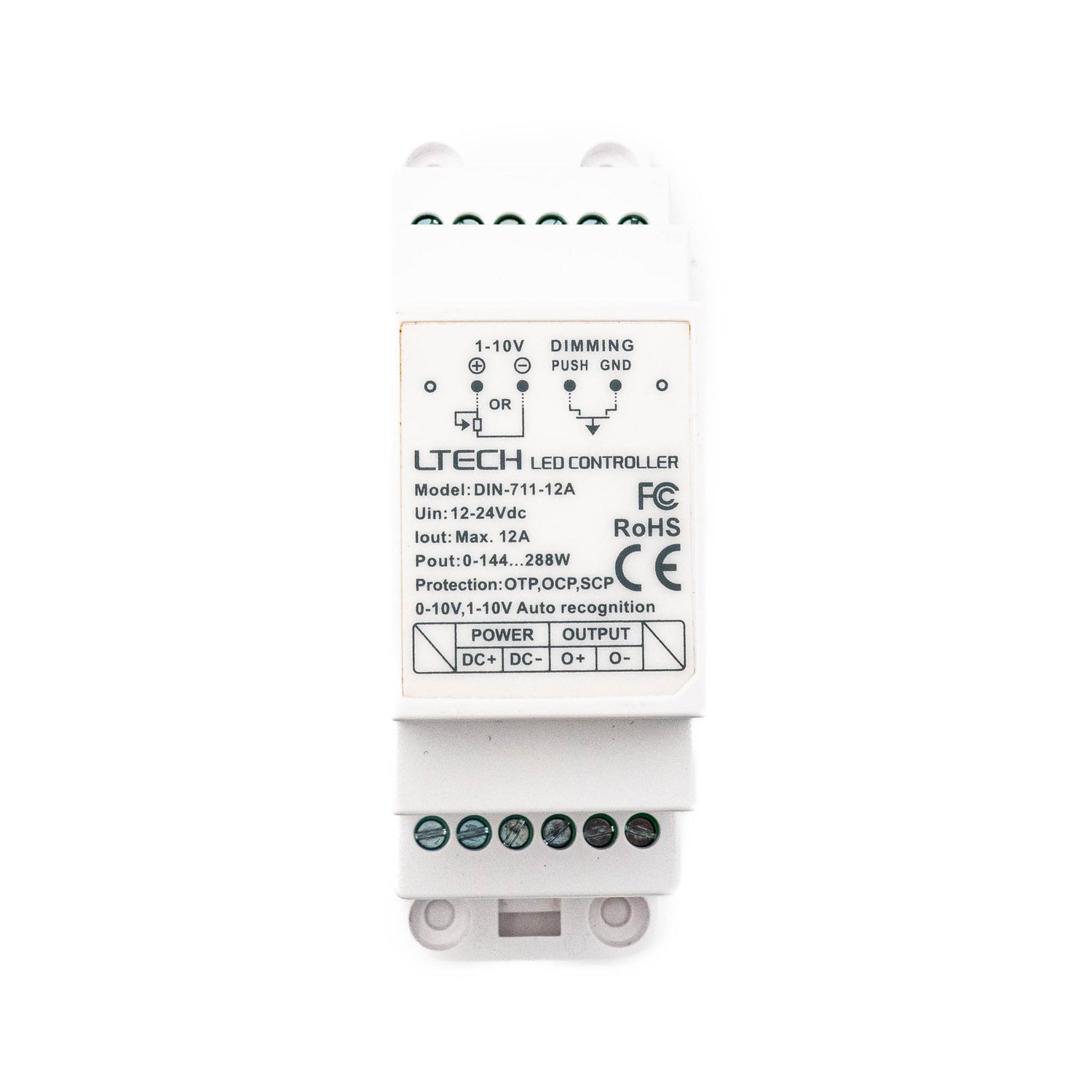

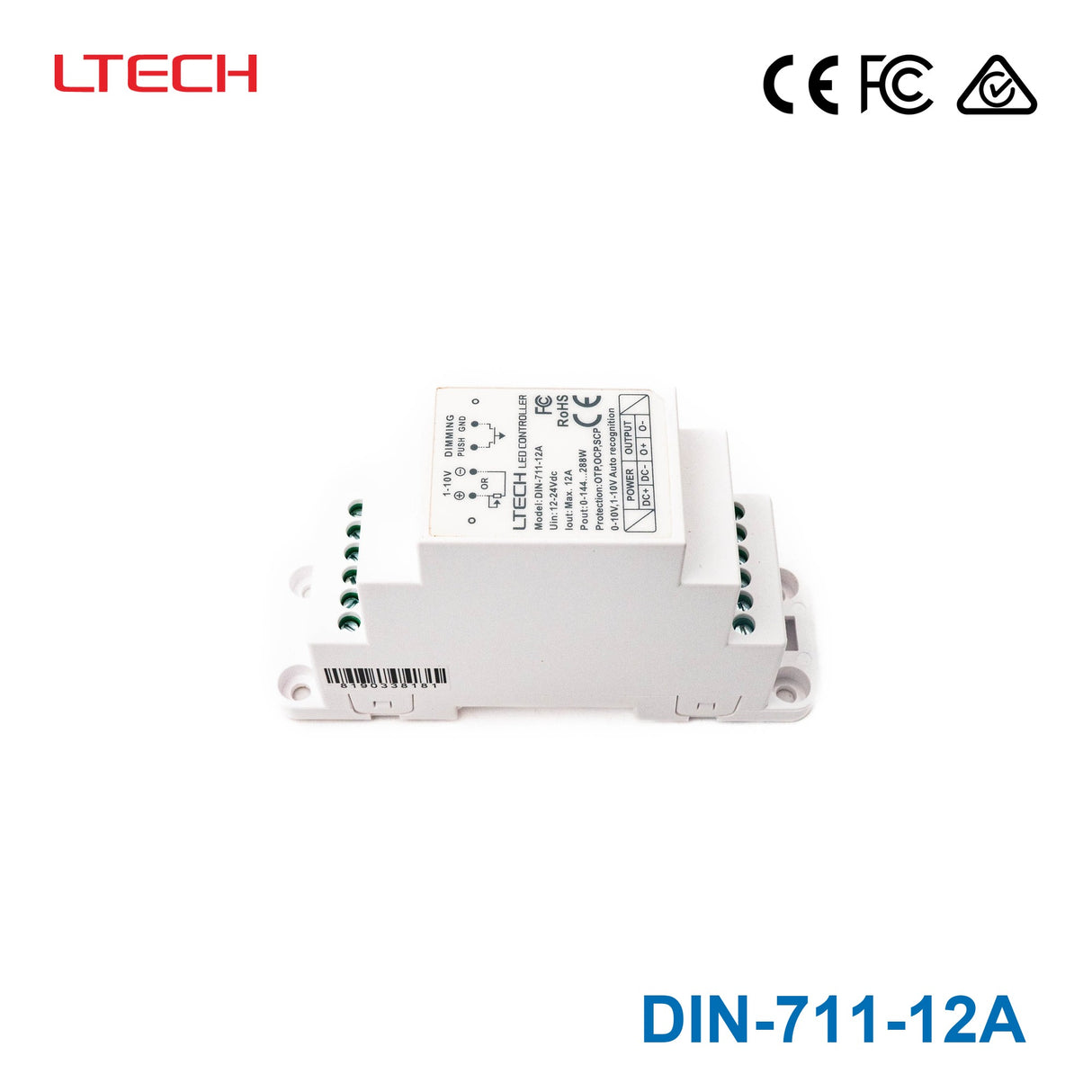

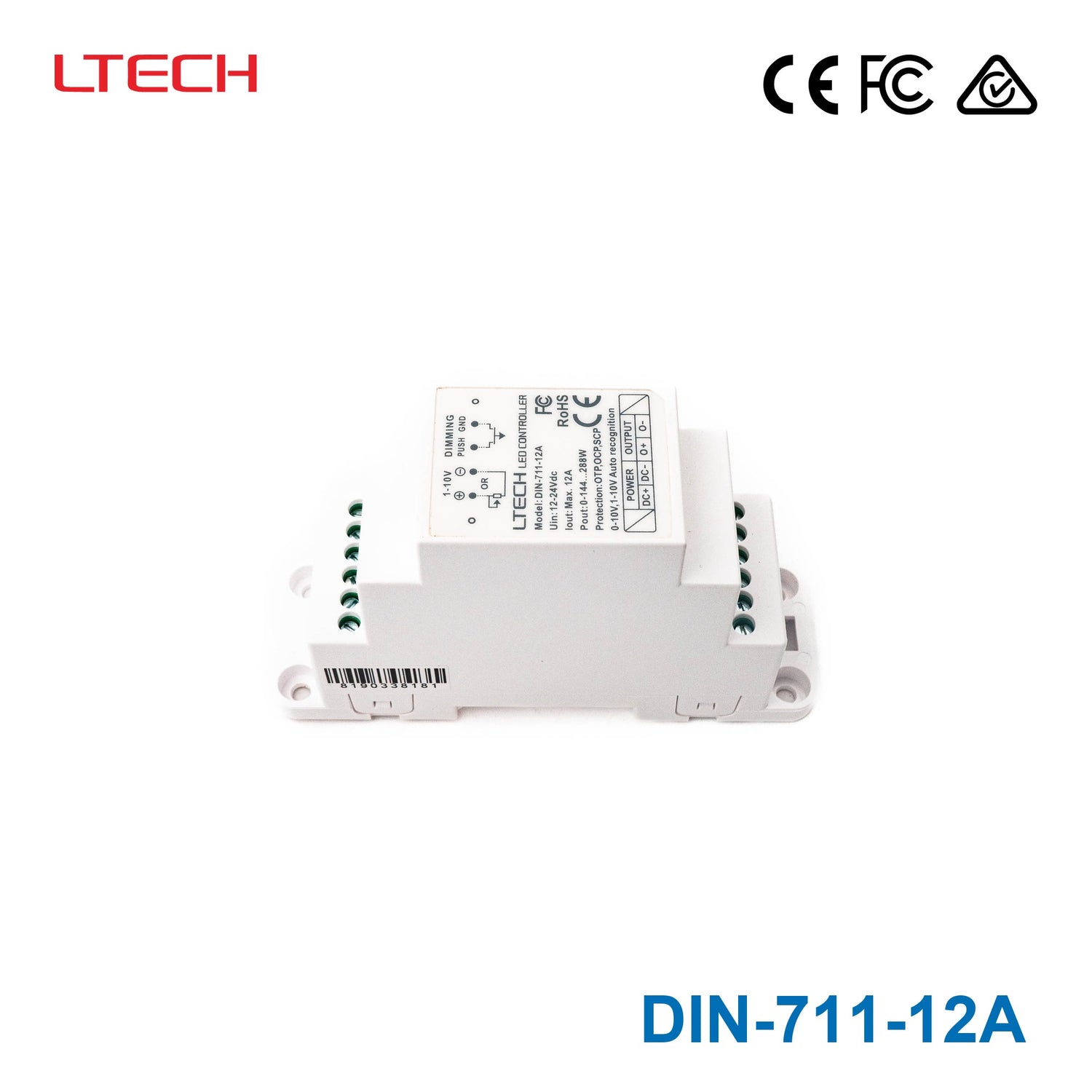

DIN-711-12A is the 12~24Vdc output model of this series.
Features
- Dimming interface: 0-10V 1-10V 10V PWM or push button
- PWM digital dimming, no alter LED color rendering index.
- Dimming range from 0-100%, LED start at 0.1% possible.
- Max. current output: 12A.
- Short circuit / Over load protection.
- Full protective plastic housing.
- Suitable for indoor environments.
Specifications
Main Characteristics
- Dimming Interface
- 0-10V, 1-10V, 10V PWM or push button
- Input Voltage
- 12~24Vdc
- Output Voltage
- 12~24Vdc
- Output Current
- 12A×1CH
- Max. Output Power
- 0-144W...288W
- Dimming Range
- 0~100%, LED start at 0.1% possible

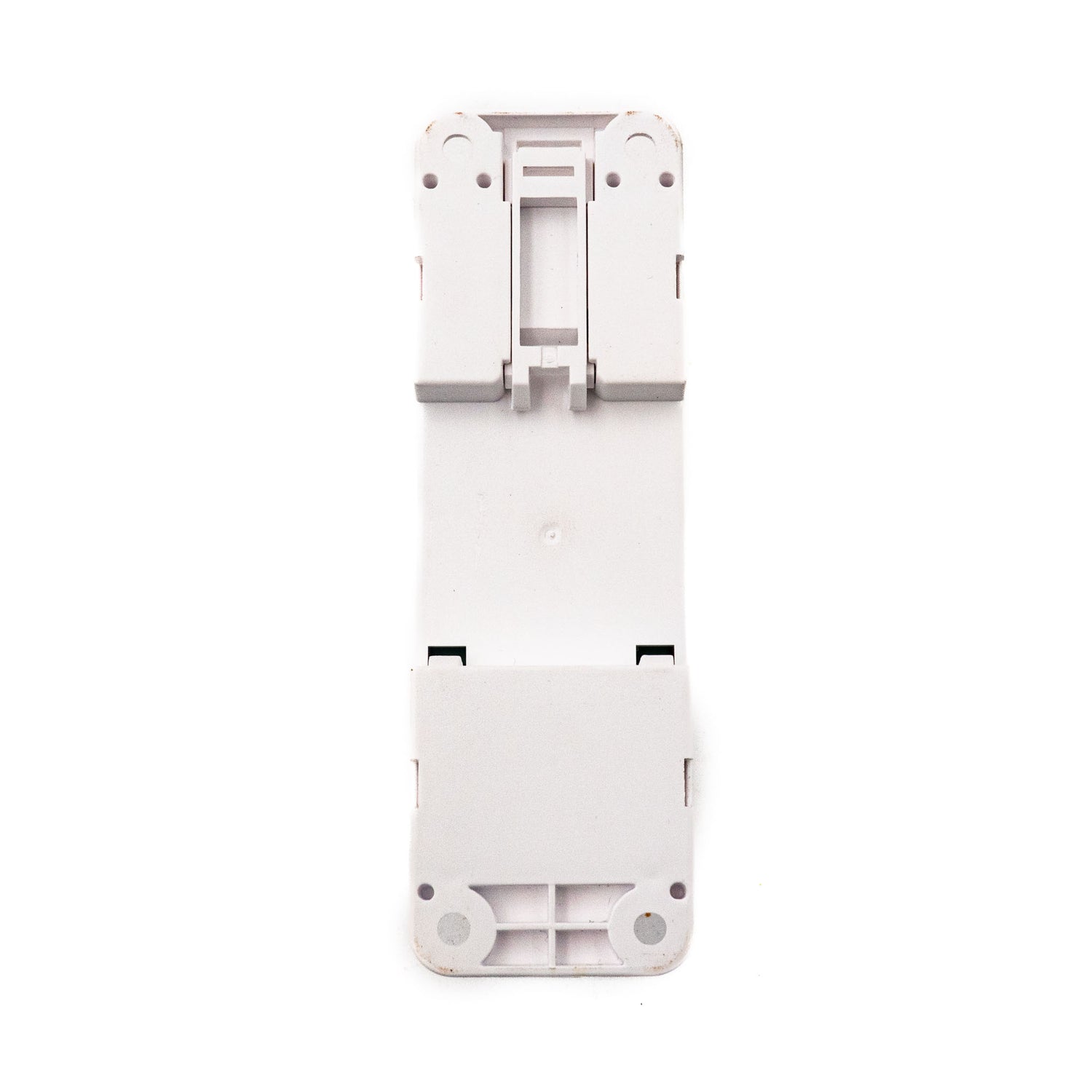

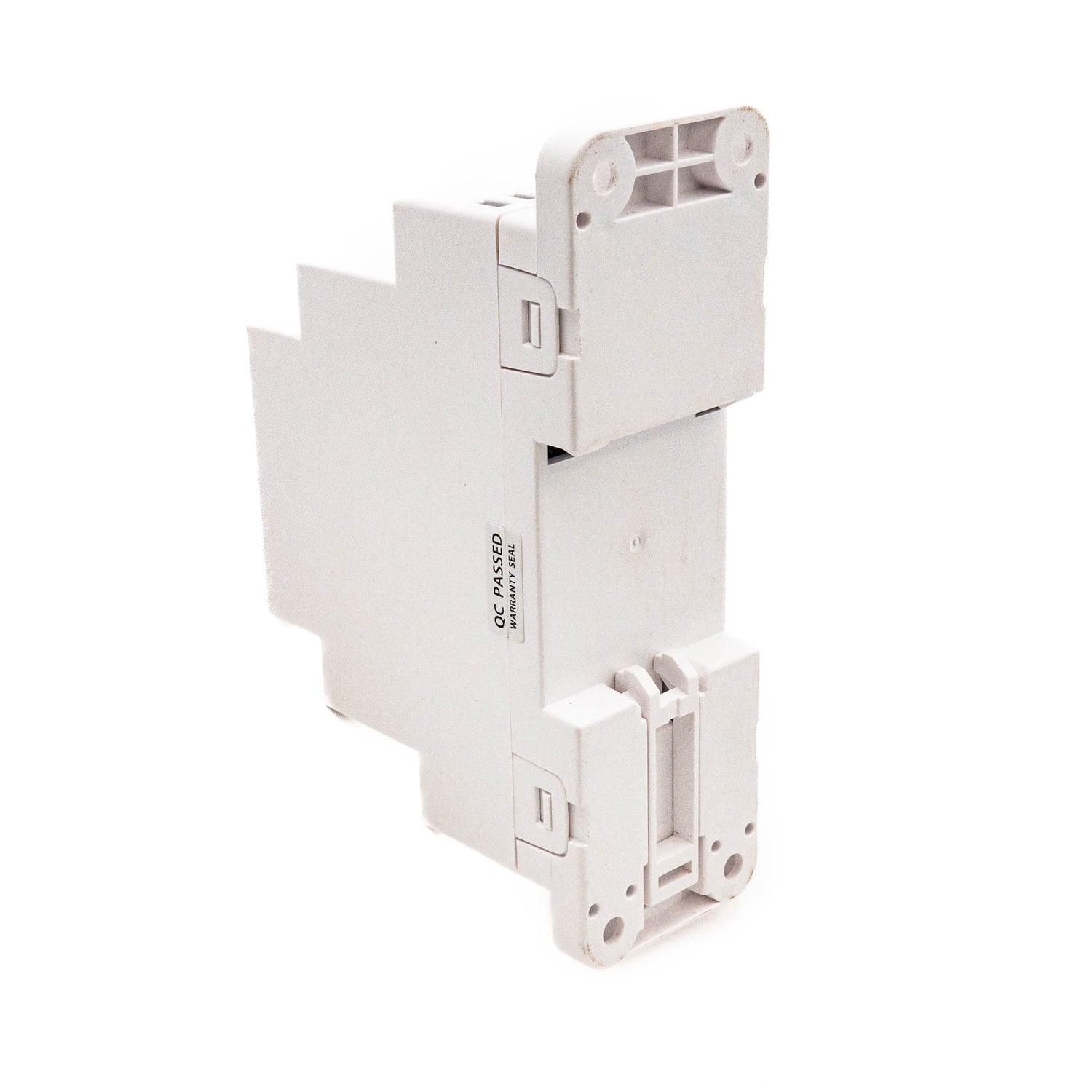

- Mounting
- DIN-Rail or Screw
- Working Temperature
- -30℃~55℃
- Product Size
- L112×W35×H67(mm)
- Package Size
- L114×W37×H70(mm)
- Weight(G.W.)
- 125g
Certifications & ratings
- warranty
- 5 years
- Certification marks
- FCC, CE, RoHS, ISO9001:2008
Downloads
FAQ
What does the Ltech DIN-711-12A control?
The Ltech DIN-711-12A is a 1-10V LED controller designed for dimming LED lighting systems. It also supports 0-10V, 10V PWM, and push-button dimming input methods, which makes it useful in commercial and building lighting control applications.
What dimming signal types are supported by this controller?
This model supports 0-10V, 1-10V, 10V PWM, and push-button dimming interfaces. It also includes automatic identification of 0-10V input, helping it work across multiple low-voltage dimming control approaches.
What are the electrical ratings of the DIN-711-12A?
The DIN-711-12A supports 12~24Vdc input and output, with a maximum output current of 12A per channel. The maximum output power ranges from 0-144W to 288W depending on the configuration, making it suitable for higher-load LED dimming applications.
How smooth is the dimming performance on this model?
This controller supports a dimming range from 0-100% via 0-10V, 1-10V, 10V PWM, or push-button interfaces. It allows LED startup at as low as 0.1%, which is useful for applications that need very low-end dimming performance.
Is the Ltech DIN-711-12A suitable for indoor commercial environments?
Yes, this model is specified for indoor environments with a working temperature range of -30°C to 55°C. Its DIN rail form factor and broad control signal support make it a practical option for indoor lighting control panels and commercial LED systems.
What operating temperature range does this controller support?
The DIN-711-12A is rated for operation from -30°C to 55°C. That range supports use in a wide variety of indoor environments where control equipment may be exposed to colder or warmer conditions.
Does this controller include protection features?
The DIN-711-12A is designed for LED control applications with a wide operating temperature range of -30°C to 55°C. It features a compact DIN-rail or screw mounting design suitable for integration into control panels.
What warranty is offered for the DIN-711-12A?
This model includes a 5-year warranty period. That warranty term can be useful for buyers evaluating long-term support and lifecycle expectations for commercial LED control components.
