Ltech

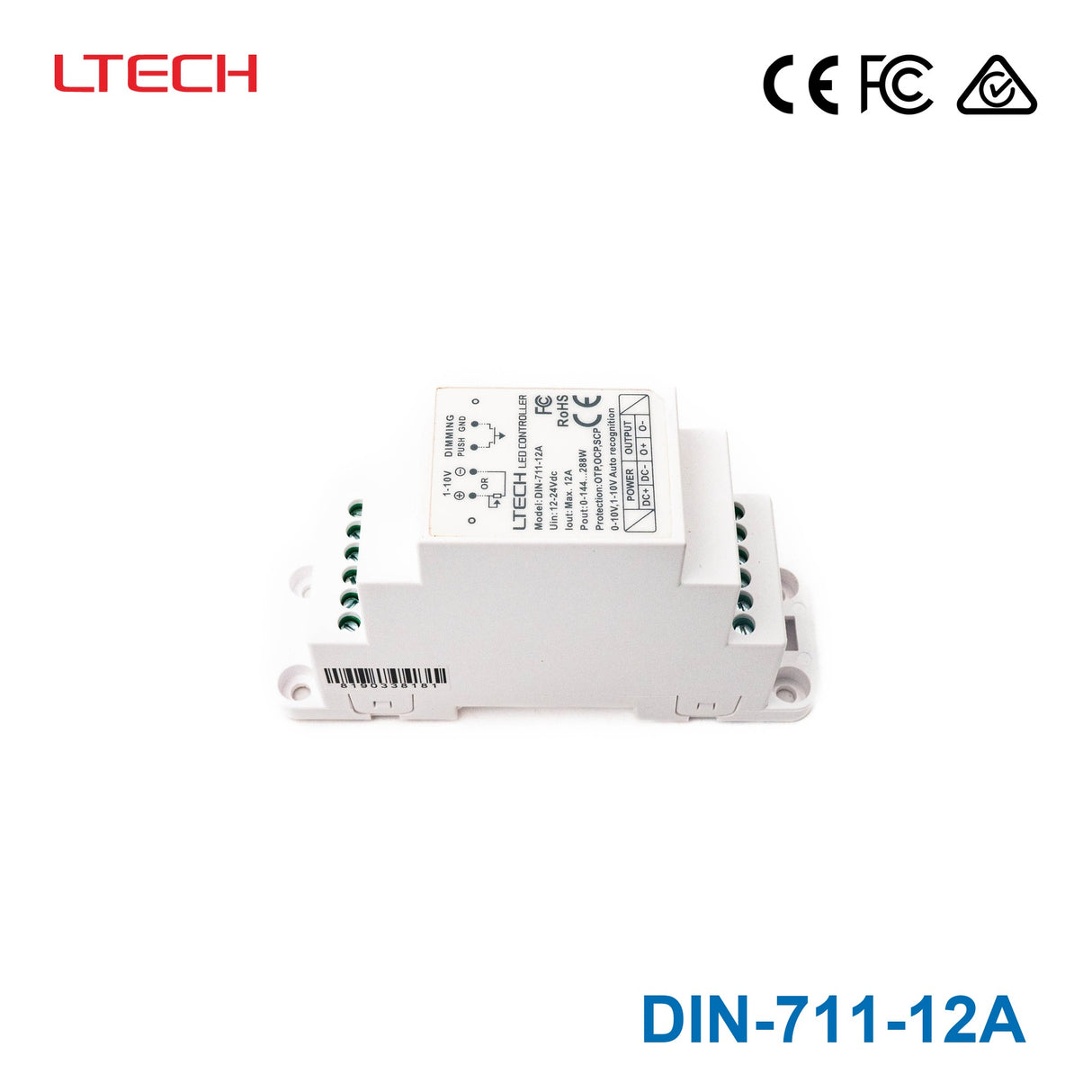

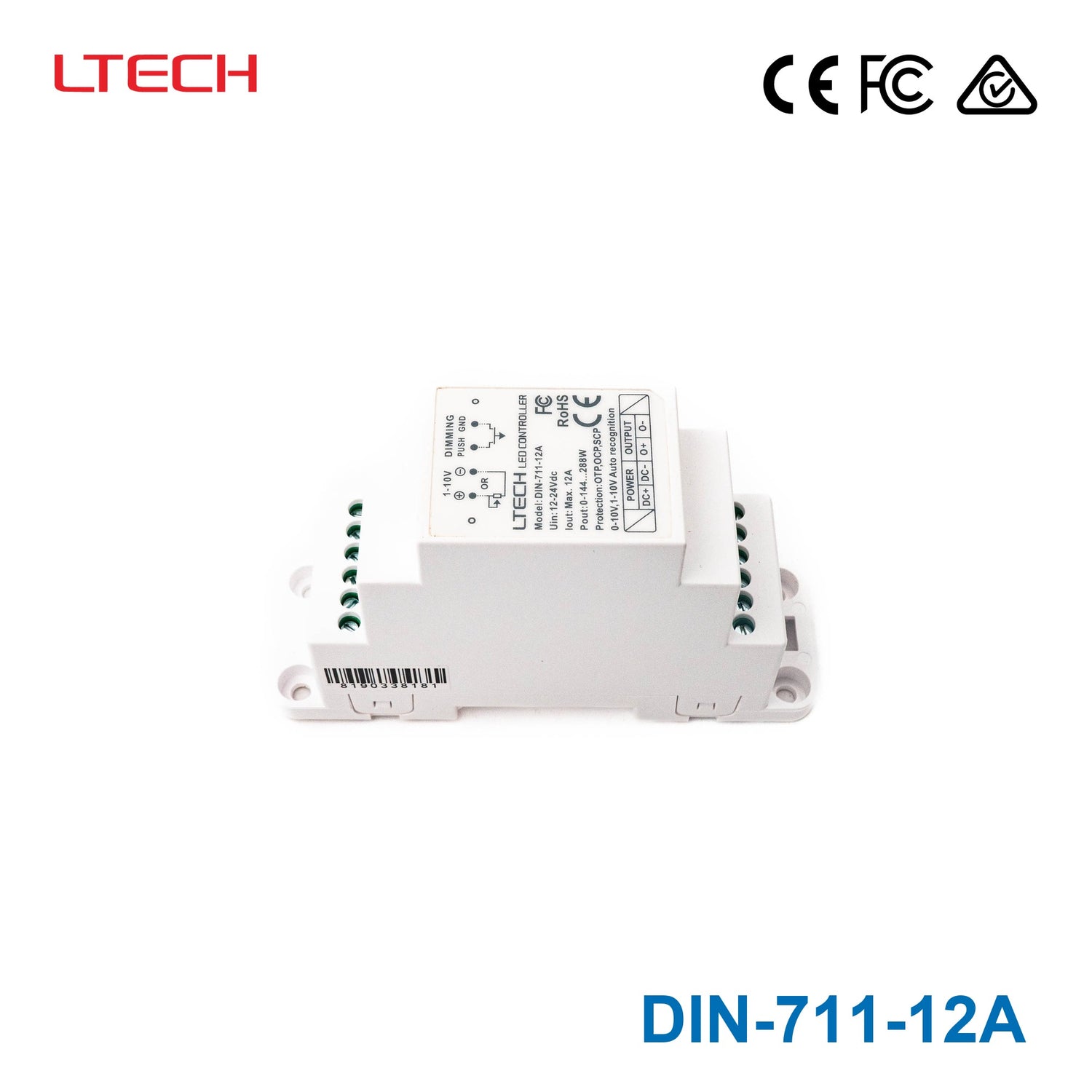

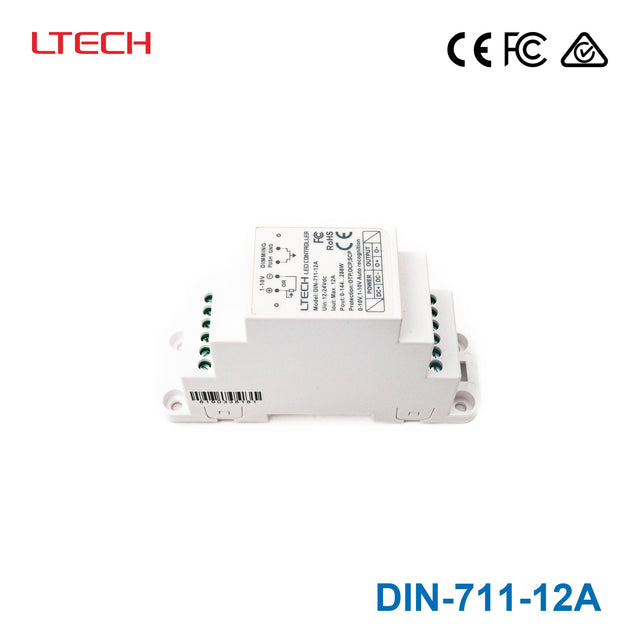

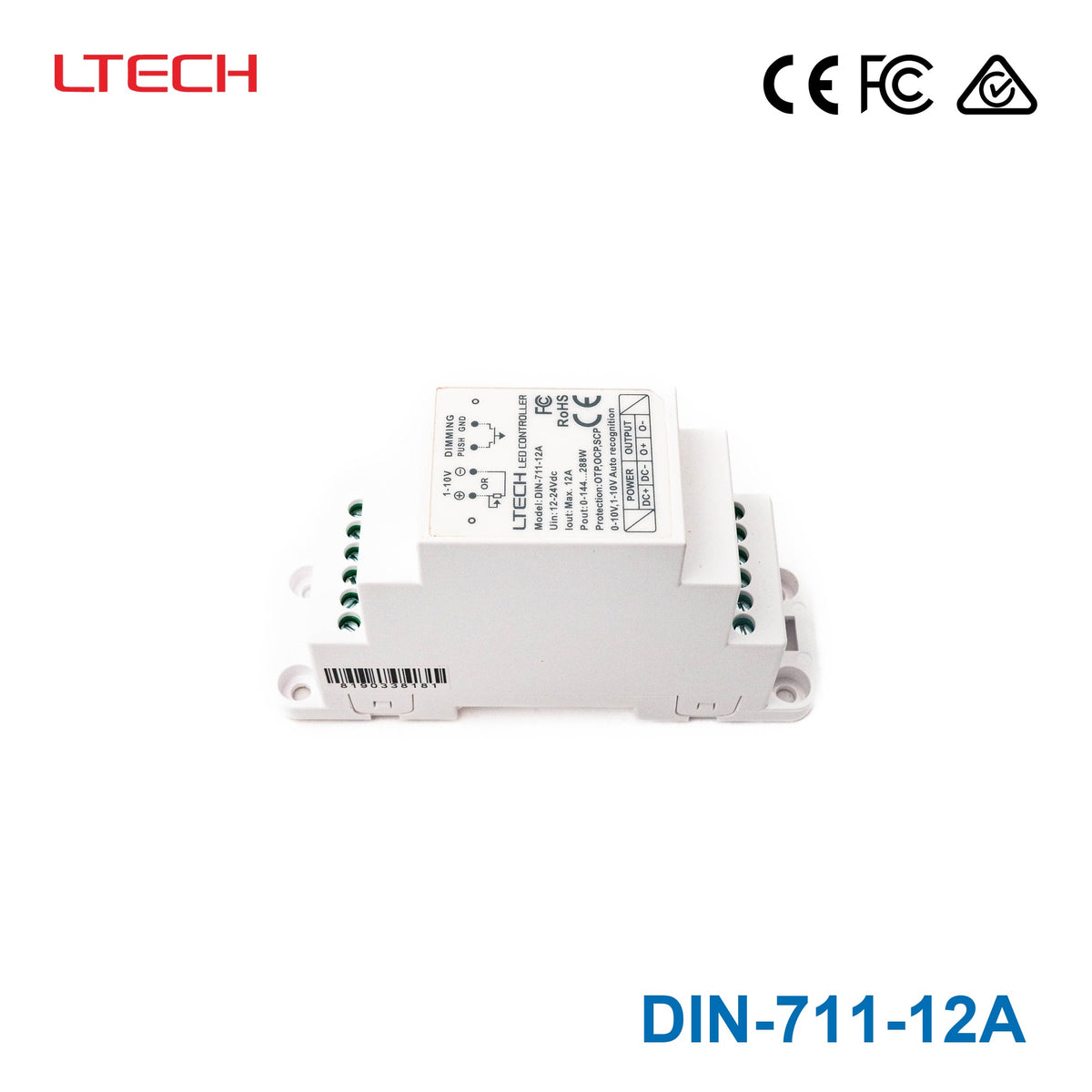

Ltech DIN-711-12A Din Rail 1-10V LED Controller 12A

SKU DIN-711-12A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

DIN-711-12A is the 12~24Vdc output model of this series.

Features

  • Dimming interface: 0-10V 1-10V 10V PWM or push button
  • PWM digital dimming, no alter LED color rendering index.
  • Dimming range from 0-100%, LED start at 0.1% possible.
  • Max. current output: 12A.
  • Short circuit / Over load protection.
  • Full protective plastic housing.
  • Suitable for indoor environments.

Specifications

DIN-711-12ASpecifications from the official datasheet (2016-12-02 edition)Download datasheet PDF

Main Characteristics

Dimming Interface
0-10V, 1-10V, 10V PWM or push button
Input Voltage
12~24Vdc
Output Voltage
12~24Vdc
Output Current
12AΓ—1CH
Max. Output Power
0-144W...288W
Dimming Range
0~100%, LED start at 0.1% possible

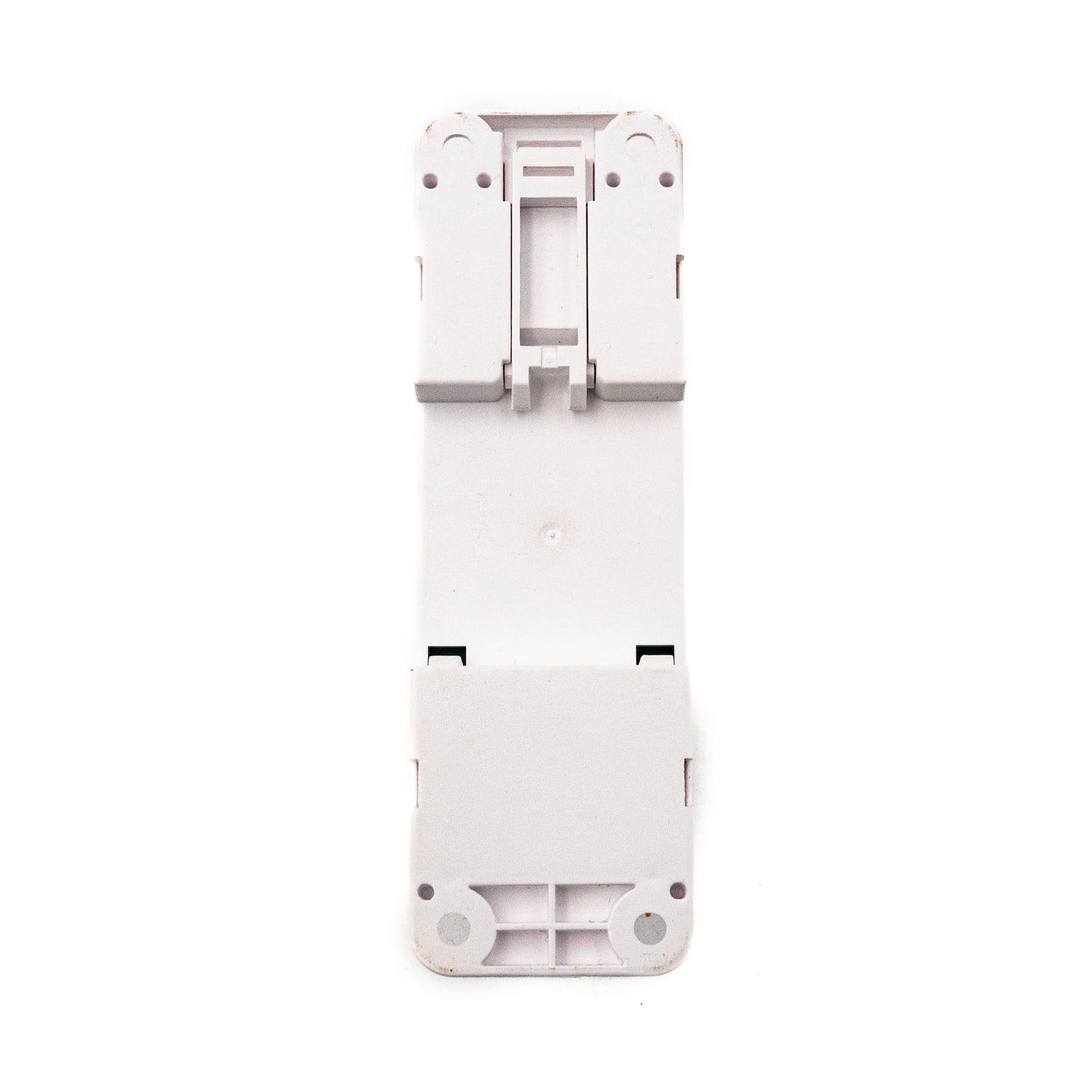

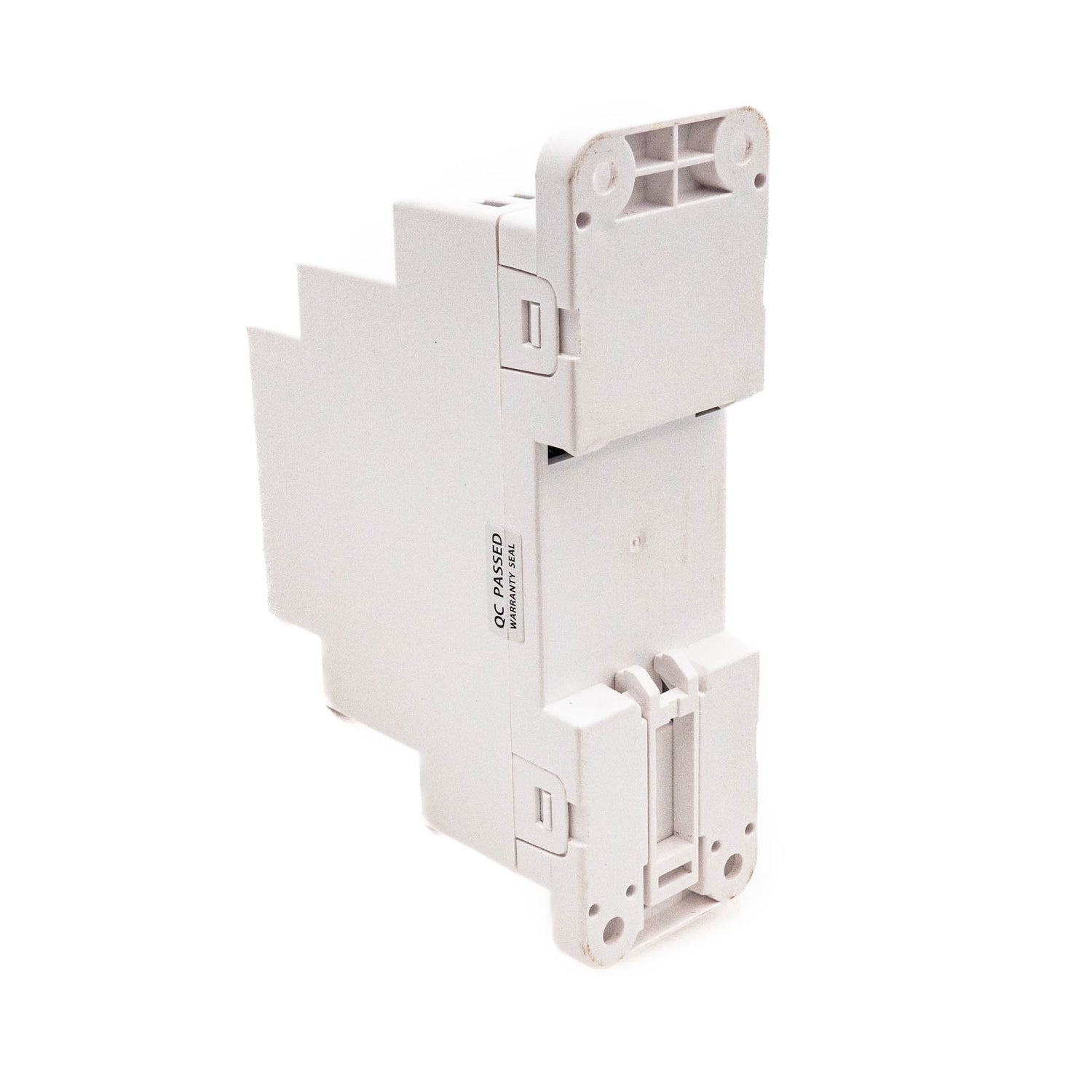

Mounting
DIN-Rail or Screw
Working Temperature
-30℃~55℃
Product Size
L112Γ—W35Γ—H67(mm)
Package Size
L114Γ—W37Γ—H70(mm)
Weight(G.W.)
125g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008

Downloads

FAQ

What does the Ltech DIN-711-12A control?

The Ltech DIN-711-12A is a 1-10V LED controller designed for dimming LED lighting systems. It also supports 0-10V, 10V PWM, and push-button dimming input methods, which makes it useful in commercial and building lighting control applications.

What dimming signal types are supported by this controller?

This model supports 0-10V, 1-10V, 10V PWM, and push-button dimming interfaces. It also includes automatic identification of 0-10V input, helping it work across multiple low-voltage dimming control approaches.

What are the electrical ratings of the DIN-711-12A?

The DIN-711-12A supports 12~24Vdc input and output, with a maximum output current of 12A per channel. The maximum output power ranges from 0-144W to 288W depending on the configuration, making it suitable for higher-load LED dimming applications.

How smooth is the dimming performance on this model?

This controller supports a dimming range from 0-100% via 0-10V, 1-10V, 10V PWM, or push-button interfaces. It allows LED startup at as low as 0.1%, which is useful for applications that need very low-end dimming performance.

Is the Ltech DIN-711-12A suitable for indoor commercial environments?

Yes, this model is specified for indoor environments with a working temperature range of -30Β°C to 55Β°C. Its DIN rail form factor and broad control signal support make it a practical option for indoor lighting control panels and commercial LED systems.

What operating temperature range does this controller support?

The DIN-711-12A is rated for operation from -30Β°C to 55Β°C. That range supports use in a wide variety of indoor environments where control equipment may be exposed to colder or warmer conditions.

Does this controller include protection features?

The DIN-711-12A is designed for LED control applications with a wide operating temperature range of -30Β°C to 55Β°C. It features a compact DIN-rail or screw mounting design suitable for integration into control panels.

What warranty is offered for the DIN-711-12A?

This model includes a 5-year warranty period. That warranty term can be useful for buyers evaluating long-term support and lifecycle expectations for commercial LED control components.
