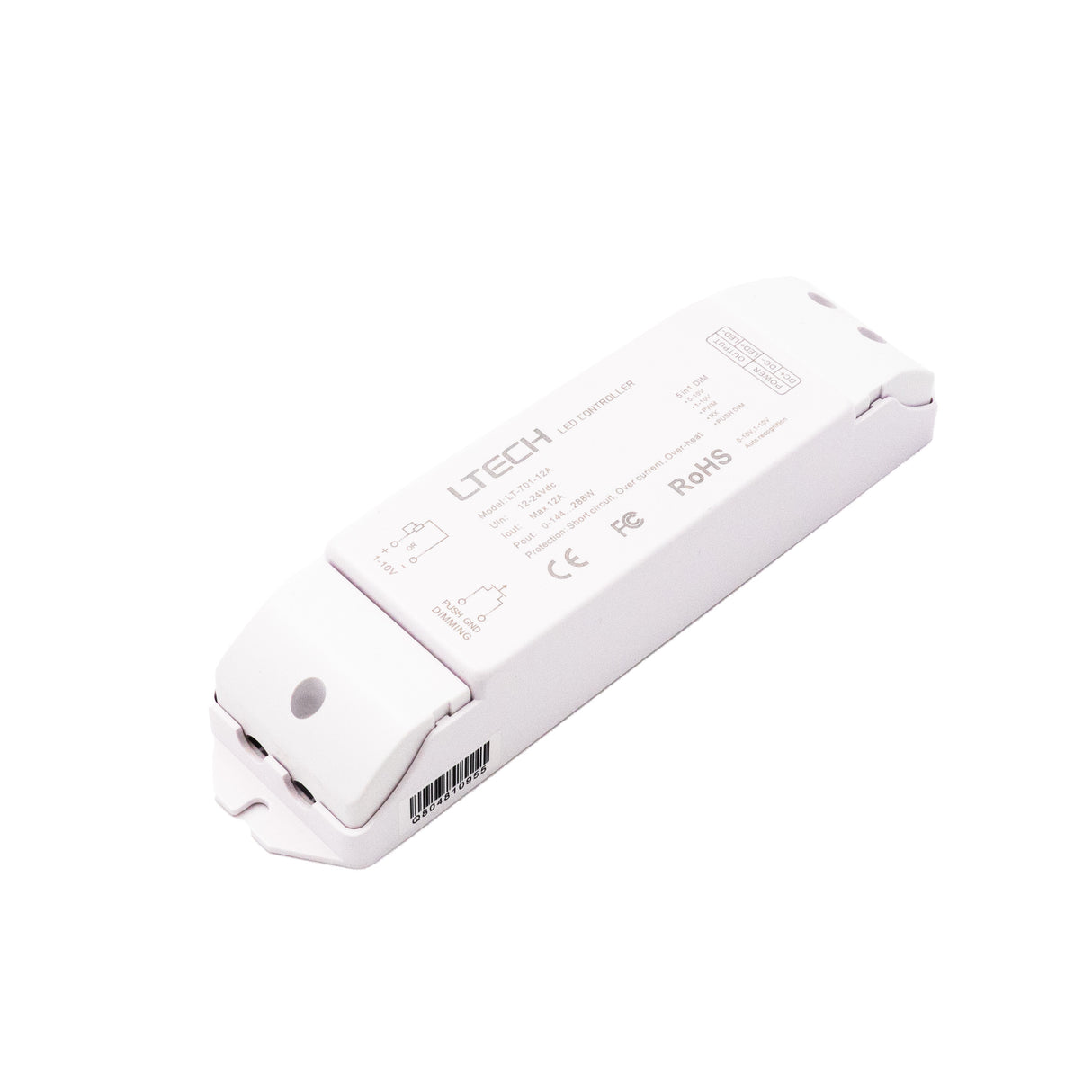

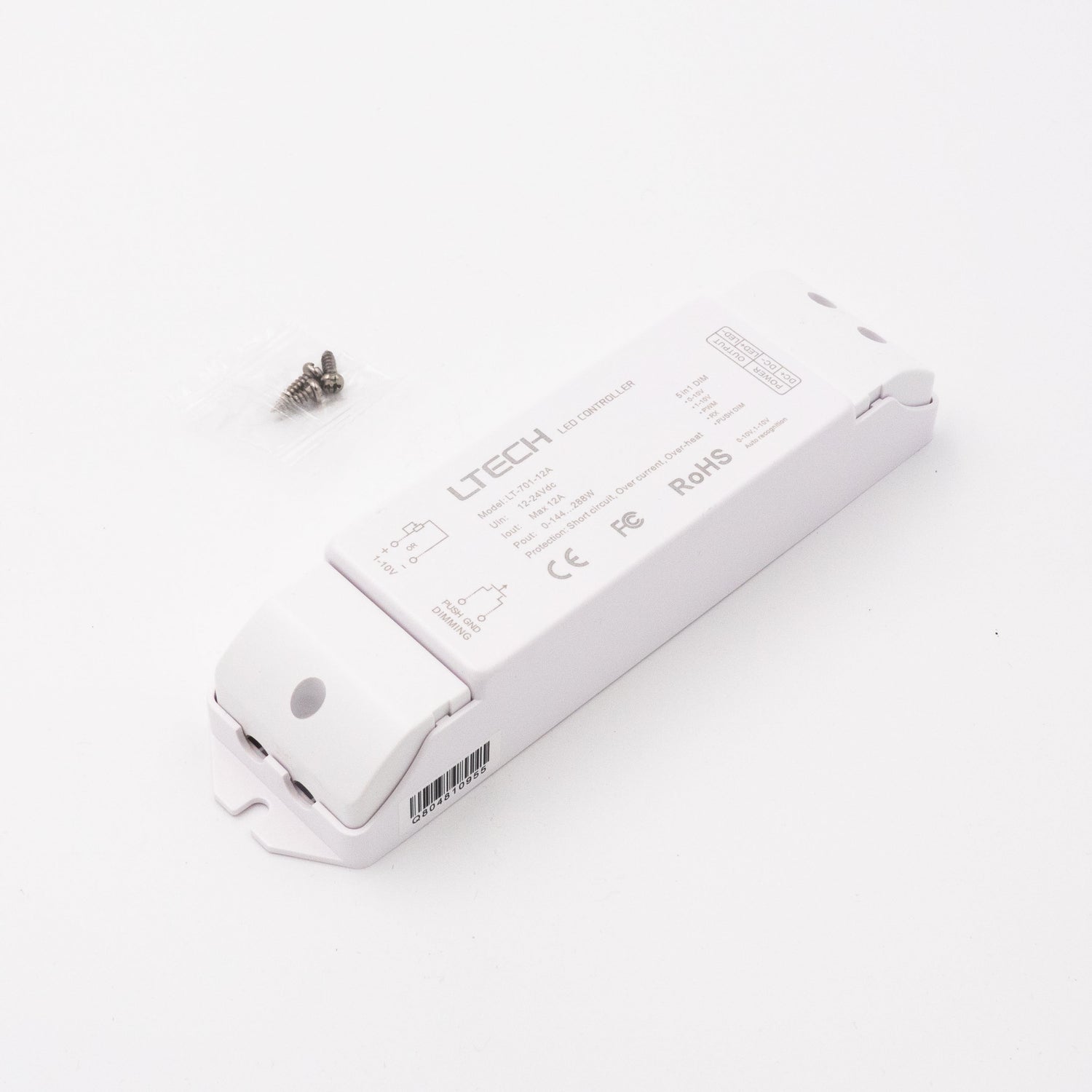

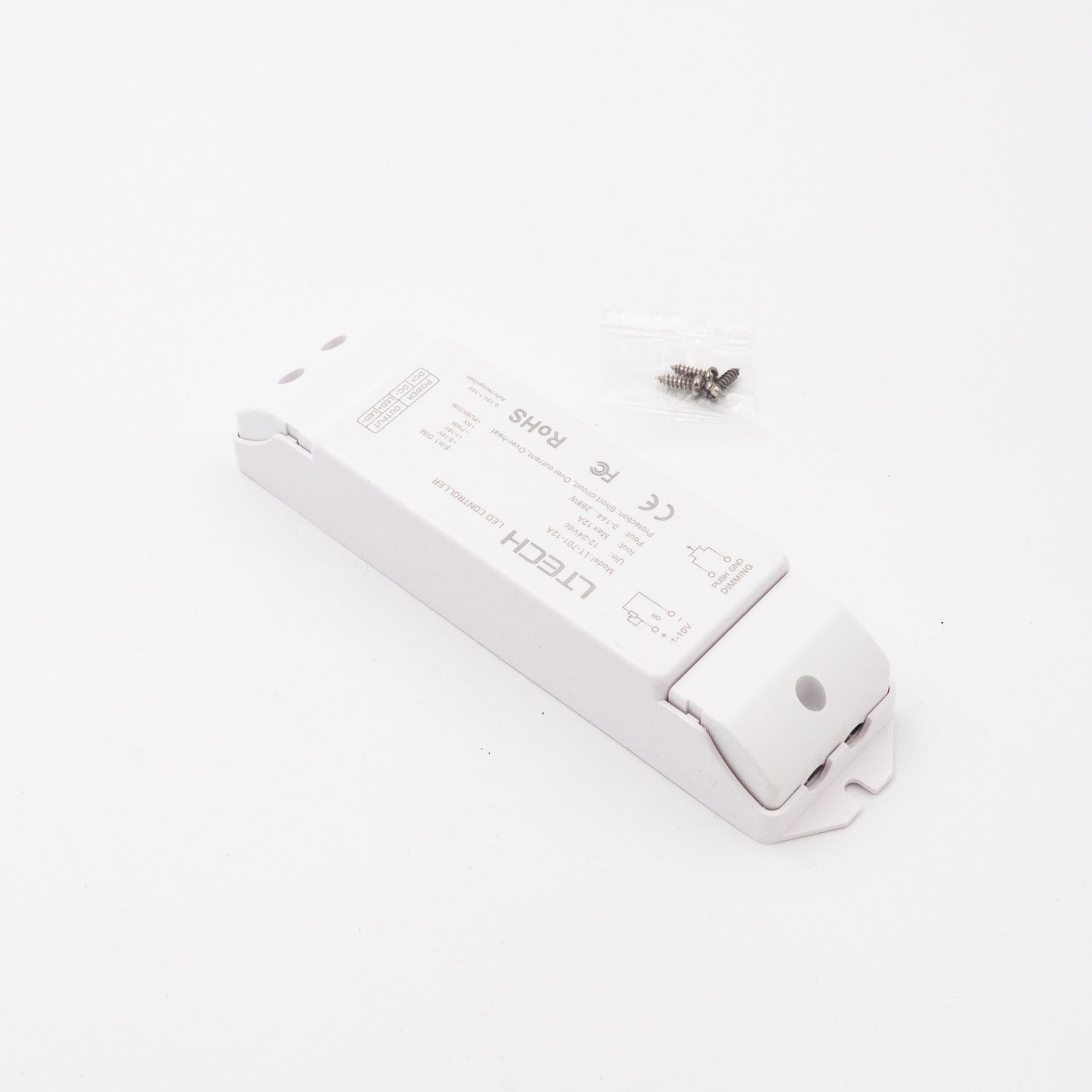

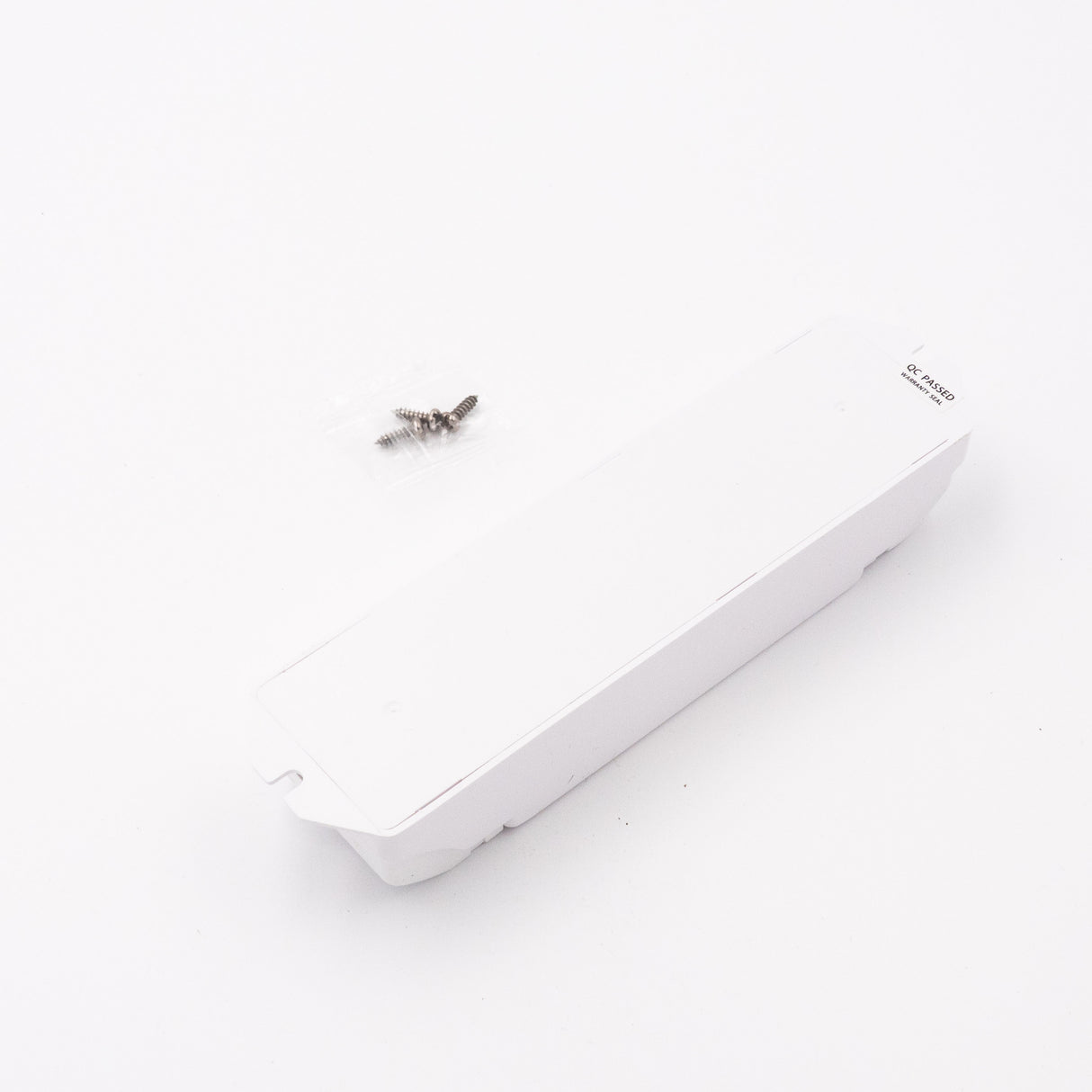

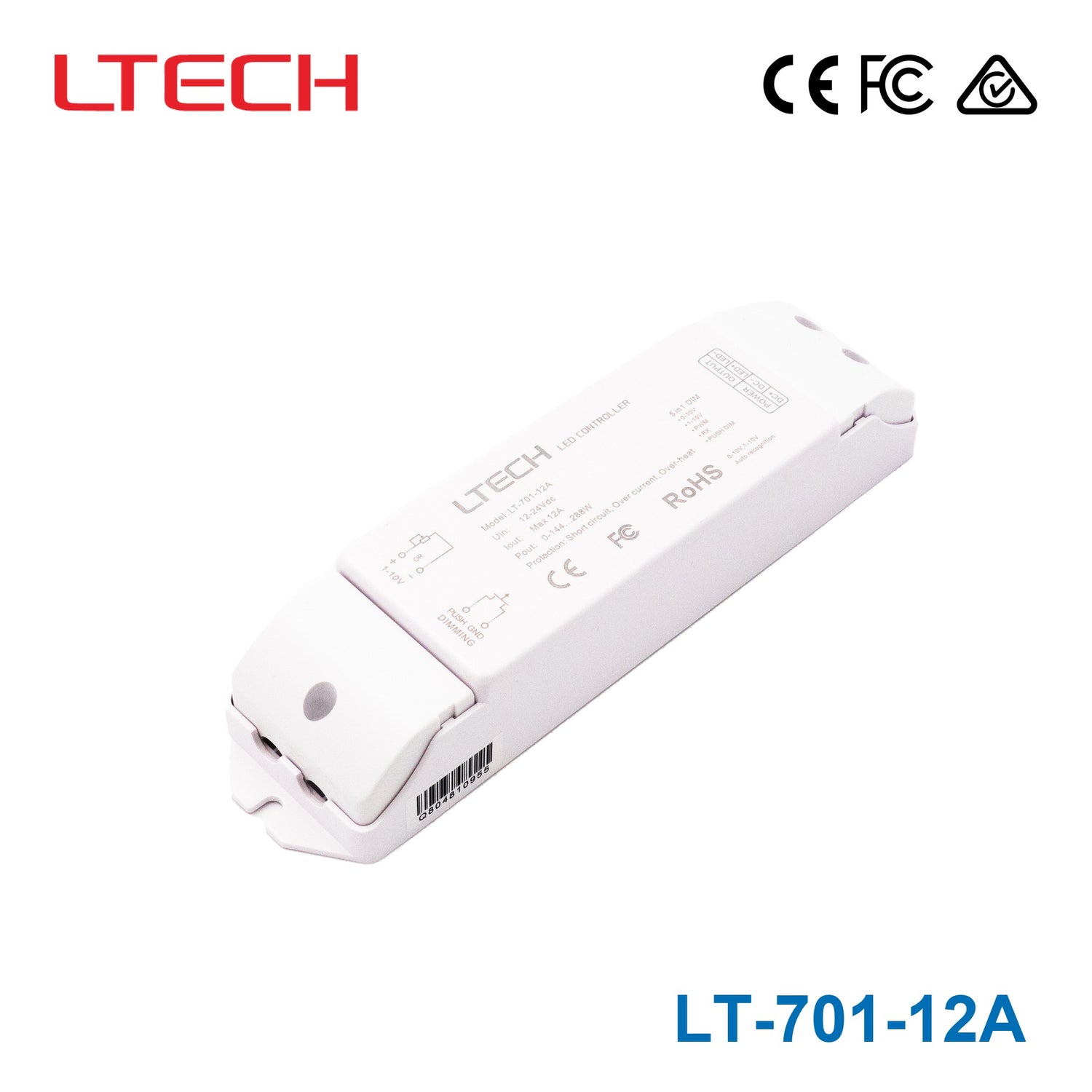

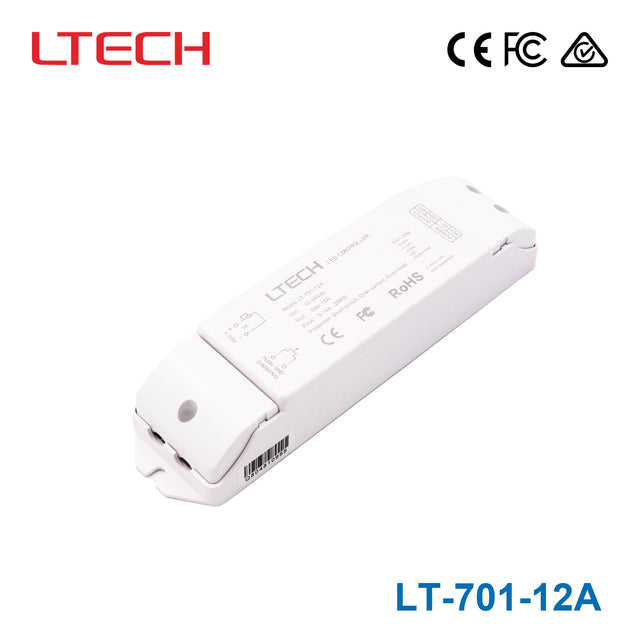

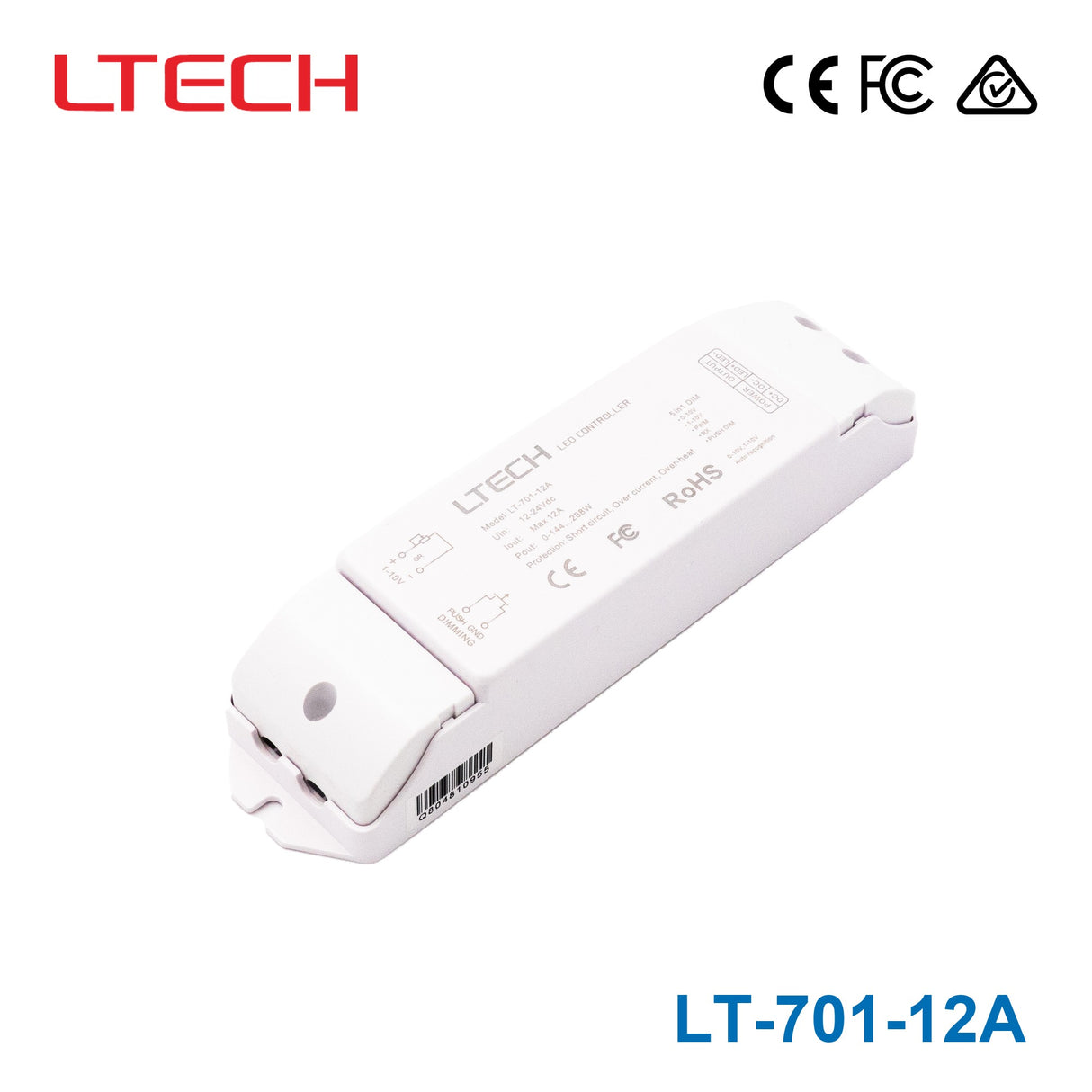

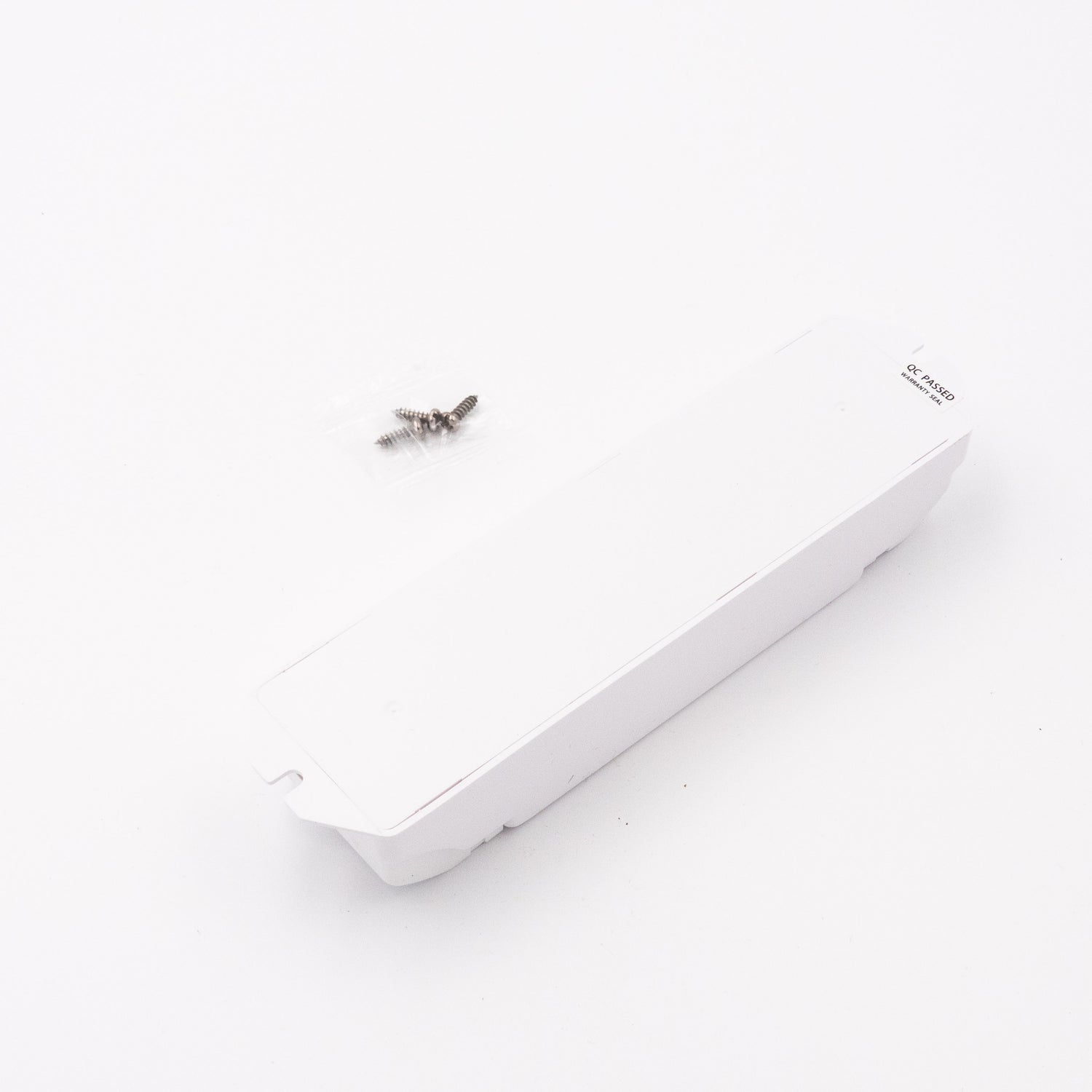

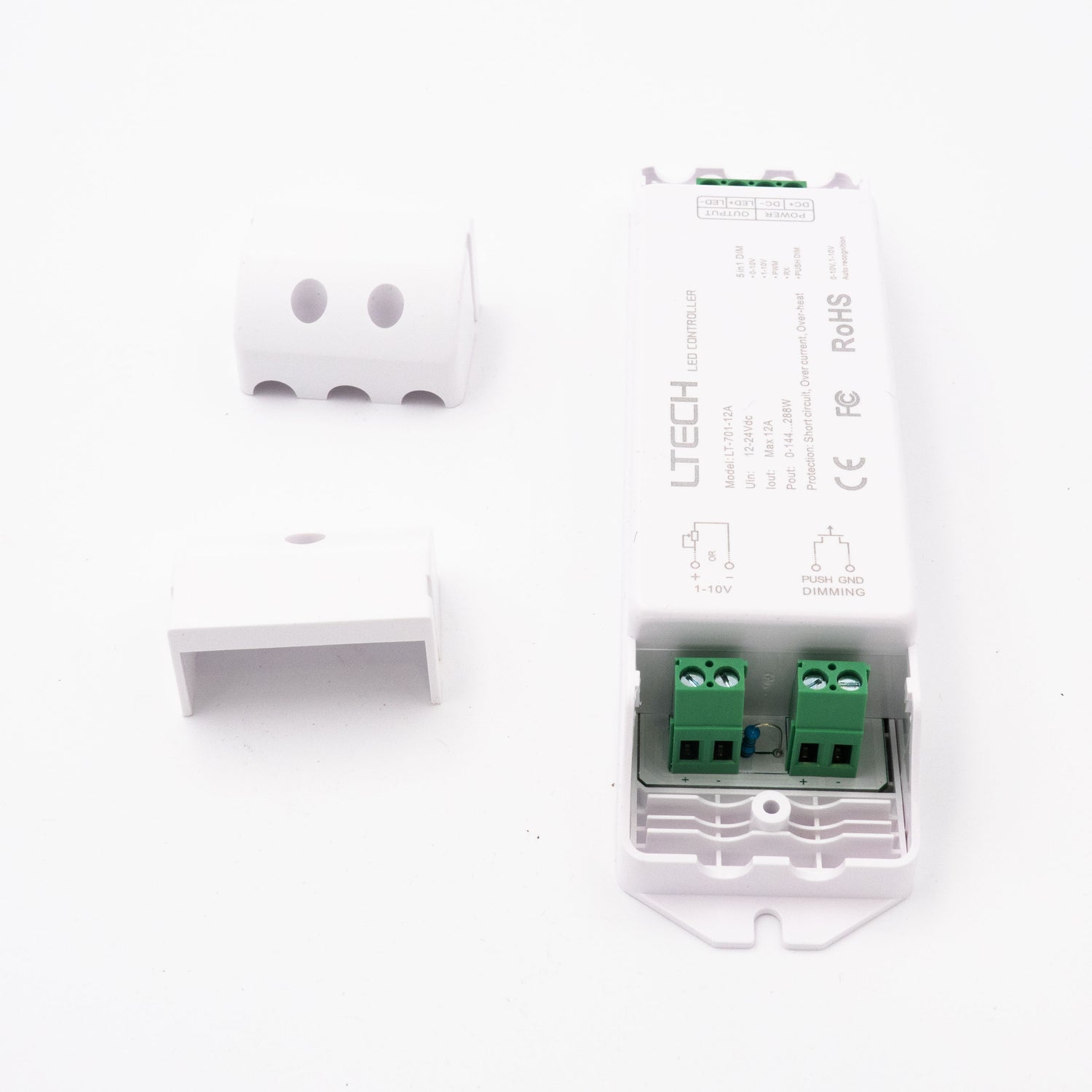

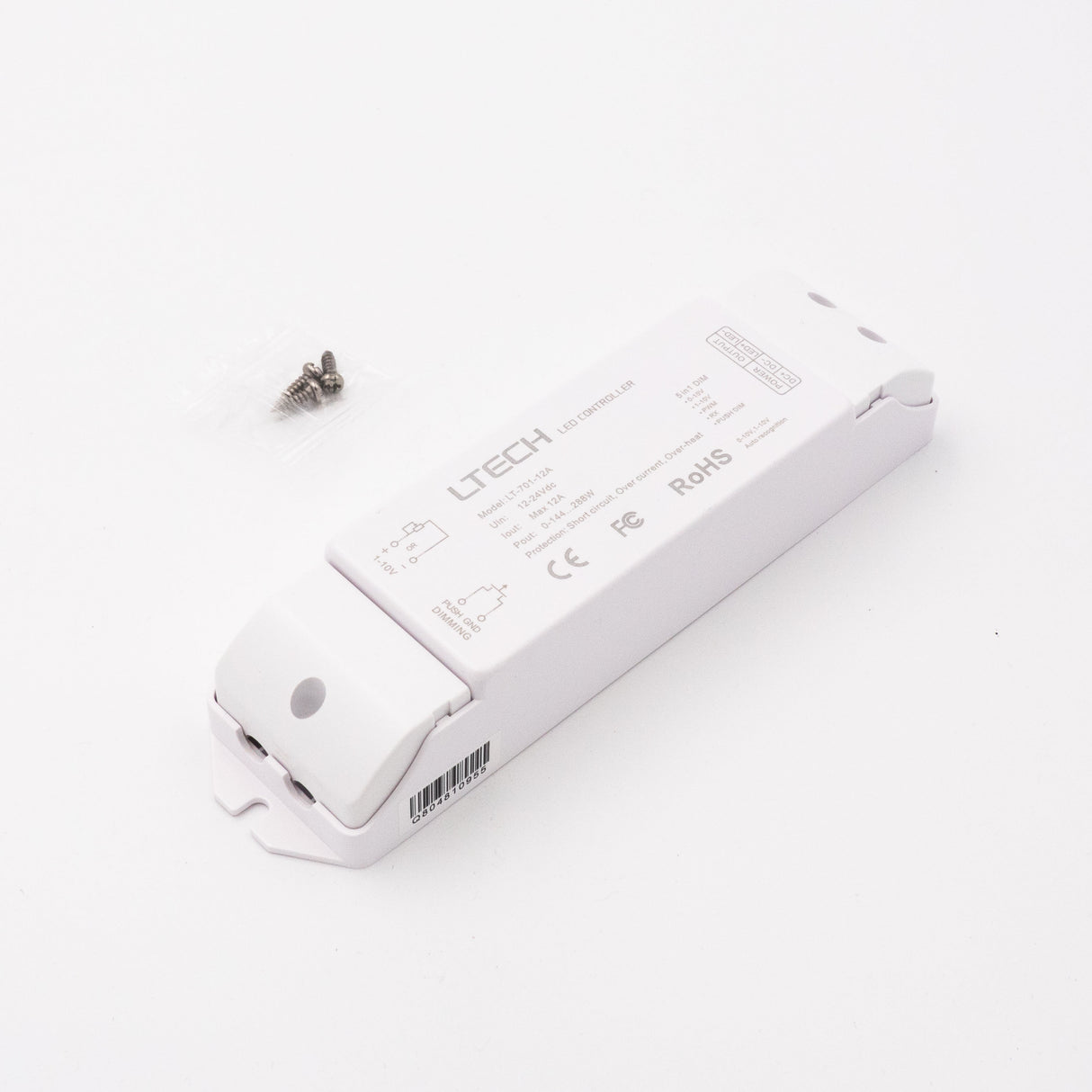

Ltech LT-701-12A Constant Voltage Controller - 0-10V/Push Dimmable
Log in to see priceThe LT-701-12A supports 0-10V, 1-10V, 10V PWM, and push dimming control. It also automatically identifies 0-10V and 1-10V input signals, which makes it suitable for systems that use either standard.
Input 12~24VDC. 1 channels at 12A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: 0-10V, 10V PWM, 1-10V, Push DIM
- ✓Output signal: Normal
- ✓Output channels: 12A - 1 Channel
- ✓Maximum load: 12A per channel
- ✓Maximum total load: 288W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating288 Watt
-
Output Voltage12 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.4 cm
-
Height3 cm
-
Weight0.13 kg
::specification::
Frequently Asked Questions
What type of dimming control does the Ltech LT-701-12A support?
The LT-701-12A supports 0-10V, 1-10V, 10V PWM, and push dimming control. It also automatically identifies 0-10V and 1-10V input signals, which makes it suitable for systems that use either standard.
What are the main electrical ratings for the LT-701-12A?
This model is a 12V constant voltage controller rated for up to 12A output current. Its maximum power rating is 288W, matching applications that need constant-voltage dimming at 12V.
What kinds of LED lighting applications is the LT-701-12A best suited for?
The LT-701-12A is designed for constant-voltage LED dimming applications where 0-10V, 1-10V, 10V PWM, or push dimming is required. It is a practical fit for commercial and professional indoor LED control systems using 12V loads.
How smooth is the dimming range on this controller?
The LT-701-12A provides a dimming range from 0 to 100 percent, with LED startup possible at 0.1 percent. It uses PWM digital dimming and is specified to avoid altering the LED color rendering index during dimming.
Can the LT-701-12A be used in indoor or outdoor environments?
This controller is intended for indoor environments. Its operating temperature range is -30°C to 55°C, which supports use in a wide range of interior commercial and industrial settings.
What protection features are built into the LT-701-12A?
The LT-701-12A includes short circuit, overload, and over-heat protection. These protections are designed to recover automatically, helping support safer operation in demanding LED control applications.
How does the LT-701-12A compare to controllers with only one dimming method?
A key advantage of the LT-701-12A is that it supports multiple dimming control types in one model: 0-10V, 1-10V, 10V PWM, and push dimming. That flexibility can make it a better choice for projects where control standards vary across equipment or specifications.
