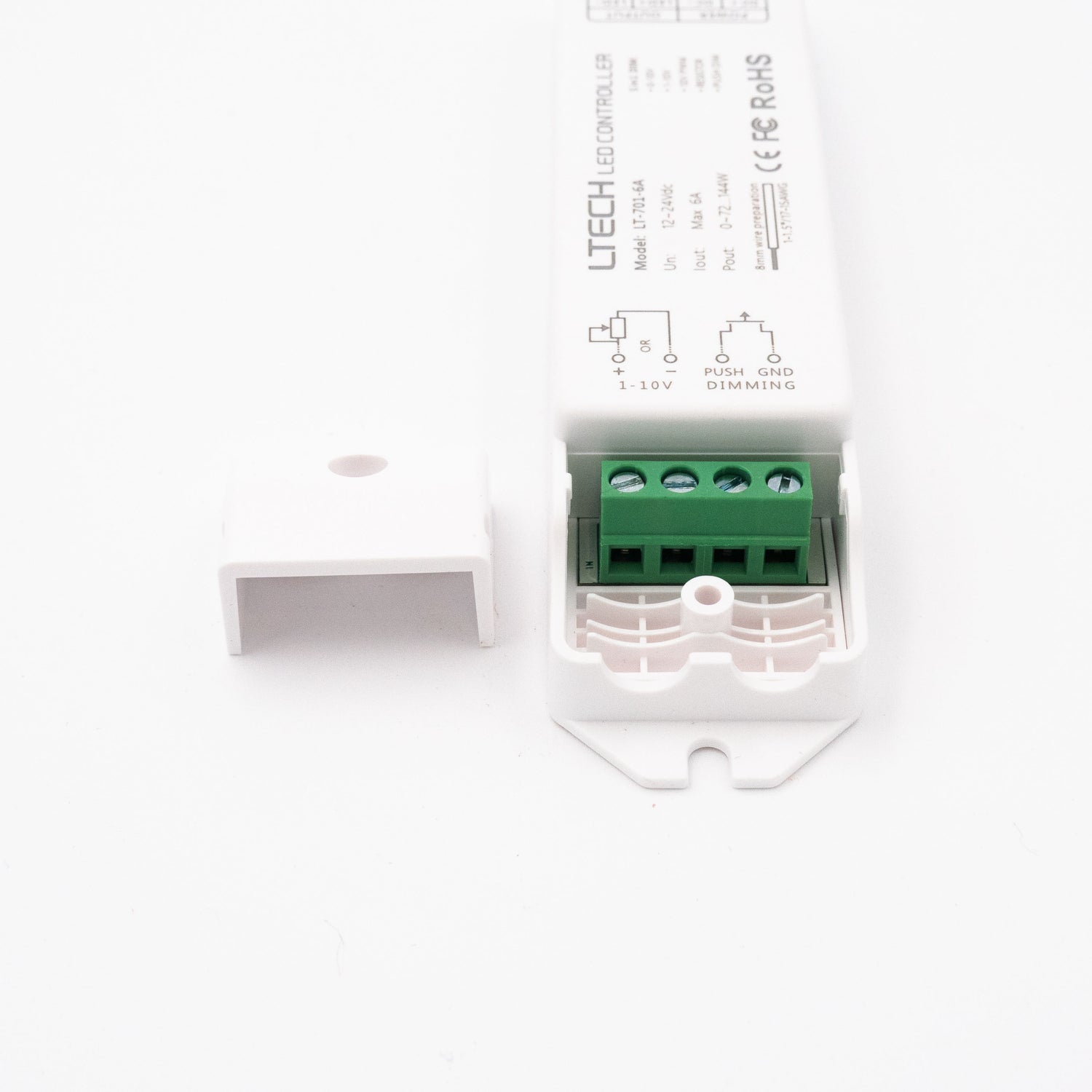

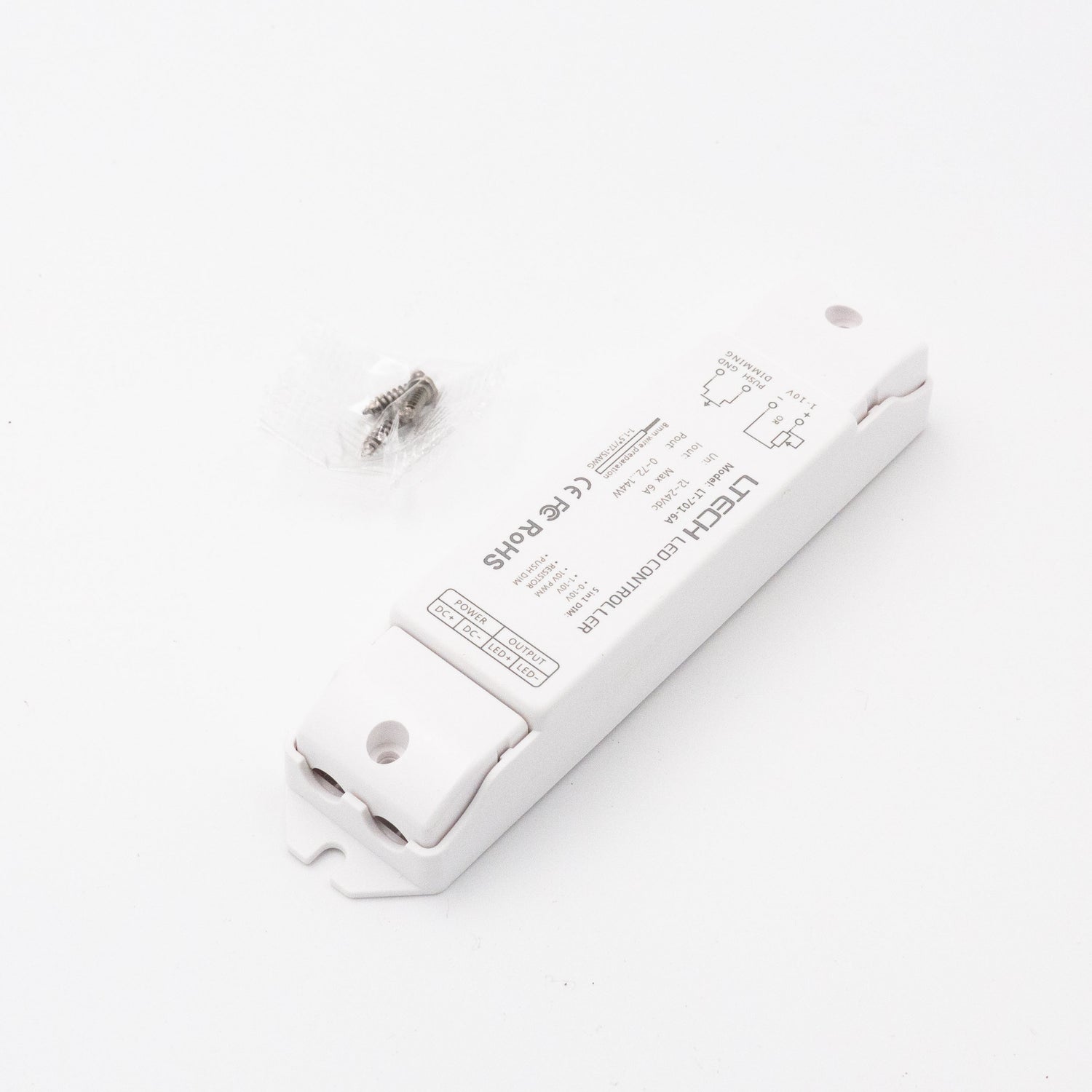

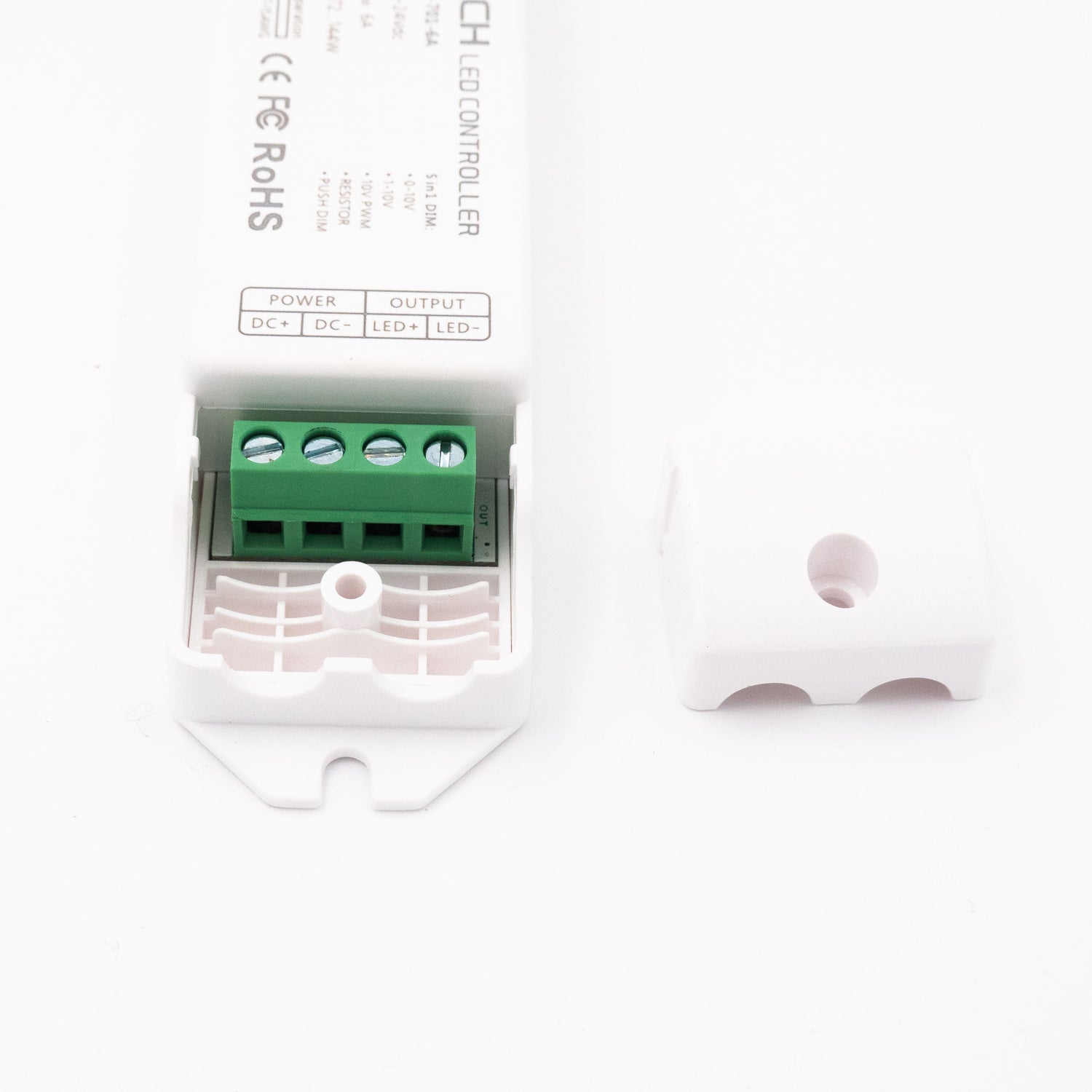

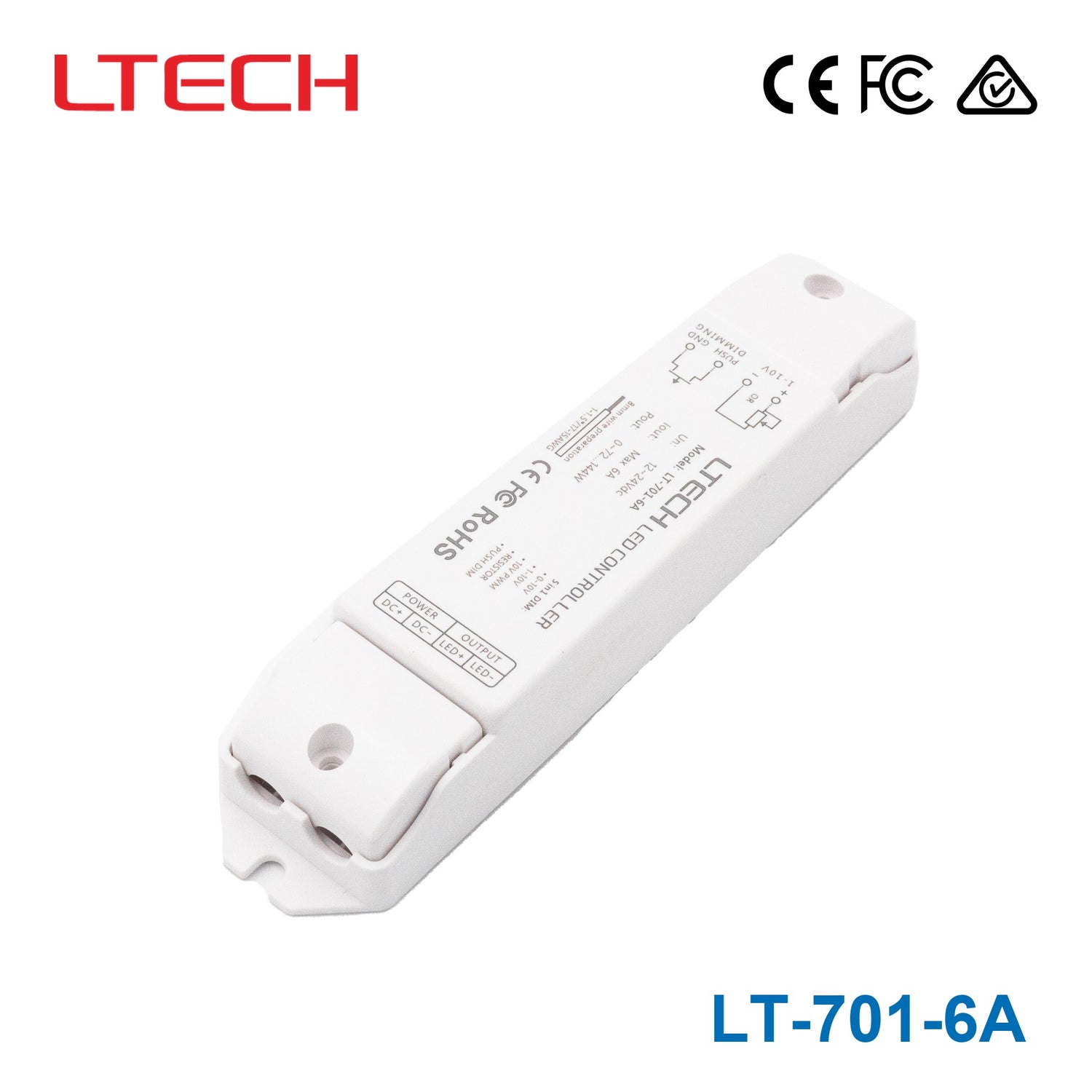

Ltech LT-701-6A Constant Voltage Controller - 0-10V/Push Dimmable

SKU LT-701-6A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-701-6A is the 12~24Vdc output model of this series.

Features

  • Dimming interface: 0 10V 1 10V 10V PWM or push button
  • PWM digital dimming, no alter LED color rendering index.
  • Dimming range: 0~100%, LED start at 0.1% possible.
  • Max. current output: 6A.
  • Full protective plastic housing.
  • Suitable for indoor environments.

Specifications

LT-701-6ASpecifications from the official datasheet (2016-09-23 edition)Download datasheet PDF

Main Characteristics

Dimming Interface
0-10V, PWM or push button
Input Voltage
12~24Vdc
Output Voltage
12~24Vdc
Output
6AΓ—1CH
Max. Output Power
0-72W...144W
Dimming Range
0~100%, LED start at 0.1% possible
Working Temperature
-30℃~55℃
Product Size
L135Γ—W30Γ—H20(mm)
Package Size
L140Γ—W34Γ—H23(mm)
Weight(G.W.)
65g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001

Technical drawings

LT-701-6A 6A 12-24Vdc
6A 12-24Vdc
LT-701-6A Dimensions
Dimensions
LT-701-6A The default design doesn't support the1-10V and push…
The default design doesn't support the1-10V and push…
LT-701-6A 12V lamp connected, loads 0~72W(12V).
12V lamp connected, loads 0~72W(12V).

Downloads

FAQ

What type of dimming control does the Ltech LT-701-6A support?

The LT-701-6A supports 0-10V, PWM, and push button dimming control. That gives buyers flexibility when selecting a controller for commercial or professional LED dimming applications.

What kind of LED lighting is the LT-701-6A designed for?

This model is a constant voltage controller intended for LED lighting systems that use dimming methods such as 0-10V or push dimming. It is a practical fit for indoor low-voltage LED control applications where smooth dimming is important.

What is the dimming range of the LT-701-6A?

The LT-701-6A provides a dimming range from 0% to 100%. It also supports very low-end dimming, with LED startup possible at 0.1% according to the listed product details.

Does this controller affect LED color rendering?

PWM digital dimming does not alter the LED color rendering index. That makes it suitable for applications where consistent light quality matters while dimming.

Is the LT-701-6A suitable for indoor or outdoor use?

This controller is specified for indoor environments. It includes a full protective plastic housing, which helps support indoor use in appropriate operating conditions.

What operating temperature range does the LT-701-6A support?

The operating temperature range is -30Β°C to 55Β°C. Ensure the planned indoor environment stays within that range for reliable performance.

What are the main electrical ratings for the LT-701-6A?

The LT-701-6A features a 12~24Vdc output voltage and a maximum output power of 144W. The maximum current output is 6A, which is an important spec to review when matching the controller to a compatible LED system.

What warranty comes with the Ltech LT-701-6A?

The LT-701-6A is listed with a 5-year warranty period. That can be valuable for professional buyers who want longer-term support expectations for project planning and maintenance.
