Ltech

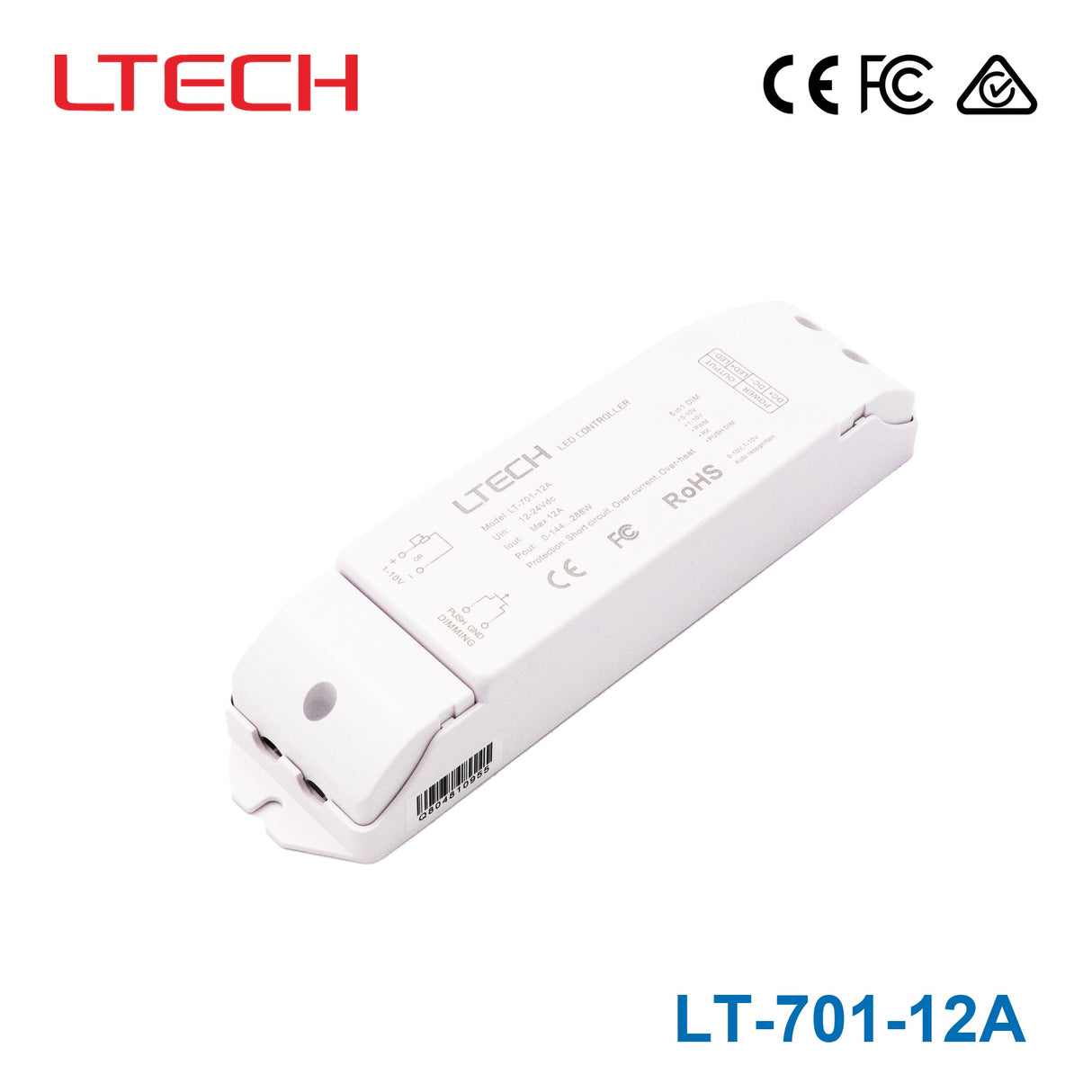

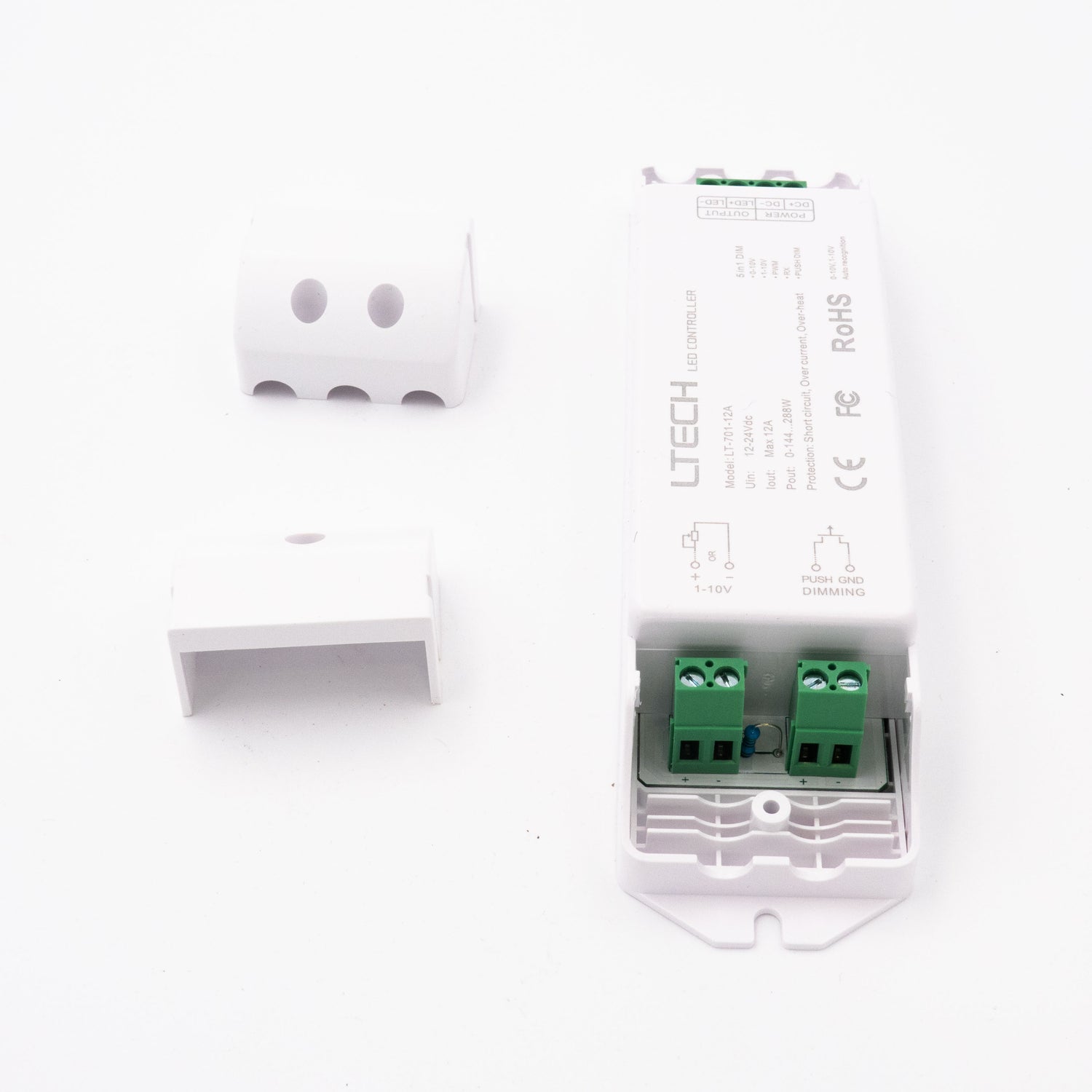

Ltech LT-701-12A Constant Voltage Controller - 0-10V/Push Dimmable

SKU LT-701-12A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-701-12A is the 12~24Vdc output model of this series.

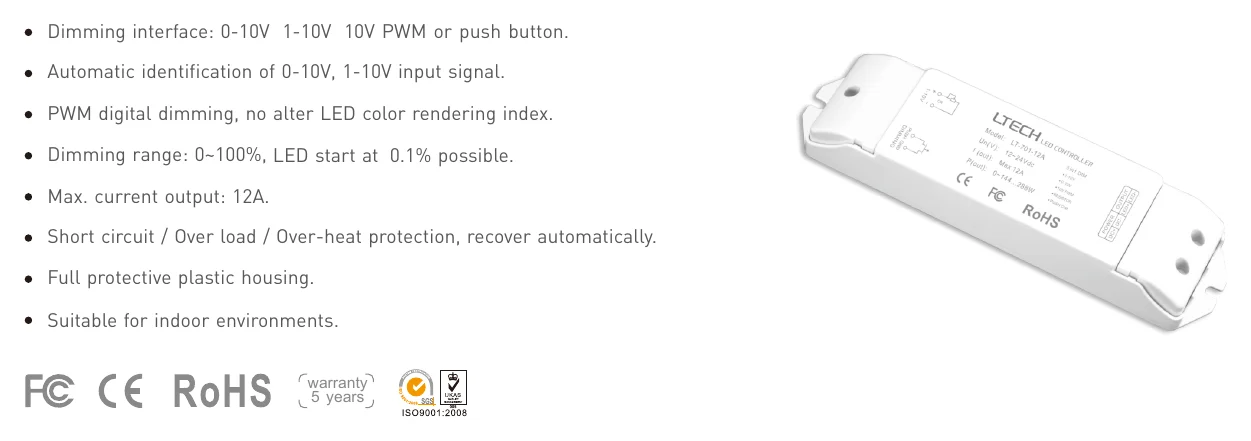

Features

  • Dimming interface: 0-10V 1-10V 10V PWM or push button.
  • Automatic identification of 0-10V, 1-10V input signal.
  • PWM digital dimming, no alter LED color rendering index.
  • Dimming range: 0~100%, LED start at 0.1% possible.
  • Max. current output: 12A.
  • Short circuit / Over load / Over-heat protection, recover automatically.
  • Full protective plastic housing.
  • Suitable for indoor environments.

Specifications

LT-701-12ASpecifications from the official datasheet (2018-11-05 edition)Download datasheet PDF

Main Characteristics

Dimming Interface
0-10V, 1-10V, 10V PWM or push DIM
Input Voltage
12~24Vdc
Output Voltage
12~24Vdc
Output
12AΓ—1CH
Max. Output Power
0-144W...288W
Dimming Range
0~100%, LED start at 0.1% possible
Protection
Short circuit / Over load / Over-heat protection, auto recovers.
Working Temperature
-30℃~55℃
Product Size
L175Γ—W44Γ—H30(mm)
Package Size
L178Γ—W48Γ—H33(mm)
Weight(G.W.)
130g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001

Technical drawings

LT-701-12A Dimming interface: 0-10V 1-10V 10V PWM or push button.
Dimming interface: 0-10V 1-10V 10V PWM or push button.

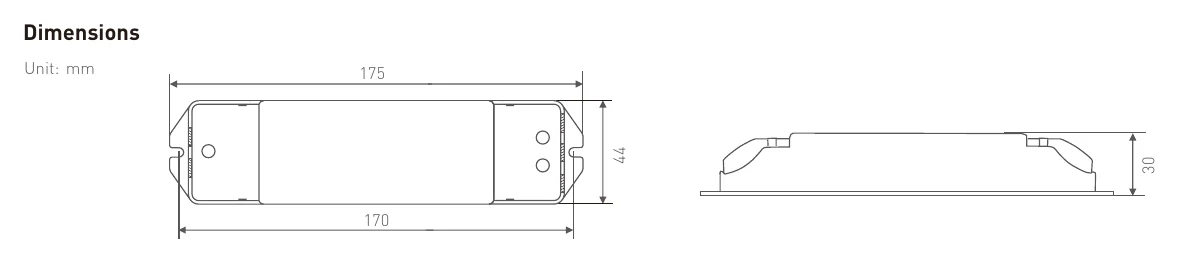

LT-701-12A Dimensions
Dimensions

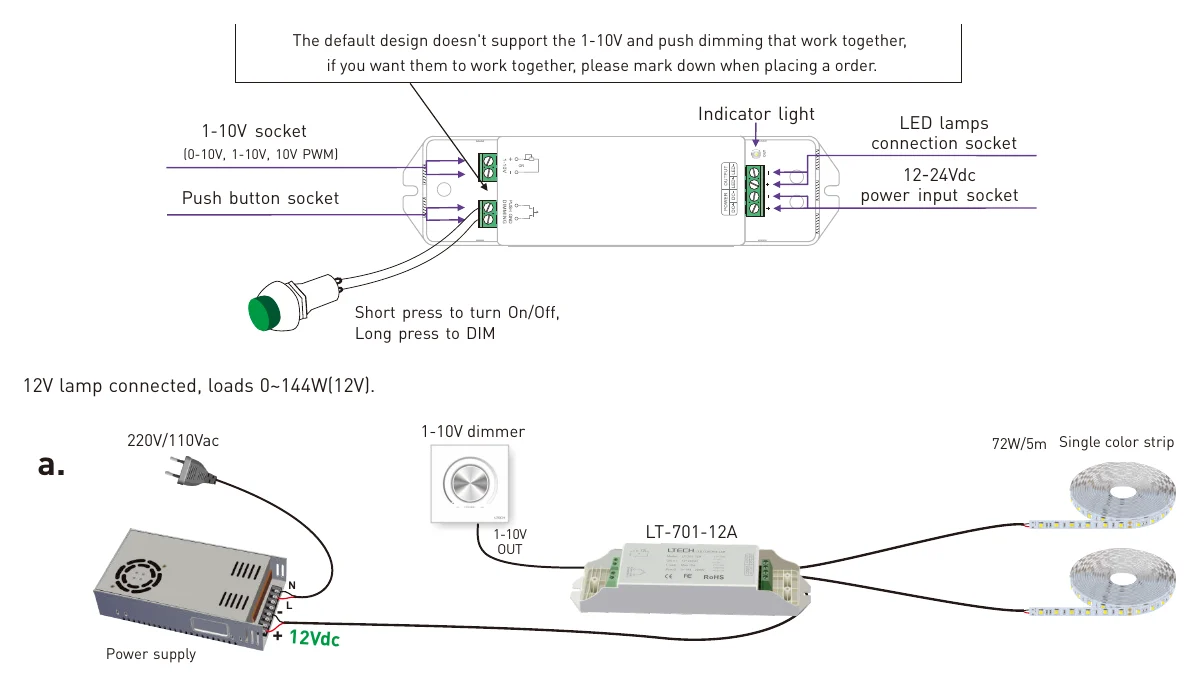

LT-701-12A 12V lamp connected, loads 0~144W(12V).
12V lamp connected, loads 0~144W(12V).

Downloads

FAQ

What type of dimming control does the Ltech LT-701-12A support?

The LT-701-12A supports 0-10V, 1-10V, 10V PWM, and push dimming control. It also automatically identifies 0-10V and 1-10V input signals, which makes it suitable for systems that use either standard.

What are the main electrical ratings for the LT-701-12A?

This model is a 12~24Vdc constant voltage controller rated for up to 12A output current. Its maximum power rating is 288W, matching applications that need constant-voltage dimming at 12V or 24V.

What kinds of LED lighting applications is the LT-701-12A best suited for?

The LT-701-12A is designed for constant-voltage LED dimming applications where 0-10V, 1-10V, 10V PWM, or push dimming is required. It is a practical fit for commercial and professional indoor LED control systems using 12V loads.

How smooth is the dimming range on this controller?

The LT-701-12A provides a dimming range from 0 to 100 percent, with LED startup possible at 0.1 percent. It supports 0-10V, 1-10V, 10V PWM, and push dimming interfaces.

Can the LT-701-12A be used in indoor or outdoor environments?

This controller is intended for indoor environments. Its operating temperature range is -30Β°C to 55Β°C, which supports use in a wide range of interior commercial and industrial settings.

What protection features are built into the LT-701-12A?

The LT-701-12A includes short circuit, overload, and over-heat protection. These protections are designed to recover automatically, helping support safer operation in demanding LED control applications.

How does the LT-701-12A compare to controllers with only one dimming method?

A key advantage of the LT-701-12A is that it supports multiple dimming control types in one model: 0-10V, 1-10V, 10V PWM, and push dimming. That flexibility can make it a better choice for projects where control standards vary across equipment or specifications.
