Ltech

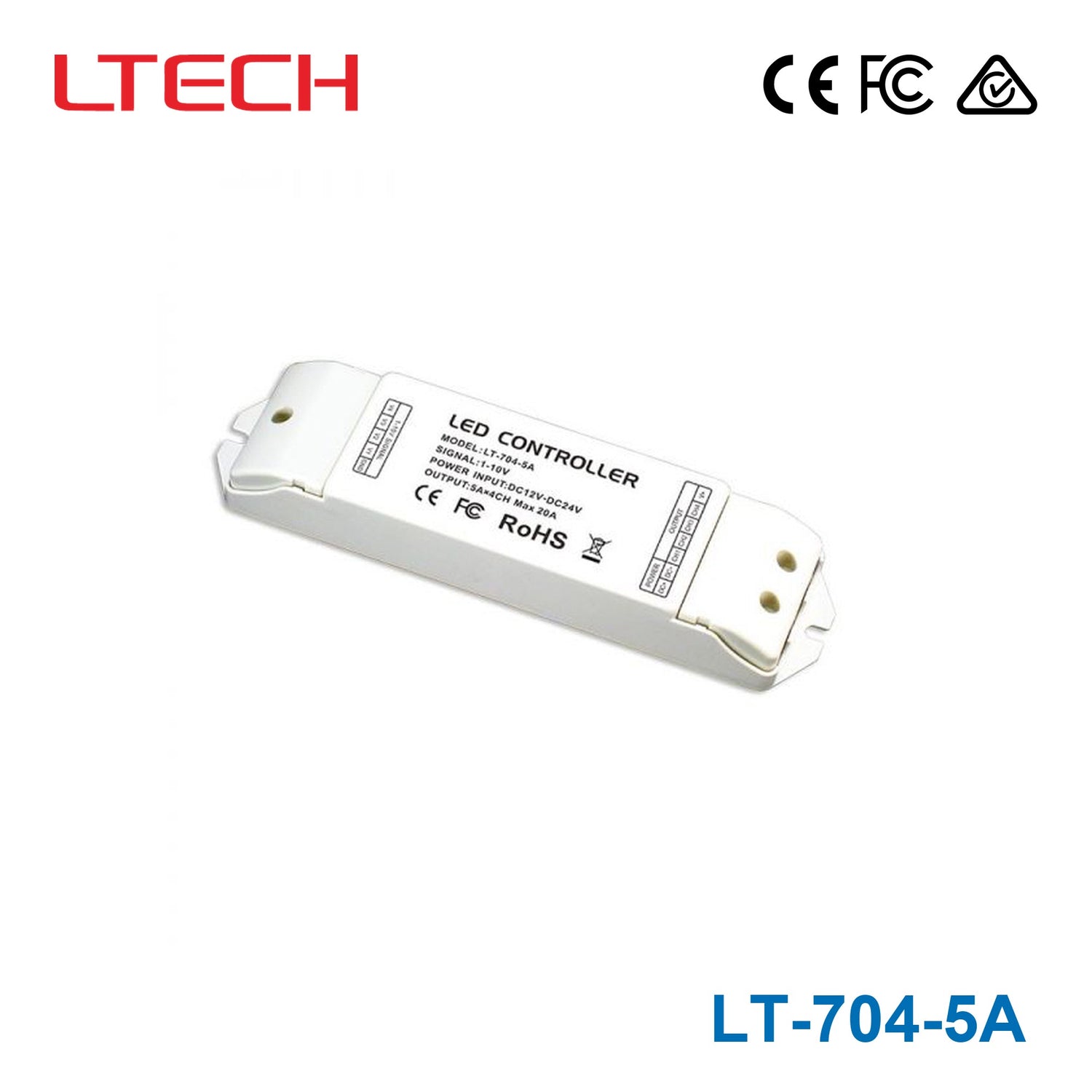

Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable

SKU LT-704-5A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-704-5A is the 12~24Vdc output model of this series.

Features

  • Dimming interface: 0-10V 1-10V 10V PWM push button.
  • PWM digital dimming, no alter LED color rendering index.
  • Dimming range: 0~100%, LED start at 0.1% possible.
  • Max. current output: 20A.
  • Short circuit / Over current protection, recover automatically.
  • Full protective plastic housing.
  • Suitable for indoor environments.

Specifications

LT-704-5ASpecifications from the official datasheet (2018-04-08 edition)Download datasheet PDF

Main Characteristics

Dimming Interface
0-10V, 1-10V, 10V PWM, push button
Input Voltage
12~24Vdc
Output Voltage
12~24Vdc
Output
5AΓ—4CH Max. 20A
Max. Output Power
240-480W
Protection
Short circuit / Over current, recover automatically
Dimming Range
0~100%, LED start at 0.1% possible.
Working Temperature
-30℃~55℃
Product Size
L175Γ—W44Γ—H30(mm)
Package Size
L178Γ—W48Γ—H33(mm)
Weight(G.W.)
150g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, SGS

Technical drawings

LT-704-5A Dimming interface: 0-10V 1-10V 10V PWM push button.
Dimming interface: 0-10V 1-10V 10V PWM push button.
LT-704-5A Dimensions
Dimensions
LT-704-5A 1-10V socket
1-10V socket

Downloads

FAQ

What type of LED lighting is the Ltech LT-704-5A designed for?

The LT-704-5A is a constant voltage LED controller intended for low-voltage lighting systems that need dimming control. It is best suited to applications where a 12~24Vdc setup is already being used and dimming is required at the controller level.

What dimming control methods does the LT-704-5A support?

This model supports multiple dimming inputs, including 0-10V, 1-10V, 10V PWM, and push button dimming. That makes it useful for projects that need flexibility in how brightness is controlled without changing to a different controller model.

Does this controller dim smoothly at very low light levels?

Yes. The product data states a 0-100% dimming range and notes that LED startup at 0.1% is possible. It supports 10V PWM dimming, which is intended to provide controlled brightness adjustment across the range.

Is the LT-704-5A meant for indoor or outdoor use?

This controller is specified for indoor environments. The listed operating temperature range is -30Β°C to 55Β°C, so it is intended for indoor applications that may still experience demanding ambient conditions.

Will this controller affect LED color quality when dimming?

The product supports 10V PWM dimming. For buyers comparing dimming options, that means this model is positioned to provide controlled brightness adjustment across the range.

What are the main physical and product specs buyers usually ask about?

For this model, the listed output voltage is 12~24Vdc, the power rating is 240-480W, and the housing is full protective plastic. The product data also lists a 5-year warranty and a weight of 0.15 kg, which helps when evaluating it for commercial lighting control projects.
