Illumax

ILLUMAX Door / Wave IR Sensor with Probe, DC, Indoor

Door / Wave IR Sensor with Probe
SKU IX-IRSEN-PB
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • IR sensor
  • Detection range: 5-10cm is recommended
  • Output connection: mini plug
  • 12V/24V

Specifications

IX-IRSEN-PBSpecifications from the official datasheetDownload datasheet PDF

Specification

Rated input voltage
DC 12V
Rated input voltage
DC 24V
Rated output current
5A
Rated output current
5A
Load
0-60W
Load
0-120W
Ta
-20~50℃
Ta
-20~50℃
LxWxH(mm)
86x40x12
LxWxH(mm)
86x40x12

Sensor

Dimension(mm)
12, Ø17.6, 12.6, Ø12.6, 3.7, R2
Hole opening diameter(D)
Ø13mm
Board thickness(L)
>1mm

Certifications & ratings

Certification marks
CE, UKCA, cRUus, TÜV

Technical drawings

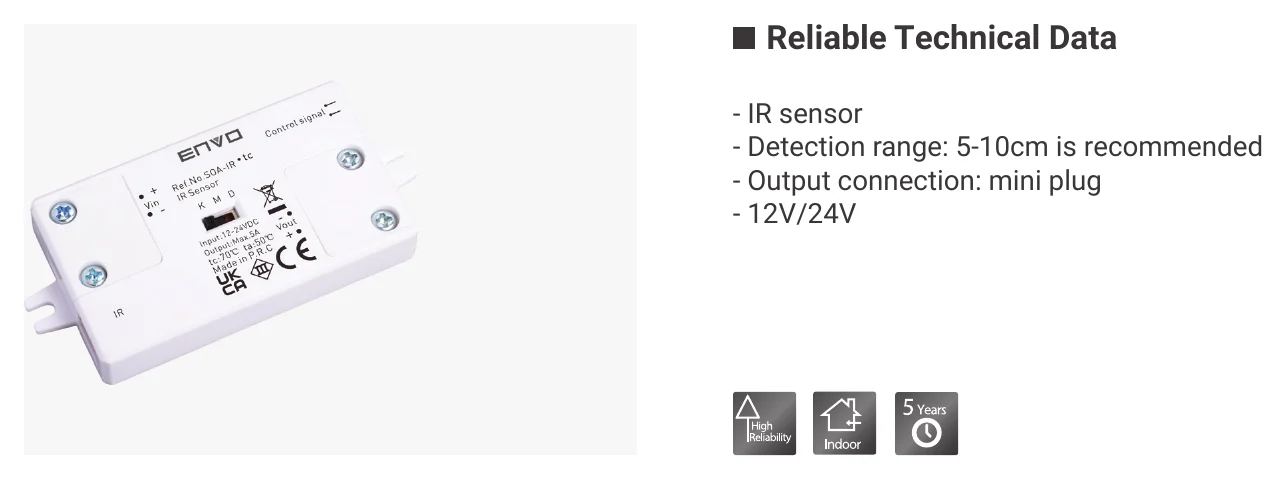

IX-IRSEN-PB Reliable Technical Data
Reliable Technical Data

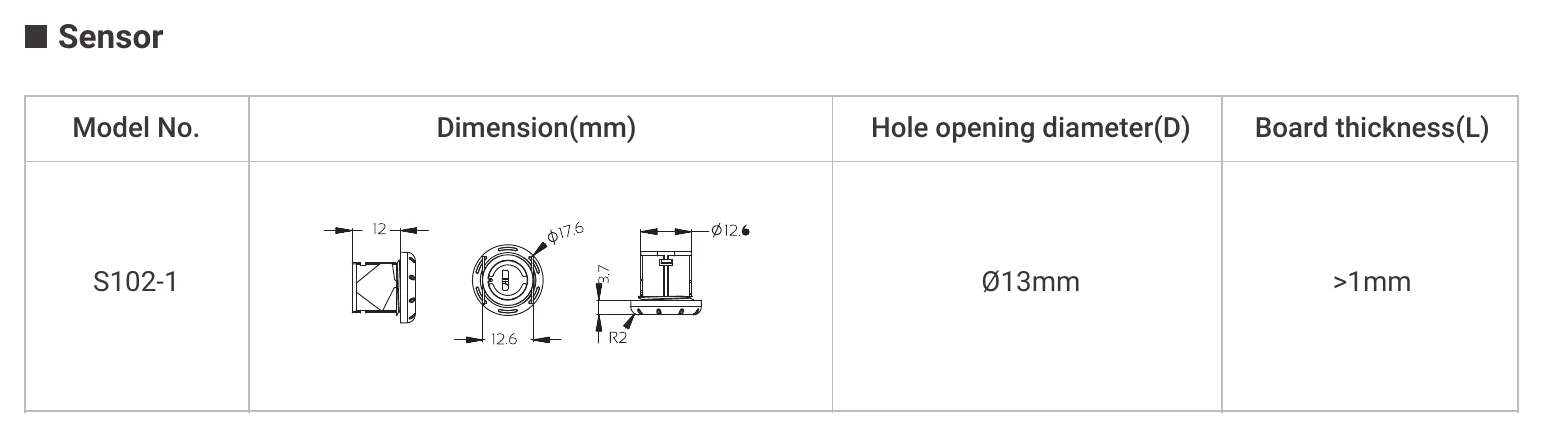

IX-IRSEN-PB Sensor
Sensor

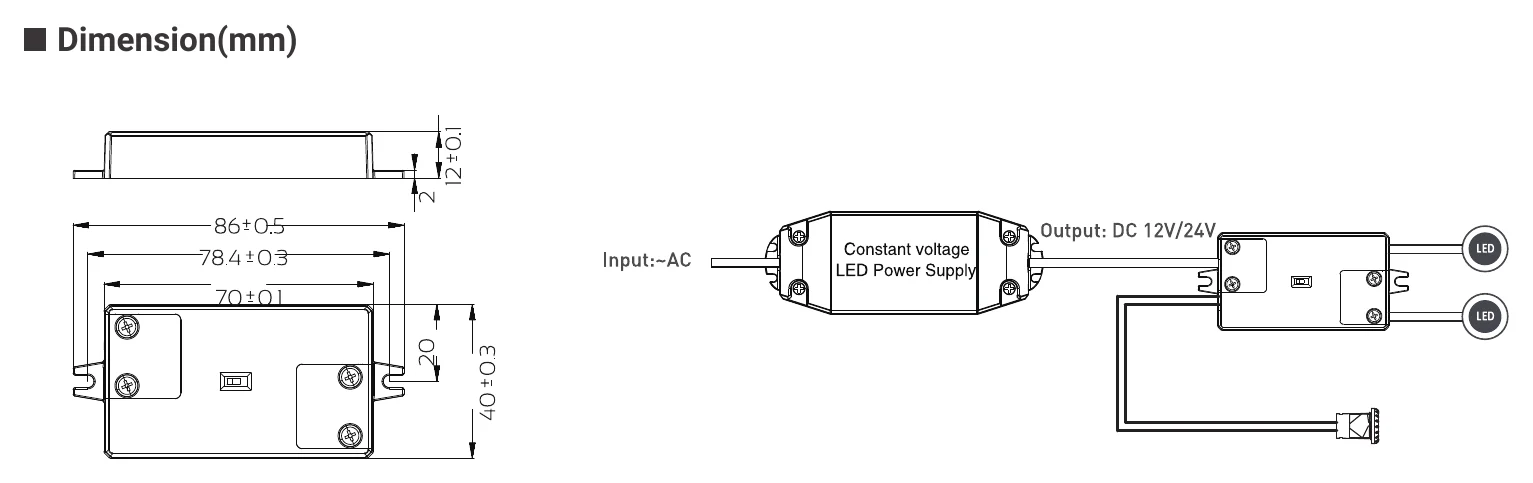

IX-IRSEN-PB Dimension(mm)
Dimension(mm)

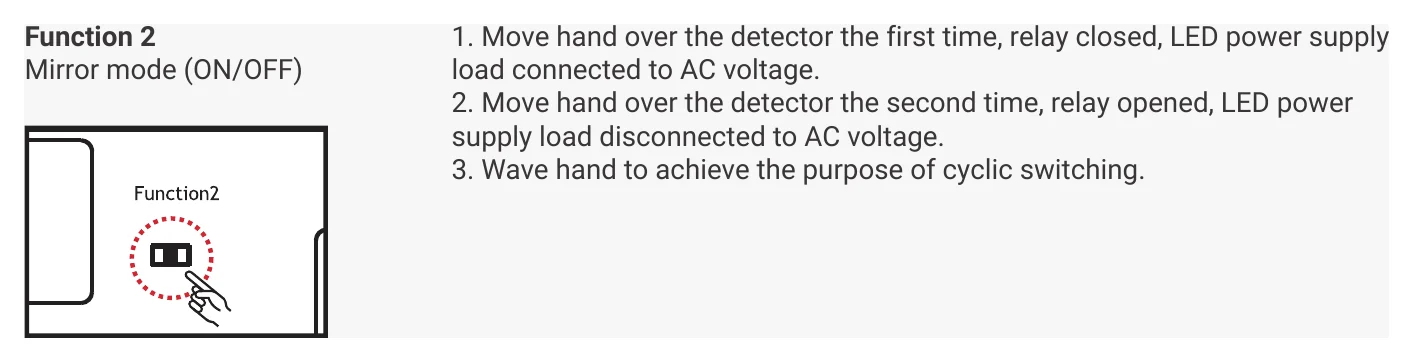

IX-IRSEN-PB Function 2
Function 2

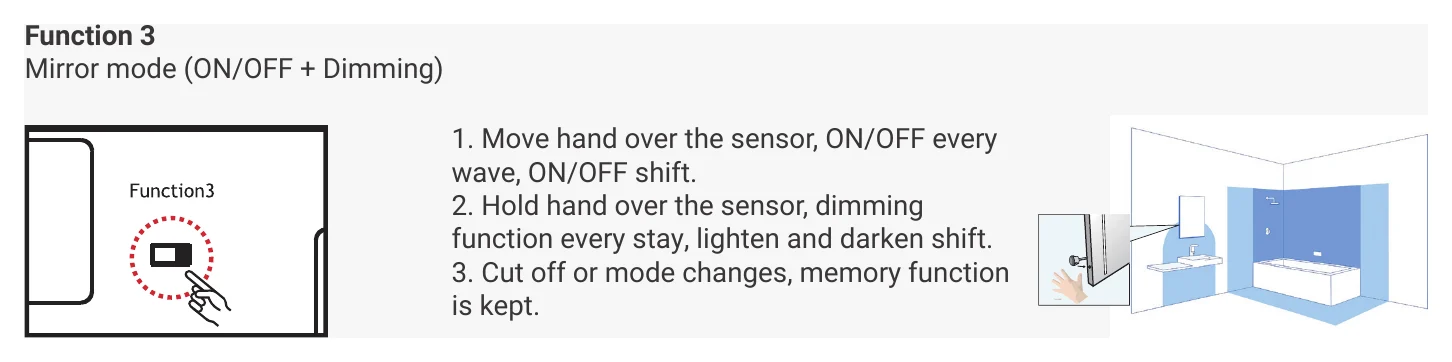

IX-IRSEN-PB Function 3
Function 3

Downloads

FAQ

What is the ILLUMAX Door / Wave IR Sensor with Probe designed for?

This model is an IR sensor for LED lighting applications. It is intended for indoor use and is suited to projects where a door-activated or wave-activated sensor is needed for lighting control.

Does this sensor support more than one sensing mode?

Yes. The IX-IRSEN-PB has 2 selectable functions that are chosen before installation. That makes it useful for buyers deciding between door-triggered and wave-triggered style operation within one product family.

What sensing distance is recommended for this model?

The recommended detection range is less than 50 mm. This makes it best suited to close-range triggering rather than longer-distance presence detection.

Is the IX-IRSEN-PB suitable for outdoor or damp locations?

No. This model is specified for indoor use. If your project involves outdoor exposure or wet conditions, this is not the right choice based on the provided product data.

What operating temperature range does this sensor support?

The stated operating temperature range is -10Β°C to 50Β°C. That covers typical indoor commercial and residential environments where LED lighting sensors are commonly used.

What type of power system is this sensor intended for?

This model is specified as a DC sensor. Buyers should use it only in applications that are designed around DC-based LED lighting control components.

What warranty is offered for this sensor?

The IX-IRSEN-PB includes a 2-year warranty. That gives buyers a defined coverage period for this specific indoor LED sensor model.
