Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar Plana Wood 3 Gang Switch - Wood Pear Tree - 16A

SKU Z-VM13GW-WPT

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

This kit is assembled from Vimar parts: 1 × plate 3M wood pear-tree (VM-14653.62); 1 × frame 3M +screws (VM-14613); 3 × 1P 16AX 1-way switch (VM-14001). Each part's specifications follow, with a link to its own page.

Specifications

Z-VM13G-WPTSpecifications from the official datasheet

Kit contents

Cover plate × 1: VM-14653.62 · plate 3M wood pear-tree
Frame × 1: VM-14613 · frame 3M +screws
Installation switch × 3: VM-14001 · 1P 16AX 1-way switch white

Cover plate (VM-14653.62)

Product type: Cover frame for domestic switching devices
Number of units: 3
Mounting direction: Horizontal and vertical
Number of device inserts horizontal: 3
Number of device inserts vertical: 1
Number of modules horizontal (module system): 3
Number of modules vertical (module system): 1
With mounting grid: Yes
Suitable for subfloor installation duct box: Yes
Suitable for wall duct: Yes
Suitable for built-in installation: Yes
Label space/information surface: Yes
Material: Wood
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Matt
Colour: Wood
RAL-number (similar): 8004
Degree of protection (IP): IP00
Type of fastening: Clamp mounting
Width: 120 mm
Height: 80 mm
Depth: 9 mm
Built-in width: 120 mm
Built-in height: 80 mm
Certifications: CE marking (EU), IMQ (Italy)

Frame (VM-14613)

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 3
Number of modules vertical (module system): 1
With screws: Yes
Flush-mounted installation: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Certifications: CE marking (EU), Product Environm. Profile, IMQ (Italy)

Installation switch (VM-14001)

Product type: Installation switch
Wiring system: Switch 1-pole
Operating method: Rocker/button
Assembly arrangement: Modular device for domestic switching devices
Number of modules (module system): 1
Push button switch: Yes
Number of rockers: 1
Mounting method: Flush-mounted
Type of fastening: Engage (snap)
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Surface protection: Untreated
Surface finishing: Glossy
Colour: White
RAL-number (similar): 9003
Label space/information surface: Yes
Lighting: Optional
Function lighting: Control and orientation
Type of lighting: LED exchangeable
Suitable for degree of protection (IP): IP40
Nominal voltage: 250 V
Rated current: 16 A
Connection type: Screwed terminal
Device width: 22.3 mm
Device height: 49 mm
Device depth: 38.4 mm
Built-in depth: 24 mm
Certifications: CE marking (EU), SASO (Saudi Arabia), IMQ (Italy), TISI (Thailand), INGCER (Chile), PSE (Japan), TSE (Turkey), RCM (Australia), CCC (China), NOM (Mexico), IQC (Argentina), WEEE Directive

Technical drawings

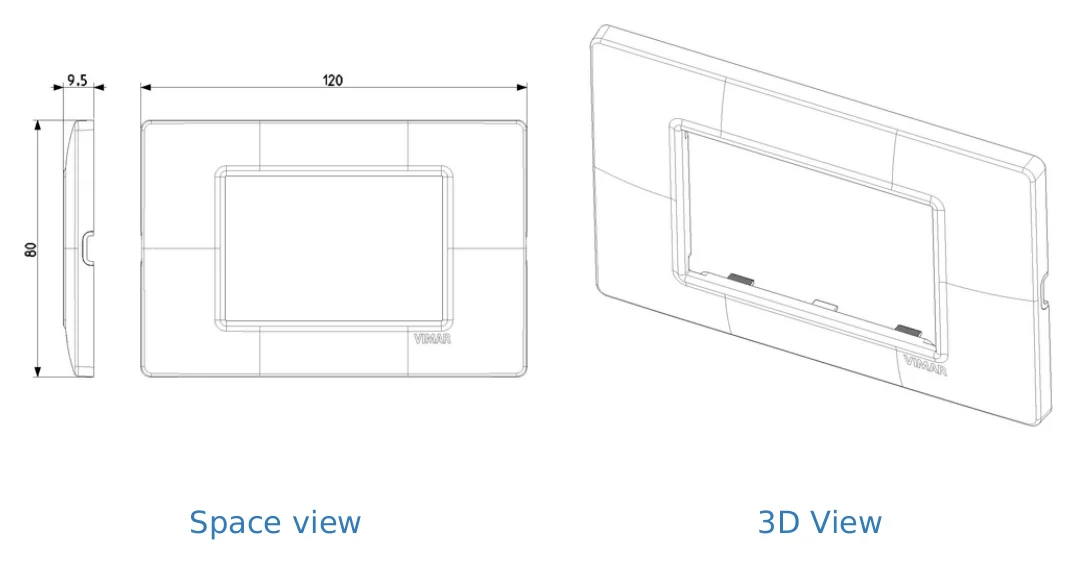

Z-VM13G-WPT Cover plate VM-14653.62: drawing — Cover plate VM-14653.62: drawing

Z-VM13G-WPT Frame VM-14613: drawing — Frame VM-14613: drawing

Z-VM13G-WPT Installation switch VM-14001: drawing — Installation switch VM-14001: drawing

FAQ

What is the Vimar Plana Wood 3 Gang Switch intended for?

This parent product is a Vimar Plana 3 gang switch in a Wood Pear Tree finish. It is suited to projects that need a coordinated Plana-series switch style with three switch positions on one plate.

What rating is listed for this Vimar Plana 3 gang switch?

The product name lists this switch as 16A. No additional electrical performance specifications are provided in the parent or child product data.

What are the dimensions of the parent product?

The listed dimensions are 120.0000 mm wide, 80.0000 mm long, and 9.0000 mm high. The listed weight is 1.0000 kg.

Do the child variants differ in finish or warranty?

The listed child variants both use the Wood Pear Tree finish. Both variants also show the same 3.0000 year warranty period, so the provided data does not show a finish or warranty difference between them.

Which switch series does this product belong to?

This product is categorized under Vimar Plana switch groups, including Plana 3 gang and Plana switch categories. That makes it part of the Plana family shown in the product categorization.

What warranty period is provided for this parent product?

The listed warranty period is 3.0000 year. The same warranty period is also shown on the listed child variants.
