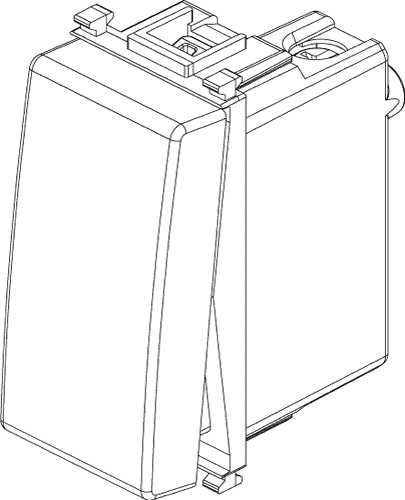

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Plana 1P 16AX 1-Way Push Switch White

1P 16A White
SKU VM-14001
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14001 is Vimar PLANA 14001, 1P 16AX 1-way switch white.

1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-14001Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
38.4 mm
Built-in depth
24 mm

Packaging

EAN
8007352106352
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
25.8 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), SASO (Saudi Arabia), IMQ (Italy), TISI (Thailand), INGCER (Chile), PSE (Japan), TSE (Turkey), RCM (Australia), CCC (China), NOM (Mexico), IQC (Argentina), WEEE Directive

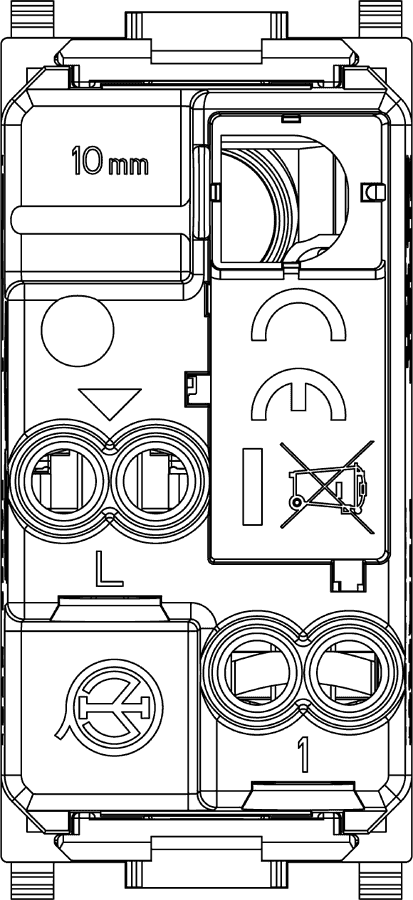

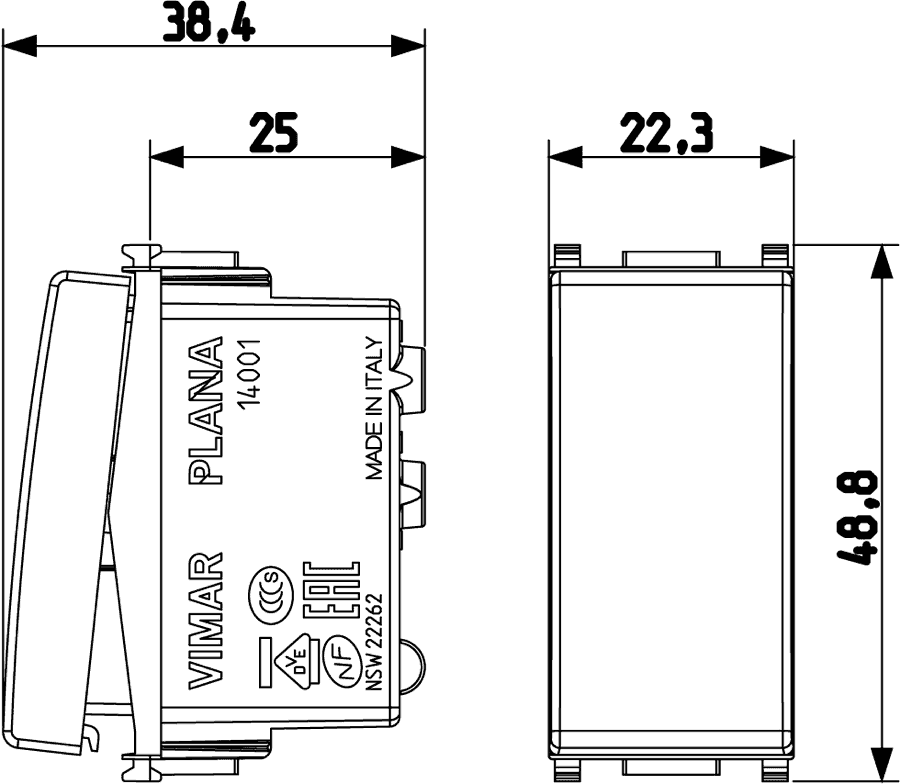

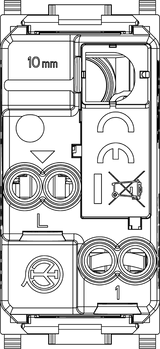

Technical drawings

VM-14001 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana 1P 16AX 1-Way Push Switch White used for?

This model is a 1-way push switch module in the Vimar Plana range. It is intended for switch-module applications where a white Plana-finish component is needed on a product or project page. Its compact module format makes it suited to matching other devices within the same Plana series.

What are the key specifications of this switch module?

The Vimar Plana 1P 16AX 1-Way Push Switch is rated at 16AX and has a listed current rating of 16.0000 A. It comes in a white finish, carries a 3-year warranty, and has a unit weight of 0.0258 kg. These details make it easy to assess for specification-driven commercial purchasing.

Is this switch part of the Vimar Plana series?

Yes, this product belongs to the Vimar Plana series. It is designed to align with the Plana family’s modern, linear styling, making it a suitable choice where consistency across Plana switches and dimmer-related modules is important. The listed product name also identifies it specifically as a Plana model.

Can this switch module be used in demanding temperature conditions?

This model has a stated operating temperature range from -20.0000 °C to 50.0000 °C. That range supports use in a variety of indoor environments where temperature tolerance matters. Buyers can use those published limits to check suitability against project conditions.

What distinguishes this model from other switch modules in a project range?

This version is identified as a Vimar Plana 1P 16AX 1-Way Push Switch in a white finish, so its differentiation is mainly its switching format, rating, and series styling. For buyers standardizing across a project, the Plana design language and white colour help maintain a consistent visual specification. It is best compared with other modules by matching family, finish, and rating requirements.
