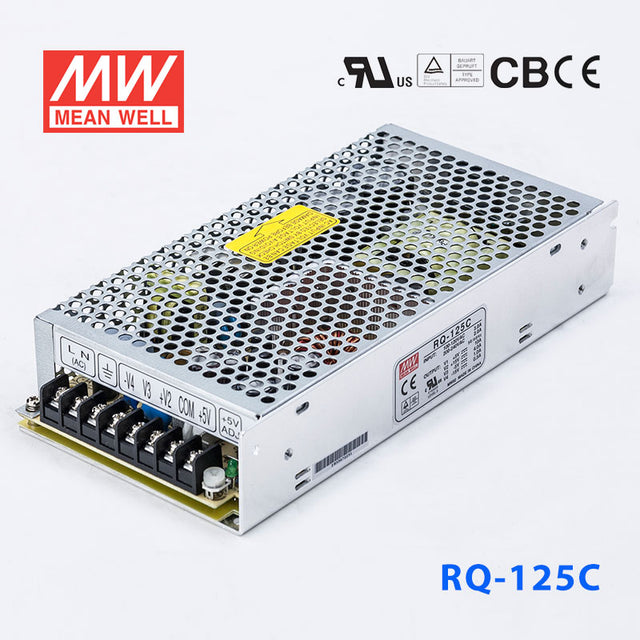

Mean Well RQ-125C Power Supply 125W 5V 15V -5V-15V

miniature size, economical, withstand 5G vibration and 70°C operation, quad output
SKU:
RQ-125C

|

Description

Features

Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Universal AC input/Full range
LED indicator for power on
High operating temperature up to 70°C
Withstand 5G vibration test
All using 105°C long life electrolytic capacitors
High efficiency, long life and high reliability
Cooling by free air convection
3 years warranty


General Specification

AC input voltage range 88~264VAC, 125~373VDC
AC inrush current (max.) 50A at 230VAC
DC adjustment range ±10% by potentiometer for CH1
Overload protection 110%~150%
Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature -25~+70°C
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL62368-1, TUV EN62368-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2)
Connection Terminal block for input and output
Dimension (LxWxH) 199x 98x 38
Case No. 902
Packing 20pcs /14kg

Specifications

  • Brand
    Mean Well
  • Series
    RT Series
  • Power Rating
    122.5 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    CB,CE,EAC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~70°C
  • Warranty
    3 Year
  • Length
    19.9 cm
  • Width
    9.8 cm
  • Height
    3.8 cm
  • Weight
    0.7 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8343917166891, "variants" :[{ "context":"default", "variant_id": 45321202303275, "sku":"RQ-125C", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

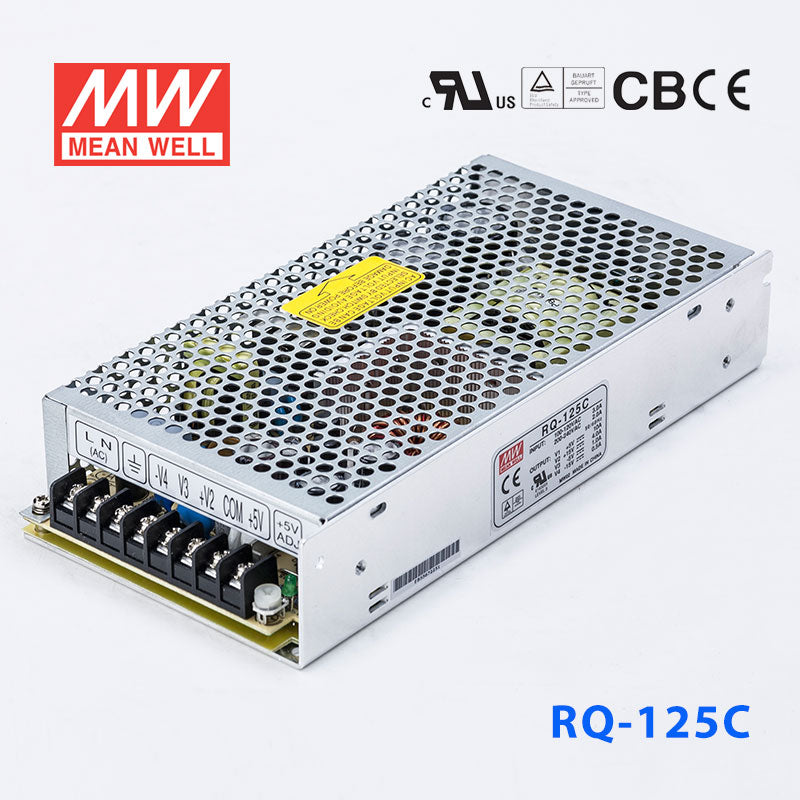

Mean Well RQ-125C Power Supply 125W 5V 15V -5V-15V
