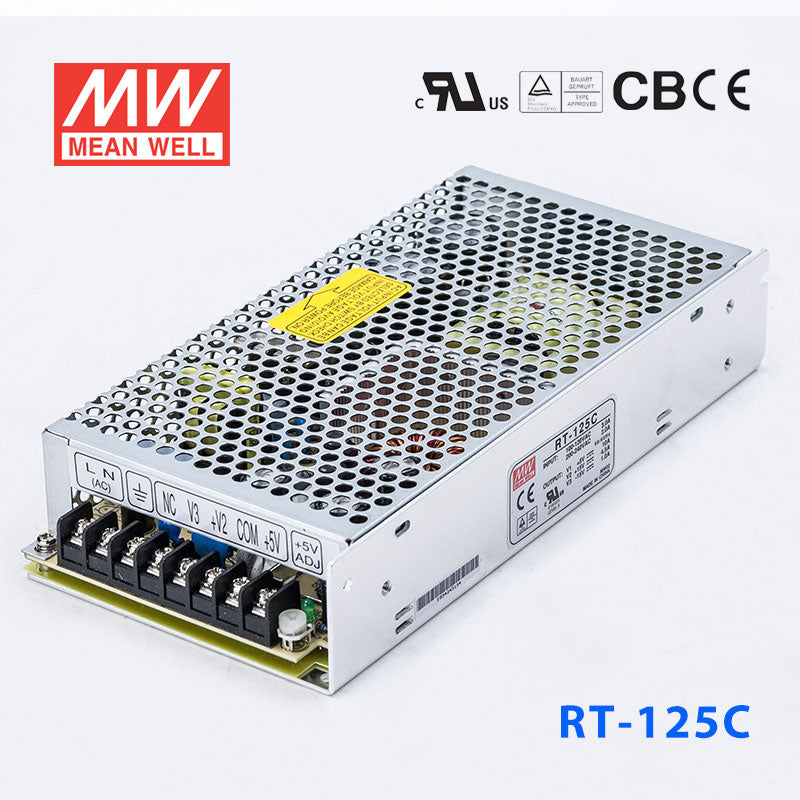

Mean Well RT-125C Power Supply 125W 5V 15V -15V
Please Login for Pricing
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| Universal AC input/Full range |
| LED indicator for power on |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| All using 105°C long life electrolytic capacitors |
| High efficiency, long life and high reliability |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 48A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 199x 98x 38 |
| Case No. | 902A |
| Packing | 20pcs /14kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRT Series
-
Power Rating132.5 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length19.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RT-125C for industrial or embedded equipment that needs 5V and ±15V rails?
Yes, this model provides 5V, 15V, and -15V outputs from one unit. That output combination is relevant for embedded and industrial electronics that need both a 5V logic rail and symmetrical 15V rails.
Is the RT-125C suitable for analog signal-conditioning or instrumentation circuits?
It can be a good fit where the electronics need 5V plus 15V and -15V rails. The total power rating is 132.5W, and the 5V output is rated for 10A.
Can the RT-125C support mixed digital and analog boards in one enclosure?
Yes, the output set of 5V, 15V, and -15V is useful when one enclosure contains both logic and analog sections. Its triple-output design reduces the need to source those rails from separate power supplies.
Would the RT-125C work in compact automation hardware that sees vibration and wide indoor temperature variation?
The unit is specified for -25°C to +70°C operation, and the features list includes 5G vibration resistance. Its 199.0 x 98.0 x 38.0 mm dimensions also suit space-conscious industrial hardware builds.
Is the RT-125C intended for outdoor environments?
The temperature range is broad at -25°C to +70°C, but no IP rating is provided in the product data. That means it is best treated as a supply for protected indoor locations or enclosed equipment rather than exposed outdoor use.
How does RT-125C differ from the other RT-125 power supplies?
RT-125C is the 132.5W model with 5V, 15V, and -15V outputs and a 5V current rating of 10A. The other listed RT-125 versions are RT-125A at 131W with 5V, 12V, and -5V, RT-125B at 132W with 5V, 12V, and -12V, and RT-125D at 136W with 5V, 24V, and 12V.
