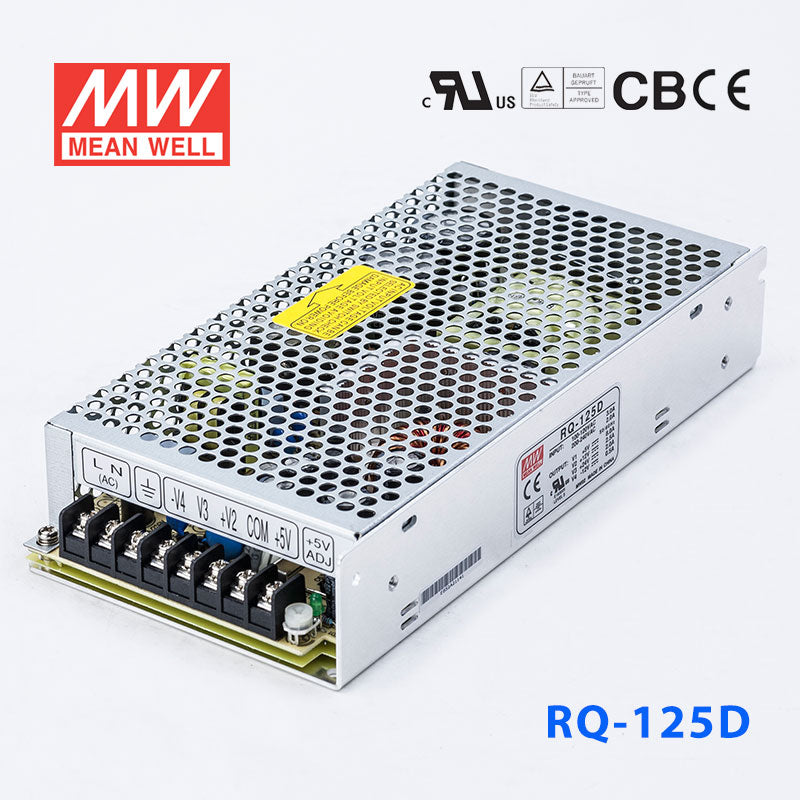

Mean Well RQ-125D Power Supply 125W 5V 24V 12V -12
Please Login for Pricing
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| Universal AC input/Full range |
| LED indicator for power on |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| All using 105°C long life electrolytic capacitors |
| High efficiency, long life and high reliability |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 50A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 199x 98x 38 |
| Case No. | 902 |
| Packing | 20pcs /14kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRT Series
-
Power Rating124 Watt
-
Output Voltage5 Volt
-
Rated Current8 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length19.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RQ-125D in an automation system that needs 5V logic plus 24V and +/-12V rails?
Yes. The RQ-125D is a quad output constant voltage power supply with a 5V main output rated at 8A and a total power rating of 124W. Its output set is suited to systems that combine low-voltage logic with 24V and -12V or 12V support rails in one enclosure.
Is the RQ-125D a good choice for industrial test or data-acquisition equipment with multiple voltage rails?
It is designed for multi-rail equipment rather than a single-output load. The 5V rail is rated for 8A, while the product also includes 24V, 12V, and -12V outputs under a 124W total power rating. That makes it relevant for mixed digital and control-oriented equipment that needs several DC rails from one AC-fed supply.
Can the RQ-125D support embedded control hardware in a compact cabinet?
It can when the hardware needs a 5V logic rail and additional 24V and +/-12V rails. The housing measures 199.0 x 98.0 x 38.0 mm and weighs 0.7 kg, so it fits applications where space is tighter than larger industrial power supplies. The 88-264VAC input range also supports broad AC input conditions.
Is the RQ-125D meant for indoor industrial environments or outdoor exposure?
The listed operating temperature range is -25°C to +70°C, and the unit is specified to withstand 5G vibration. Those specs support use in industrial indoor environments with temperature variation and vibration. No IP rating is provided, so the available data does not confirm outdoor or washdown suitability.
What are the main differences between the RQ-125D and the other RQ series siblings listed here?
The RQ-125D is rated at 124W with a 5V main output at 8A. The listed siblings are RQ-125B at 120W and 5V 11A, RQ-125C at 122.5W and 5V 10A, RQ-50B at 45.5W and 5V 5A, RQ-50C at 50W and 5V 5A, RQ-50D at 53.4W and 5V 3A, RQ-65B at 62.5W and 5V 6A, RQ-65C at 65W and 5V 5A, RQ-65D at 68W and 5V 4A, RQ-85B at 80.7W and 5V 7A, RQ-85C at 82.5W and 5V 7A, and RQ-85D at 84W and 5V 6A. RQ-125ND is listed but its specs were not included in the source data.
