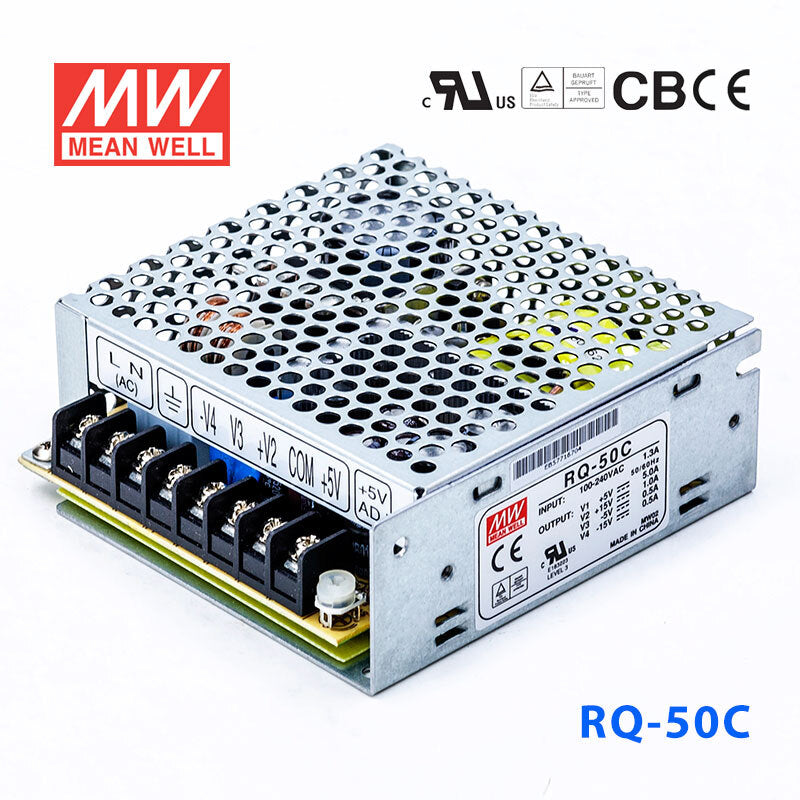

Mean Well RQ-50C Power Supply 50W 5V 15V -5V-15V
Please Login for Pricing
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| Universal AC input/Full range |
| LED indicator for power on |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| All using 105°C long life electrolytic capacitors |
| High efficiency, long life and high reliability |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 48A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 99x 97x 36 |
| Case No. | 905B |
| Packing | 45pcs /19.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRT Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length9.9 cm
-
Width9.7 cm
-
Height3.6 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RQ-50C for a compact analog control board that needs 5V and +/-15V rails?
Yes, if the total load stays within the product's 50W rating. The RQ-50C uses constant voltage operation, provides a 5V main output at 5A, and includes 15V and -15V outputs in a quad output design. That fits smaller control and analog processing assemblies needing several rails from one supply.
Is the RQ-50C a fit for embedded measurement or instrumentation electronics?
It can be, especially for designs that combine 5V digital logic with +/-15V analog stages. The unit delivers 5A on the 5V rail and comes in a 99.0 x 97.0 x 36.0 mm enclosure. That makes it suitable where multi-rail support is needed but available space is limited.
Can the RQ-50C be used in a low-power automation module with universal AC input?
Yes. The input range is 88-264VAC, so it supports broad AC input conditions, and the total rated power is 50W. For compact automation modules that need 5V logic and +/-15V rails, it can reduce the need for separate supplies.
Is the RQ-50C suitable for outdoor use or only for enclosed indoor equipment?
The operating temperature range is -25°C to +70°C, and the supply is rated to withstand 5G vibration. Those are useful industrial environment specs for enclosed indoor equipment. No IP rating is listed in the supplied data, so outdoor suitability is not confirmed by the available specifications.
What is the difference between the RQ-50C and the other RQ siblings listed here?
The RQ-50C is rated at 50W with a 5V main output at 5A. The sibling list includes RQ-50B at 45.5W and 5V 5A, RQ-50D at 53.4W and 5V 3A, RQ-65B at 62.5W and 5V 6A, RQ-65C at 65W and 5V 5A, RQ-65D at 68W and 5V 4A, RQ-85B at 80.7W and 5V 7A, RQ-85C at 82.5W and 5V 7A, RQ-85D at 84W and 5V 6A, RQ-125B at 120W and 5V 11A, RQ-125C at 122.5W and 5V 10A, and RQ-125D at 124W and 5V 8A. RQ-125ND appears in the sibling list, but no power or current figures were provided for it.
