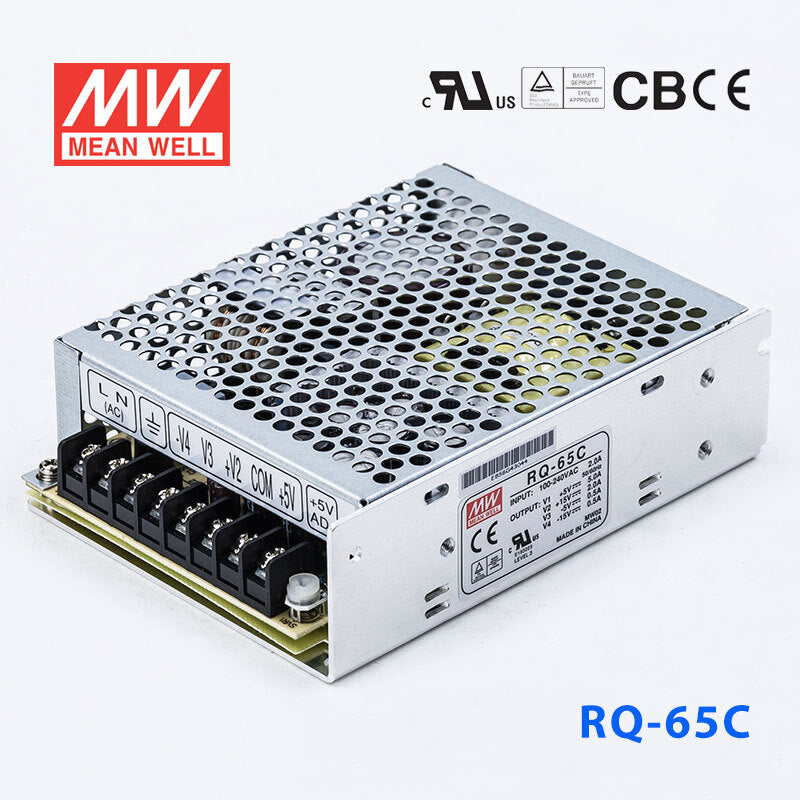

Mean Well RQ-65C Power Supply 65W 5V 15V -5V-15V
Please Login for Pricing
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| Universal AC input/Full range |
| LED indicator for power on |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| All using 105°C long life electrolytic capacitors |
| High efficiency, long life and high reliability |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 50A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 129x 98x 38 |
| Case No. | 903 |
| Packing | 30pcs /13.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRT Series
-
Power Rating65 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length12.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.44 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RQ-65C for analog or control equipment that needs 5V logic and +/-15V rails?
Yes, this model is intended for multi-rail systems because the product name lists 5V, 15V, -5V, and -15V outputs. Its main 5V output is rated at 5A and the total power is 65W, which suits lower-power control or embedded assemblies that need those rail types together.
Is the RQ-65C a good fit for embedded test or measurement hardware with positive and negative auxiliary voltages?
It can fit embedded test or measurement hardware when the design calls for a 5V main rail plus positive and negative auxiliary rails, since this unit provides 15V, -5V, and -15V outputs alongside 5V. The total rated power is 65W, with 5V output current rated at 5A.
Can the RQ-65C be used in a small industrial cabinet with limited space?
This supply is sized for compact integration at 129.0 x 98.0 x 38.0 mm and weighs 0.44 kg. The features also call out miniature size and 5G vibration resistance, which aligns with tightly packed industrial or automation enclosures.
Can I use the RQ-65C in hot indoor equipment or outdoor enclosures?
The operating temperature range is specified as -25 degrees C to +70 degrees C, so the temperature rating supports demanding indoor conditions. No IP rating is listed in the provided specs, so the product data here does not confirm suitability for exposed outdoor, washdown, or weather-facing use.
What are the main differences between the RQ-65C and the other RQ series options listed here?
The sibling list shows RQ-50B at 45.5W and 5V 5A, RQ-50C at 50W and 5V 5A, RQ-50D at 53.4W and 5V 3A, RQ-65B at 62.5W and 5V 6A, RQ-65D at 68W and 5V 4A, RQ-85B at 80.7W and 5V 7A, RQ-85C at 82.5W and 5V 7A, RQ-85D at 84W and 5V 6A, RQ-125B at 120W and 5V 11A, RQ-125C at 122.5W and 5V 10A, and RQ-125D at 124W and 5V 8A. RQ-125ND is listed too, but no wattage or current figures are included for it in the provided sibling data.
