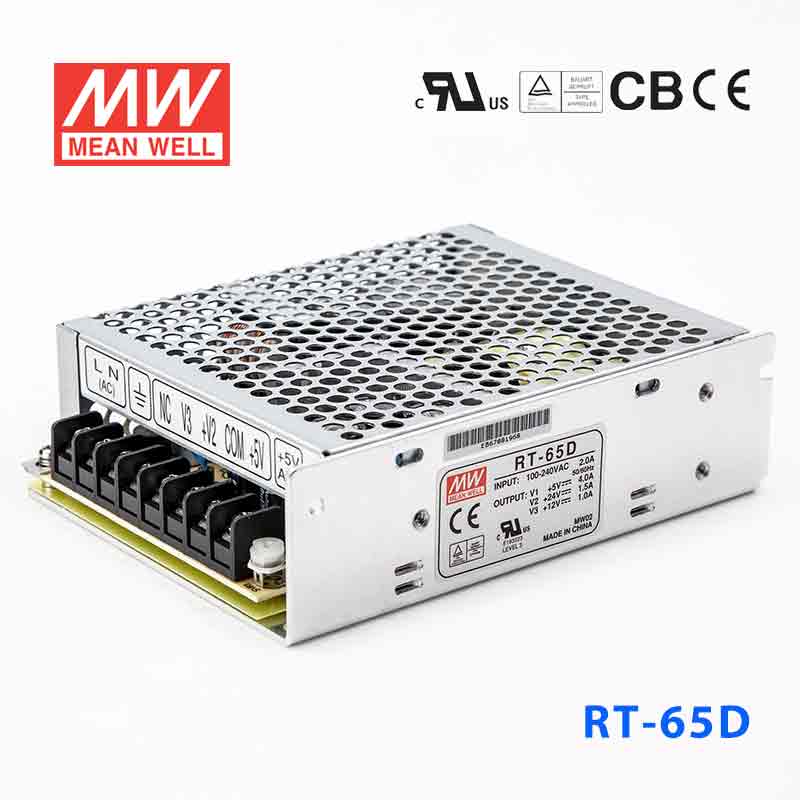

Mean Well RT-65D Power Supply 65W 5V 24V 12V
Please Login for Pricing
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| Universal AC input/Full range |
| LED indicator for power on |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| All using 105°C long life electrolytic capacitors |
| High efficiency, long life and high reliability |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 50A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 129x 98x 38 |
| Case No. | 903 |
| Packing | 30pcs /13.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRT Series
-
Power Rating68 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length12.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.44 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RT-65D in an automation system that needs 5V logic, 12V controls, and 24V field power?
Yes. The RT-65D is a triple-output constant-voltage supply with 5V, 24V, and 12V outputs and 68W total power. That combination suits automation equipment that brings together low-voltage control electronics and higher-voltage auxiliary circuits in one power supply.
Is the RT-65D suitable for embedded equipment with both 5V digital boards and 24V subsystems?
It can be a fit for embedded or industrial devices that need a 5V logic rail plus 12V and 24V outputs in the same enclosure. The 5V output is rated at 4A, and the full supply is rated for 68W total, which is appropriate for lower-power mixed-voltage assemblies.
Can the RT-65D power compact machine-control electronics with several DC voltage rails?
Yes, if the design needs constant-voltage outputs at 5V, 12V, and 24V. Its triple-output format is useful for machine-control, monitoring, or industrial electronics that would otherwise need multiple smaller supplies.
Will the RT-65D work in equipment where enclosure space is tight?
The unit measures 129.0 × 98.0 × 38.0 mm and is described as miniature size. That compact format helps when fitting a multi-output power supply into dense industrial or embedded hardware.
Is the RT-65D appropriate for hot indoor cabinets or vibration-prone equipment?
The operating temperature range is -25°C to +70°C, and the listed features include 70°C operation and 5G vibration resistance. Those specifications support indoor industrial use where the supply may be exposed to elevated ambient temperatures and mechanical vibration.
How does the RT-65D compare with other RT family models around this size?
Among the listed siblings, RT-50A is 46.5W at 5V 4A, RT-50B is 50W at 5V 4A, RT-50C is 50W at 5V 4A, RT-50D is 51W at 5V 3A, RT-65A is 66.1W at 5V 6A, RT-65B is 64.6W at 5V 5A, RT-65C is 65.5W at 5V 5A, RT-65D is 68W at 5V 4A, RT-125A is 131W at 5V 12A, RT-125B is 132W at 5V 12A, RT-125C is 132.5W at 5V 10A, and RT-125D is 136W at 5V 8A. The RT-85A, RT-85B, RT-85C, RT-85D, RT-125NA, RT-125NB, and RT-125ND are listed siblings, but their detailed specs are not included here.
