1 4

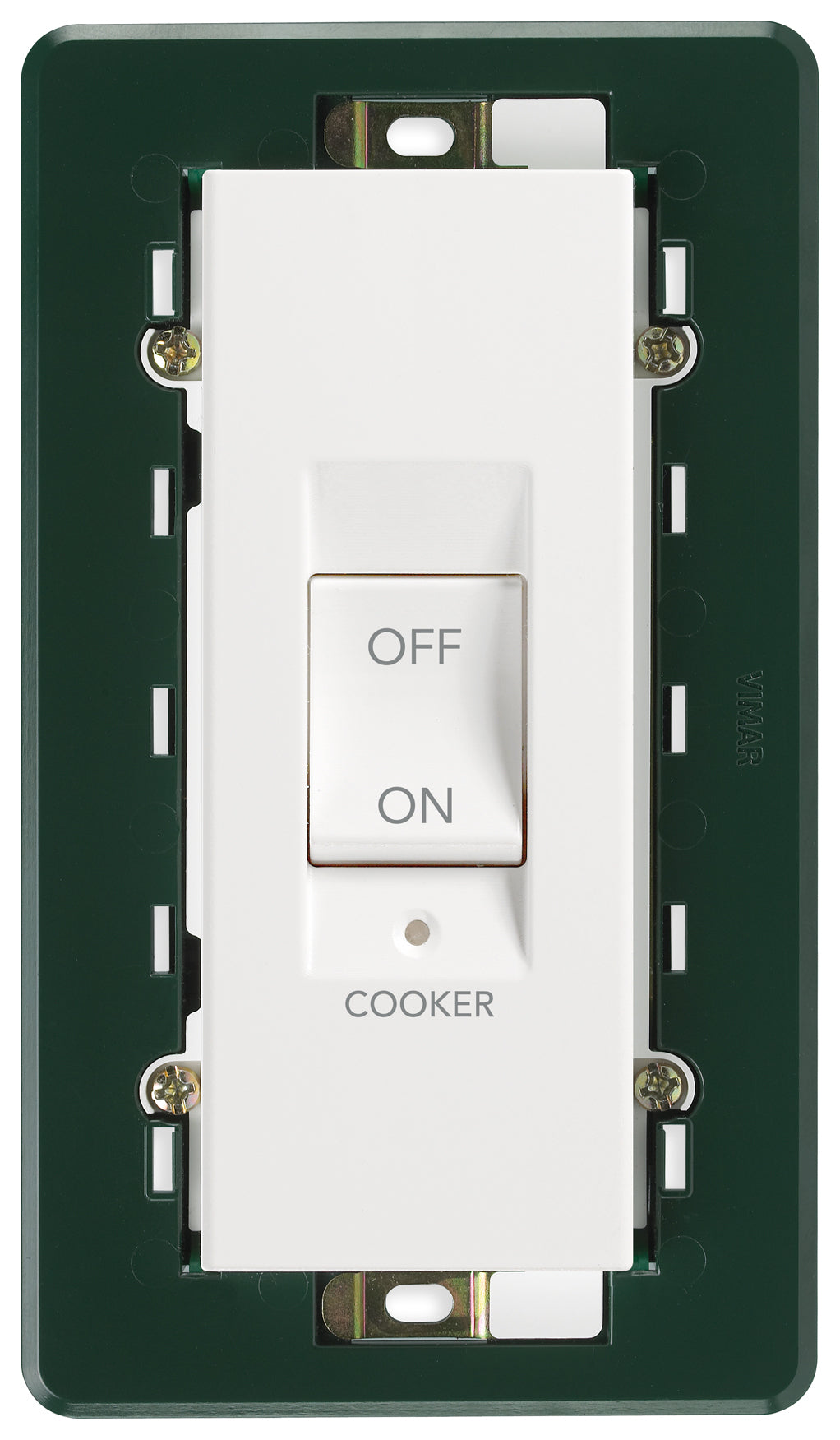

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Plana 2P 45A 1-Way Cooker Switch 5M White

2P45A5MWhite
SKU VM-14019.CK
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14019.CK is Vimar PLANA 14019.CK, 2P 45A 1-way switch COOKER 5M white.

2P 45 A 250 V~ 1-way switch, lightable, COOKER symbol, with built-in frame for British standard boxes, to complete with 5- module British standard cover plates, white. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

Specifications

VM-14019.CKSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Switch 2-pole
Operating method
Rocker/button
Number of modules (module system)
5
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
45 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
82.5 mm
Device height
144 mm
Device depth
33 mm
Built-in depth
22.5 mm

Packaging

EAN
8007352406483
Packed size (cm)
8.5 × 3.5 × 15
Packed weight
144.4 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), ASTA (UK), TISI (Thailand), WEEE Directive

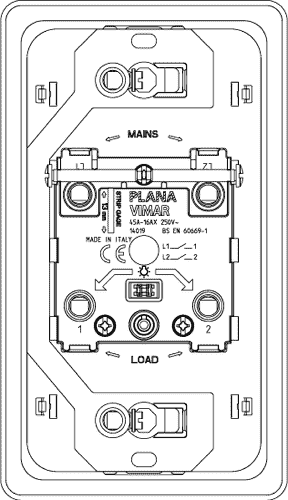

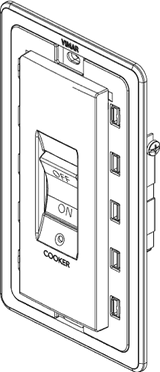

Technical drawings

VM-14019.CK Drawings
Drawings

Downloads

FAQ

What is the Plana 2P 45A 1-Way Cooker Switch 5M White used for?

This model is a cooker switch accessory module designed for applications where a high-current 1-way switching device is needed. It belongs to Vimar's Plana range and is intended for projects that require a clean white finish and a coordinated modular switch system.

What are the key electrical specifications of this cooker switch?

The Plana 2P 45A 1-Way Cooker Switch is rated at 45A with an output voltage of 250 V. These published specifications make it suitable for buyers who need to match a switch module to the required current and voltage rating of the application.

Is this switch part of the Vimar Plana series?

Yes, this product is part of the Vimar Plana series. That matters for buyers looking to maintain a consistent appearance and product family across Plana-based switch and socket projects.

What finish and appearance does this model have?

This specific version is supplied in a white finish. It is designed to align with the Plana range's modern, linear styling, making it a good fit for projects where a simple and neutral appearance is required.

Can this cooker switch be used in demanding environmental conditions?

This model has a stated operating temperature range of -20°C to 50°C. That gives buyers a defined environmental window to check against site conditions before specifying the product.

What is the warranty period for this model?

The listed warranty period for this cooker switch is 3 years. This can be useful for commercial buyers comparing lifecycle support and documentation across similar switch modules.
