Vimar

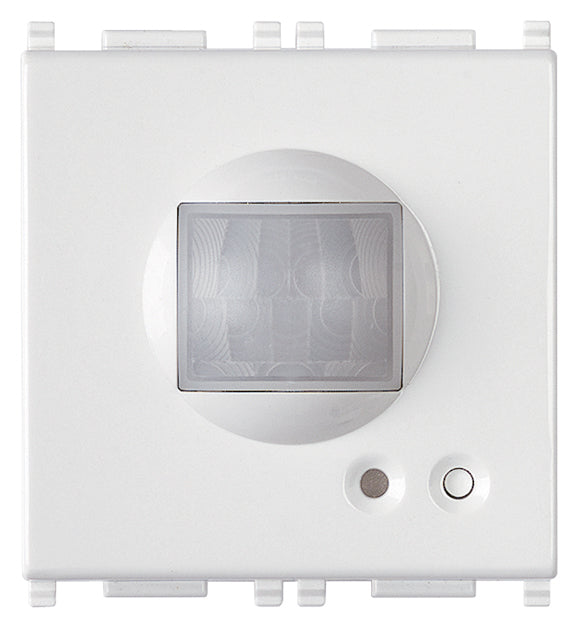

Plana IR Presence Detector White

IRWhite
SKU VM-14485
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14485 is Vimar PLANA 14485, IR motion detector white.

Passive infrared motion detector, white - 2 modules

Specifications

VM-14485Specifications from the official datasheet

Technical data

Product type
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1.2 m
Max. reach frontally
10 m
Detection angle vertical
0 - 36
Detection angle horizontal
0 - 112
Number of channels
1
Min. switch-on time
10 s
Max. duty cycle
250 min
Built-in length
25.5 mm
Min. depth of built-in installation box
30 mm

Packaging

EAN
8007352241343
Packed size (cm)
11.2 × 9.6 × 9.8
Packed weight
119.69 g

Certifications

Certifications
CE marking (EU), WEEE Directive, UK PSTI compliance

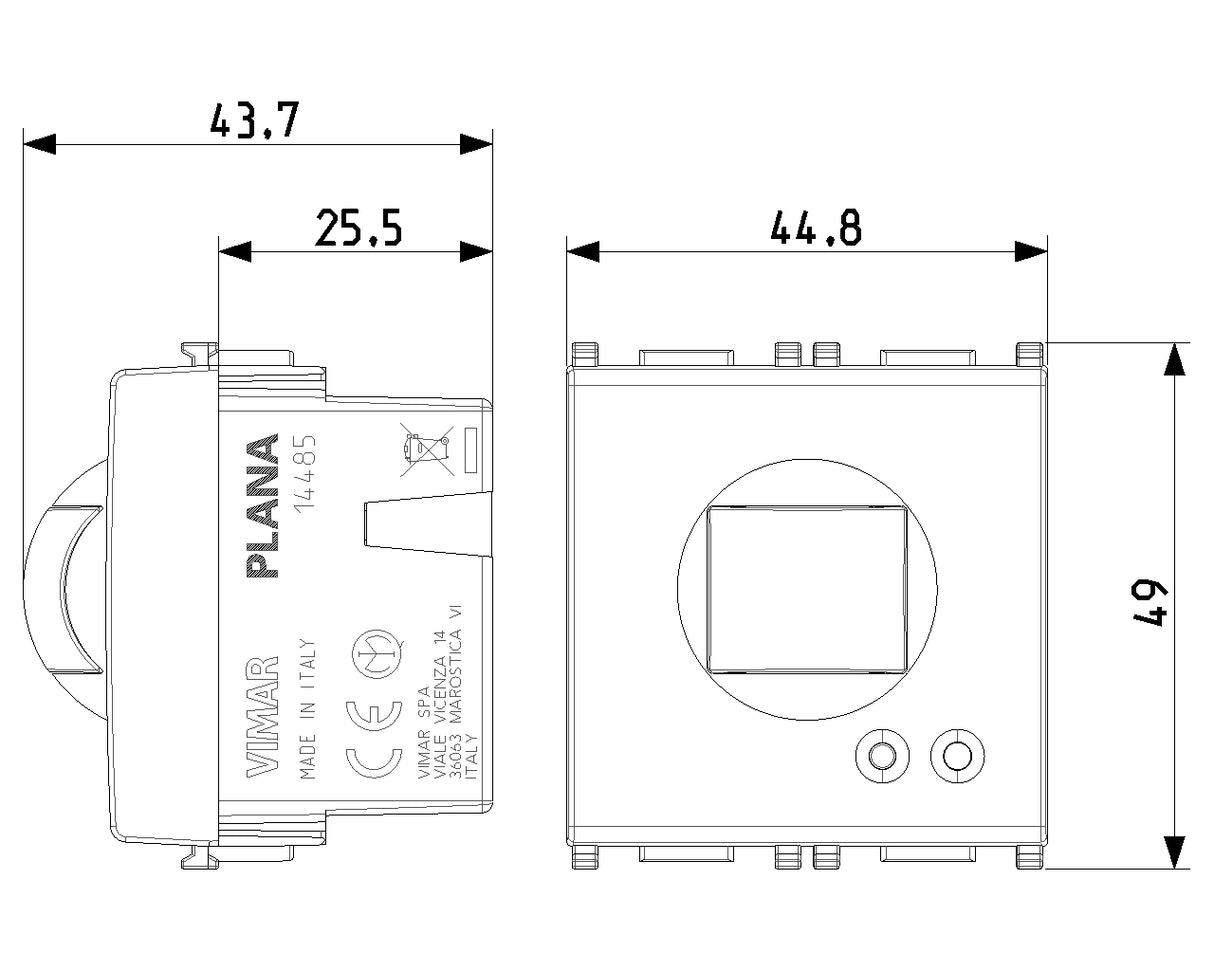

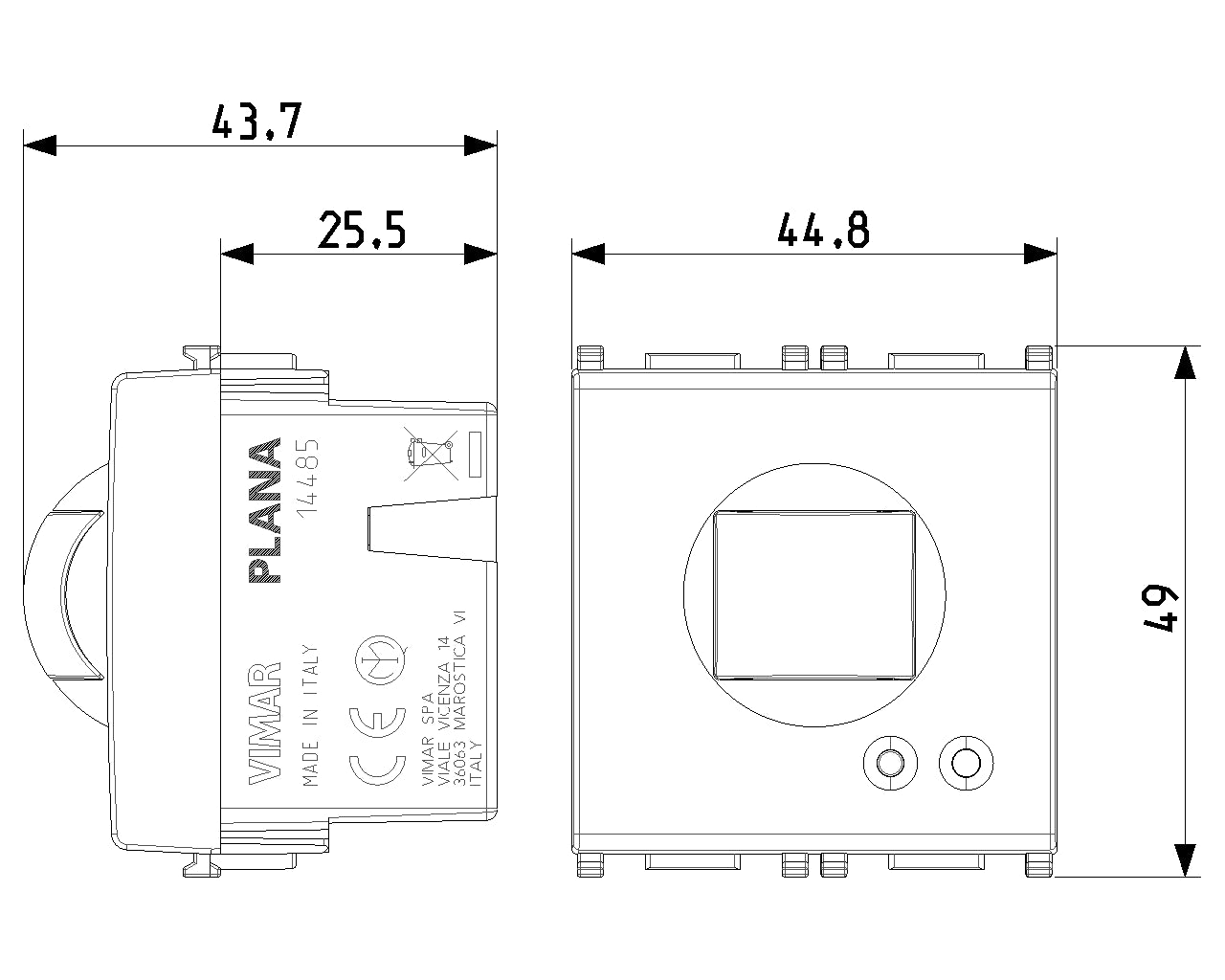

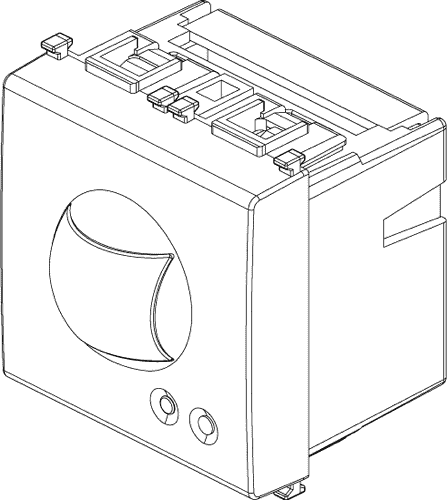

Technical drawings

VM-14485 Drawings
Drawings

Downloads

FAQ

What is the Plana IR Presence Detector White used for?

The VM-14485 is a Plana-series IR presence detector module intended for spaces where automatic presence-based control is needed. It is positioned as part of the Vimar Plana range, so it suits projects that want a clean, coordinated switch-and-control aesthetic in commercial or residential interiors.

Is this presence detector a good fit for projects using the Vimar Plana range?

Yes. This model is specifically identified as a Plana IR Presence Detector, so it is aimed at buyers selecting accessories within the Plana family. That makes it a relevant choice when visual consistency and series matching matter on the product page shortlist.

What are the main specifications of the Plana IR Presence Detector White?

This model has a listed output voltage of 29.0000 V and a product weight of 0.0120 kg. It is supplied in a white finish and includes a stated warranty period of 3.0000 years.

Can this detector be used in demanding temperature conditions?

The specified operating temperature range is -20.0000 °C to 50.0000 °C. That gives it a wider environmental window than products limited to indoor room-temperature use only, which can matter for variable-condition interior spaces.

Why choose the white version of the Plana IR Presence Detector?

The white finish supports a neutral, low-contrast appearance that works well in clean modern interiors. For buyers already selecting white Plana devices and plates, this version helps maintain a consistent look across the installation.
