Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Plana 1P 16AX 2-Way Push Button White

1P 16A White
SKU VM-14005
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14005 is Vimar PLANA 14005, 1P 16AX 2-way switch white.

1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-14005Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Two-way switch
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
38.4 mm
Built-in depth
24 mm

Packaging

EAN
8007352106444
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
28.4 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), PSE (Japan), TSE (Turkey), RCM (Australia), CCC (China), NOM (Mexico), IQC (Argentina), WEEE Directive, SASO (Saudi Arabia)

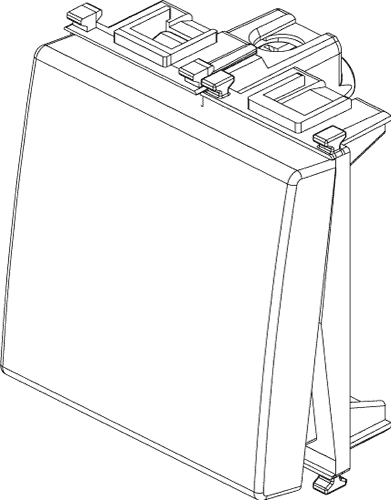

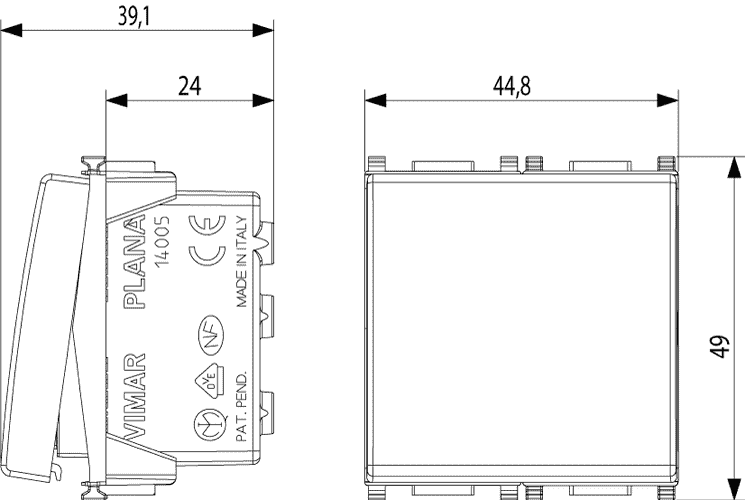

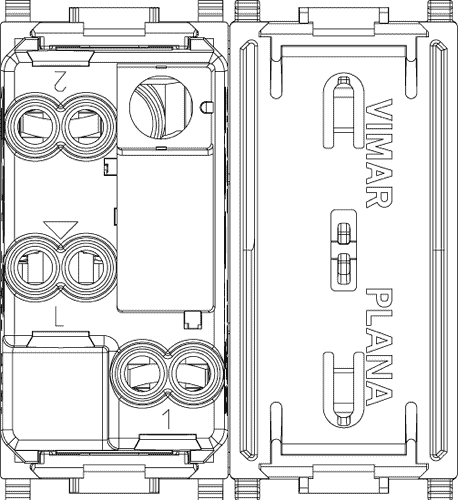

Technical drawings

VM-14005 Drawings
Drawings

Downloads

FAQ

What type of switch module is the Vimar Plana VM-14005?

The VM-14005 is a Vimar Plana 1P 16AX 2-way push button in white. It is intended as a switch module within the Plana series, with a modern, minimal finish suited to coordinated interior electrical fit-outs.

What is the rated current of this Vimar Plana push button?

This model has a rated current of 16 A. That makes it suitable for buyers who need a clearly specified commercial-grade switching module within the Vimar Plana range.

Is this product matched to the Vimar Plana series?

Yes. This product is part of the Vimar Plana switch and dimmer module family, so it is intended for projects using that series. For B2B buyers, that makes it a fit when maintaining finish and range consistency across a Plana installation.

What environments is the VM-14005 designed to handle?

The stated operating temperature range is -20 C to 50 C. That gives it a defined environmental window for indoor electrical applications where product selection needs to account for low or elevated ambient temperatures.

What finish and appearance does this model have?

This version is supplied in white. Its finish aligns with the Vimar Plana design approach, which emphasizes a clean, linear look for modern residential or commercial interiors.

What warranty is listed for the Vimar Plana VM-14005?

The listed warranty period for this model is 3 years. That gives trade buyers a clear coverage reference when specifying replacement parts or standardizing products across a project.
