Vimar

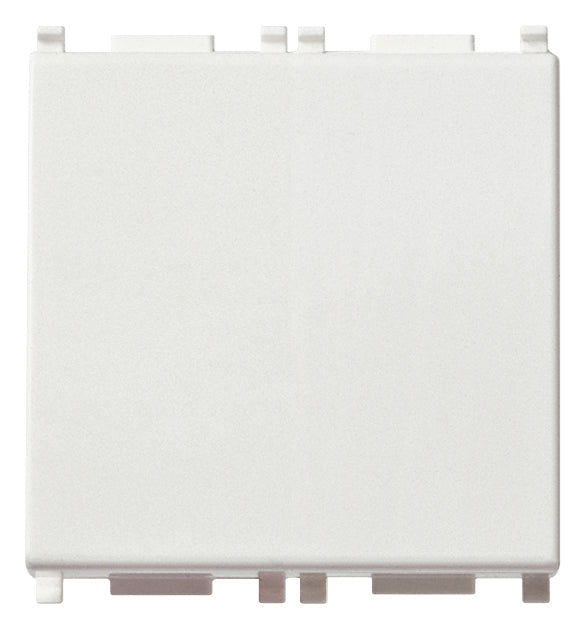

Vimar Plana 1P 16AX 2-way Switch 2M white

1P 16A 2M White
SKU VM-14005.2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14005.2 is Vimar PLANA 14005.2, 1P 16AX 2-way switch 2M white.

1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, white - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669- 1:2017)

Specifications

VM-14005.2Specifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Two-way switch
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44.8 mm
Device height
49 mm
Device depth
38.4 mm
Built-in depth
24 mm

Packaging

EAN
8007352119932
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
39.67 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), RCM (Australia), TSE (Turkey), CCC (China), SASO (Saudi Arabia), WEEE Directive

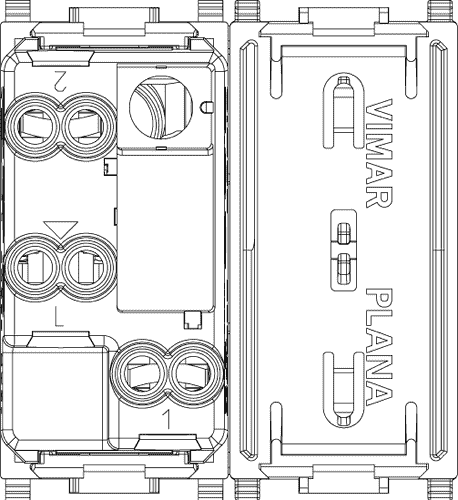

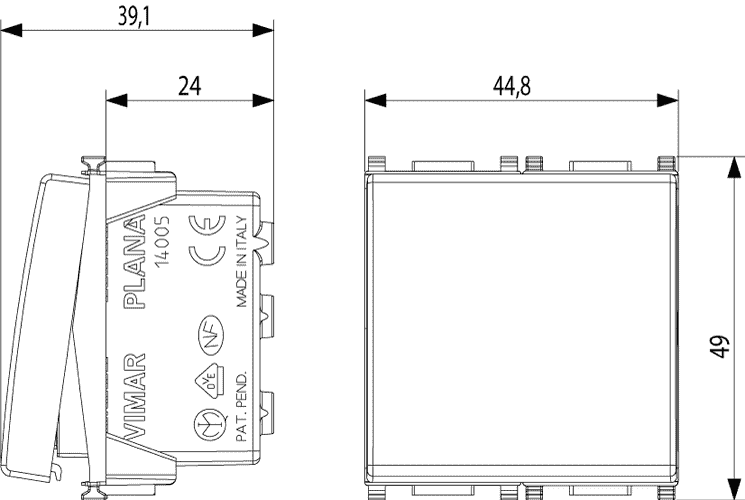

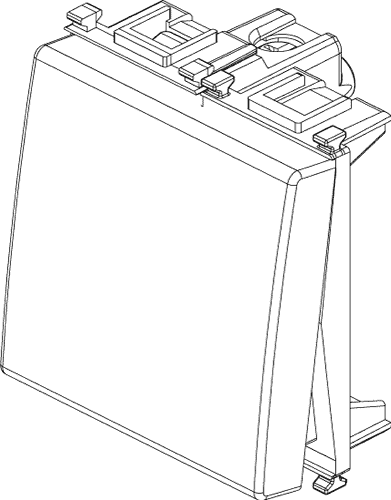

Technical drawings

VM-14005.2 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana 1P 16AX 2-way Switch 2M white used for?

This model is a 2-way switch module intended for switching lighting or other compatible electrical loads in Plana-series installations. Its 2-module format makes it suitable for projects that need a modular white switch component with a clean, modern finish.

What are the key specifications of this switch module?

The Vimar Plana 1P 16AX 2-way Switch 2M white is rated at 16AX and has a listed current rating of 16.0000 A. It comes in a white finish, weighs 0.0397 kg, and includes a 3-year warranty period.

Which product range does this switch belong to?

This switch belongs to the Vimar Plana range. That makes it a relevant choice for buyers standardizing on Plana-series devices and looking to keep a consistent aesthetic across switches and related accessories.

Is this switch suitable for demanding environmental conditions?

This model has an operating temperature range from -20.0000 °C to 50.0000 °C. That gives it flexibility for use in environments that may experience cold or warm conditions within that specified range.

What distinguishes this model from more decorative switch options?

This model is part of the Plana line, which emphasizes linear, modern styling and a clean formal look. In this specific version, the white finish supports a neutral appearance suited to projects where a simple, understated design is preferred.
