Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

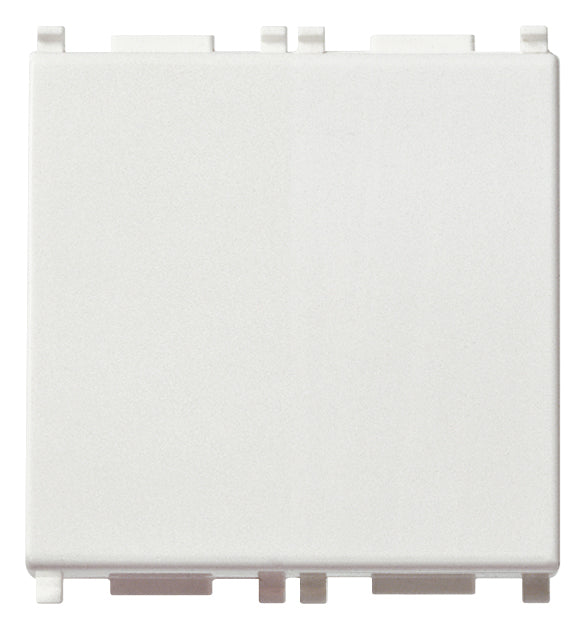

Vimar Plana 1P NO 10A Push Button 2M White

1P NO 10A 2M White
SKU VM-14008.2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14008.2 is Vimar PLANA 14008.2, 1P NO 10A push button 2M white.

1P NO 10 A 250 V~ push button, lightable, replaceable button, white - 2 modules

Specifications

VM-14008.2Specifications from the official datasheet

Technical data

Product type
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Operating method
Push button
Number of rockers
1
Number of modules (module system)
200
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
Monitoring contact
No
Mounting method
Built-in
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
44.8 mm
Device height
49 mm
Device depth
38.4 mm

Packaging

EAN
8007352119970
Packed size (cm)
5.1 × 4.3 × 5.3
Packed weight
37.13 g
Pieces per box
20

Certifications

Certifications
CE marking (EU), SASO (Saudi Arabia), IMQ (Italy), TISI (Thailand), SNI-SUCOFINDO Indonesia, RCM (Australia), TSE (Turkey), CCC (China), NOM (Mexico), WEEE Directive

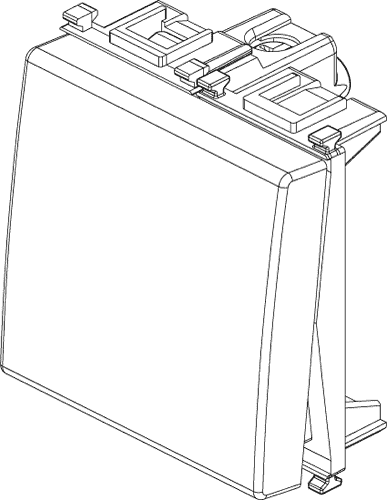

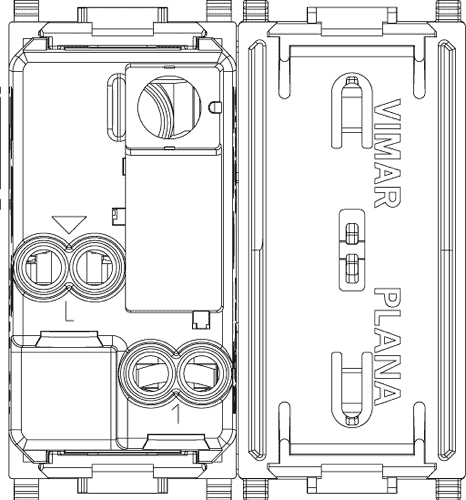

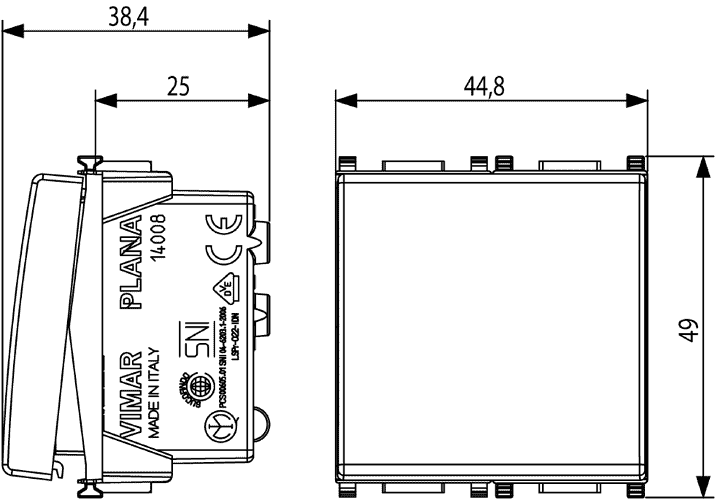

Technical drawings

VM-14008.2 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-14008.2 designed for?

The Vimar VM-14008.2 is a 1P NO push button module from the Plana series. It is intended for applications where a momentary push button action is needed in a matching Plana modular device range.

What does 1P NO mean on this push button?

1P NO means this model is a single-pole, normally open push button. In practical terms, it is a momentary device that changes state only while the button is being pressed.

What is the rated current for this model?

This push button is rated for 10 A. That specification helps buyers confirm it matches the current rating required for the intended control application.

Is this product part of the Vimar Plana range?

Yes, the VM-14008.2 belongs to the Vimar Plana series. It is made to match the Plana aesthetic, including the white finish and 2-module format used within that range.

What color and module size is this push button?

This model is white and uses a 2M format. That makes it suitable for projects that need a white Plana-series control with a two-module footprint.

What environmental conditions is this push button rated for?

The specified operating temperature range is from -20 °C to 50 °C. This gives it a defined working range for environments that stay within those limits.

How long is the warranty period for the Vimar VM-14008.2?

The listed warranty period for this model is 3 years. That can be useful for buyers comparing lifecycle support across similar switch modules.
