Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Plana 1P NO 10A Push Button White

1P NO 10A White
SKU VM-14008
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14008 is Vimar PLANA 14008, 1P NO 10A push button white.

1P NO 10 A 250 V~ push button, lightable, replaceable button, white

Specifications

VM-14008Specifications from the official datasheet

Technical data

Product type
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Operating method
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
Monitoring contact
No
Mounting method
Built-in
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22.3 mm
Device height
49 mm
Device depth
38.4 mm

Packaging

EAN
8007352106482
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
26.75 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), SASO (Saudi Arabia), IMQ (Italy), TISI (Thailand), INGCER (Chile), RCM (Australia), SNI-SUCOFINDO Indonesia, TSE (Turkey), Product Environm. Profile, CCC (China), RoHS UAE, NOM (Mexico), IQC (Argentina), WEEE Directive

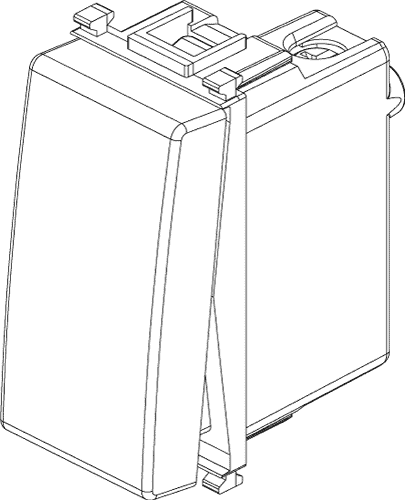

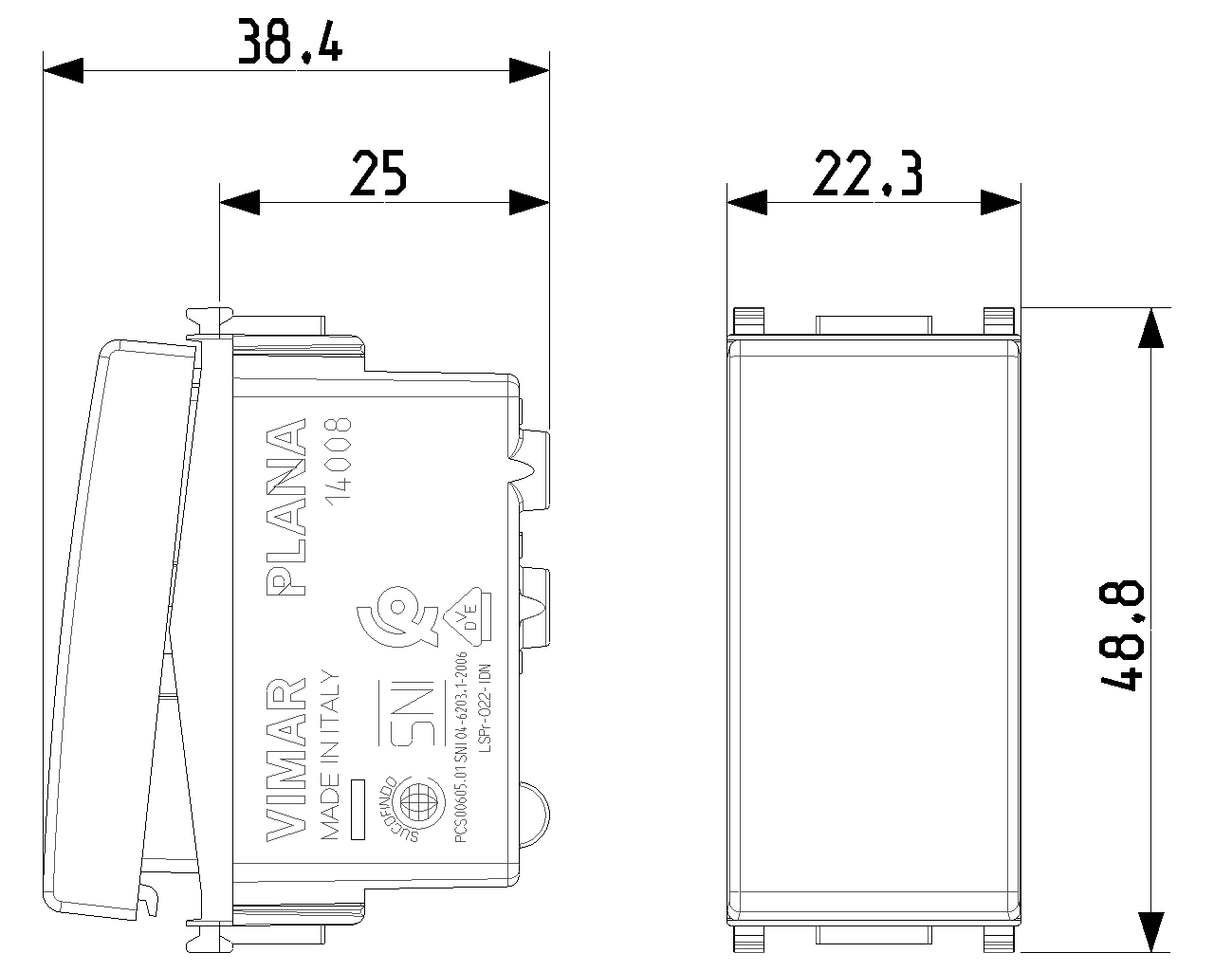

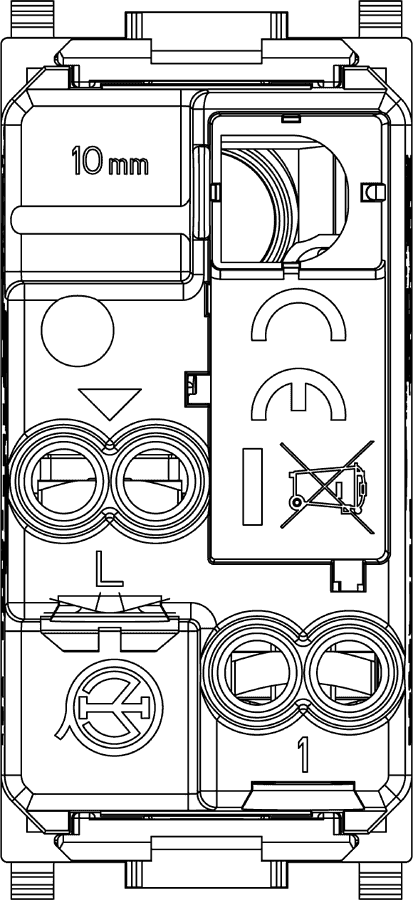

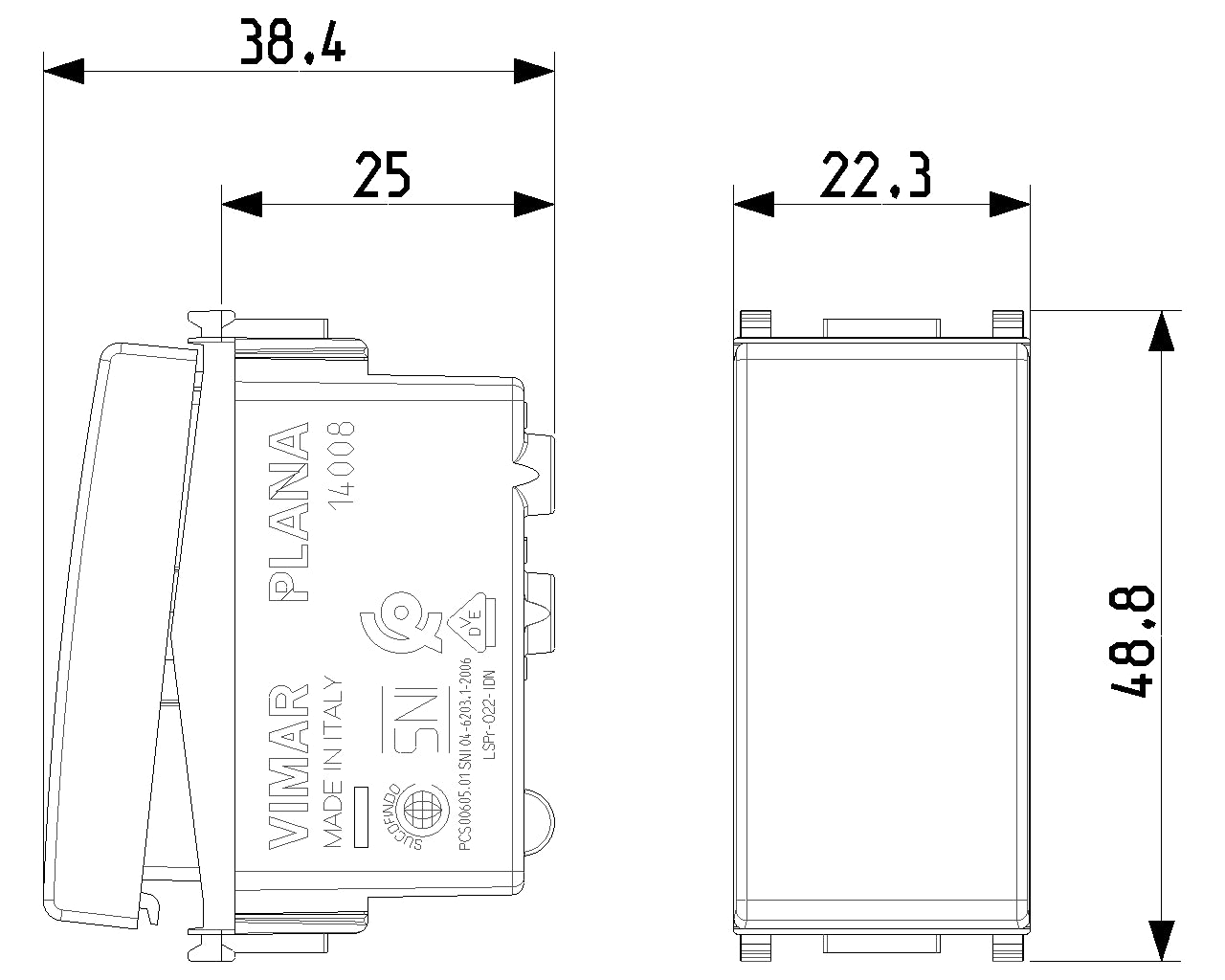

Technical drawings

VM-14008 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana 1P NO 10A Push Button White used for?

This model is a push button module intended for switch applications within the Vimar Plana range. It is suited to projects that need a clean white control point with the Plana series design language. For B2B buyers, it fits well in commercial or residential interiors where consistent modular styling matters.

What are the main specifications of this push button?

The Vimar Plana 1P NO push button is rated at 10A and comes in a white finish. It has an operating temperature range from -20°C to 50°C, a listed weight of 0.0268 kg, and a warranty period of 3 years. These are the key model-specific details provided for SKU VM-14008.

Is this product compatible with the Vimar Plana series?

Yes, this product is identified as a Vimar Plana module and belongs to the Plana switch and dimmer category grouping. It is intended for use within the Vimar Plana modular system rather than as a generic standalone switch component. Buyers standardizing on Plana aesthetics and product families should find it aligned with that range.

What kind of environments is this push button suitable for?

This model is specified for use in environments where temperatures can range from -20°C to 50°C. That makes it suitable for a broad range of normal indoor applications, provided the project conditions stay within that stated range. Its white technopolymer-style Plana presentation also suits modern, minimal interiors.

How does this push button differ from a standard switch in the same series?

This model is specifically described as a 1P NO push button, so it is a push-button type device rather than a standard maintained switch. For buyers comparing parts in the Plana family, that distinction matters when selecting the correct control style for the application. The product naming and category placement make it clear that this is part of the Plana switch module lineup.
