Vimar

Vimar Plana Antibacterial 1P 16AX 2-Way Switch White

1P 16A White
SKU VM-14005.AB
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14005.AB is Vimar PLANA 14005.AB, antibacterial 1P 16AX 2-way switch.

1P 16 AX 250 V~ 2-way switch, lighTable, replaceable button, with antibacterial treatment, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Specifications

VM-14005.ABSpecifications from the official datasheet

Technical data

Product type
Installation switch
Wiring system
Two-way switch
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16 A
Monitoring contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22.3 mm
Device height
49 mm
Device depth
38.4 mm
Built-in depth
24 mm

Packaging

EAN
8007352499355
Packed size (cm)
4.1 × 2.8 × 5.3
Packed weight
30.8 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), TISI (Thailand), IMQ (Italy), IQC (Argentina), SASO (Saudi Arabia), WEEE Directive

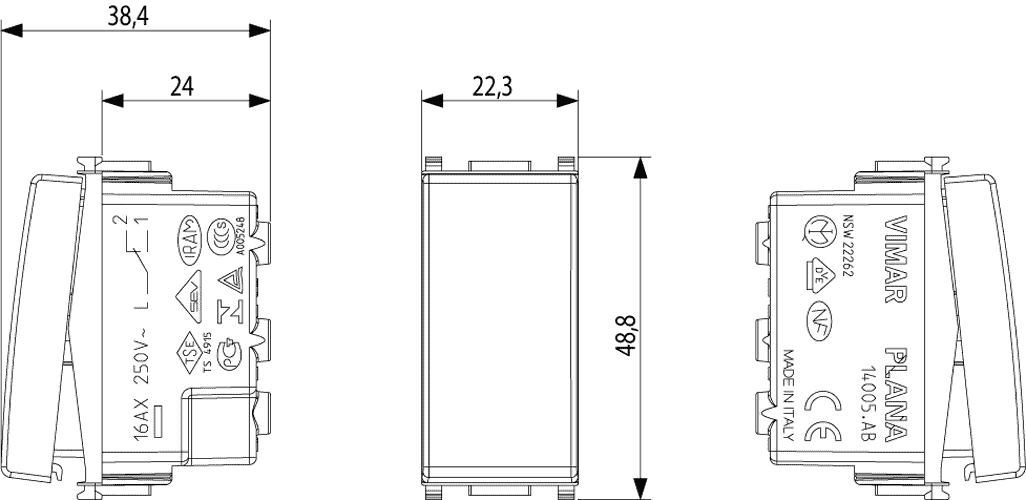

Technical drawings

VM-14005.AB Drawings
Drawings

Downloads

FAQ

What is the main use of the Vimar Plana Antibacterial 1P 16AX 2-Way Switch White?

This model is a 1P 16AX 2-way switch designed for switching lighting and similar electrical loads in Vimar Plana installations. It is aimed at projects that need a clean white finish and the Plana design style for residential or commercial interiors.

What does the antibacterial feature mean on this switch?

The antibacterial designation indicates this Plana switch is intended for environments where surface hygiene is an important consideration. It can be a relevant choice for spaces such as offices, shared interiors, healthcare-adjacent settings, or other high-contact areas where a standard finish may be less desirable.

What electrical rating does this switch have?

This model is rated at 16AX. That makes it suitable for applications requiring a switch in this rating class, and buyers should match the product to the load requirements of their project documentation and system design.

What temperature range can this switch operate in?

The specified operating temperature range is from -20°C to 50°C. This supports use in a wide range of indoor conditions, provided the surrounding environment stays within that stated range.

Is this switch intended for the Vimar Plana range?

Yes. This product is identified as a Vimar Plana switch module, so it is intended for use within the Plana series rather than as a universal switch across unrelated ranges. Buyers matching finishes and system components should keep it within the Plana family.

What are the physical and finish details of this model?

This version comes in a white finish and has a listed weight of 0.0308 kg. It also includes a 3-year warranty period, which can be useful for project specification and replacement planning.
