Vimar

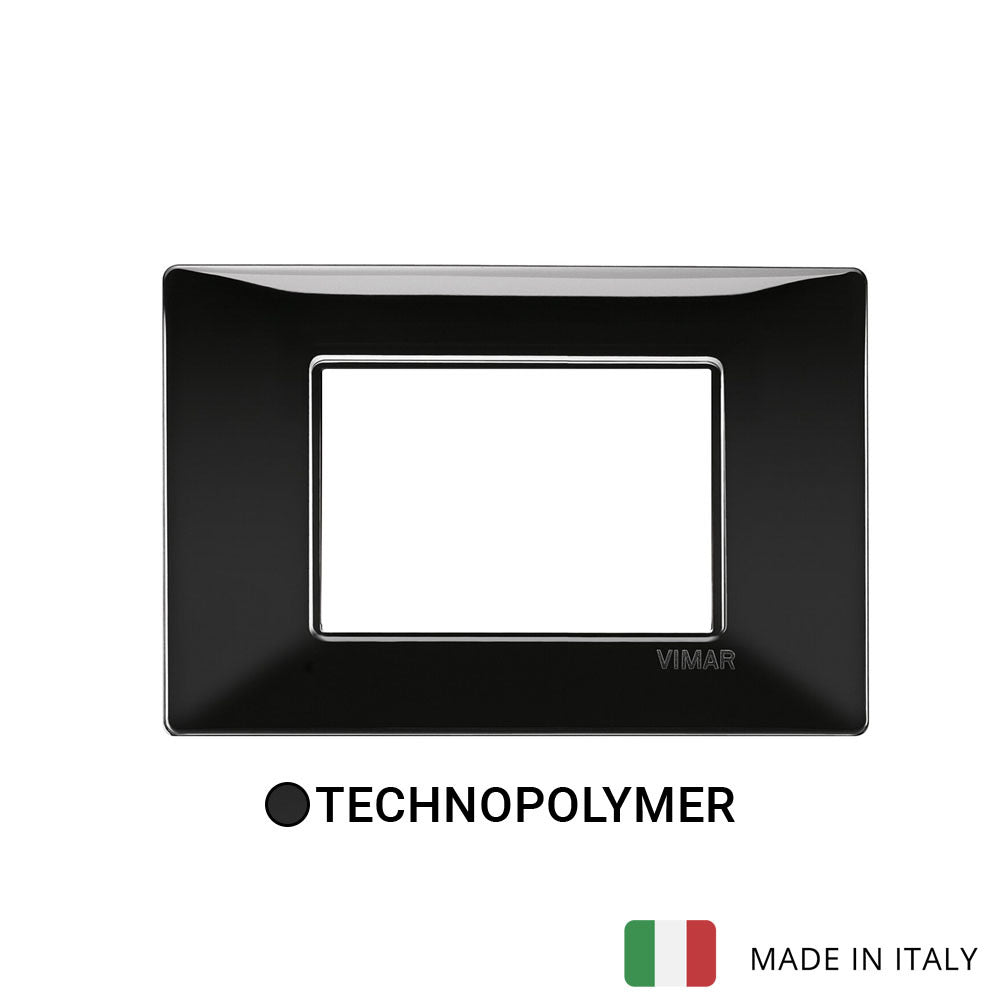

Vimar Plana Plate 3M Techn. Black

3 Module Black
SKU VM-14653.05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14653.05 is Vimar PLANA 14653.05, plate 3M techn. black.

3-module cover plate, technopolymer, black

Specifications

VM-14653.05Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
3
Number of device inserts vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting

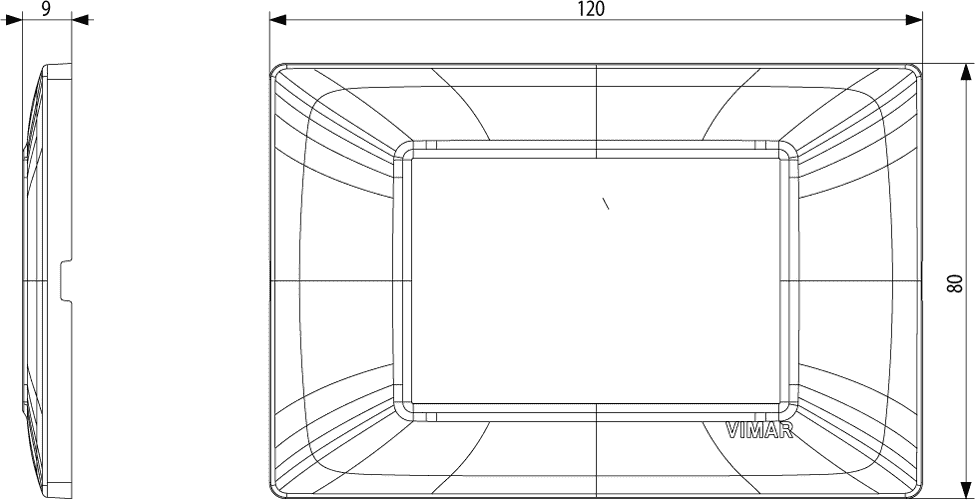

Width
120 mm
Height
80 mm
Depth
9 mm
Built-in width
120 mm
Built-in height
80 mm

Packaging

EAN
8007352111882
Packed size (cm)
17 Γ— 8 Γ— 0.9
Packed weight
17.6 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

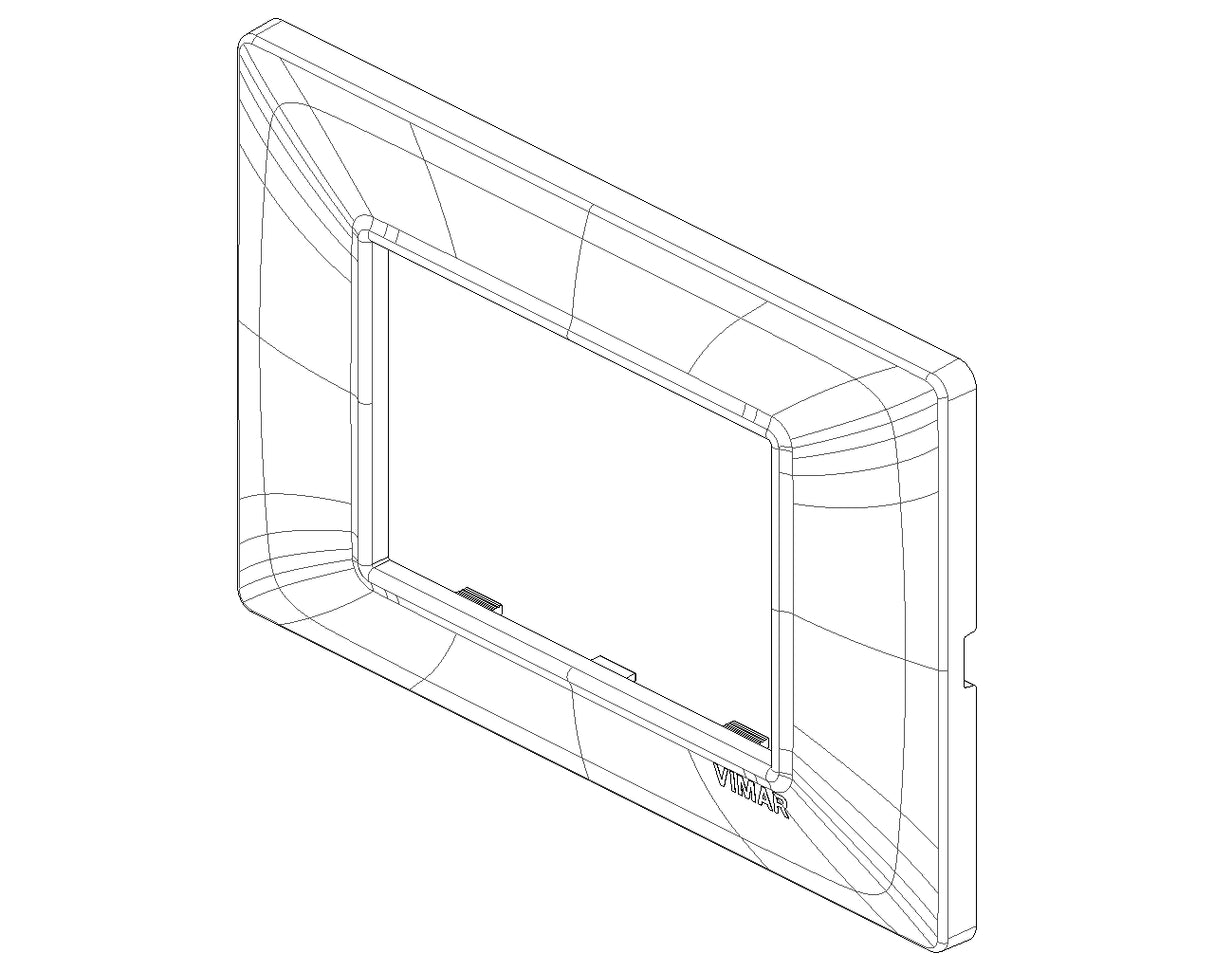

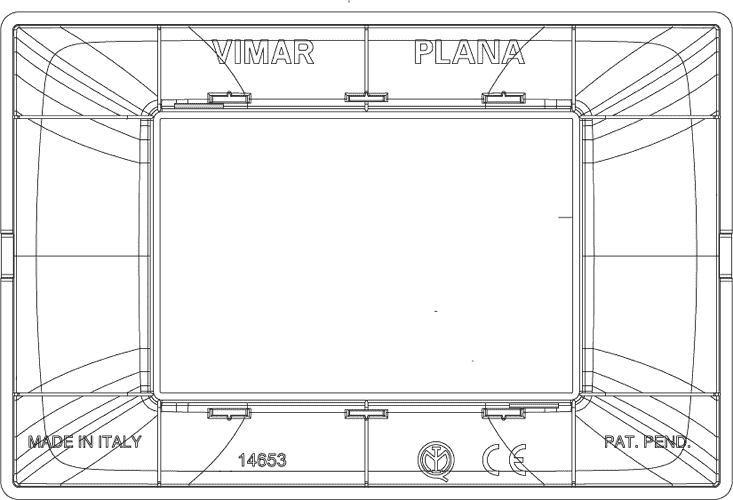

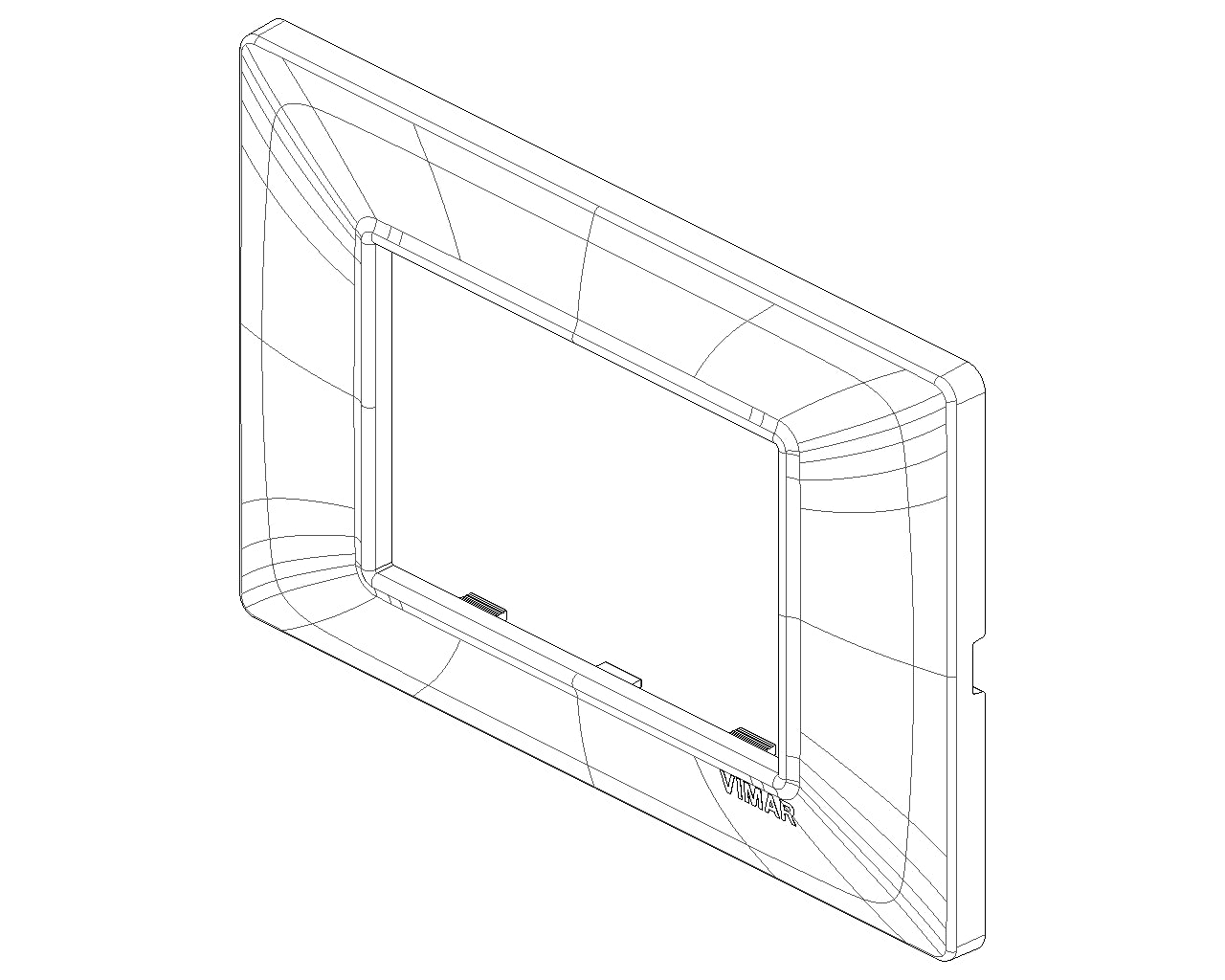

Technical drawings

VM-14653.05 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 3M Techn. Black used for?

This model is a cover plate for the Vimar Plana series. It is intended for 3-module configurations and gives the finished installation a clean technical black appearance. It is a fit-for-purpose finishing component rather than an active electrical device.

Is this plate compatible with the Vimar Plana range?

Yes, this plate is identified as part of the Vimar Plana cover range. The product name and category data indicate it is intended for Plana series applications in a 3-module format. Buyers should match it to the corresponding Plana system format already specified in their project.

What are the main specifications of this plate?

This product is the Vimar Plana Plate 3M in Techn. Black finish. It has a listed weight of 0.0166 kg and a warranty period of 3 years. Its operating temperature range is from -20 Β°C to 50 Β°C.

Is this plate suitable for demanding indoor environments?

It is rated for temperatures from -20 Β°C up to 50 Β°C, which supports use across a broad range of normal indoor operating conditions. That makes it a practical option for commercial and residential projects where temperature tolerance matters. Final suitability should still be checked against the overall project environment and enclosure requirements.

What distinguishes the Techn. Black version of this plate?

This version is finished in black and is positioned around a minimal, essential appearance. The manufacturer description emphasizes a high-performance material with a streamlined visual style. For buyers prioritizing a darker, more technical look within the Plana range, this model fits that preference.
