Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Plana Plate 4M Techn. Matt Gold

4 Module Gold
SKU VM-14654.25
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

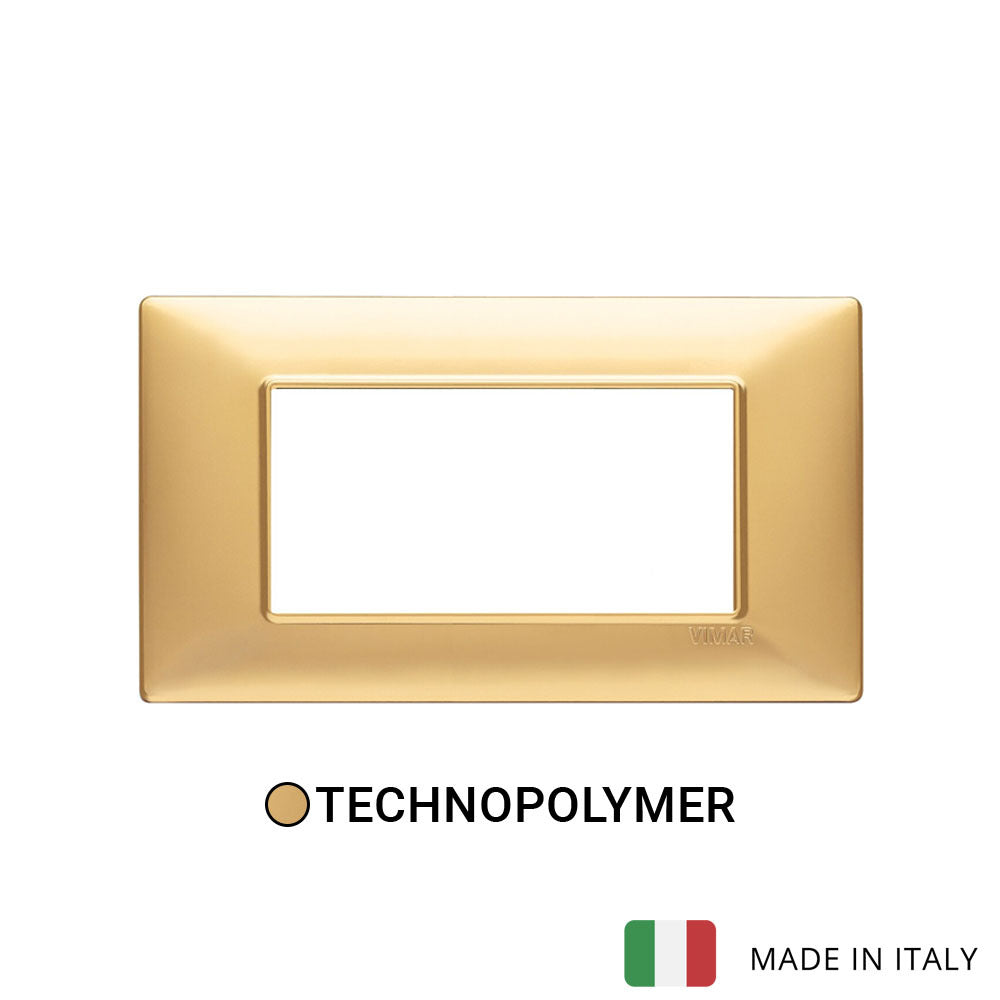

VM-14654.25 is Vimar PLANA 14654.25, plate 4M techn. matt gold.

4-module cover plate, technopolymer, matt gold

Specifications

VM-14654.25Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Glossy
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
142.5 mm
Height
80 mm
Depth
9 mm
Built-in width
142.5 mm
Built-in height
80 mm

Packaging

EAN
8007352132870
Packed size (cm)
19 Γ— 8 Γ— 0.9
Packed weight
22.07 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

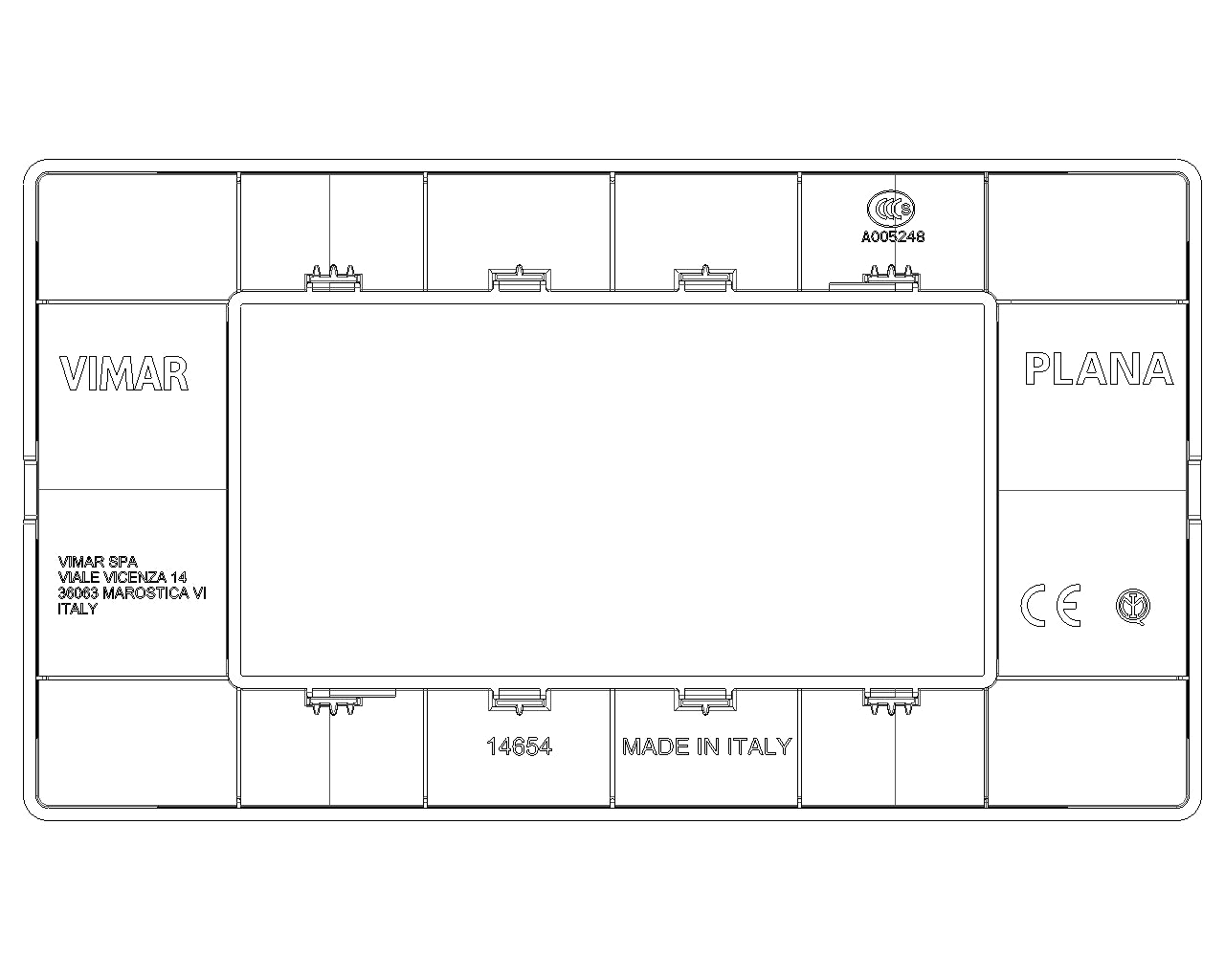

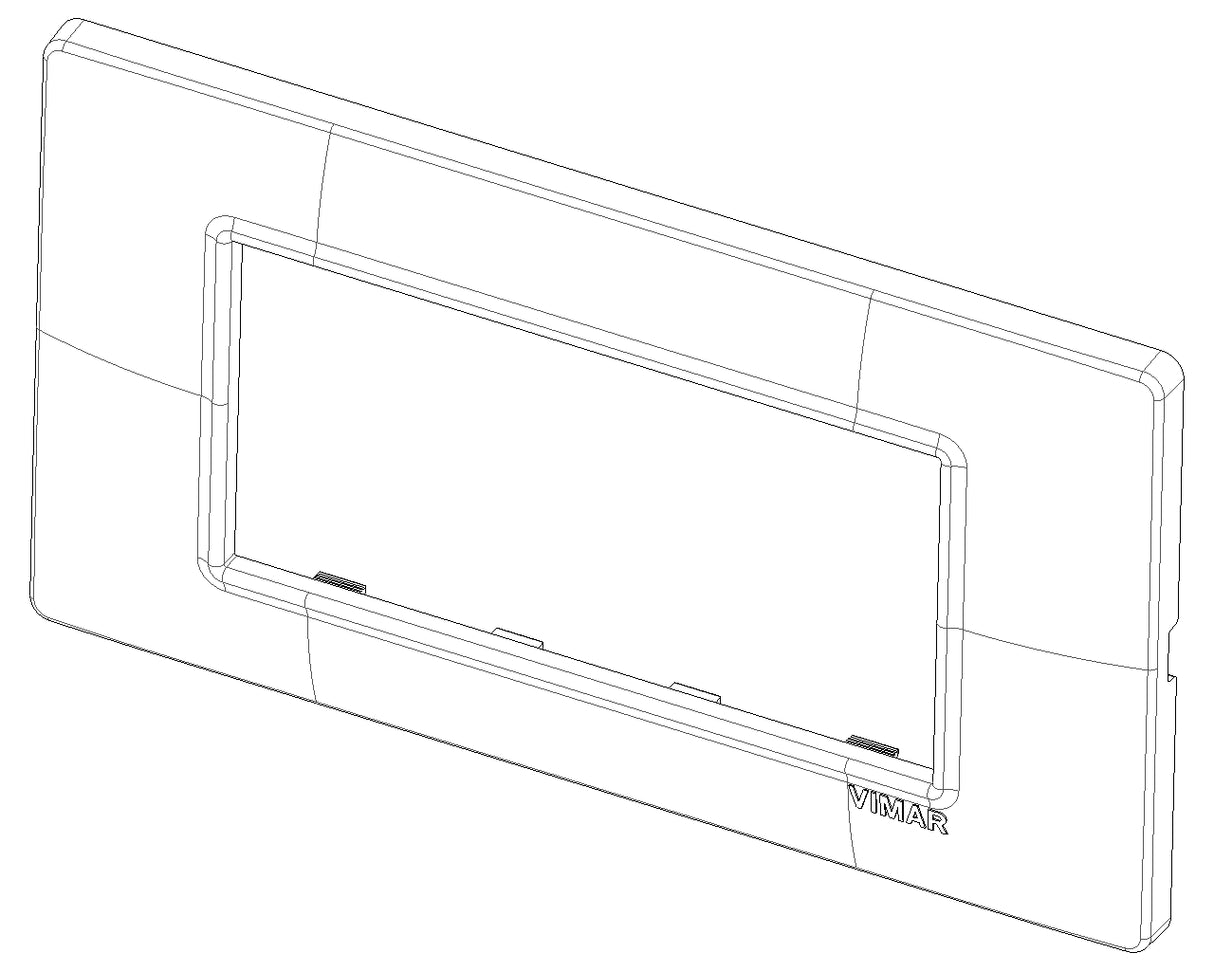

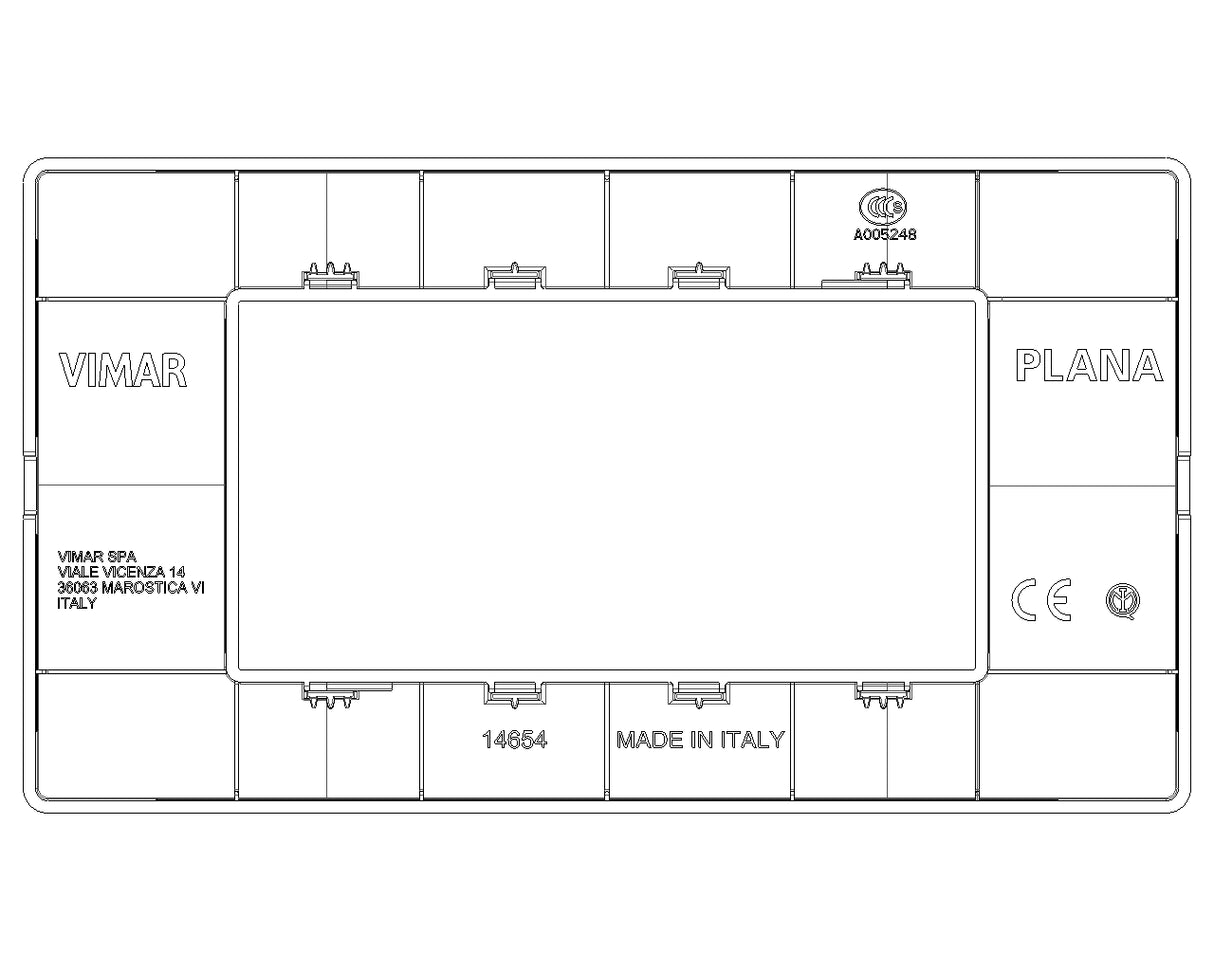

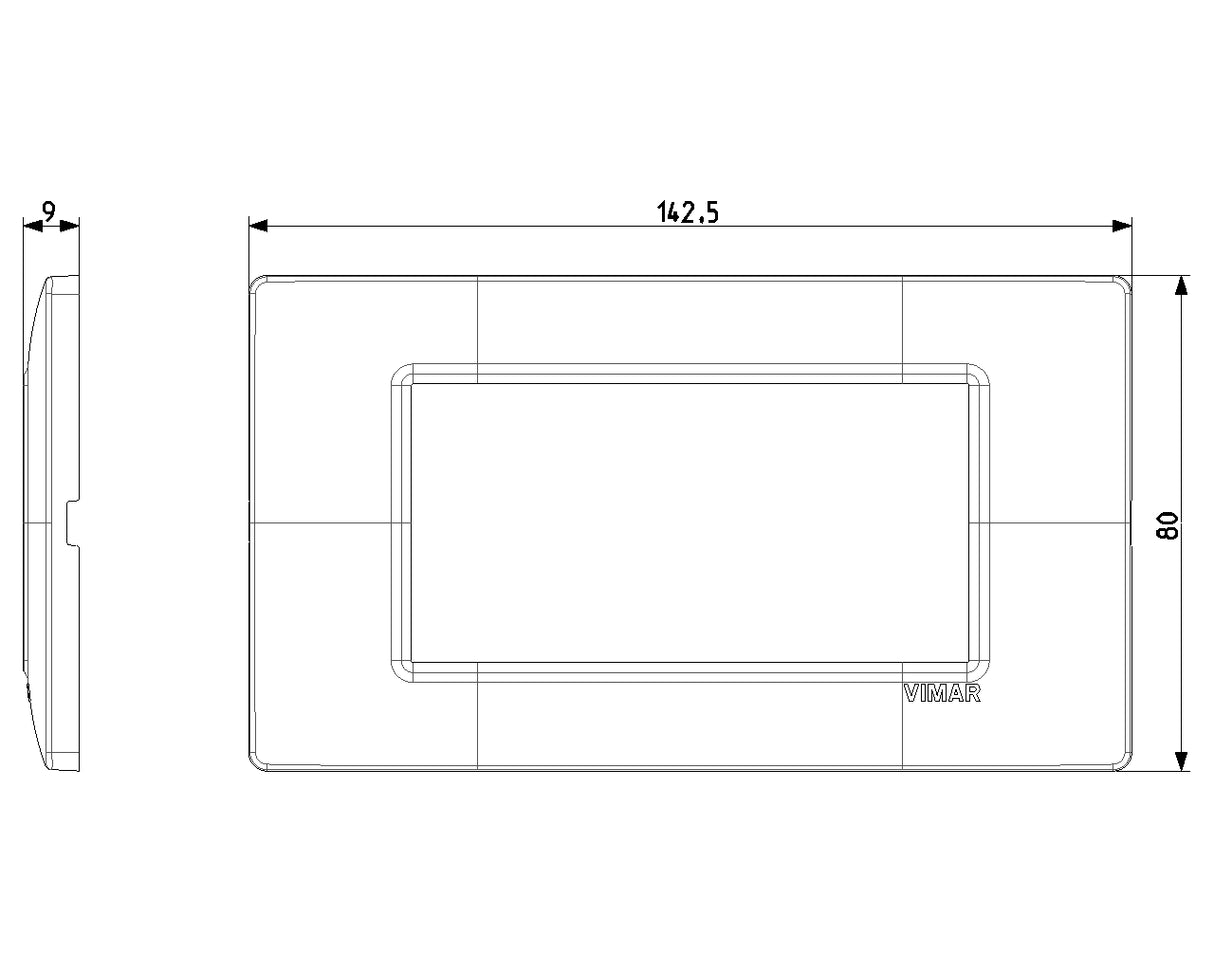

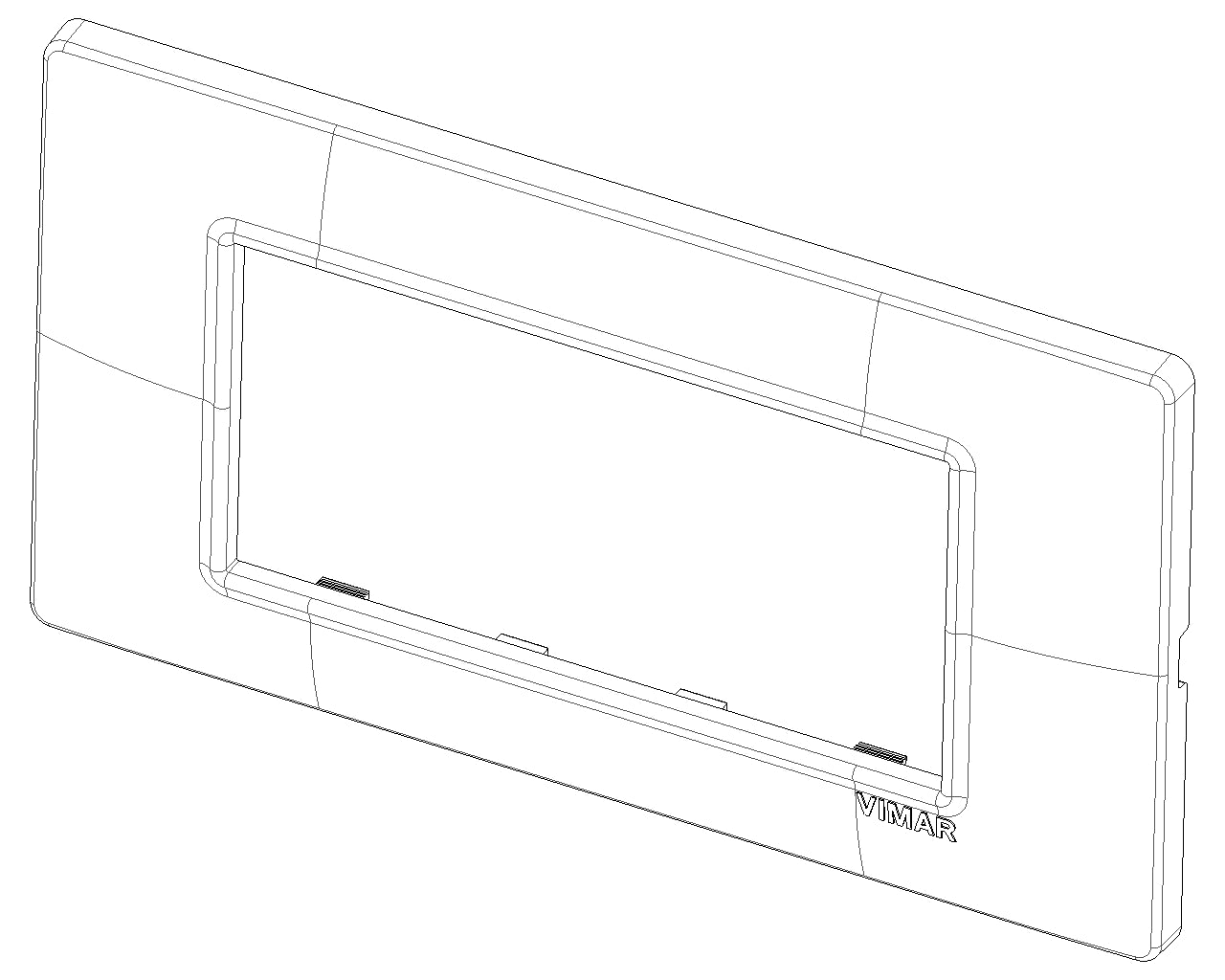

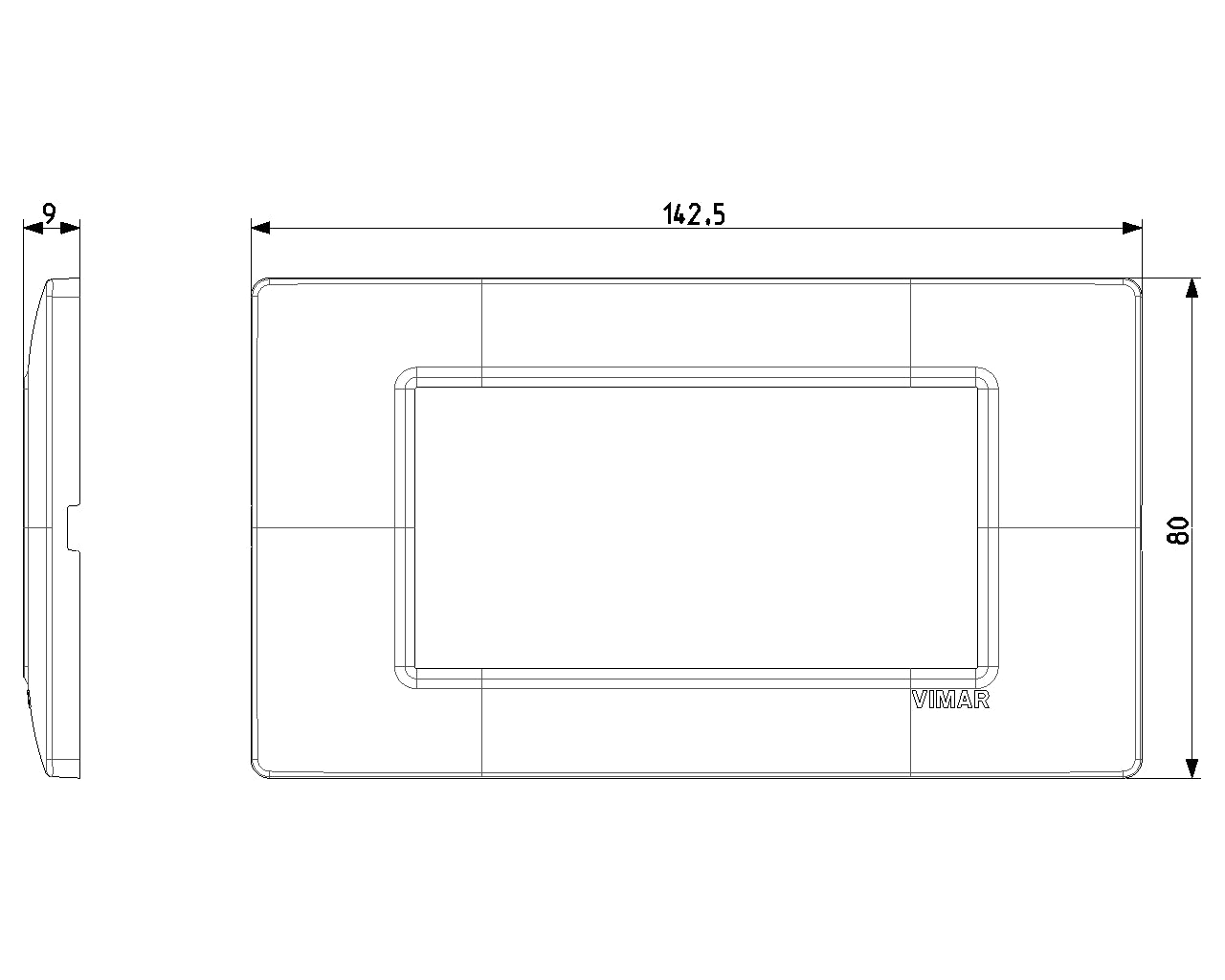

Technical drawings

VM-14654.25 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Plate 4M Techn. Matt Gold used for?

This model is a cover plate for Vimar Plana series switch layouts. It is intended to provide a clean finished appearance on compatible 4-module installations while matching the Plana design style.

Which series is this plate compatible with?

This plate is part of the Vimar Plana range. It is designed for Plana-series applications and is identified as a 4M plate in the Techn. Matt Gold finish.

What does the Techn. Matt Gold finish look like?

This version has a matte gold appearance that gives the plate a more refined, contemporary look than a standard neutral finish. It is a good fit for projects where the cover plate is meant to complement modern decorative choices.

Is this plate suitable for demanding temperature conditions?

Yes. This model is specified for an operating temperature range from -20 Β°C to 50 Β°C, which supports use across a wide range of normal indoor environments and some more variable conditions.

What are the key product specs for this model?

The SKU for this plate is VM-14654.25, and it belongs to the switch cover plate family. It has a listed weight of 0.0221 kg and comes with a 3-year warranty.
