Vimar

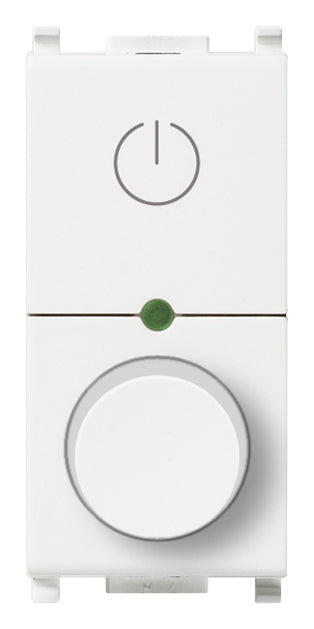

Vimar Plana Universal Master Rotary Dimmer 230V White

230V White
SKU VM-14136.1
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-14136.1 is Vimar PLANA 14136.1, univ.MASTER rotary-dimmer 230V white.

Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-300 W incandescent lamps, 40-300 VAelectronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF or built-in or from NO peripheral push buttons control, regulation by rotary potentiometer, MASTER function for 14137, minimum brightness regulation, visible in darkness, white. Not for Isoset enclosures

Specifications

VM-14136.1Specifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 - 230.01 V
Frequency
50 - 50.01 HZ
Control voltage
230 - 230.01 V
Connection type
Screwed terminal
Device width
22.3 mm
Device height
49 mm
Device depth
61.4 mm

Packaging

EAN
8007352555136
Packed size (cm)
5.2 × 3.9 × 6.2
Packed weight
56.4 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), RoHS UAE, TISI (Thailand), WEEE Directive

Technical drawings

VM-14136.1 Drawings
Drawings

Downloads

FAQ

What is the Vimar Plana Universal Master Rotary Dimmer 230V White used for?

This model is a rotary dimmer module designed for lighting control within the Vimar Plana range. It is intended for buyers who want a clean white control point that matches Plana-series switch and dimmer aesthetics on a product page or project specification.

Which Vimar series does this dimmer belong to?

The VM-14136.1 belongs to the Vimar Plana family. That makes it a relevant choice when you are selecting components to maintain a consistent look across Plana switches, dimmers, and related wall controls.

What color and finish does this dimmer come in?

This version is supplied in white. It is suited to projects where a neutral, understated finish is needed to align with common commercial or residential interior palettes.

What environmental temperature range is specified for this model?

The stated operating temperature range is from -20°C to 50°C. That gives it a defined working range for environments that experience cold or warm conditions within those limits.

How much does the Vimar Plana Universal Master Rotary Dimmer 230V White weigh?

The listed product weight is 0.0564 kg. This is a lightweight module, which is useful for cataloging, shipping estimates, and project documentation.

What warranty period is listed for this dimmer?

This model has a listed warranty period of 3 years. For business buyers, that provides a clear reference point when comparing lifecycle support across similar control modules.
