Wago 222-415 Compact Connector 5 Way - with Lever

SKU:

222-415

Notify me when it's back in stock

Description

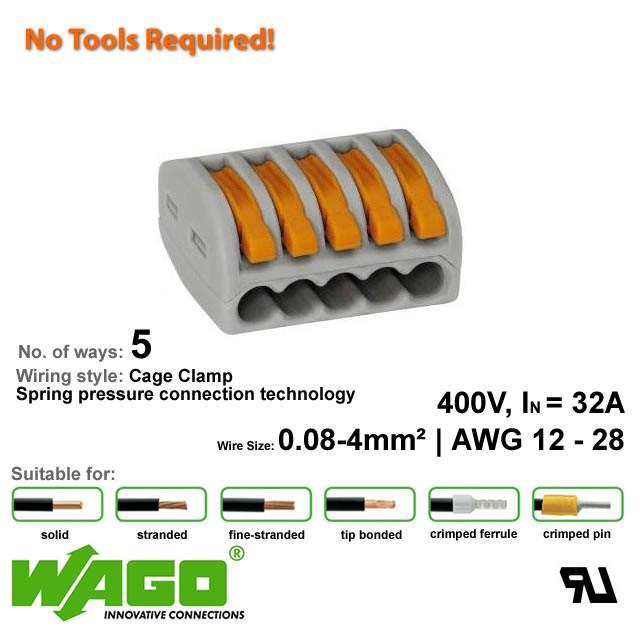

The 222-415 from Wago is a 5 conductor terminal block with cage clamp connection. This connector allows for solid, stranded and fine stranded cables to be connected together without the need for any tools. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.

Features

Compact connecting terminal for up to 5 stripped flexible conductors
Conductor size from 0.08 to 4 mm²
Operating lever avoids the need for tools for operation
Voltage Rating: 400V

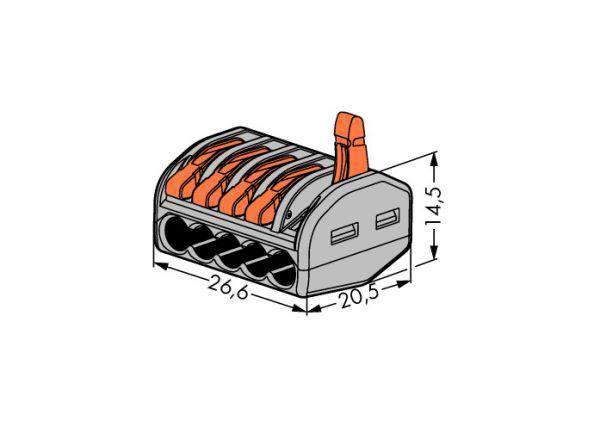

W: 26.6mm x H: 14.5mm x D: 20.5mm
Ambient Temperature: 60°C
Grey
Side entry wiring type

Applications

Industrial
Communications & Networking
Lighting
Security
Signalling
HVAC

Specifications

Brand

Wago
Rated Current

32 Ampere
Warranty

1 Year
Length

2.66 cm
Width

1.45 cm
Height

2.05 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Wago 222-415 Compact Connector used for?

The Wago 222-415 is a 5-way compact connector for joining conductors in applications such as industrial systems, communications and networking, lighting, security, signalling, and HVAC. It is designed for buyers who need a tool-free connector for multiple conductor types in a compact form factor.

What conductor types and wire sizes does the Wago 222-415 support?

This model is suitable for solid, stranded, and fine-stranded cables. The listed conductor size range is 0.08 to 4 mm², which is also stated as 28 AWG to 12 AWG in the product description.

What are the key electrical specifications of the Wago 222-415?

The Wago 222-415 has a rated current of 32 A and a voltage rating of 400 V. These specifications make it suitable for professional applications where compact size and broad conductor compatibility are important.

How compact is the Wago 222-415 connector?

This connector has dimensions of 26.6 mm wide, 14.5 mm high, and 20.5 mm deep. Its compact size helps when space is limited in electrical enclosures or equipment layouts.

Does the Wago 222-415 require tools to operate?

No, this model uses an operating lever, so conductors can be handled without the need for tools. That makes it a practical choice for buyers looking for faster handling and easier conductor changes than traditional screw-style terminals.

What environments is the Wago 222-415 rated for?

The product lists an ambient temperature rating of 60°C. It is also identified for use in sectors such as industrial, lighting, security, signalling, communications and networking, and HVAC.
