Mean Well SGAS15B05-P1J Power Supply 15W 5V 2.4A

15W5V

SKU SGAS15B05-P1J

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by GST18B05-P1J

Available to order

Overview

SGAS15B05-P1J is the 5V output model of this series: rated current 2.40A, rated power 12W, typical efficiency 79%.

SGAS15B is a 15W compact size highly reliable, desktop style single-output green adaptor series, which is compact and convenient for carry. This product is a classⅡ power unit (no FG) equipped with the standard IEC320-C8 AC inlet and accepting the input range from 90VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 24VDC that it can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 86% and the extremely low no-load power consumption below 0.075W, SGAS15B is compliant with USA EISA 2007/DoE, EU ErP, and meet Code of Conduct(CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.

Features

Extreme small
Universal AC input / Full range
2 pole AC inlet IEC320-C8,Class Ⅱ power unit
No load power consumption<0.075W
Energy efficiency LevelⅥ
Comply with EISA 2007/DoE,EU ErP and meet CoC Version 5
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
7.5V / 18V / 48V models available (by request)
Various DC plug quick adapter accessory available
3 years warranty

Specifications

SGAS15B05-P1JSpecifications from the official datasheet (2022-04-26 edition)

OUTPUT

SAFETY MODEL NO.: SGAS15B05
DC VOLTAGE^Note.2: 5V
RATED CURRENT: 2.40A
CURRENT RANGE: 0 ~ 2.40A
RATED POWER: 12W
RIPPLE & NOISE (max.)^Note.3: 80mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±0.5%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 3000ms, 50ms, 10ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 79%
AC CURRENT: 0.4A / 100VAC
INRUSH CURRENT (max.): Cold start 30A/ 115VAC 50A / 230VAC
LEAKAGE CURRENT(max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: >120% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 Class B, EN61000-3-2,3

Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Radiated emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B
Radiated emission	BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 3 years : 100% load 40℃, 12hours / day
MTBF: 507Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 80*39*27.7mm (L*W*H)
PACKING: 130g ; 72pcs / 11Kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes7

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load.
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

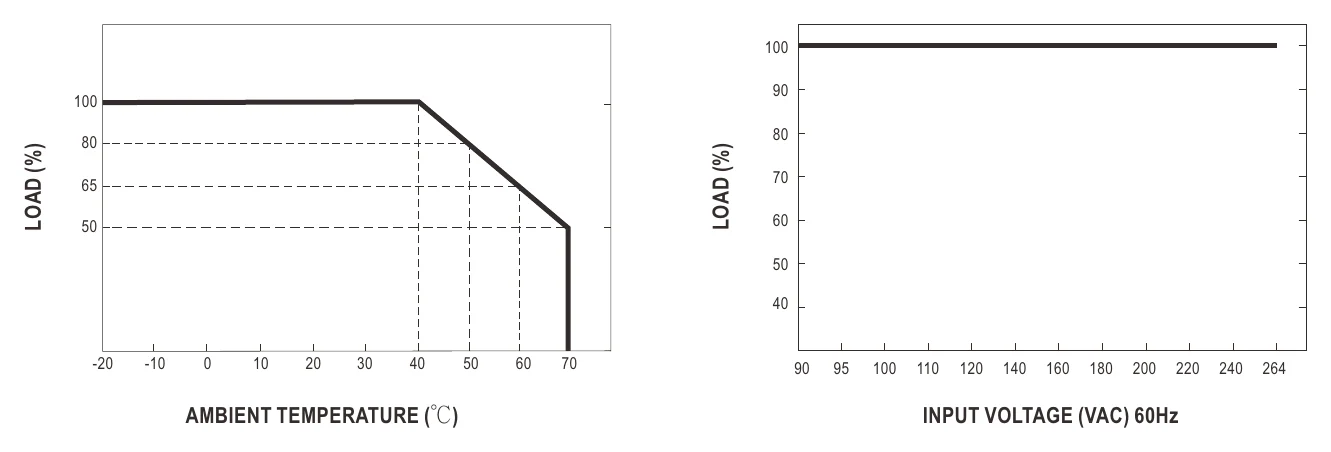

SGAS15B05-P1J Derating Curve — Derating Curve

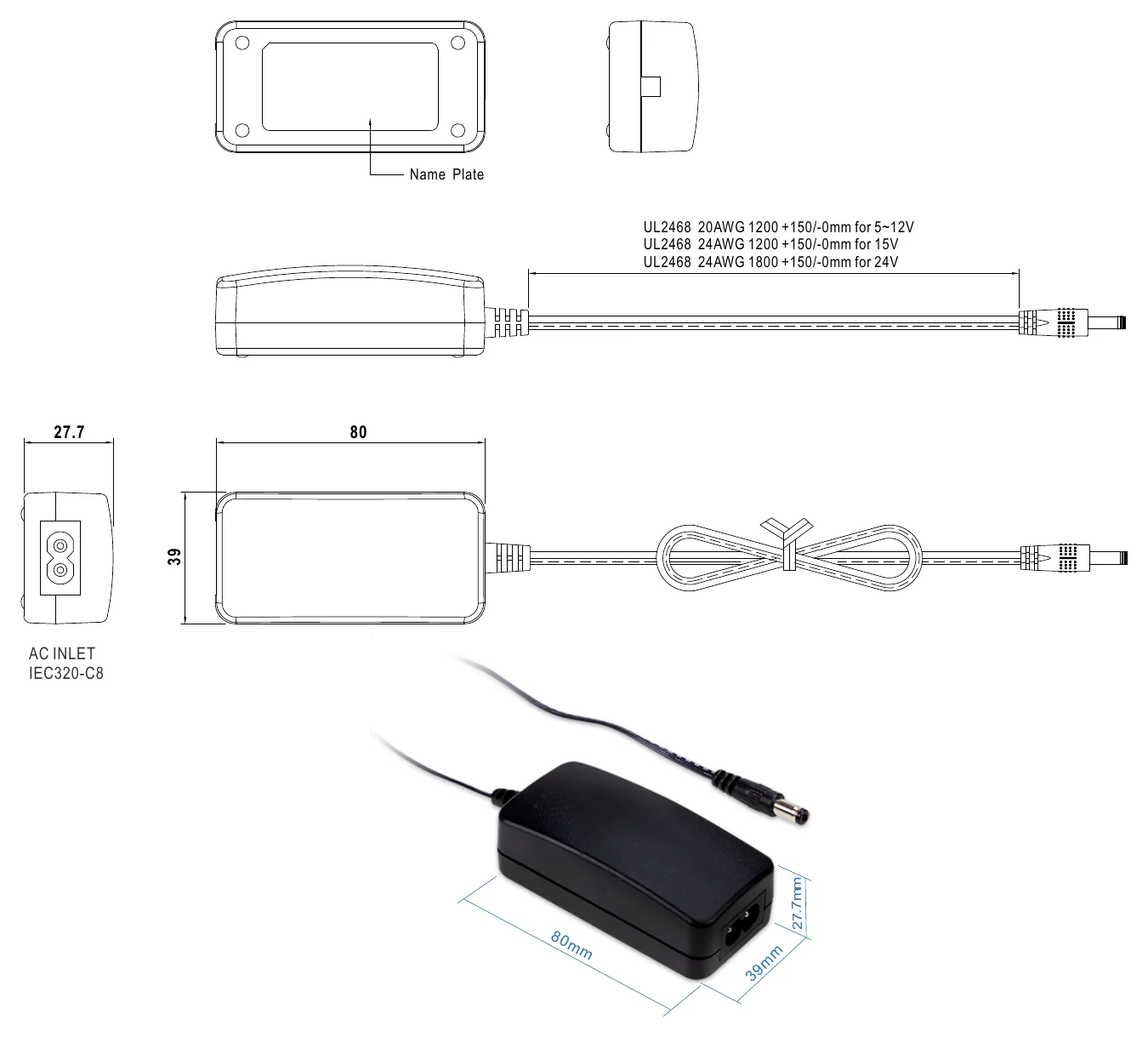

SGAS15B05-P1J Mechanical Specification — Mechanical Specification

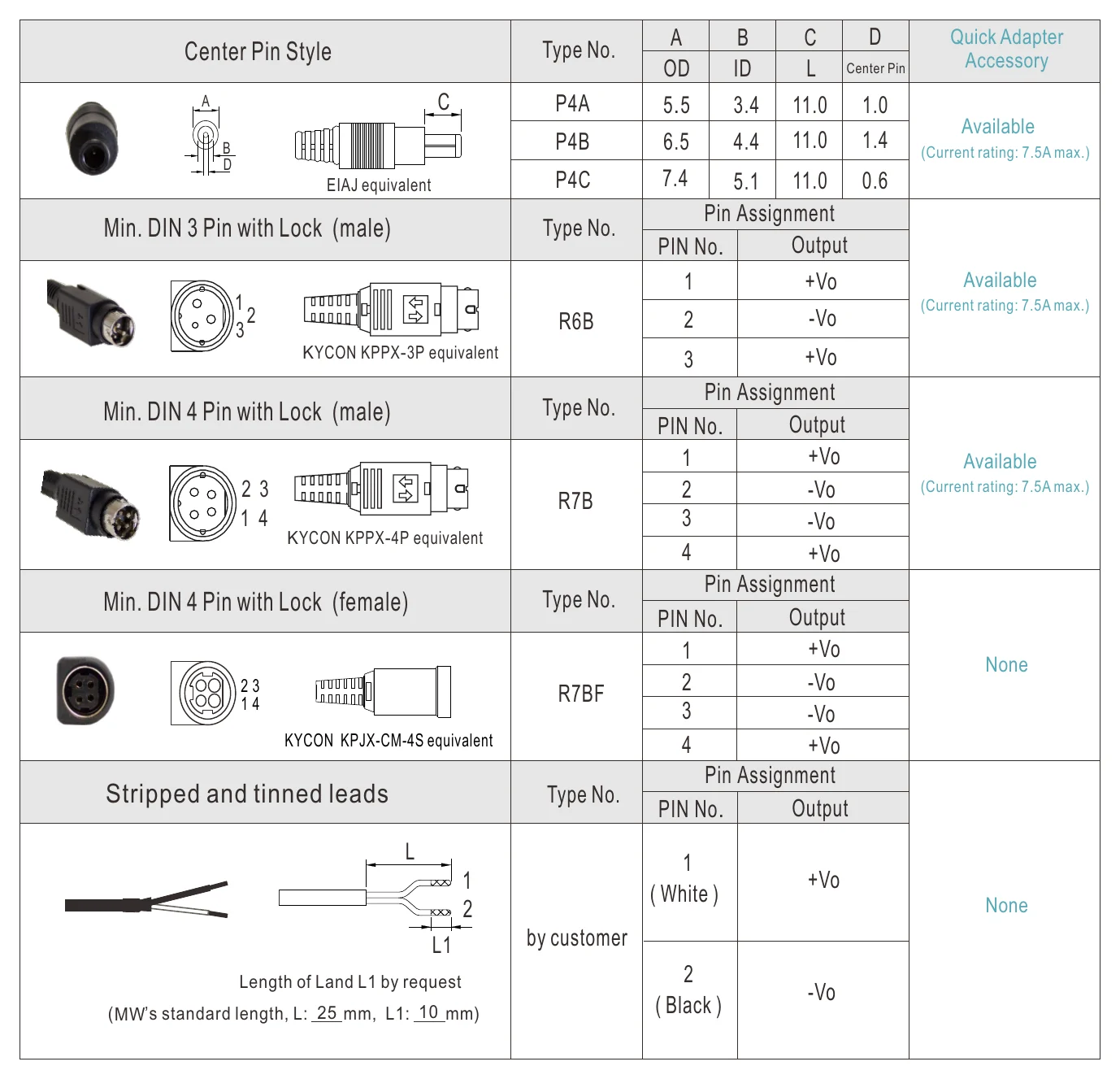

SGAS15B05-P1J DC output plug — DC output plug

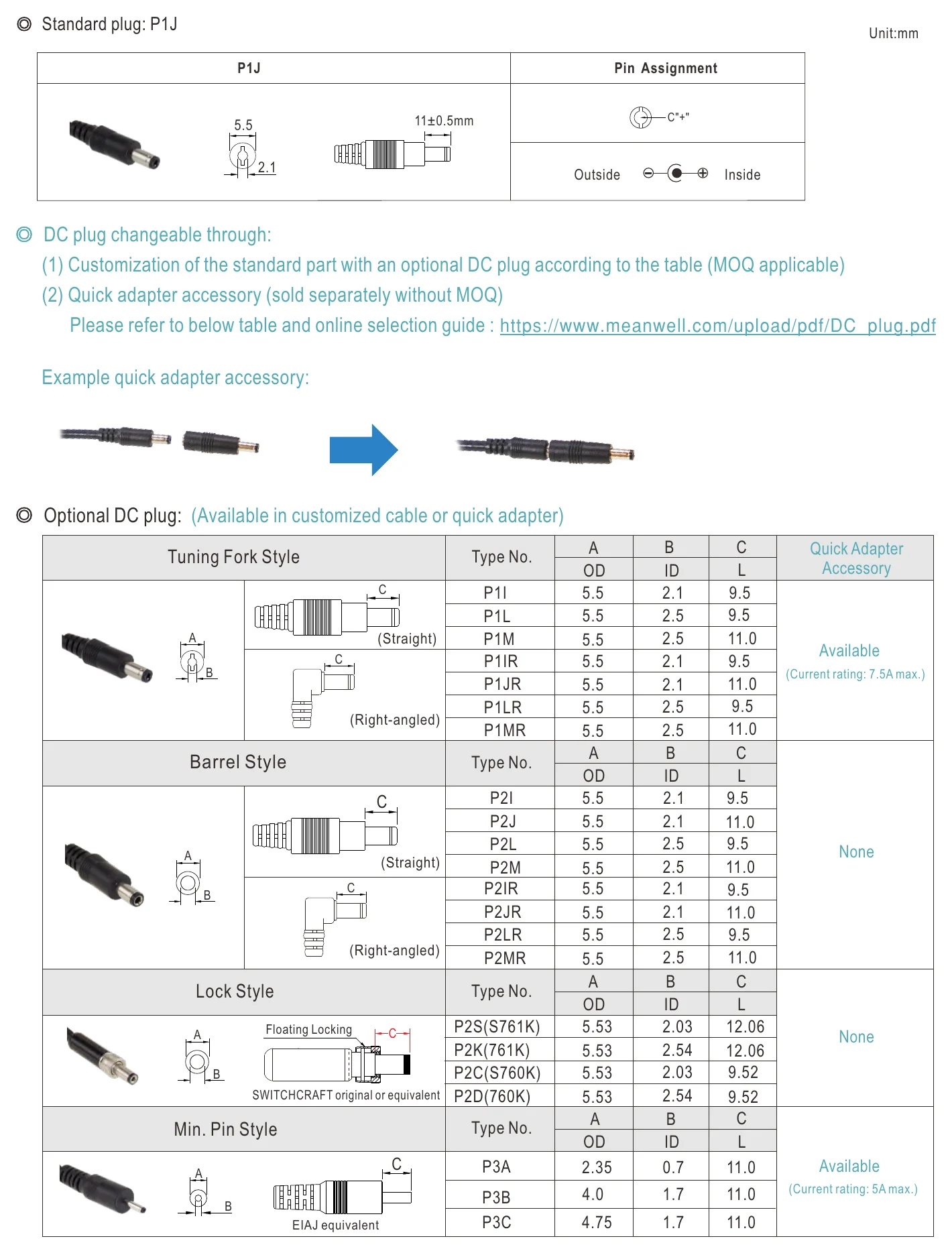

SGAS15B05-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Certificates6

Mean Well SGAS15-CB Certificate PDF Download

Mean Well SGAS15-TUV Certificate PDF Download

Mean Well SGAS15A- FCC Certificate PDF Download

Mean Well SGAS15-EMC Certificate PDF Download

Mean Well SGAS15-CE-dec Certificate PDF Download

Mean Well SGAS15-UK-dec Certificate PDF Download

Test reports1

Mean Well SGAS15x05 Test Report PDF Download

FAQ

Can I use the SGAS15B05-P1J for a 5V embedded controller or SBC in an industrial enclosure?

Yes, this model is a constant-voltage 5V power supply rated for 12W with up to 2.4A output current. It fits embedded or control electronics that require a regulated 5V DC source and stay within that 12W and 2.4A limit.

Is this 5V power supply suitable for low-power automation sensors and interface modules?

It can be a fit for 5V automation devices when the total load does not exceed 12W or 2.4A. Because it is a constant-voltage unit, it is intended for equipment designed to run from a fixed 5V DC supply.

Can I use this for compact IT or network peripherals that run on 5V DC?

This supply is appropriate for 5V peripherals that need up to 2.4A and no more than 12W. The 90-264VAC input also supports use across a wide AC input range in IT or control environments.

Will the SGAS15B05-P1J work for a small 5V HMI, display, or operator interface?

It can support a small 5V interface device if that equipment is specified for constant-voltage 5V input and draws no more than 2.4A. The compact 80.0 × 39.0 × 27.7 mm size can also help where panel space is limited.

Is the SGAS15B05-P1J suitable for outdoor or harsh-environment use?

The listed specs show an operating temperature range of -20°C to +70°C, but no IP rating is provided here. That means temperature capability is defined, while dust and water protection are not, so it is better suited to protected environments unless the final equipment provides that protection.
