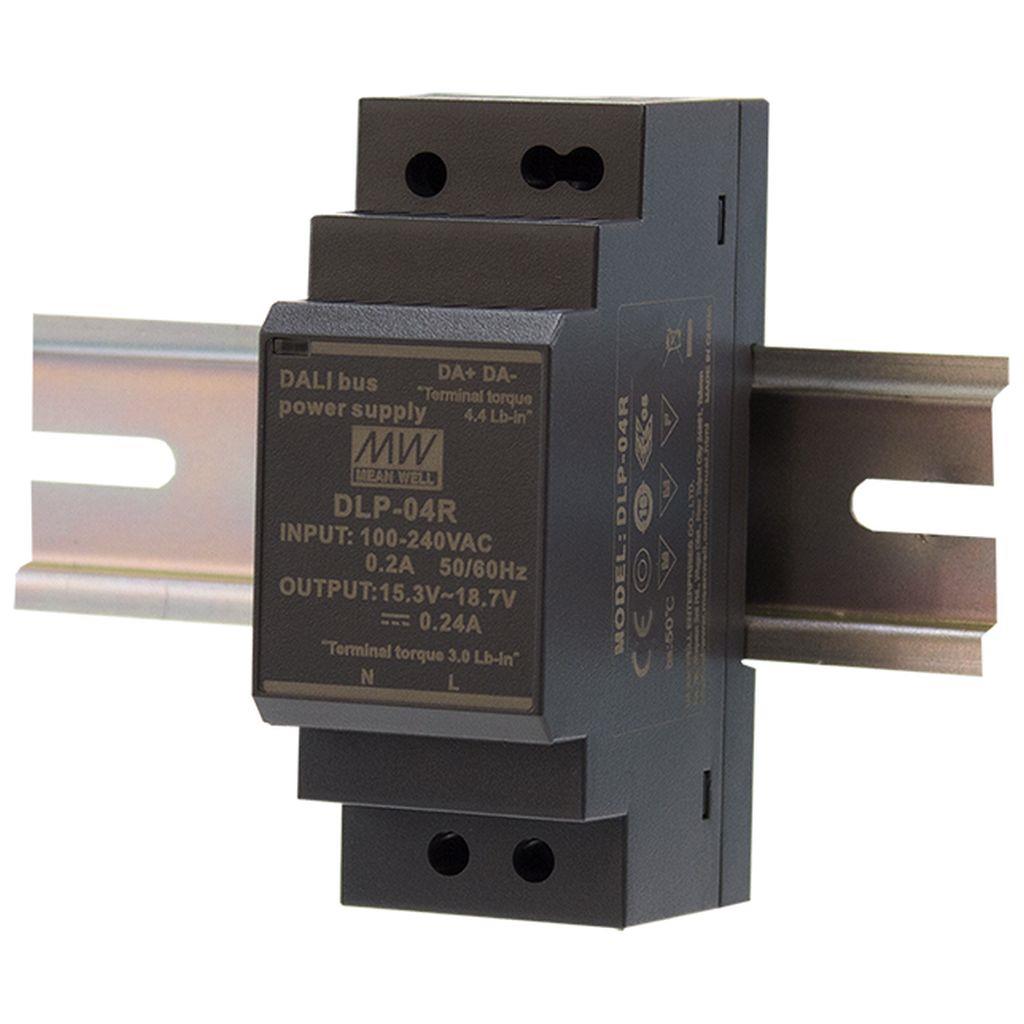

Mean Well DLP-04R DALI Ultra Slim Bus Power Supply Output 18.7VDC at 0.24A Rail type

din railClass II90~295VAC full range input

SKU DLP-04R

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

DLP-04R is the model of this series: rated current 240mA, rated power 3.84W.

The DALI Power Supply DLP-04 is a power supply with high efficiency and a small size, supplying 240mA for DALI control gears and DALI devices which without power supply circuits. The -20~+60℃ wide temperature operating range can meet all kinds of applications. It is perfectly suitable for power up any products labeled with the DALI trademark. With over 35 years of industrial power supply experience, DLP-04 is engineered to be a reliable and safe solution for DALI bus environment.

Features

Compact size with 2SU(35mm) width(type R)
Universal AC input / Full range
Withstand 300VAC Surge input for 5 seconds
Isolation class Ⅱ
No load power consumption<0.5W(type L)
Protections: Short circuit / Over voltage
Cooling by free air convection
3 color LED for status indicator(type R)
Installed on DIN rail TS-35/7.5 or 15(type R)
100% full load burn-in test
3 years warranty

Specifications

DLP-04RSpecifications from the official datasheet (2026-04-27 edition)

OUTPUT

RATED DC VOLTAGE: 16V
DC VOLTAGE RANGE: 15.3~18.7V
RATED CURRENT: 240mA
GUARANTEED SUPPLY CURRENT: 240mA
MAXIMUM SUPPLY CURRENT: 250mA
RATED POWER: 3.84W
RIPPLE & NOISE (max.)^Note.2: 50mVp-p
SETUP, RISE TIME: 250ms, 50ms/115VAC,230VAC
HOLD UP TIME (Typ.): 70ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
AC CURRENT (Typ.): 0.1A/115VAC 0.06A/230VAC; Model label: 0.4A/100-240VAC
INRUSH CURRENT (Typ.): COLD START 20A/230VAC
LEAKAGE CURRENT: 0.5mA / 240VAC
NO LOAD POWER CONSUMPTION: Typ. 0.5W

PROTECTION

SHORT CIRCUIT: Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 23.6 ~ 27V Protection type : Shut off o/p voltage, clamping by zener diode

FUNCTION

LED DISPLAY: Green LED: Normal operation Yellow LED: Bus Communication Red LED: Bus short detection

ENVIRONMENT

WORKING TEMP.: -20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 3)

SAFETY STANDARDS: BS EN/EN61347-1, BS EN/EN61347-2-11, EAC TP TC 004 approved
DALI STANDARDS: Compliance to IEC62386-101
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61547, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3, light industry level, EAC TP TC 020

OTHERS

MTBF: 7018.6K hrs min. Telcordia SR-332 (Bellcore) ; 625.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 35*90*54.5mm (W*H*D)
PACKING: 0.087Kg;96 pcs/9.5Kg/1.09CUFT

Test conditions and notes3

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

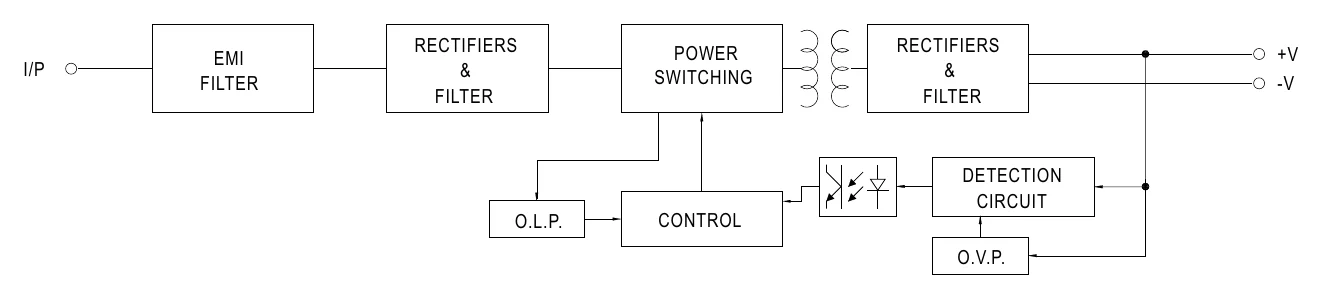

Technical drawings

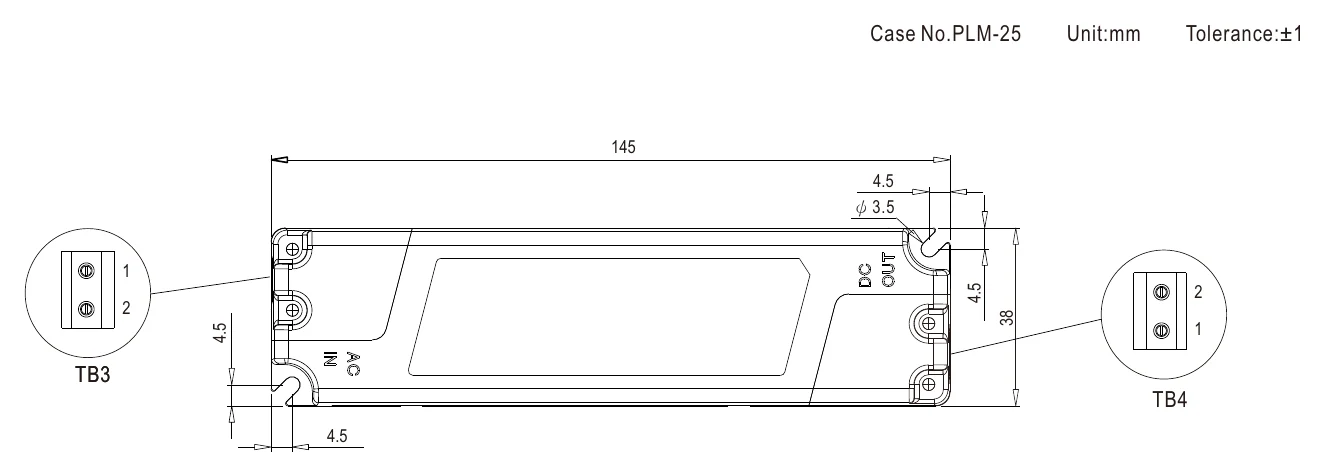

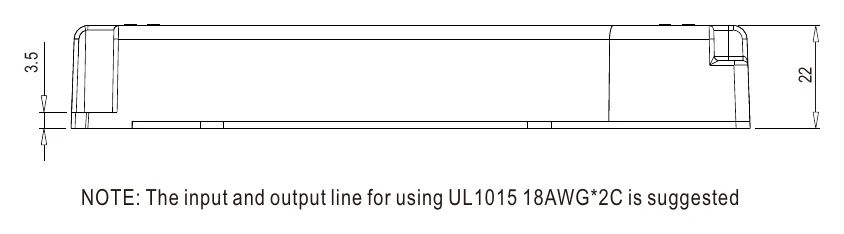

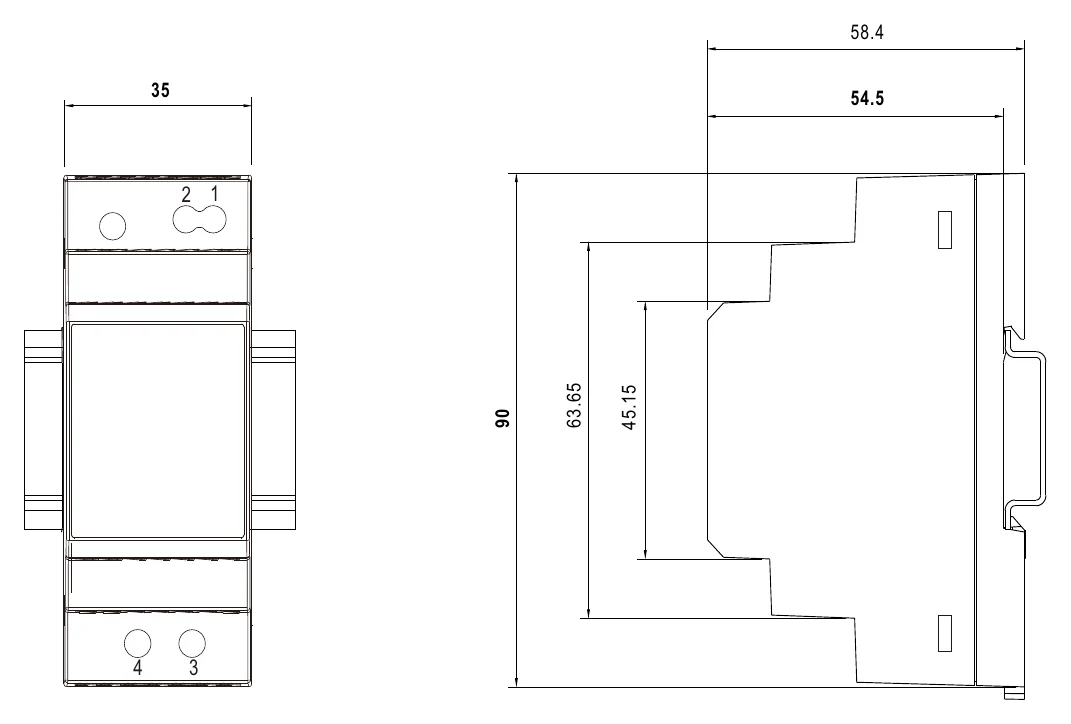

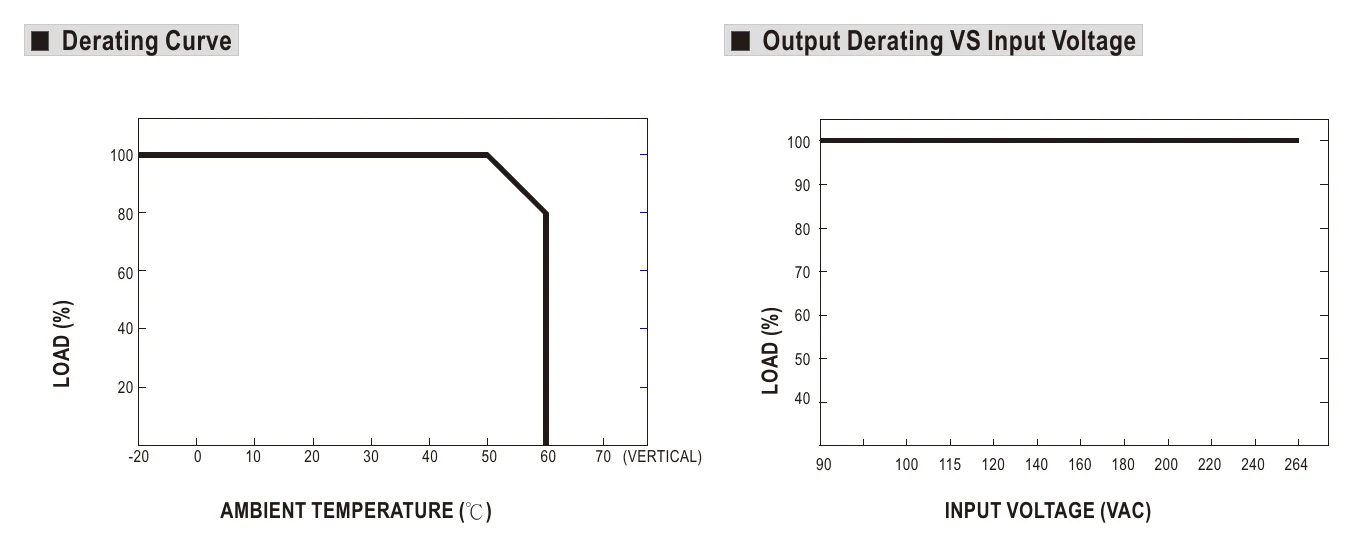

DLP-04R Dimensions (mm) — Dimensions (mm)

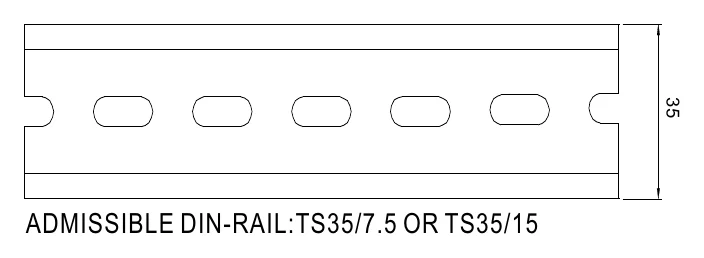

DLP-04R Illustration (page 4) — Illustration (page 4)

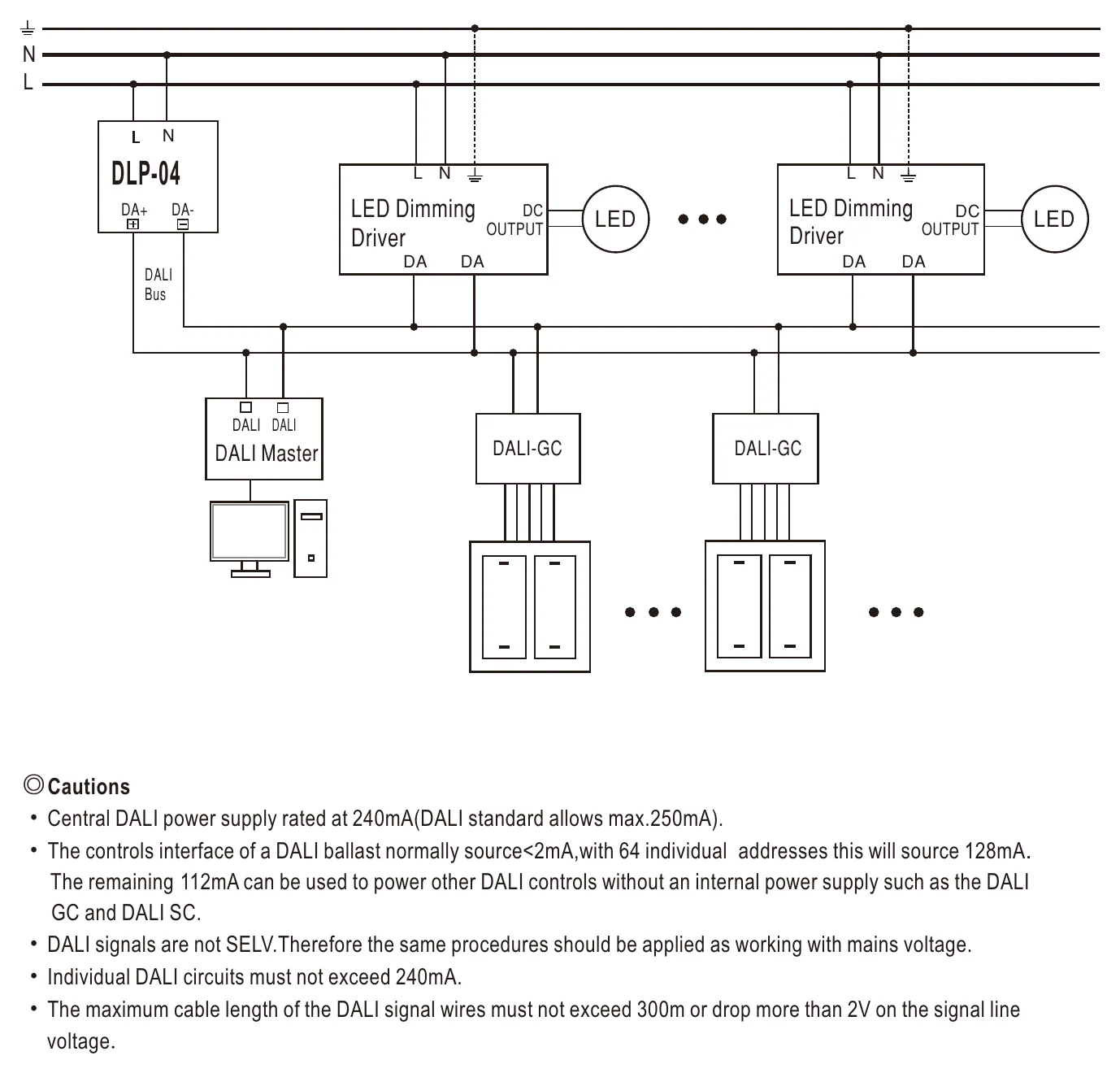

DLP-04R Installation Manual — Installation Manual

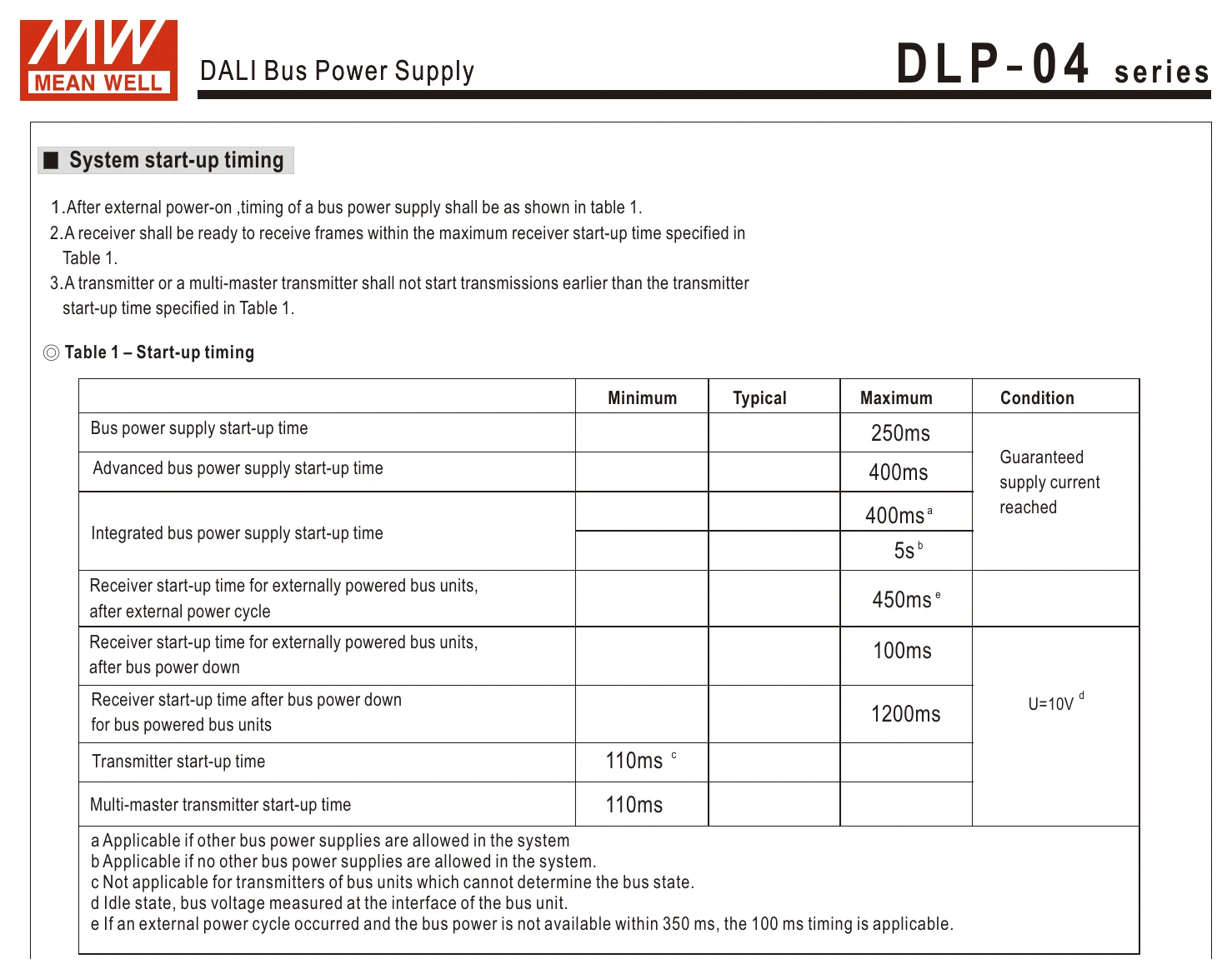

DLP-04R D L P - 0 4 series — D L P - 0 4 series

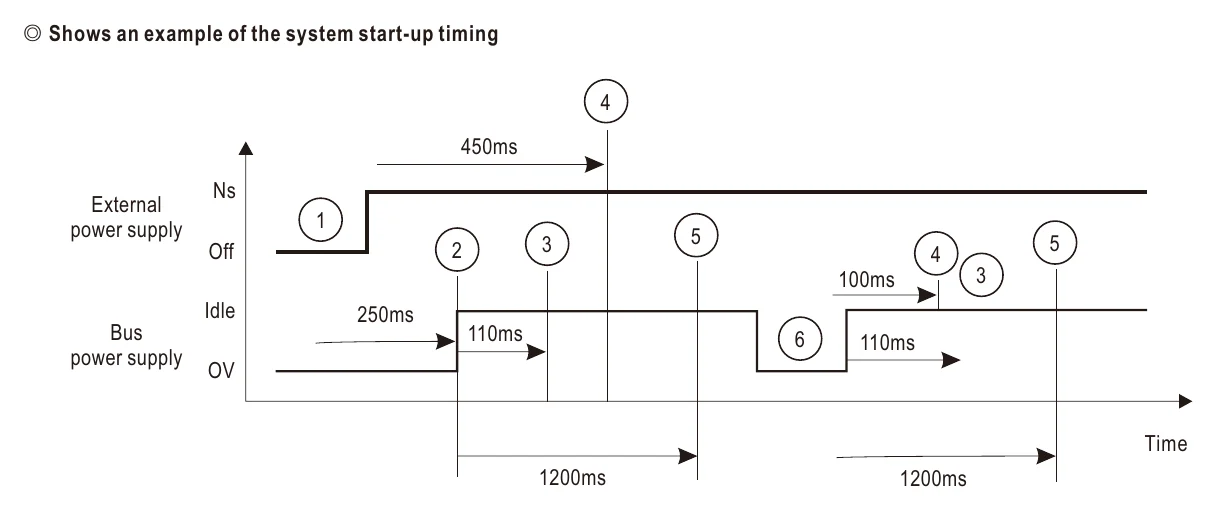

DLP-04R ◎ Shows an example of the system start-up timing — ◎ Shows an example of the system start-up timing

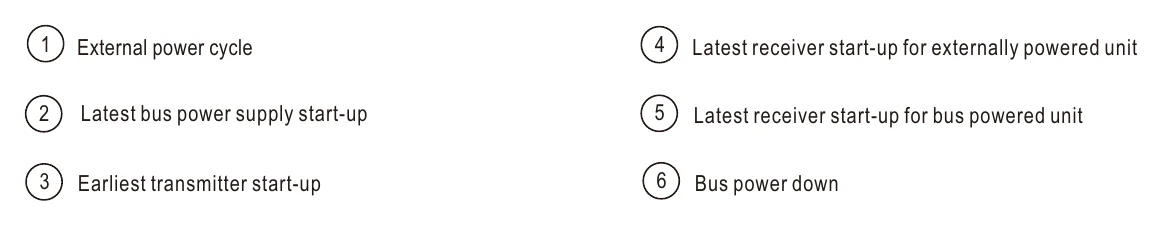

DLP-04R ◎ Shows an example of the system start-up timing (2) — ◎ Shows an example of the system start-up timing (2)
