Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Ltech

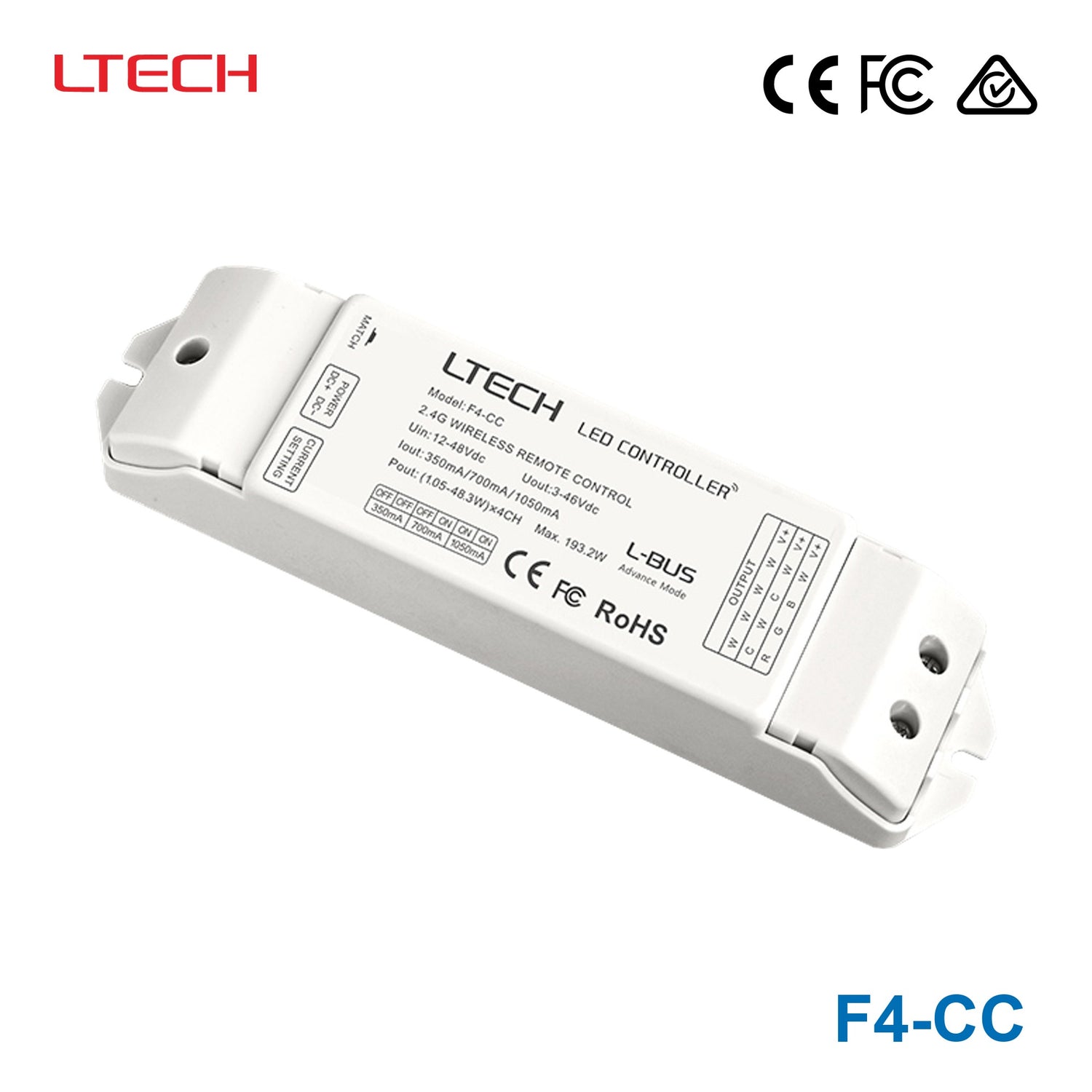

Ltech F4-CC Wireless RF Constant Current Controller - 4 Channel

SKU F4-CC
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

F4-CC is the 3-46Vdc output model of this series.

Features

  • RF 2.4GHz wireless signal, no need signal cable.
  • Dimming, CT, RGB, RGBW LED lights can be controlled.
  • Compatible with F series remote.
  • Compatible with EX series touch panel.
  • Support APP and intelligent speaker control if equipped with wifi-108 gateway. (note: only with L-BUS identity can support advanced mode.)

Specifications

F4-CCSpecifications from the official datasheet (2019-08-30 edition)Download datasheet PDF

Specification

Name
CC LED wireless driver
Wireless signal
RF 2.4GHz
Input voltage
12-48Vdc
Output voltage
3-46Vdc
Current load
CC 350/700/1050mA ×4CH
Output power
1.05W~48.3W × 4CH, Max. 193.2W
Protection
Over current / Over-heat / Short circuit / Open circuit / Reverse connection protection, auto recovers.
Working temperature
-30°C~55°C
Product size
L175×W44×H30(mm)
Package size
L178×W48×H33(mm)
Weight(G.W.)
165g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS

Technical drawings

F4-CC RF 2.4GHz wireless signal, no need signal cable.
RF 2.4GHz wireless signal, no need signal cable.
F4-CC System diagram
System diagram
F4-CC Product size
Product size
F4-CC Terminal description
Terminal description
F4-CC CV Wireless driver
CV Wireless driver
F4-CC CC Wireless driver
CC Wireless driver
F4-CC Clear code (power on method)
Clear code (power on method)

Downloads

FAQ

What types of lighting can the Ltech F4-CC control?

The Ltech F4-CC is designed for constant current LED lighting control across four channels. It supports dimming as well as CCT, RGB, and RGBW lighting applications, making it suitable for a range of tunable and color-changing LED setups.

Does the Ltech F4-CC support wireless control?

Yes. This model uses a 2.4GHz RF wireless signal, so it is built for wireless control without requiring a signal cable. That makes it a practical option where wireless lighting control is preferred.

What are the operating environment limits for the Ltech F4-CC?

The rated operating temperature range for this model is -30°C to 55°C. That range allows it to work in both cold and warm environments, provided the rest of the system is specified for the same conditions.

What are the main electrical ratings of the Ltech F4-CC?

The F4-CC supports a maximum output power of 193.2W across four channels. It provides constant current outputs of 350mA, 700mA, or 1050mA per channel, with an output voltage range of 3-46Vdc.

What warranty is offered for the Ltech F4-CC?

The Ltech F4-CC includes a 5-year warranty period. That makes it a strong fit for commercial and professional projects where longer product coverage is important.
