Ltech

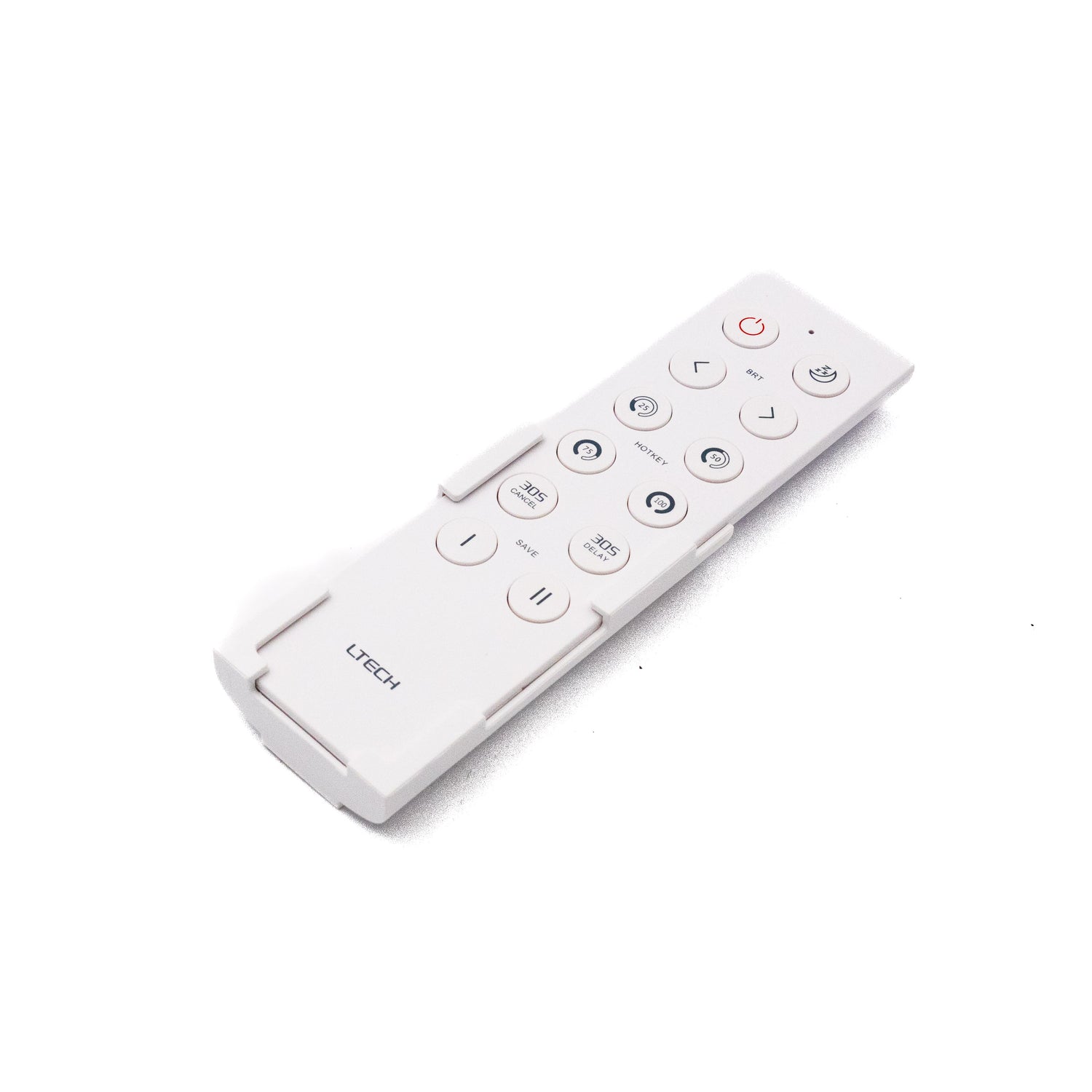

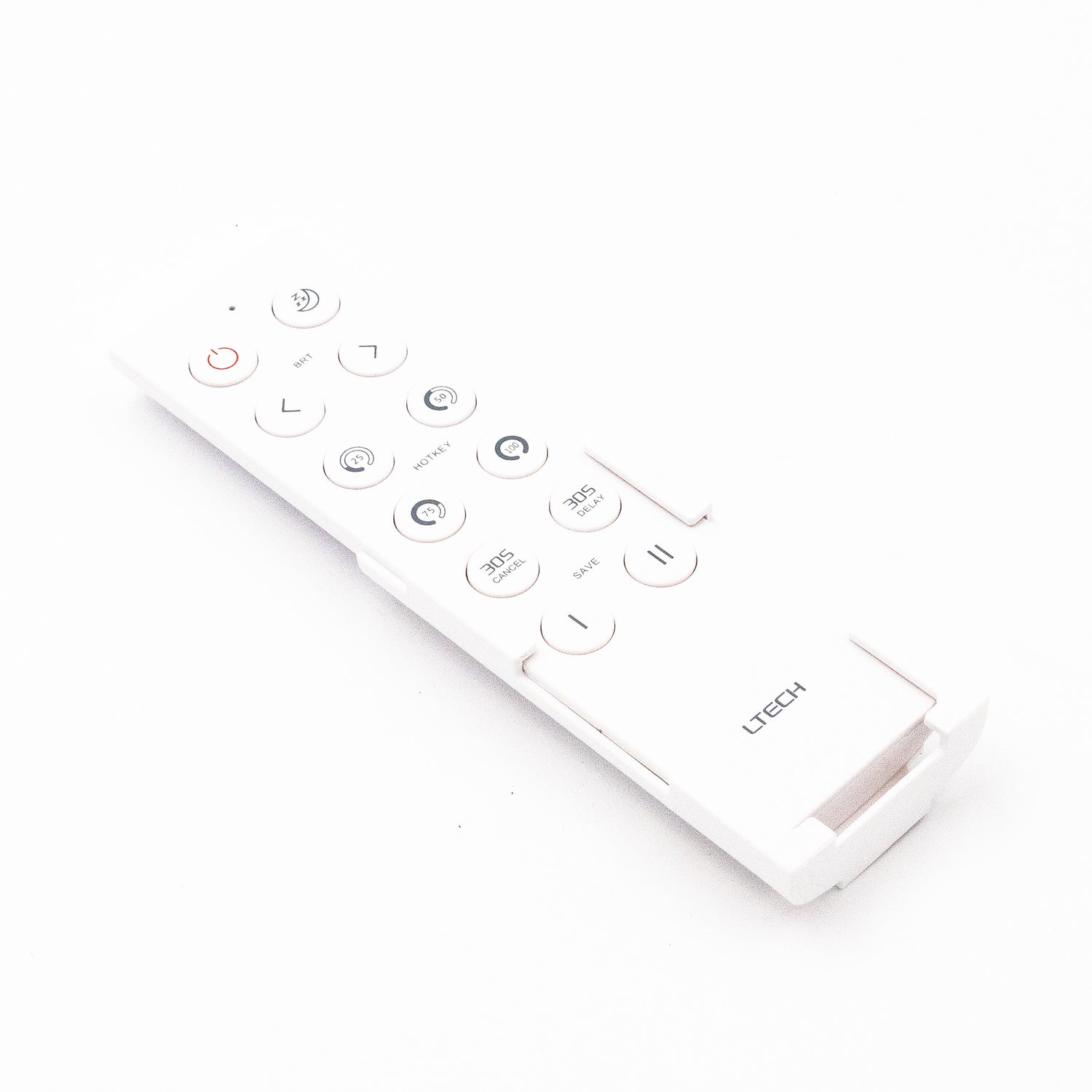

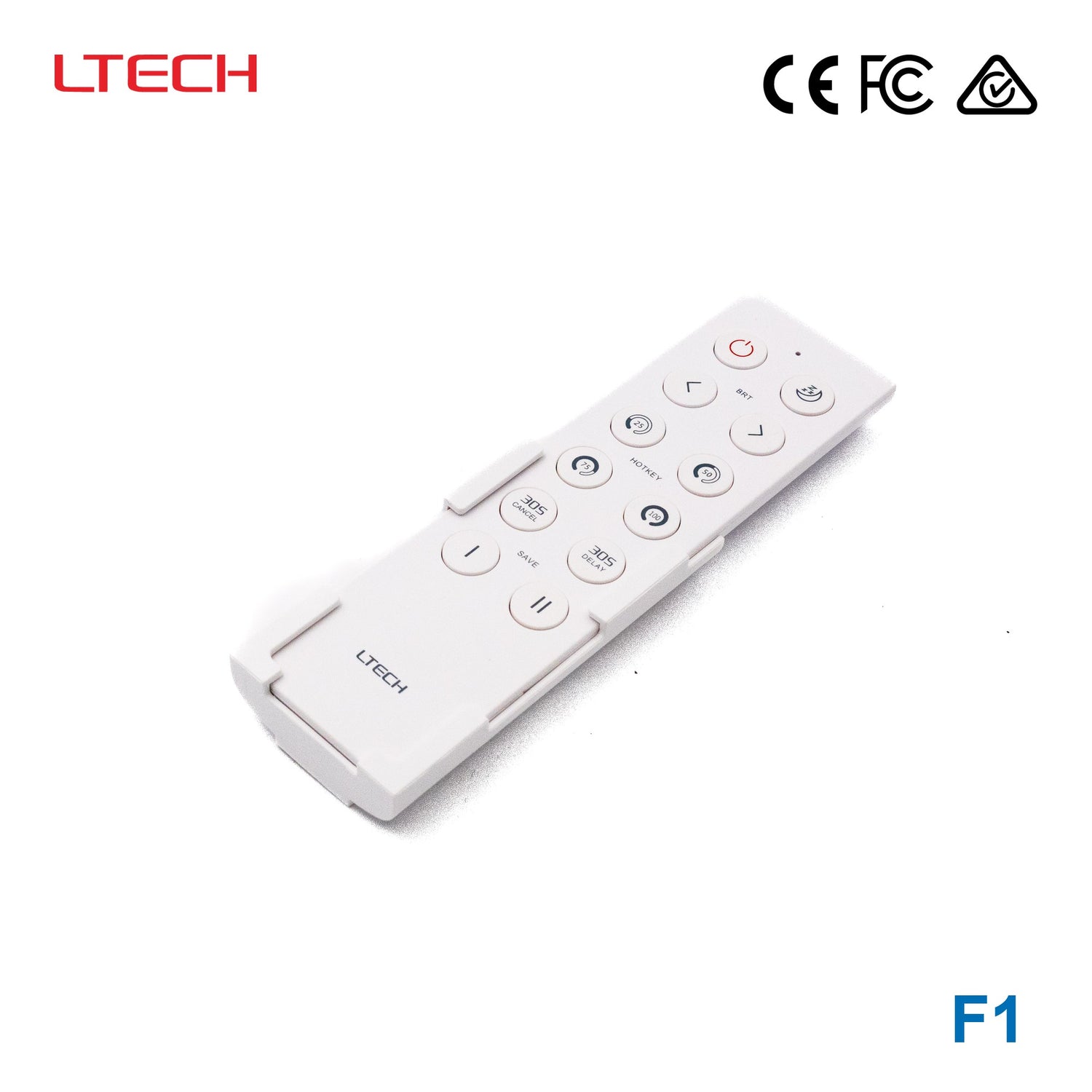

Ltech F1 2.4GHz RF Dimming remote control

SKU F1
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • 12 keys remote control.
  • RF 2.4GHz wireless signal.
  • Work with F4-3A/F4-5A/F4-CC wireless drivers to control LED fixtures.
  • EX series touch panel optional.

Specifications

F1Specifications from the official datasheet (2018-11-09 edition)Download datasheet PDF

Main Characteristics

Remote Option
Dimming
Working Voltage

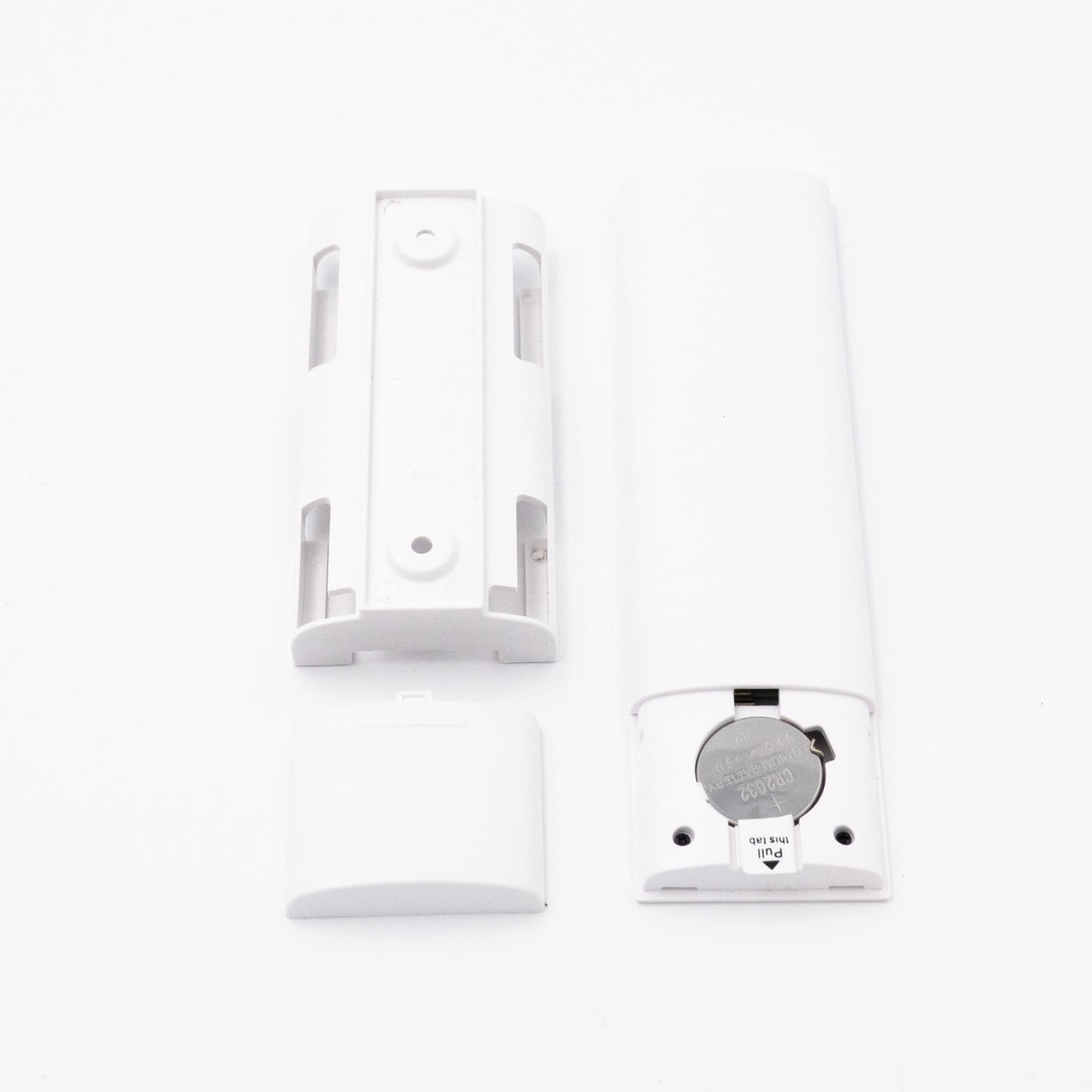

3Vdc (Battery CR2032οΌ‰
Wireless Frequency
2.4GHz
Working Temperature
-20 ~ 55Β°C
Dimensions
L145Γ—W40Γ—H12(mm)
Package Size
L150Γ—W46Γ—H18(mm)
Weight(G.W.)
85g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS

Technical drawings

F1 2.4GHz RF Remote
2.4GHz RF Remote
F1 Wiring Diagram
Wiring Diagram

Downloads

FAQ

What is the Ltech F1 used for?

The Ltech F1 is a 2.4GHz RF dimming remote control for compatible Ltech wireless LED control systems. It is designed to control LED fixtures when paired with supported wireless drivers such as the F4-3A, F4-5A, and F4-CC.

What kind of wireless control does the Ltech F1 use?

The Ltech F1 uses an RF 2.4GHz wireless signal. This makes it a wireless handheld control option for supported Ltech dimming applications.

Is the Ltech F1 suitable for demanding indoor environments?

The specified operating temperature range is -20Β°C to 55Β°C, which supports use across a wide range of indoor commercial and technical environments.
