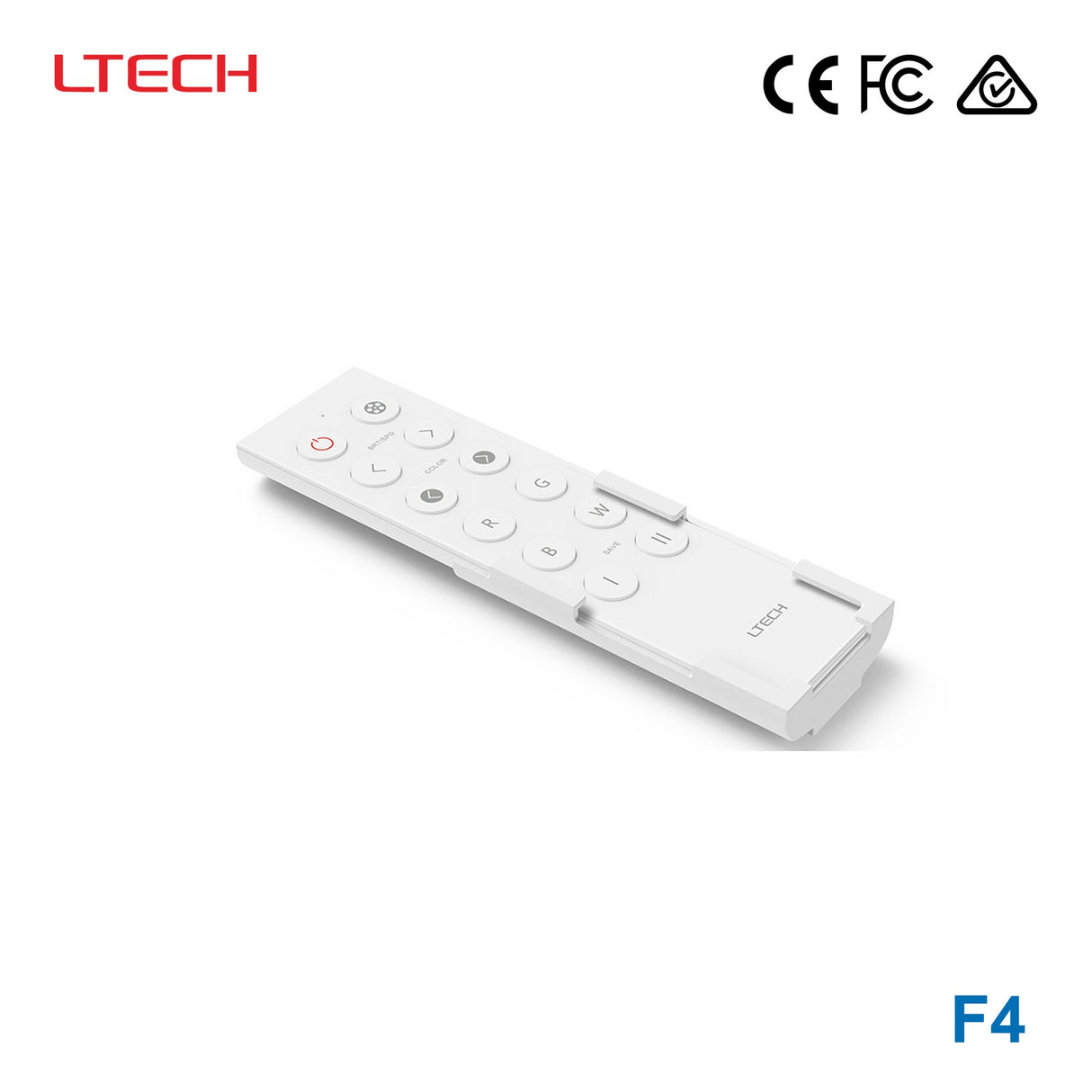

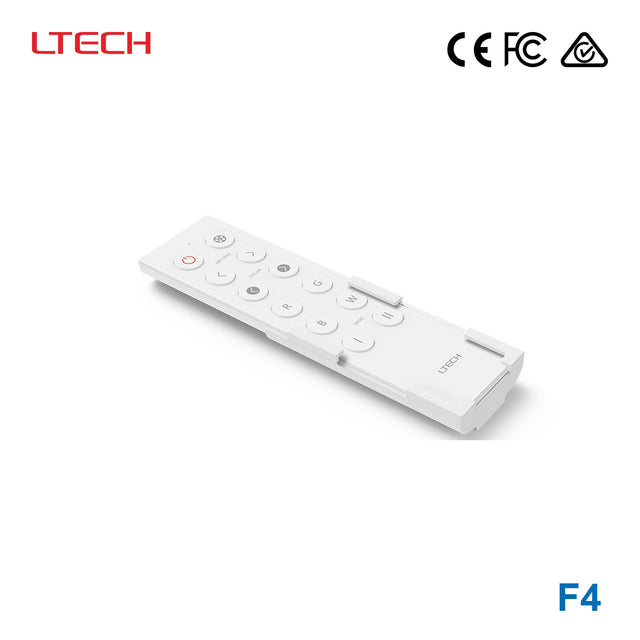

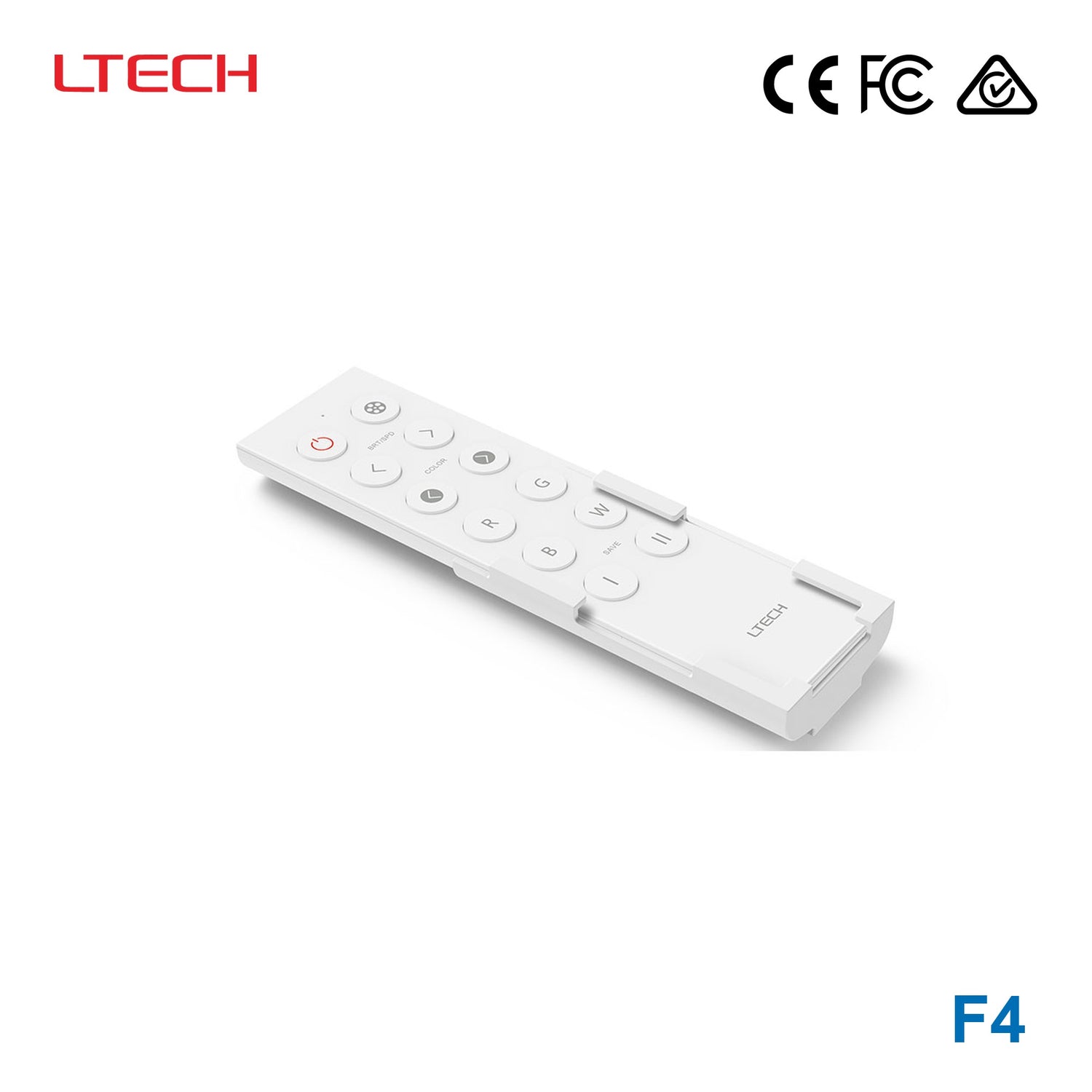

Ltech F4 Wireless RF Single-zone Remote - RGBW

SKU F4

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

Features

12 keys remote control.
RF 2.4GHz wireless signal.
Work with F4-3A/F4-5A/F4-CC wireless drivers to control LED fixtures.
EX series touch panel optional.

Specifications

F4Specifications from the official datasheet (2018-11-09 edition)Download datasheet PDF

Main Characteristics

Remote Option: RGBW
Working Voltage: 3Vdc (Battery CR2032）
Wireless Frequency: 2.4GHz
Working Temperature: -20 ~ 55°C
Dimensions: L145×W40×H12(mm)
Package Size: L150×W46×H18(mm)
Weight(G.W.): 85g

Certifications & ratings

warranty: 5 years
Certification marks: FCC, CE, RoHS

Technical drawings

Downloads

Datasheet1

F4 datasheetf4_spec.pdf · 2018-11-09 edition PDF Download

Catalogues1

Ltech Catalog PDF Download

FAQ

What does the Ltech F4 Wireless RF Single-zone Remote control?

The Ltech F4 is a single-zone RGBW wireless remote designed to control compatible Ltech wireless LED fixtures and drivers. It works with the F4-3A, F4-5A, and F4-CC models listed for this remote.

Is the Ltech F4 a multi-zone remote?

No. This model is a single-zone remote, so it is intended for control of one zone rather than multiple independent lighting zones. Buyers needing broader zone control should compare it against multi-zone options in the same product family.

What wireless signal does the Ltech F4 use?

The Ltech F4 uses an RF 2.4GHz wireless signal. This makes it a wireless handheld control option for compatible Ltech RGBW lighting products in the F4 series.

Can the Ltech F4 be used in demanding temperature conditions?

This remote is rated for operation from -20°C to 55°C. That range makes it suitable for many indoor and controlled commercial environments where temperatures stay within those limits.

What are the main physical and product details of the Ltech F4 remote?

The Ltech F4 is a wireless RF remote for RGBW control. It has a listed weight of 85g and comes with a 5-year warranty period.
