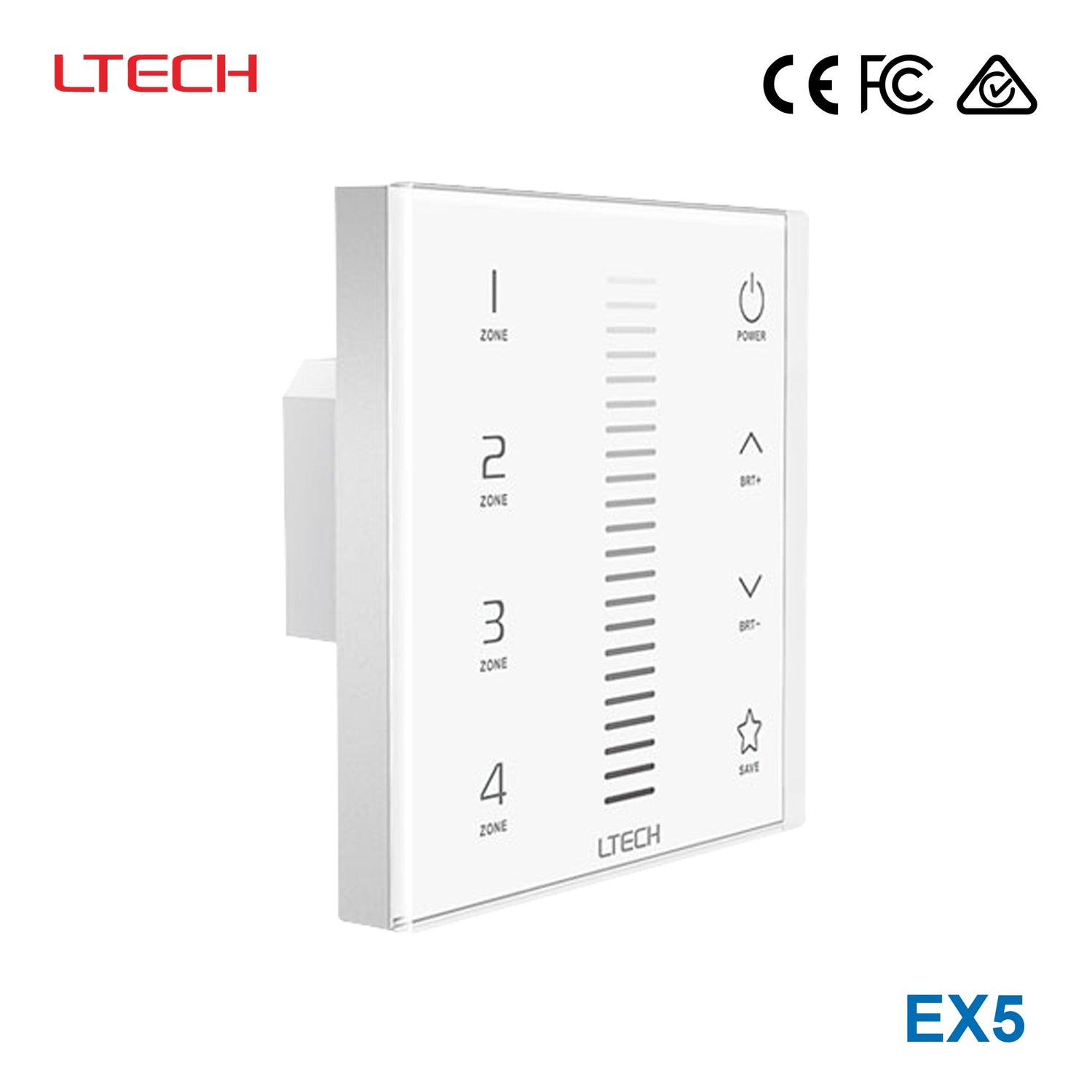

Ltech EX5 Wireless RF/DMX512 Multi-zone Touch Panel - Dimming
Please Login for Pricing
Description
Description
- Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode
- more flexible and convenient for project installation.
- Advanced RF wireless sync/zone control technology
- make sure dynamic color modes synchronously among multiple drivers.
- Four zones can be combined arbitrarily
- for example: zone 1 and zone 2 as a group
- or zone 1
- zone 3
- zone 4 as a group
- or all the 4 zones as a group.
- No limit the quantity of drivers in each zone
- and all color modes keep synchronously.
- Support multiple panels linkage control
- no quantity limitation.
- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology on full color wheel
- make LED color selection more user-friendly.
- Compatible with remote and APP control with adding LTECH gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Input Voltage100V~240V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length8.6 cm
-
Width8.6 cm
-
Height3.6 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech EX5 used for?
The Ltech EX5 is a wall-mounted touch panel for dimming LED lighting in commercial and project environments. It is designed for users who need multi-zone lighting control with both wireless RF and wired DMX512 control modes available in one model.
Does the EX5 support multi-zone lighting control?
Yes. This model supports four zones, and those zones can be grouped in different ways depending on how the lighting is organized. It can control individual zones, grouped zones, or all four zones together while keeping color modes synchronized across drivers in each zone.
How is the EX5 different from a basic single-zone dimmer panel?
The EX5 is built for more advanced lighting projects because it combines RF wireless control with DMX512 support in the same touch panel. It also adds four-zone grouping, panel linkage capability, and synchronized control across multiple drivers, which goes beyond a basic single-zone dimmer.
Is the EX5 compatible with app or remote control?
Yes. The EX5 is compatible with remote and app control when an LTECH gateway is added to the system. That makes it a better fit for projects that want both wall-panel operation and expanded control options.
Can more than one EX5 panel be used in the same project?
Yes. The product supports multiple panel linkage control with no stated quantity limitation. This is useful for larger spaces where the same lighting zones need to be accessed from more than one wall location.
What kind of interface does the EX5 have?
The EX5 uses capacitive touch control with touch keys, a color wheel interface, and LED indicators. This design is intended to make lighting control more intuitive and user-friendly in professional installations.
What environments is the EX5 rated for?
The stated operating temperature range is -20 degrees C to 55 degrees C. It also carries a 5-year warranty, which is relevant for commercial buyers evaluating long-term use in indoor project environments.
