Ltech

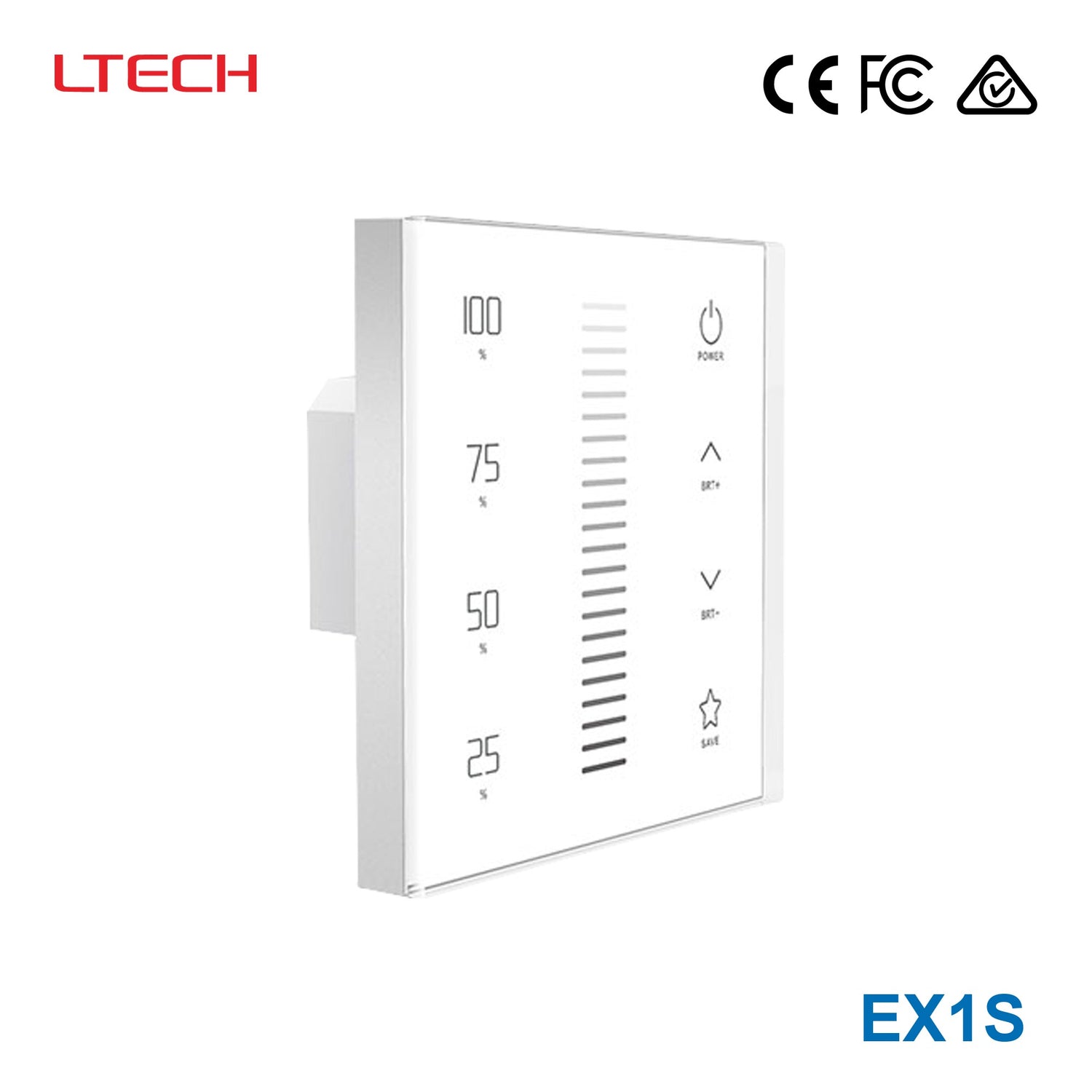

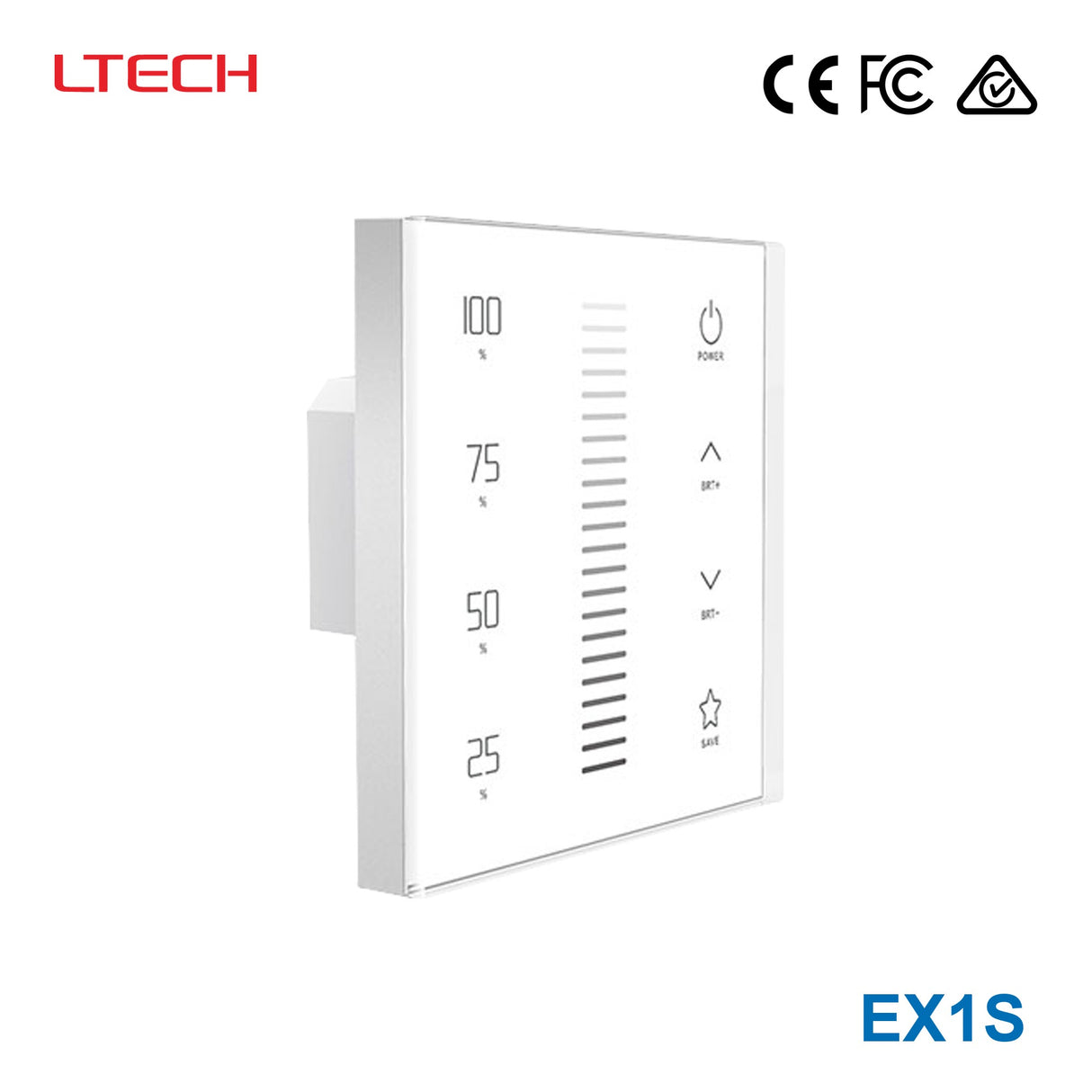

Ltech EX1S Wireless RF/DMX512 Single-zone Touch Panel - Dimming

SKU EX1S
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode, more flexible and convenient for project installation.
  • Advanced RF wireless sync/zone control technology, make sure dynamic color modes synchronously among multiple drivers.
  • Install touch panel at different areas, can control the same LED light, achieve multi-panel control, no quantity limited.
  • Touch keys with chord and LED indicator.
  • Adopts capacitive touch control technology makes LED dimming selection more user-friendly.
  • Compatible with remote and APP control with adding LTECH gateway.

Specifications

EX1SSpecifications from the official datasheetDownload datasheet PDF

Technical specs

Control type
Dimming
Input voltage
100-240Vac
Output signal
DMX512
Wireless type
RF 2.4GHz
Working temp.
-20°C~55°C
Dimensions
L86×W86×H36(mm)
Package size
L113×W112×H50(mm)
Weight(G.W.)
225g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008, RCM
Test conditions and notes1
  1. * Product with L-BUS Advance Mode logo, supports the function of WIFI-108 advanced mode.

Technical drawings

EX1S Product size
Product size
EX1S Installation instruction
Installation instruction
EX1S DMX wiring
DMX wiring
EX1S DMX decoder
DMX decoder
EX1S RF wireless wiring
RF wireless wiring
EX1S Match code between touch panel & remote
Match code between touch panel & remote

Downloads

FAQ

What is the Ltech EX1S used for?

The Ltech EX1S is a single-zone touch panel for dimming control in LED lighting projects. It is designed for commercial and professional applications where a wall-mounted control surface and DMX512 or RF-based control are needed.

Does the EX1S support both wireless and wired control modes?

Yes. This model uses both wireless RF and wired DMX512 protocols in a 2-in-1 control design. That gives buyers flexibility when selecting a control approach for a lighting project.

Is the EX1S suitable for demanding indoor project environments?

The stated operating temperature range is -20 degrees C to 55 degrees C, which supports use in a wide range of indoor commercial environments.

What warranty coverage is listed for the Ltech EX1S?

The listed warranty period for the EX1S is 5 years. That can be useful for commercial buyers comparing long-term support expectations across control products.
