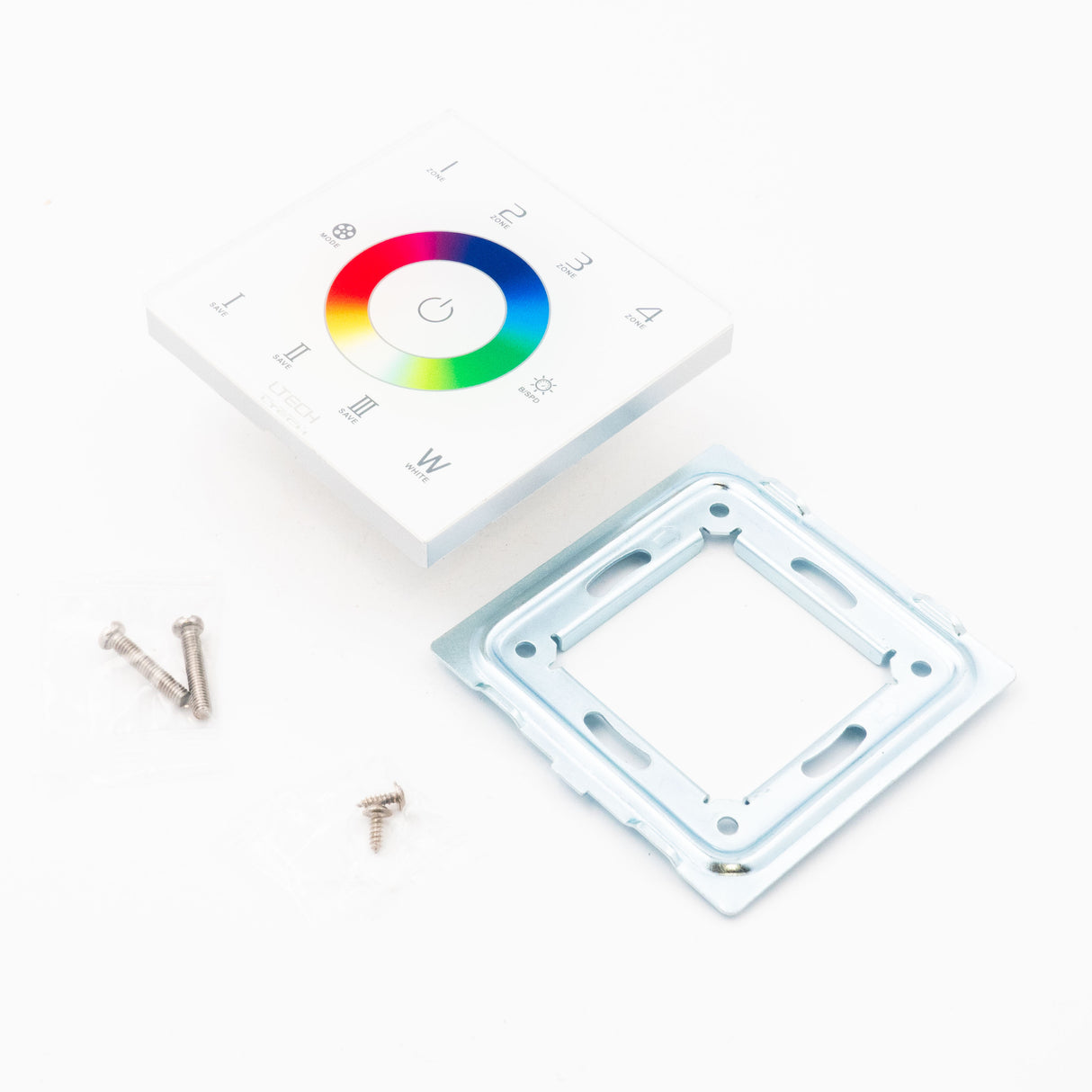

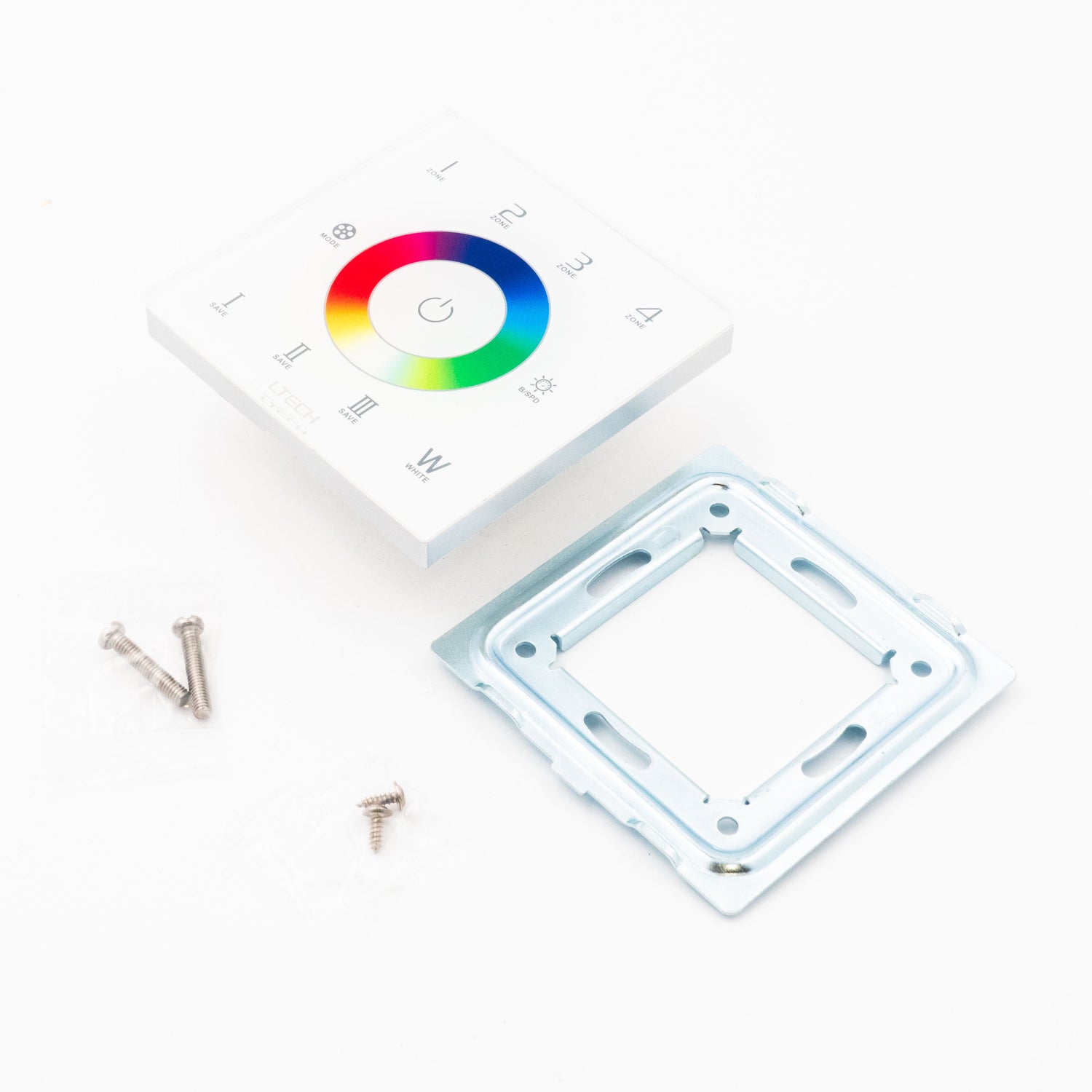

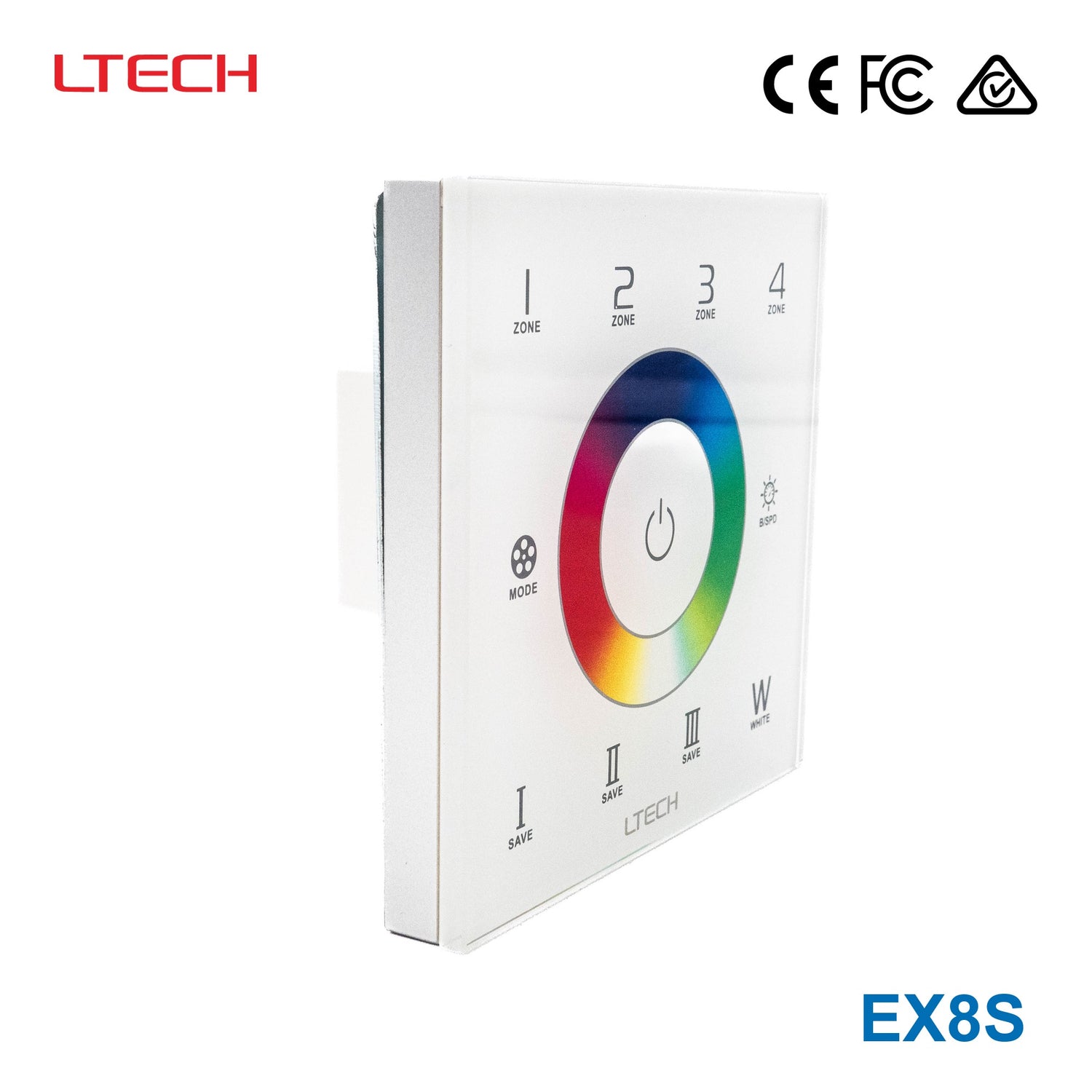

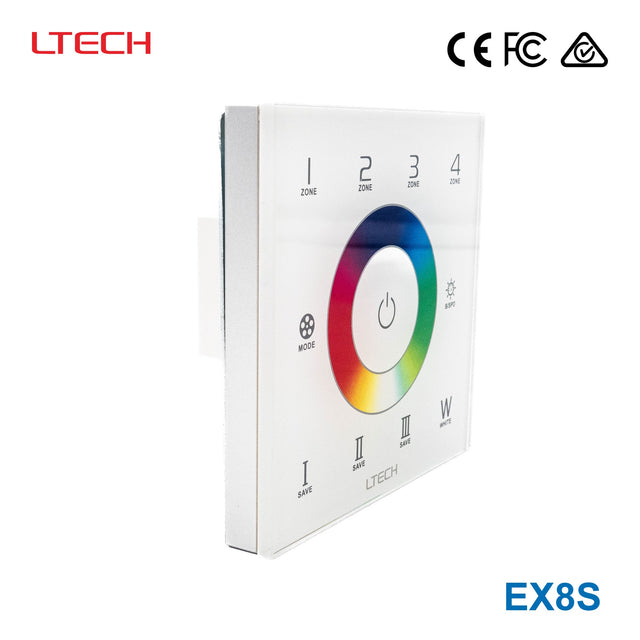

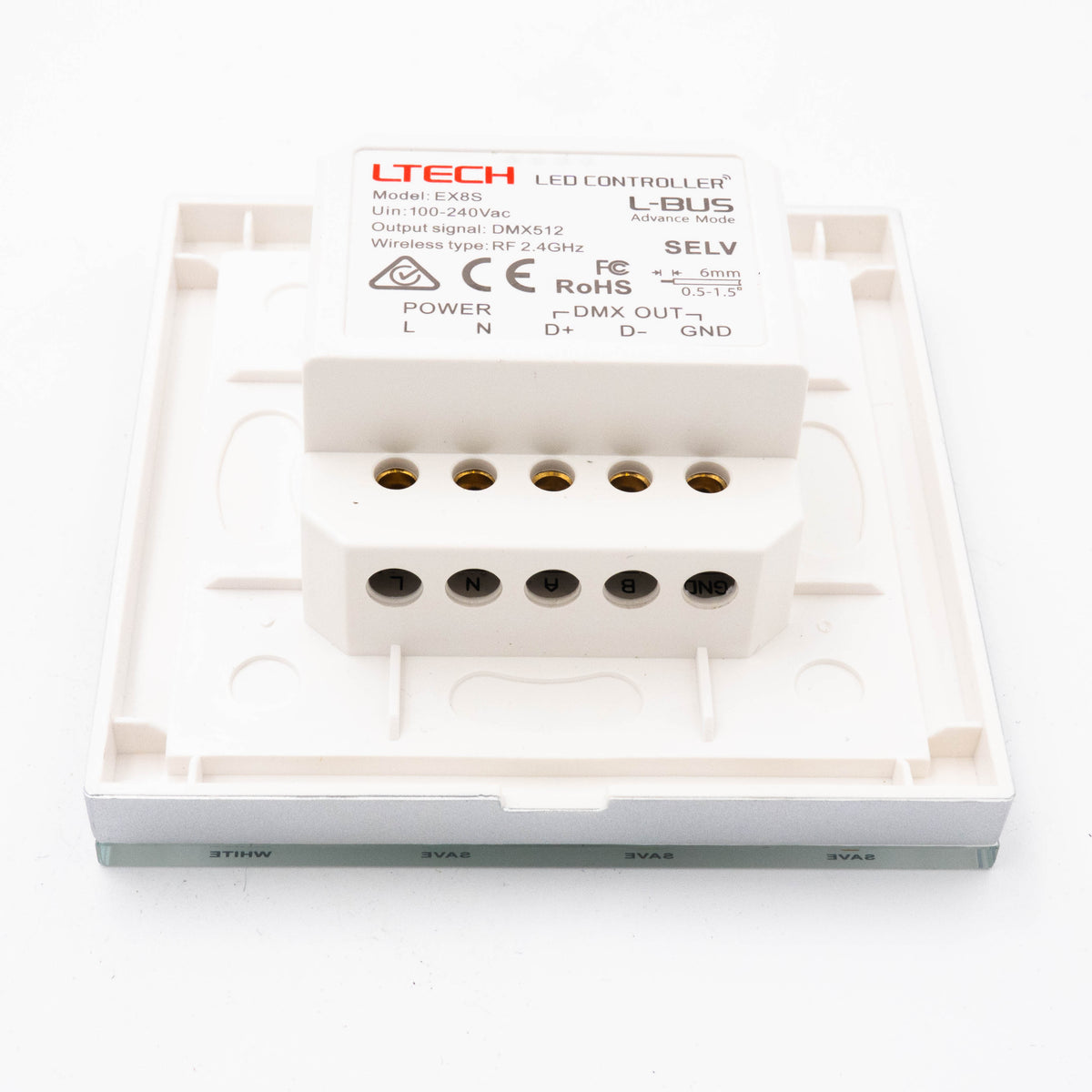

Ltech EX8S Wireless RF/DMX512 Multi-zone Touch Panel - RGBW
Please Login for Pricing
Description
Description

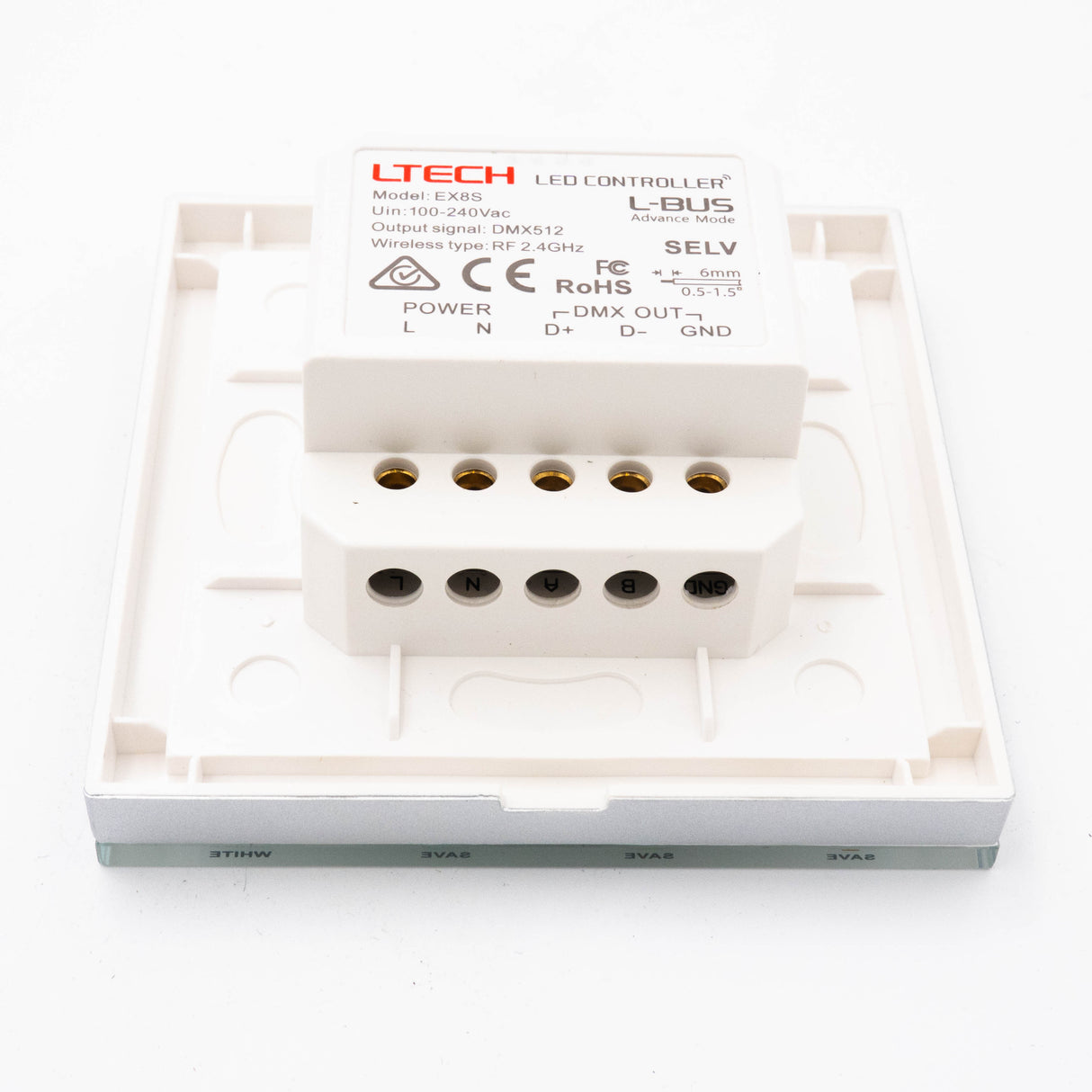

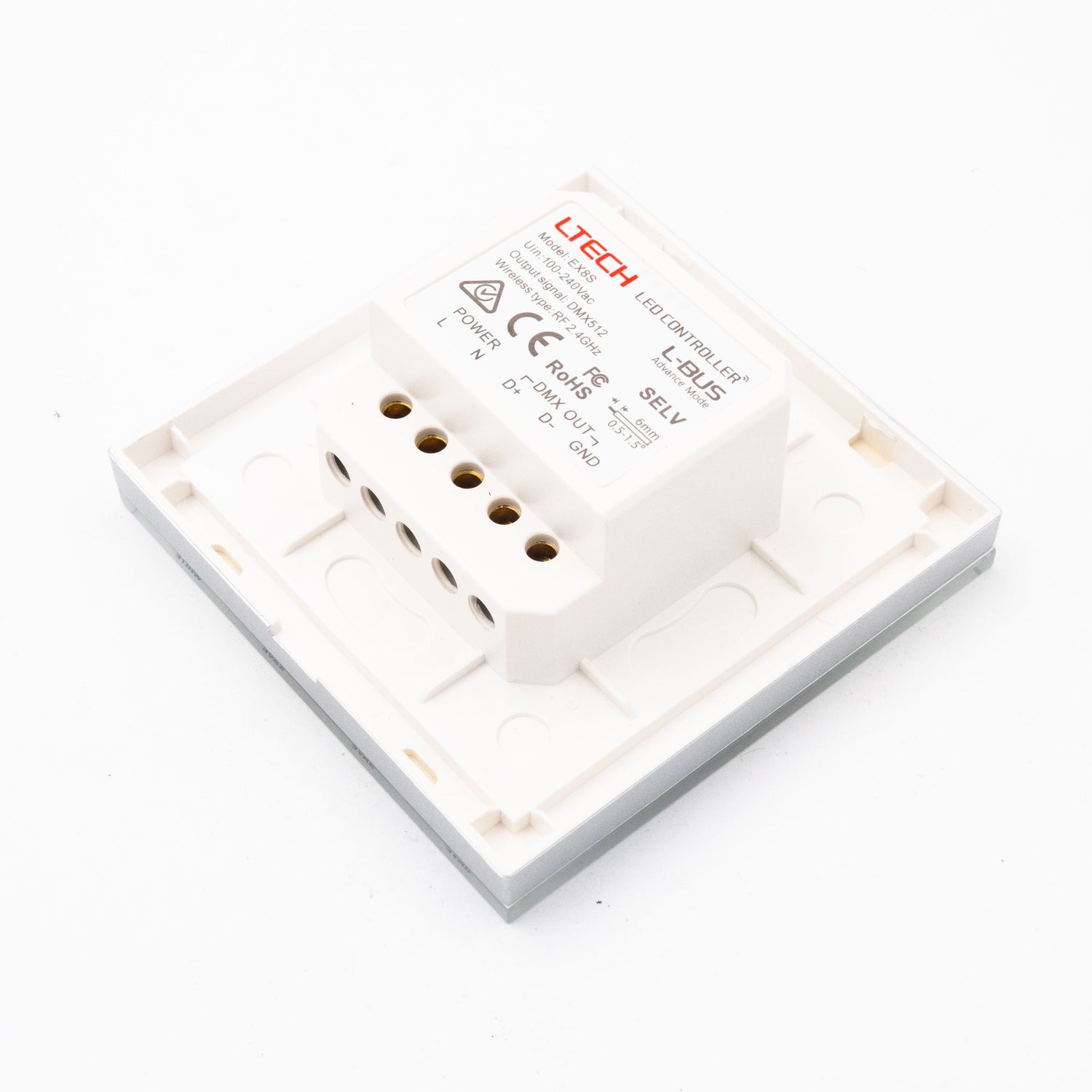

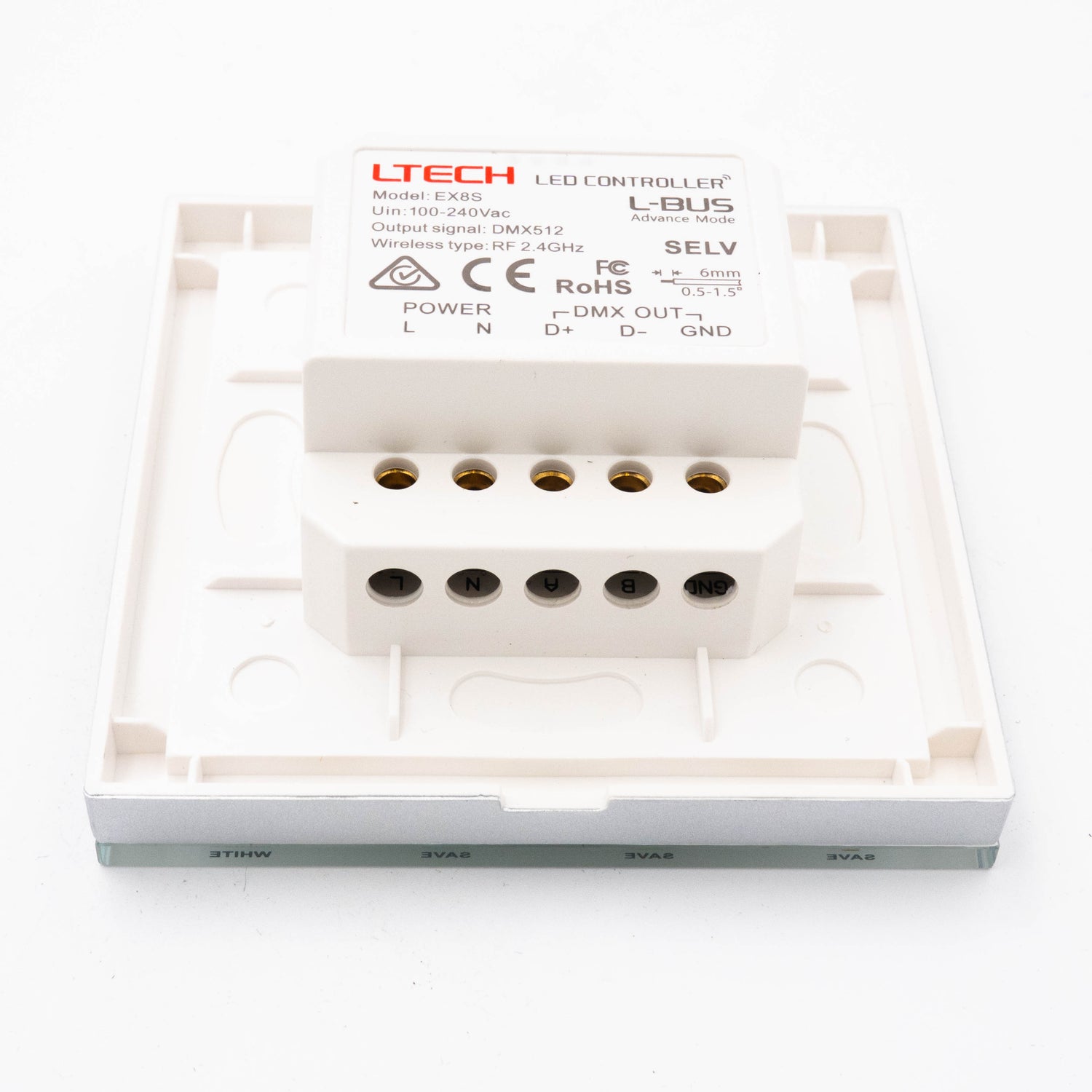

- Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode
- more flexible and convenient for project installation.
- Advanced RF wireless sync/zone control technology
- make sure dynamic color modes synchronously among multiple drivers.
- Four zones can be combined arbitrarily
- for example: zone 1 and zone 2 as a group
- or zone 1
- zone 3
- zone 4 as a group
- or all the 4 zones as a group.
- No limit the quantity of drivers in each zone
- and all color modes keep synchronously.
- Support multiple panels linkage control
- no quantity limitation.

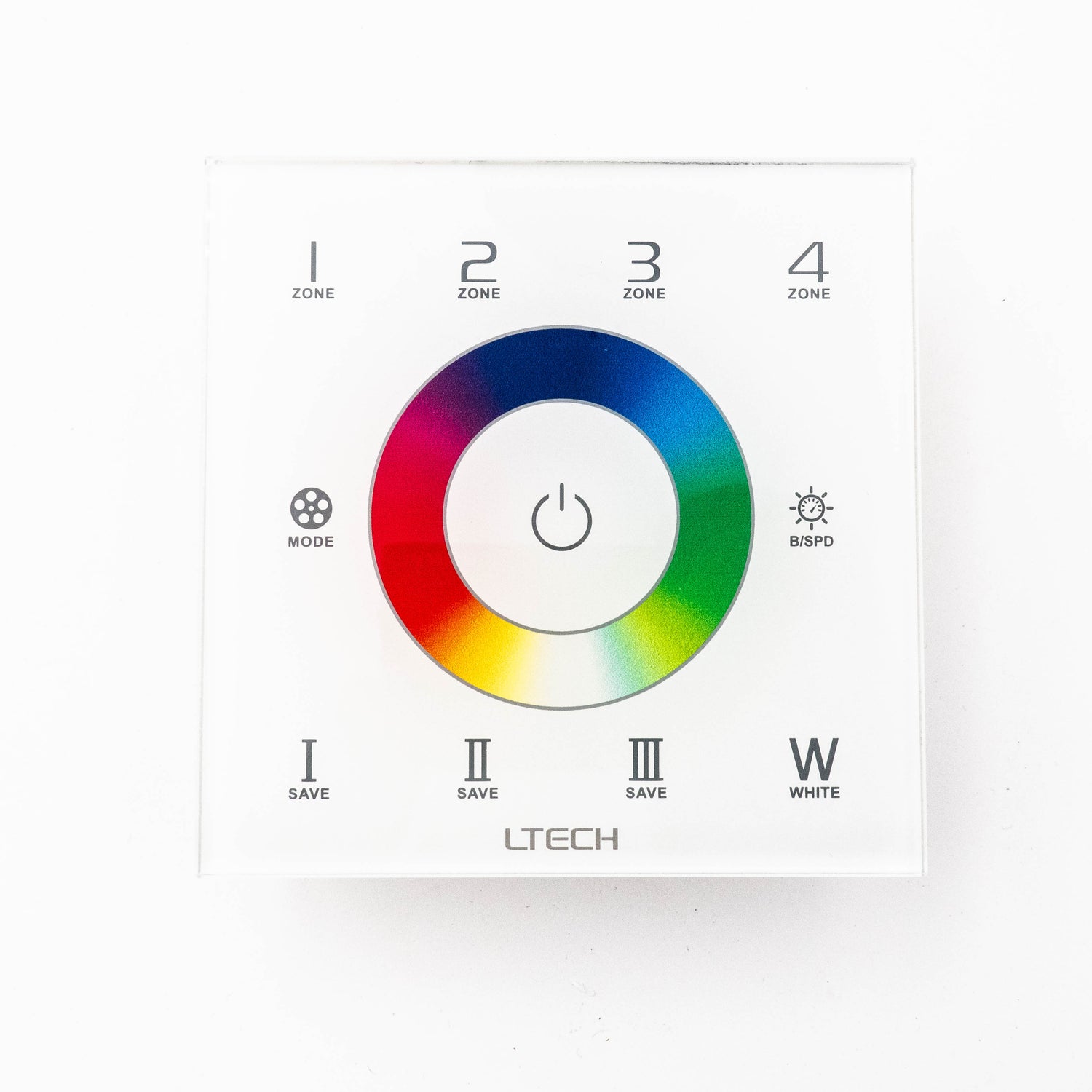

- Touch keys with chord and LED indicator.
- Adopts capacitive touch control technology on full color wheel
- make LED color selection more user-friendly.
- Compatible with remote and APP control with adding LTECH gateway.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech L-Bus Series
-
Input Voltage100V~240V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty5 Year
-
Length8.6 cm
-
Width8.6 cm
-
Height3.6 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech EX8S used for?
The Ltech EX8S is a multi-zone touch panel designed for RGBW lighting control in commercial and project environments. It combines wireless RF and wired DMX512 control modes in one model, making it suitable for systems that need flexible control options.
How many lighting zones can the EX8S control?
This model supports four zones. Those zones can be grouped in different ways, including individual zones, custom grouped zones, or all four zones together for broader control.
Does the EX8S support synchronized control across multiple drivers?
Yes, the EX8S uses advanced RF wireless sync and zone control technology to help keep dynamic color modes synchronized across multiple drivers in the same zone. The product description also states there is no quantity limitation for drivers within each zone.
Is the EX8S only a wireless controller, or does it also work with DMX systems?
The EX8S is not limited to wireless-only use. It supports both wireless RF and wired DMX512 protocol modes, which makes it more versatile than single-protocol touch panels for projects that use mixed control approaches.
Can multiple EX8S panels be used in the same project?
Yes, the EX8S supports multiple panel linkage control. According to the product details, there is no quantity limitation for linked panels, which is useful for larger commercial spaces needing control from more than one location.
Is the EX8S compatible with app-based control?
Yes, this model can work with remote and app control when an LTECH gateway is added. That gives buyers an option to expand beyond panel-only control without changing the touch panel itself.
What operating environment is the EX8S rated for?
The stated operating temperature range is -20°C to 55°C. It also carries a 5-year warranty and has a listed weight of 0.2300 kg.
