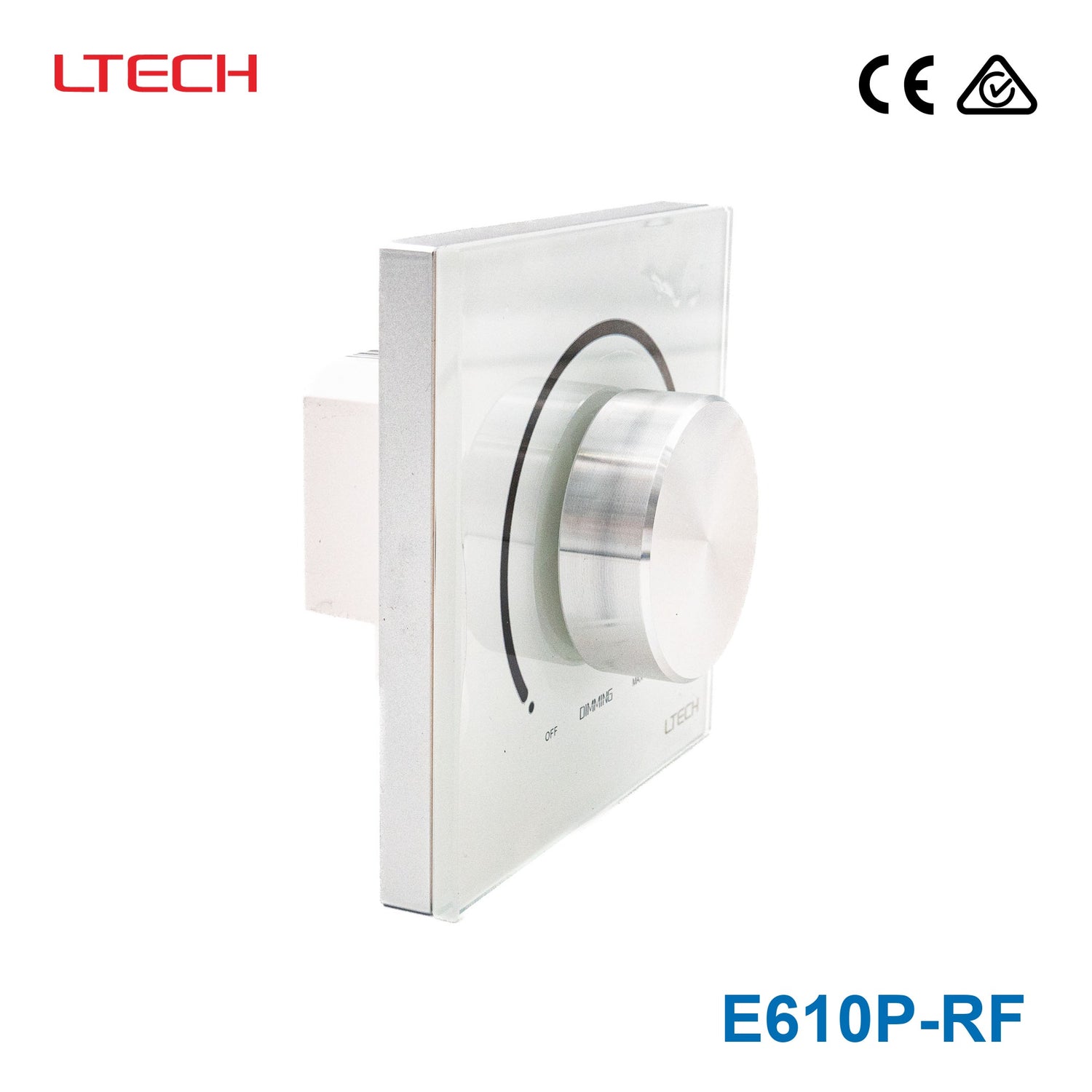

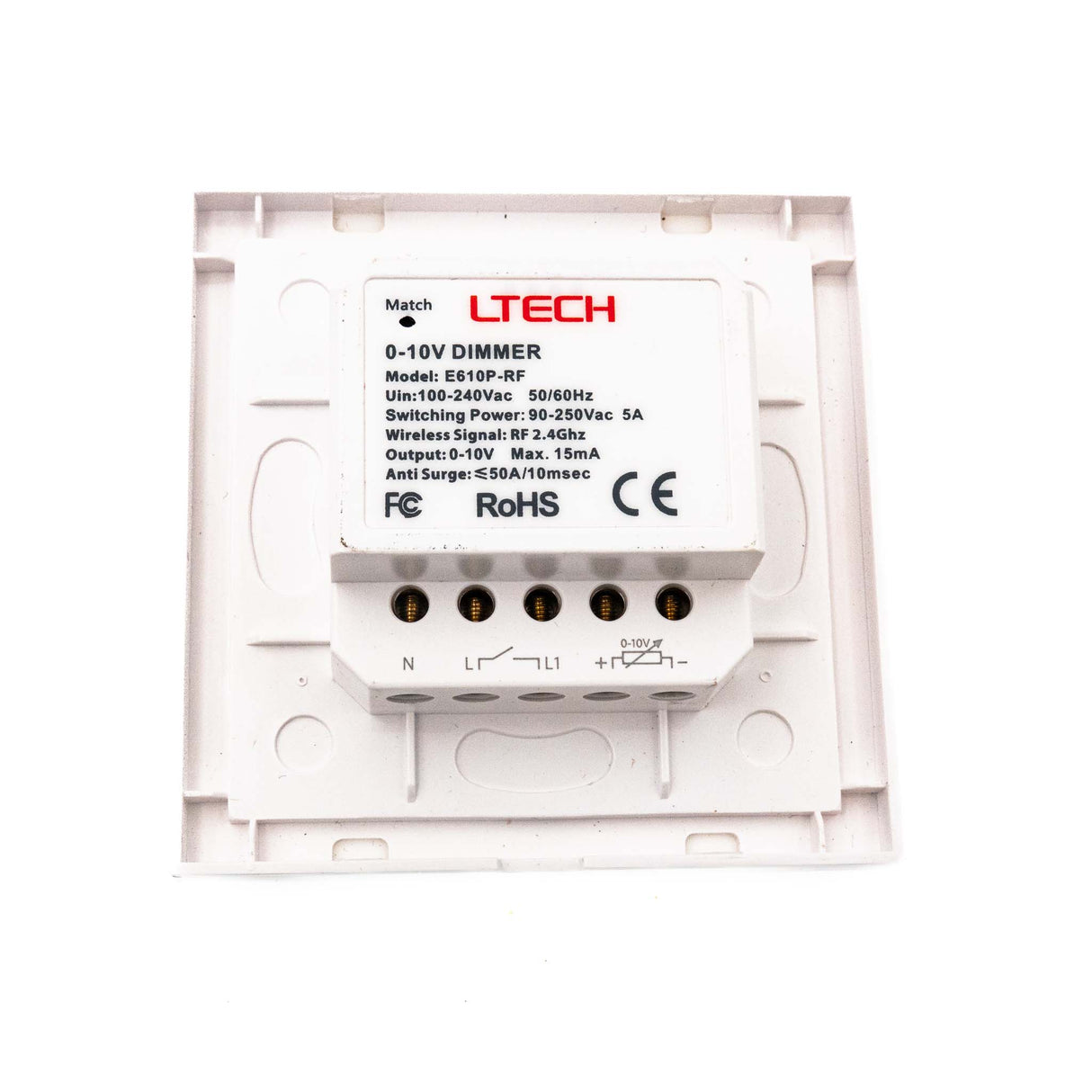

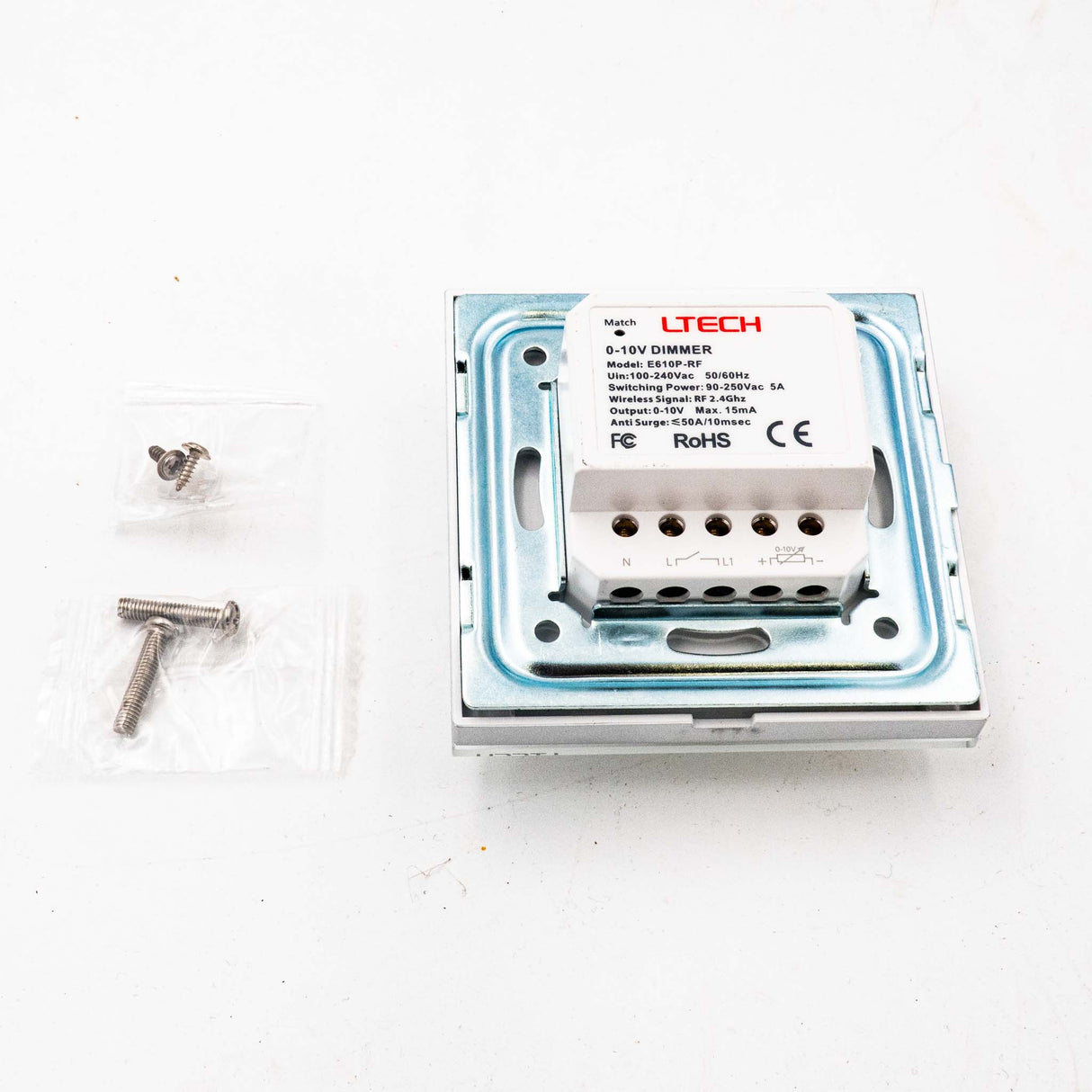

Ltech E610P-RF Rotary Panel - 0-10V Dimmer

SKU E610P-RF

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Active 0-10V signal output dimming controller.
100-240Vac power supply, easy connection, convenient control.
0-10V output dimming signal can be controlled either by the knob or wireless RF remote.
Remote control panel dimming can be realized if work with L-BUS gateway.
Built-in relay switch, can be used to cut off the power line, also suitable for the occasion where the lights can not be turned off completely.

Specifications

E610P-RFSpecifications from the official datasheetDownload datasheet PDF

Technical specs

Input voltage:: 100~240Vac, 50-60Hz
Switching power:: 90~250Vac, 5A
Output:: 0~10V Max. 50mA
Wireless signal:: RF 2.4GHz
Anti surge:: ≤50A / 0.1S
Working temp.:: -10°C~35°C
Dimensions:: L86×W86×H50(mm)
Package size:: L106×W106×H60(mm)
Weight(G.W.):: 220g

Input

inrush current: 50A/0.1S

Certifications & ratings

warranty: 5 years
Certification marks: CE, RoHS, ISO9001:2008

Test conditions and notes1

Note: this controller only receives RF wireless signal control, no RF transmission function.

Technical drawings

E610P-RF Installation instruction — Installation instruction

E610P-RF Application composition — Application composition

Downloads

Datasheet1

E610P-RF datasheete610p_rf_spec.pdf PDF Download

Catalogues1

Ltech Catalog PDF Download

FAQ

What type of dimming control does the Ltech E610P-RF use?

The E610P-RF is a 0-10V dimming controller with an active 0-10V signal output. It is intended for applications that use 0-10V control rather than phase-cut or digital-only dimming methods.

Can this dimmer be controlled directly at the panel?

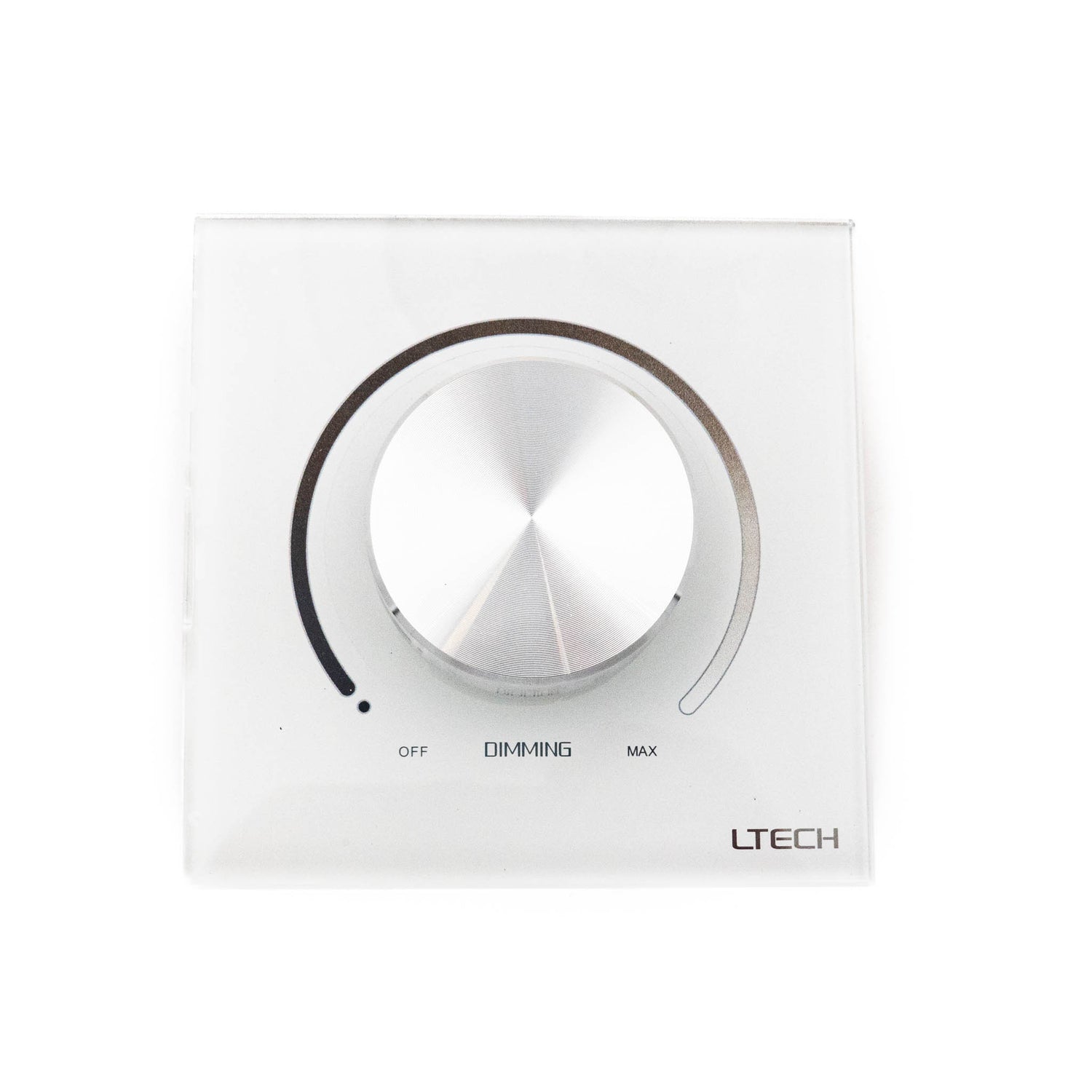

Yes. This model includes a rotary knob on the panel for local dimming control. That makes it suitable where users want direct on-site adjustment without relying only on a separate control device.

Does the E610P-RF work with wireless RF control?

Yes, this model can be controlled by RF remote in addition to the rotary knob. The product receives RF wireless control signals at 2.4GHz, but it does not provide RF transmission functionality itself.

Is the E610P-RF suitable for commercial and architectural lighting control?

It can be a good fit for commercial or architectural lighting systems that use 0-10V dimming and benefit from both local and RF-based control. Its built-in relay switch also helps in applications where lights may otherwise not turn off completely.

What are the input power, operating temperature, and warranty for this dimmer?

The E610P-RF is specified for 100-240Vac power supply input. Its operating temperature range is -10°C to 35°C, and it carries a 5-year warranty.
