Mean Well

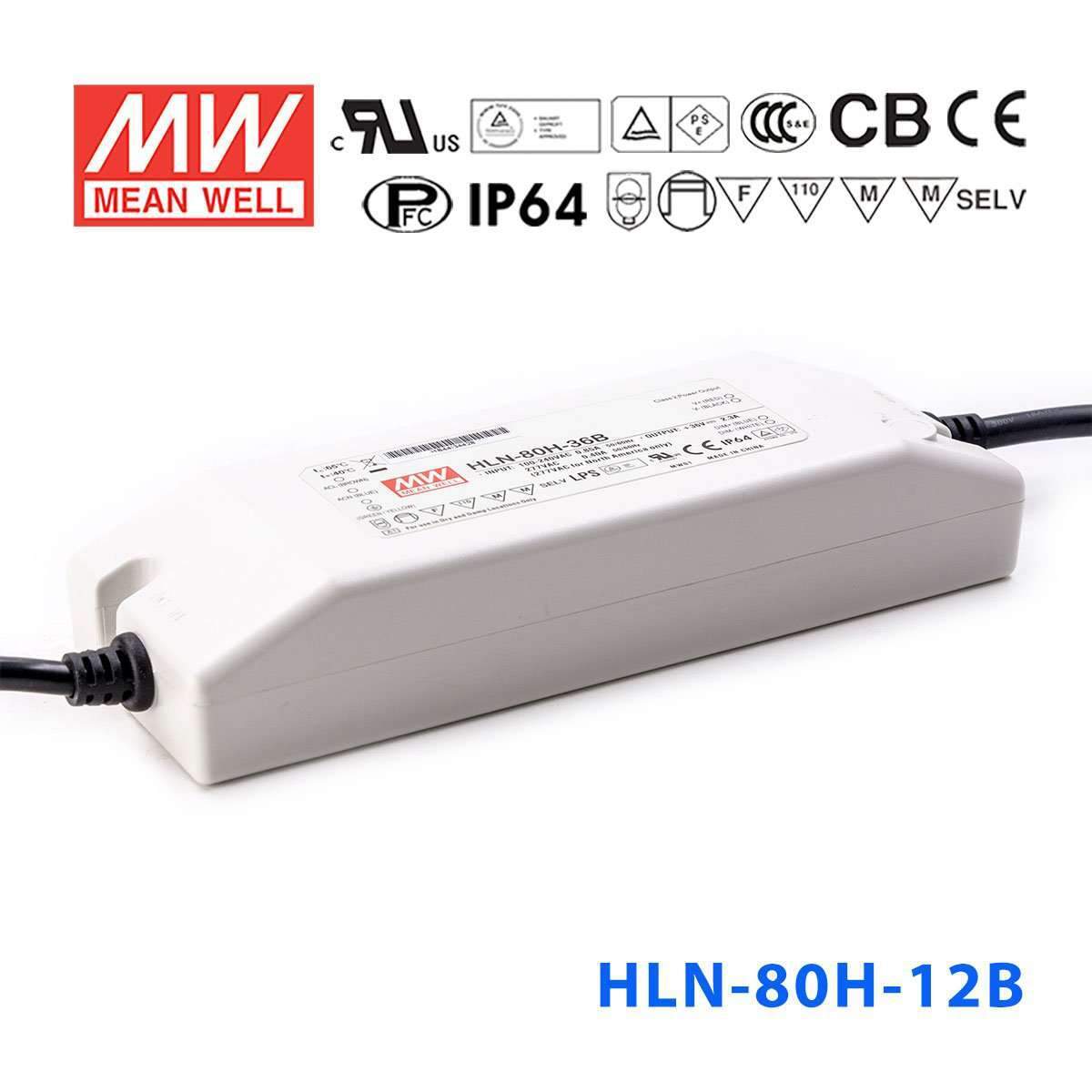

Mean Well HLN-80H-12B Power Supply 60W 12V - IP64, Dimmable 5A

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit
SKU HLN-80H-12B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by HLG-80H-12B
Available to order
|

Overview

HLN-80H-12B is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 88%.

Features

  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • Fully isolated plastic case with IP64 level
  • Class 2 power unit
  • Three in one dimming function (1~10Vdc or PWM signal or resistance)
  • Suitable for LED lighting, Industrial Lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp locations or outdoor application
  • 3 years warranty

Specifications

HLN-80H-12BSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
12V
CONSTANT CURRENT REGIONNote.4
7.2 ~12V
RATED CURRENT
5A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGENote.6
10.8 ~ 13.5V
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer A type only
CURRENT ADJ. RANGE
3 ~ 5A
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±0.5%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.8
1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
HOLD UP TIME (Typ.)
16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENTNote.4
95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
14 ~ 17V
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 40℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.7
UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load, 12V model ≧65% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020

OTHERS

MTBF
2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
181*61.5*35mm (L*W*H)
PACKING
0.5Kg; 24pcs/13Kg/0.87CUFT

Certifications & ratings

Marked features
110
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  6. 6. A type only.
  7. 7. Safety and EMC design refer to EN60598-1, CNS15233, FCC part18.
  8. 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  9. 9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  10. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLN-80H-12B Mechanical Specification
Mechanical Specification
HLN-80H-12B Block Diagram
Block Diagram
HLN-80H-12B Derating Curve
Derating Curve
HLN-80H-12B Power Factor Characteristic
Power Factor Characteristic
HLN-80H-12B EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)
HLN-80H-12B H L N - 8 0 H series
H L N - 8 0 H series
HLN-80H-12B H L N - 8 0 H series (2)
H L N - 8 0 H series (2)
HLN-80H-12B DIMMING OPERATION(for B-type only)
DIMMING OPERATION(for B-type only)
HLN-80H-12B ※ Please DO NOT connect "DIM-" to "-V".
※ Please DO NOT connect "DIM-" to "-V".
HLN-80H-12B H L N - 8 0 H series
H L N - 8 0 H series
HLN-80H-12B H L N - 8 0 H series (2)
H L N - 8 0 H series (2)

Downloads

FAQ

Can I use the HLN-80H-12B for dimmable 12V LED strip runs?

Yes, if the total strip load stays within 60W and 5A and the strip is compatible with the driver's 7.2-12V constant-current range. This B-version is the dimmable 12V option in the HLN-80H family.

Is the HLN-80H-12B a good fit for 12V sign lighting with brightness control?

It can fit 12V sign lighting that needs dimming, as long as the load does not exceed 60W or 5A. The IP64 enclosure also suits signs used in dusty or splash-prone locations.

Can this driver power 12V decorative lighting in patios or covered outdoor spaces?

It can be used for 12V decorative lighting assemblies where the load matches 7.2-12V constant current and stays within 60W. IP64 protection and an operating range of -40°C to +50°C make it suitable for covered outdoor spaces exposed to weather splash and dust.

What is the maximum LED strip length estimate for the HLN-80H-12B?

Calculate it from power: maximum strip length = 60W divided by the strip's rated watts per meter. Check your strip rated power per meter, and verify that the strip is intended to work with a 12V constant-current driver before using that estimate.

Is the HLN-80H-12B suitable for wet or outdoor locations?

Its IP64 rating means the enclosure is designed to resist dust and splashing water, so it is appropriate for many outdoor or damp-location lighting uses. That rating does not indicate submersion protection, so it is for splash exposure rather than fully wet immersion conditions.
