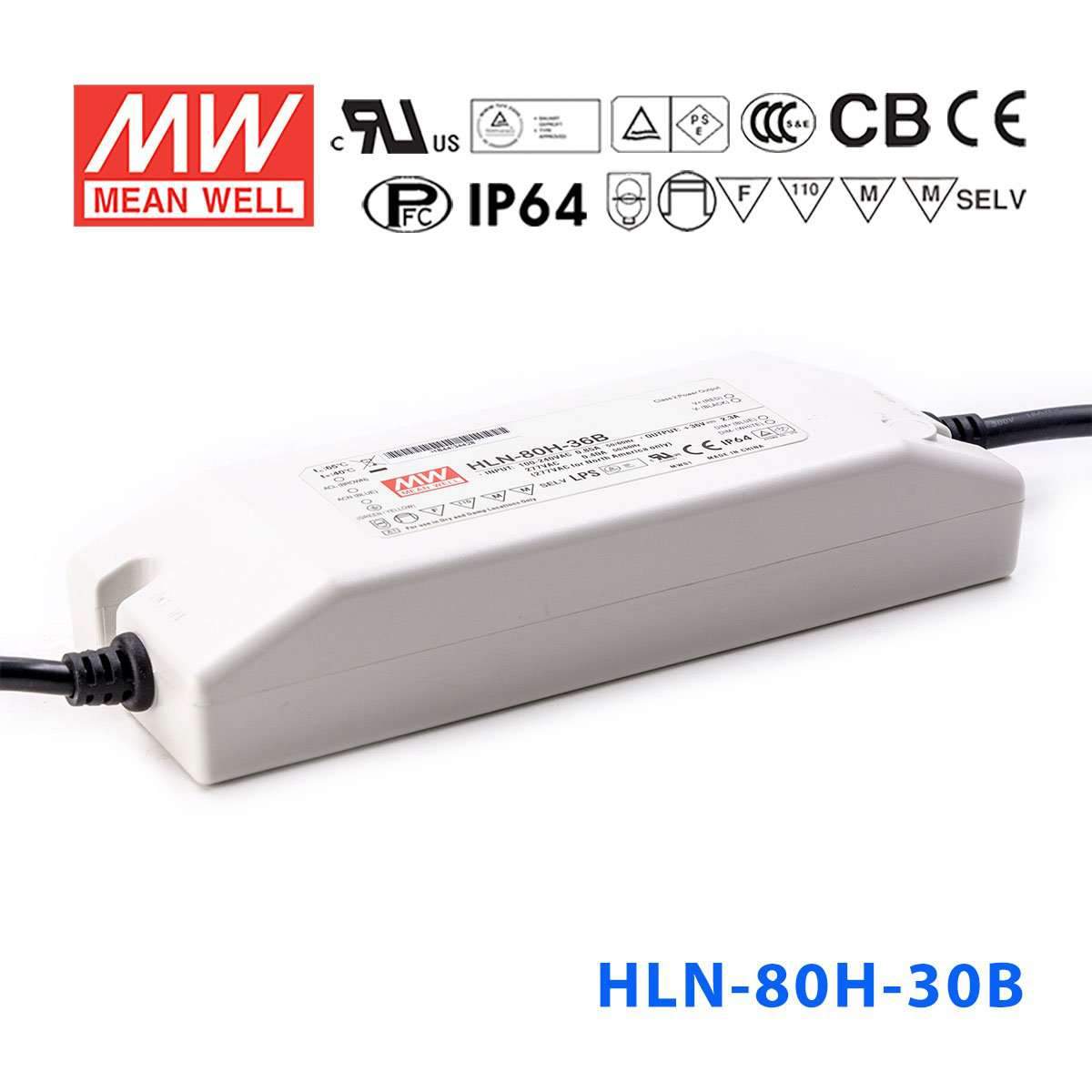

Mean Well HLN-80H-30B Power Supply 80W 30V - IP64, Dimmable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81 Watt
-
Output Voltage30 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HLN-80H-30B be used for illuminated sign cabinets or channel letter power?
Yes, this model is described as suitable for signage applications and provides a 30V, 2.7A constant-current output. The LED load needs to operate within the 18-30V CC range and remain within the 81W rating.
Is this a good choice for 30V display or retail lighting modules?
It can be used with 30V constant-current lighting modules that require up to 2.7A. The driver delivers up to 81W, so the fixture's electrical requirement must stay within that output limit.
Can I use this driver for damp or semi-exposed lighting locations?
The IP64 enclosure makes it appropriate for areas where the driver may be exposed to dust and splashing water rather than fully submerged conditions. Its operating range of -40°C to +50°C also supports use in cold and warm environments within that temperature window.
Will the HLN-80H-30B work with my 30V LED load?
It is intended for constant-current loads that operate from 18V to 30V and draw 2.7A. If your LED load is outside that 18-30V CC range or needs more than 81W, this is not the right match.
Is the HLN-80H-30B suitable for outdoor use?
It is suitable for outdoor placements where the driver needs IP64 protection against dust and splashing water. It should be used within the specified -40°C to +50°C operating temperature range.
