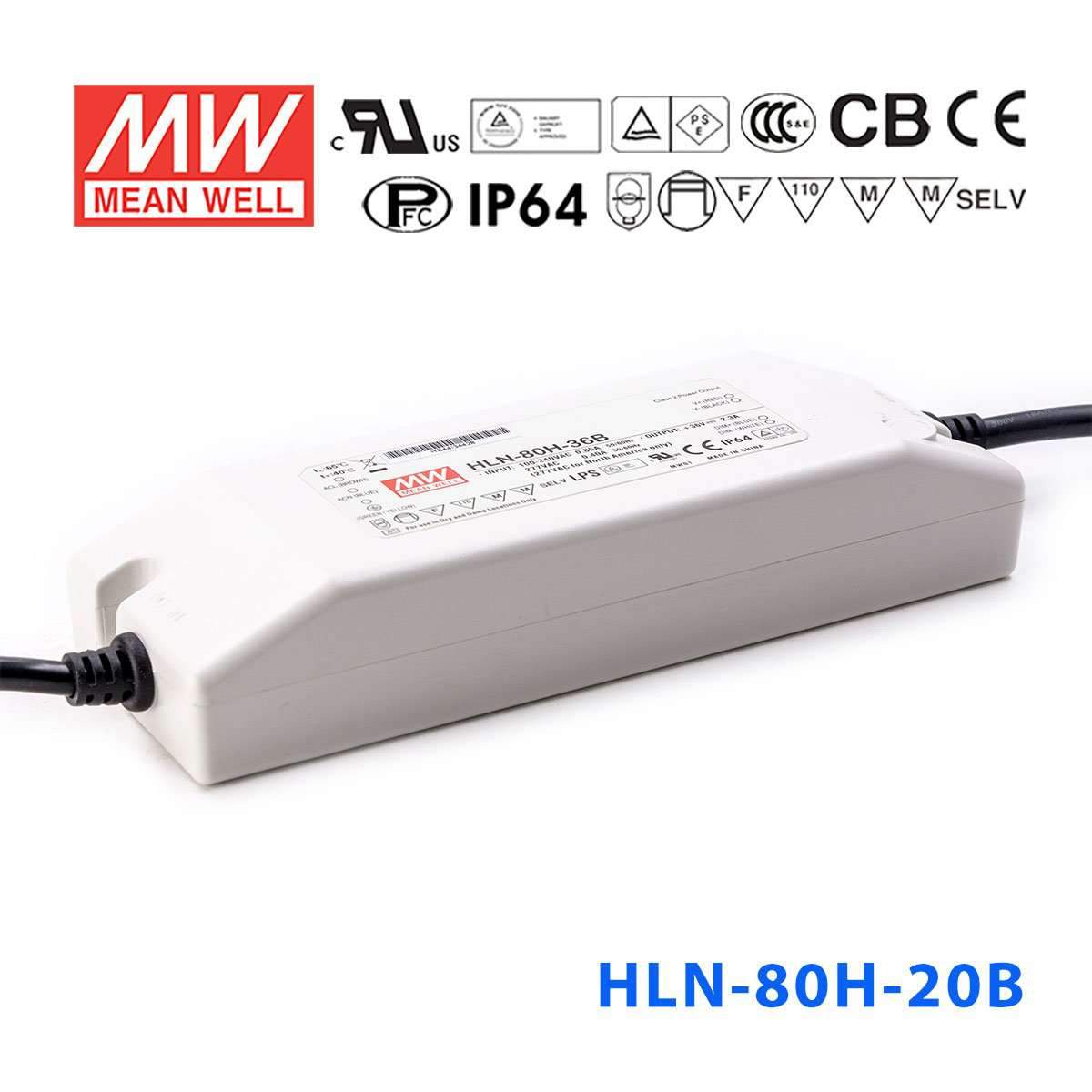

Mean Well HLN-80H-20B Power Supply 80W 20V - IP64, Dimmable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating80 Watt
-
Output Voltage20 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-20B for dimmable 20V sign lighting?
Yes, this 20V B version can be used for sign lighting if the load matches its 20V output and remains within 80W and 4A. The load also needs to operate inside the 12-20V constant current range.
Is this model a fit for 20V LED display or feature lighting?
It can fit 20V display or feature lighting where the connected load requires 20V and does not exceed 80W. The maximum output current is 4A, which is the current ceiling for the application.
Can the HLN-80H-20B be used for exterior illuminated signage?
It is suitable for exterior illuminated signage because the housing is IP64 and the series is specified as suitable for signage applications. The sign load still has to stay within 20V, 4A, and 80W.
How much 20V LED strip can this 80W driver support?
The basic calculation is 80W divided by the strip's watts per meter. Check your strip rated power per meter, and keep the final load within 80W total, 4A output current, and 20V compatibility.
Can this driver go in outdoor or damp conditions?
The IP64 enclosure is intended for use where dust and splashing water are present, so it is more suitable for outdoor or damp locations than an indoor-only unit. Its operating range is -40°C to +50°C, so temperature conditions should remain inside that span.
