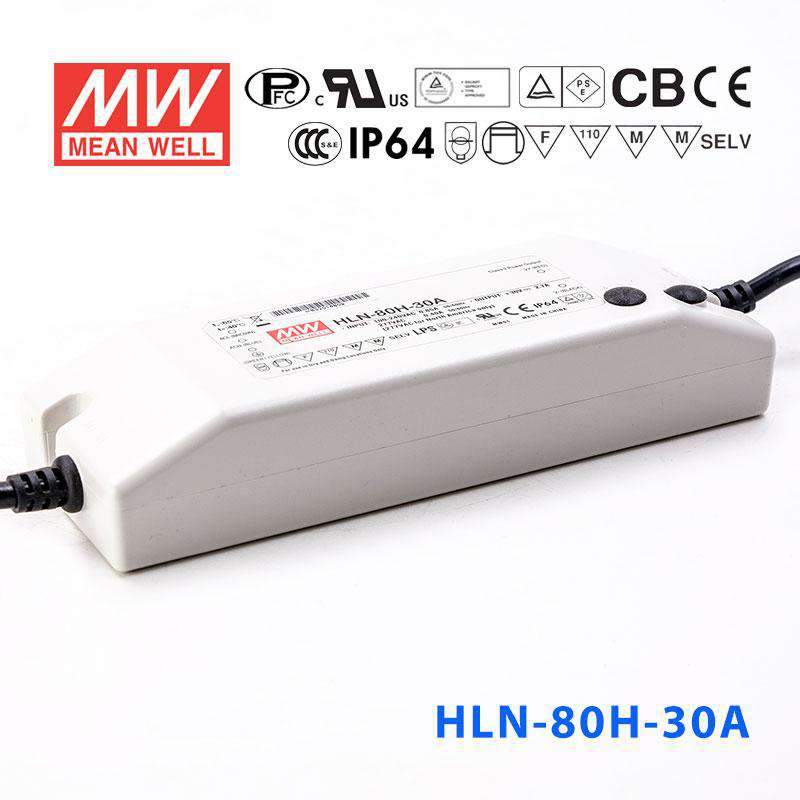

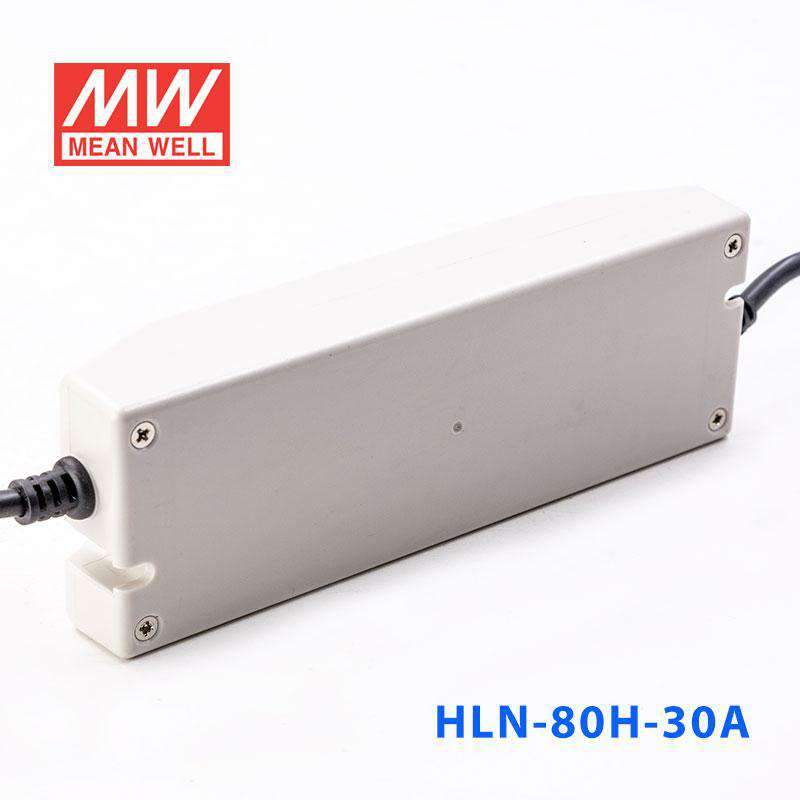

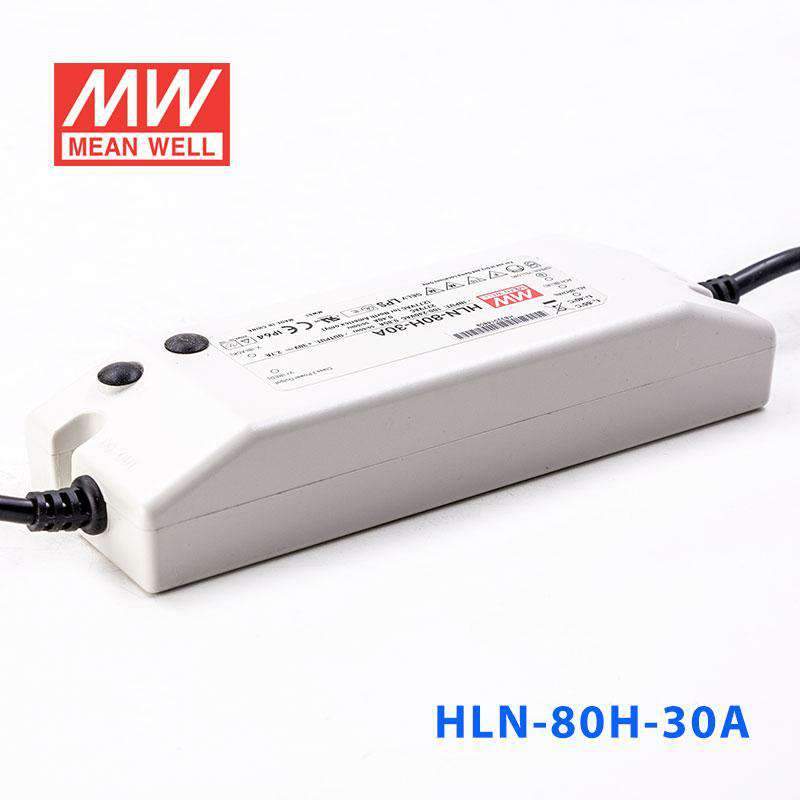

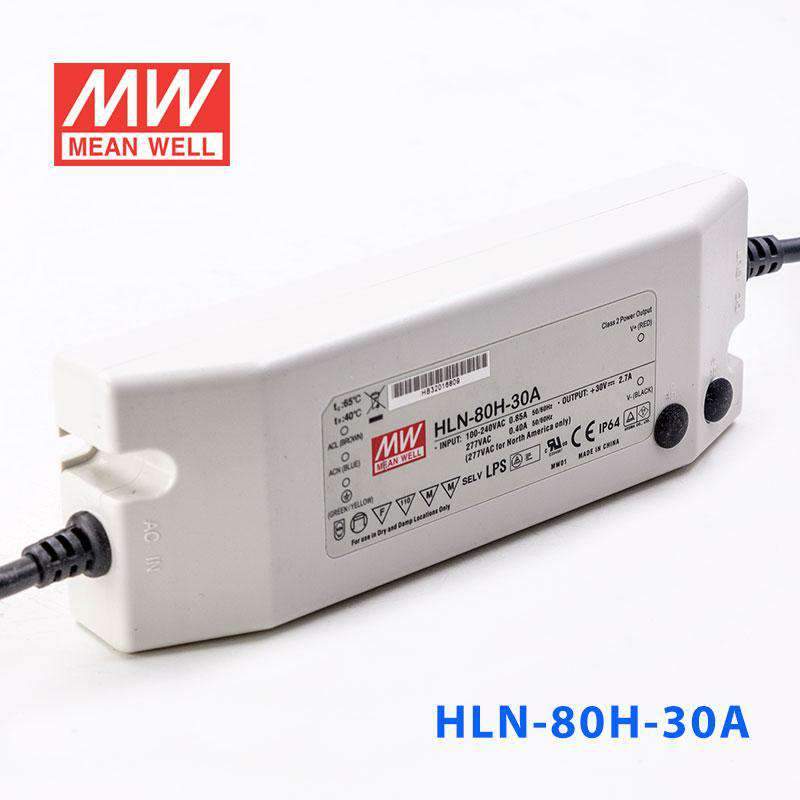

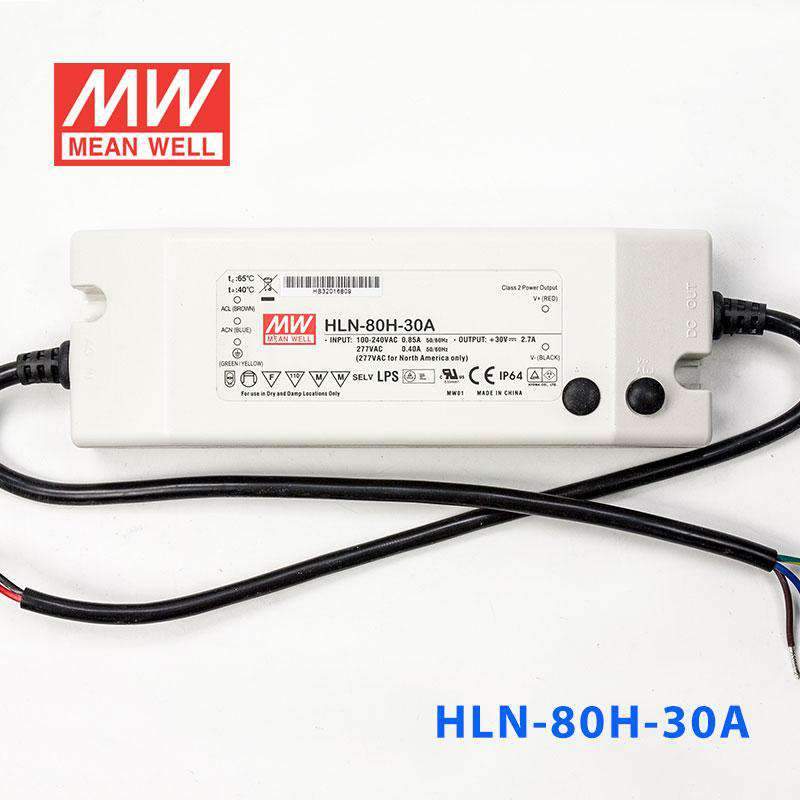

Mean Well HLN-80H-30A Power Supply 80W 30V - IP64, Adjustable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81 Watt
-
Output Voltage30 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-30A for LED signage lighting?
Yes, this driver is suitable for signage applications and delivers constant current at 2.7A with a 30V output. It is a fit for sign lighting loads that operate within the 18-30V constant-current range and stay within the 81W maximum power.
Is this driver suitable for a 30V linear LED lighting fixture?
It can be, if the fixture is designed for constant-current operation at 2.7A and falls inside the 18-30V CC range. The available output power is 81W, so the connected load needs to stay at or below that limit.
Can I use this for outdoor architectural or accent lighting?
It is better suited to outdoor or semi-exposed lighting where the driver may see dust and splashing water, because the enclosure is rated IP64. The operating temperature range is -40°C to +50°C, so it is intended for demanding ambient conditions within that range.
How much LED strip can the HLN-80H-30A support?
The power limit is 81W, so the basic sizing math is 81W divided by your strip's rated watts per meter. For example, the formula is 81 ÷ strip W/m = maximum theoretical length in meters; check your strip rated power per meter and confirm it is a 30V load.
How does the HLN-80H-30A compare with other HLN-80H models?
Within the HLN-80H range, the listed outputs are 12V 60W 5A, 15V 75W 5A, 20V 80W 4A, 24V 81.6W 3.4A, 30V 81W 2.7A, 36V 82.8W 2.3A, 42V 81.9W 1.95A, 48V 81.6W 1.7A, and 54V 81W 1.5A. Each of those output options is available in both A and B versions in the sibling list.
